Fluid Bed Deyer with Spraying System

Supplier: ADINATH INTERNATIONAL
Region: Gujarat, India
Contact: Mr. Rahul Jain
Price: $1000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Application:	Chemicals Processing;	Condition:	New;
Weight:	200KG to 5000KG;	Payment Terms:	L/C,T/T;
Packaging Detail:	Product & Transport Worthy Wooden Packing;	Port:	Nhava Sheva;
Supply Ability:	5 Unit/Units per Month;	Voltage:	380V/220V;
Type:	Fluid Bed Drying Equipment;	Brand Name:	Adinath;
After-sales Service Provided:	Online support;	Place of Origin:	Gujarat India;
Certification:	ISO9001:2015;	Power(W):	3kw;
Warranty:	1 Year;	Drying Process:	Fluidization;
Dimension(LWH):	138012002000;	After-sales Service Provided:	Engineers available to service machinery overseas;

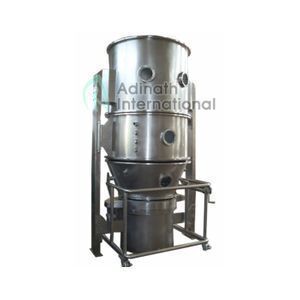

Fluid Bed Dryer

Fluid Bed Dryers are designed to Uniform drying of the material at low temperature. Fluid Bed Dryers are made of Stainless Steel 304/316 with GMP standards. The complete unit is supplied with Suitable motor, blower, filters, filter bag, control panel. Heating system provided as per specific customer requirements.

Salient Features

Models available of capacity ranging from 10/30/60/120/150/200/250/300/500 Kgs., with steam heating/electrical heating & thermal heating facility.
PLC based power panel with touch screen based operating panel for process automation.
Flameproof motor with flameproof operating panel.
Uniformity in drying and reduction in drying time.
Micro filter to prevent any fine dust to pass through the products with inlet air.
An explosion safety flap of adequate capacity at the rear of dryer and an earthling point to prevent static charge in the machine.
Timer provided to set process time.
Temperature indicator cum controller for inlet and outlet air temperature.
HEPA filters can be provided on demand on extra cost to prevent any fine dust to pass through the products.
Digital temperature indicator is provided for inlet & outlet air, in steam/thermic fluid heated model.
Machine is suitable to use in Pharmaceuticals, Dyes & Chemicals, Food Products, Starch Derivatives, Pesticides, Phyto Chemicals and Catalysts.

Shematic Diagram

Equipment with Exhaust System

Powder Bowl with Nylon Wheels

Control Panel with suitable Buttons, Timers, Actuators

Process Operation

Fluid Bed Dryer is designed to introduce the hot air stream at the base of the product container which is filled with the material. Induced draught is created by means of blower and fresh air is sucked in to the unit. The fresh air is heat by means of electrical heaters or steam or thermic fluid heaters. This hot air stream expands the bed of material at certain velocity & creating turbulence in the product. The phenomenon is known as fluidisation and offer conditions which are almost ideal for drying. Fluidisation produces full agitation of solid particles and since each particle gets surrounded by hot air, heat transfer is extremely high and uniform. The product is dried fast without appreciable loss of heat. Filter bags prevent particles escaping from the dryer.

Control System

Manual Control:

Inlet, Outlet, Bed (Optional) Temperature, Heating & Cooling Timer, Filter Bag Shaking On & Off Timer, Damper On & Off Timer.

Auto Control:

PLC based with touch Screen and password level to feed the parameter of process for Heating/Cooling & Bag Shaking Timing etc.

Pre stored process parameter will help to achieve consistent product quality.

MMI (Touch Screen) for visualization of machine of specific process condition and data.

PLC Indicates:

Visualization of Machine process condition & date.

Alarm Signal

Fault Message

SCADA Package (optional)

Drying Time

The drying time depends on various factors such as physical properties of material, moisture content, type of moisture (free or inherent of water or crystallization) drying temperature etc. For example, the crystalline product can be dried faster than amorphous product containing same percentage of moisture at same temperature. Pharmaceutical granules & powder having approximately 20% to 25% moisture can be easily dried. Fluid Bed Dryers

are normally supplied either with Electric Heating or with steam heating. However hot water / hot oil circulation system can also be installed.

Documentation

A complete documentation support in terms of DQ / IQ / OQ / FAT / SAT.

We provide necessary support for installation commissioning and start-up of the machine at site.

Specification

Technical Specification

Capacity in Liters	35	100	215	415	500	1660
Motor H. P.	3	5	10	15	20	50
Heating Capacity in k ca/hr	3650	11200	21600	75000	75000	-
Steam Consumption kg/hr @ 3 kg/cm²	10	30	60	120	120	400
Length approx. in mm	750	1175	1435	1725	1775	2550
Width approx. in mm	750	950	1400	1475	1550	2250
Height approx. in mm	1900	2650	2975	3350	4325	4950
Product Container Height approx. in mm	550	825	1000	1075	1150	1575
