6025 12v fan 60mm 60x60x25mm brushless dc fan
- 0.40 >=200 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Voltage: | 12V/24V/48V; | Brand Name: | COOLING; |
| Warranty: | 1 Year; | Bearing Type: | Sleeve/Ball Bearing; |
| Certification: | CE,ROHS; | Payment Terms: | T/T,Western Union,MoneyGram; |
| Current: | 0.17A; | Noise: | 34.3dB; |
| Port: | SHENZHEN; | Size: | 60x60x25mm; |
| Power: | 2.04W; | Packaging Detail: | Carton size :41*26*37 Quantity:200 pieces/Carton GW:13.5 KG NW:12.5KG; |
| Type: | Axial Flow Fan; | Supply Ability: | 40000 Piece/Pieces per Day; |
| Place of Origin: | Guangdong China; | Blade Material: | Plastic; |
| After-sales Service Provided: | Online support; | Mounting: | Free Standing; |
6025 12v fan 60mm 60x60x25mm brushless dc fan
Product Description
Axial Flow Fans
60x60x25mm
| Model | CLD6025 |  |
| Product Name | axial flow fans | |
| Size | 60x60x25mm | |
| Voltage | 12V 24V 48V | |
| Current | 0.17A | |
| Power | 2.04W | |
| Speed | 4000RPM | |
| Noise | 34.3dB | |

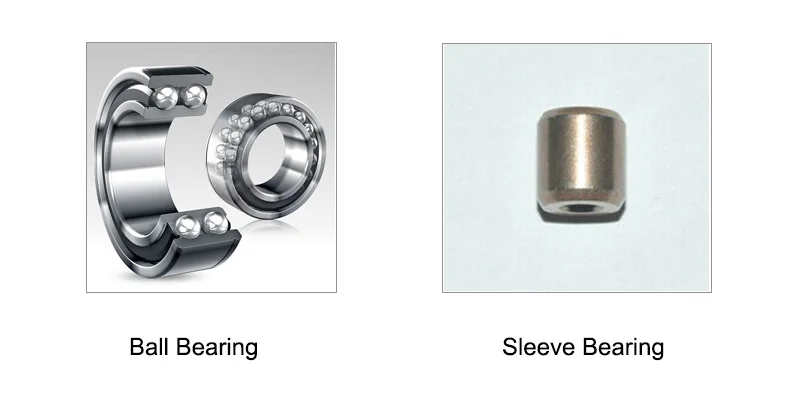

| Bearing Type | Sleeve/Ball Bearing | |
| Material | Plastic |
Specification
+
| Model | Voltage | Current | Power | Speed | Air Flow | Air Pressure | Noise |
| Part No. | VDC | Amp | Watt | RPM | CFM | mmH2O | dB-A |
| CLD6025L12 | 12V | 0.1 | 1.2 | 3000 | 15.7 | 2.13 | 27.2 |
| CLD6025LM12 | 12V | 0.14 | 1.68 | 3500 | 18.9 | 2.76 | 30.7 |
| CLD6025M12 | 12V | 0.17 | 2.04 | 4000 | 21.5 | 3.64 | 34.3 |
| CLD6025H12 | 12V | 0.2 | 2.4 | 4500 | 24.3 | 4.63 | 37.7 |
| CLD6025LH12 | 12V | 0.23 | 2.76 | 5000 | 26.9 | 5.56 | 40.2 |
| CLD6025L24 | 24V | 0.05 | 1.2 | 3000 | 15.7 | 2.13 | 27.2 |
| CLD6025LM24 | 24V | 0.07 | 1.68 | 3500 | 18.9 | 2.76 | 30.7 |
| CLD6025M24 | 24V | 0.085 | 2.04 | 4000 | 21.5 | 3.64 | 34.3 |
| CLD6025H24 | 24V | 0.1 | 2.4 | 4500 | 24.3 | 4.63 | 37.7 |
| CLD6025LH24 | 24V | 0.115 | 2.76 | 5000 | 26.9 | 5.56 | 40.2 |
| CLD6025L48 | 48V | 0.025 | 1.2 | 3000 | 15.7 | 2.13 | 27.2 |
| CLD6025LM48 | 48V | 0.035 | 1.68 | 3500 | 18.9 | 2.76 | 30.7 |
| CLD6025M48 | 48V | 0.04 | 2.04 | 4000 | 21.5 | 3.64 | 34.3 |
| CLD6025H48 | 48V | 0.05 | 2.4 | 4500 | 24.3 | 4.63 | 37.7 |
| CLD6025LH48 | 48V | 0.06 | 2.76 | 5000 | 26.9 | 5.56 | 40.2 |
Related Products
+
| 15*15*4mm | 17*17*8mm | 18*18*4mm | 20*20*6mm | 20*20*10mm | 25*25*7mm |
| 25*25*10mm | 30*30*7mm | 30*30*10mm | 35*35*10mm | 40*40*7mm | 40*40*10mm |
| 40*40*20mm | 40*40*28mm | 40*40*56mm | 45*45*10mm | 50*50*10mm | 50*50*15mm |
| 50*50*20mm | 60*60*10mm | 60*60*15mm | 60*60*20mm | 60*60*25mm | 60*60*38mm |
| 70*70*15mm | 70*70*20mm | 70*70*25mm | 80*80*10mm | 80*80*15mm | 80*80*20mm |
| 80*80*25mm | 80*80*32mm | 80*80*38mm | 92*92*25mm | 92*92*38mm | 120*120*25mm |
| 120*120*32mm | 120*120*38mm | 140*140*20mm | 140*140*25mm | 150*150*50mm | 172*150*51mm |
| 180*180*60mm | 200*200*60mm | 220*60mm | 254*89mm |

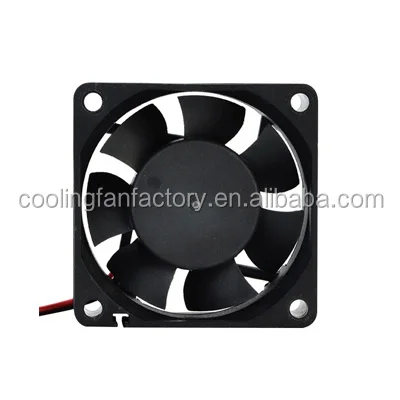

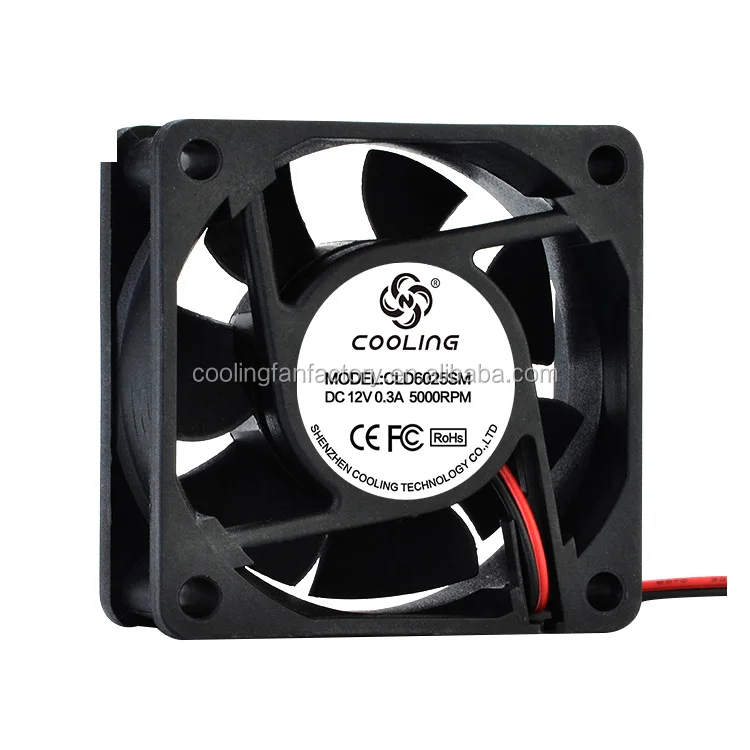

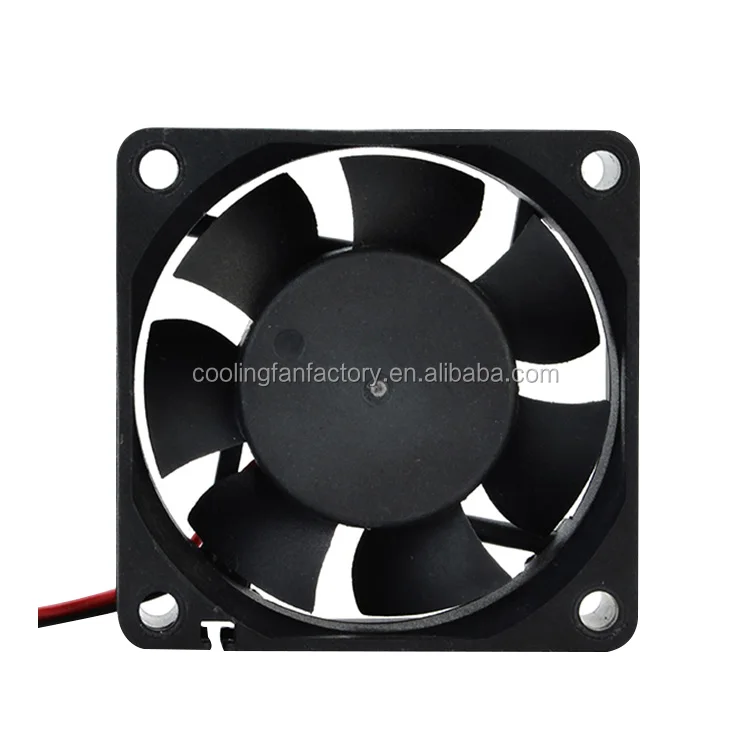

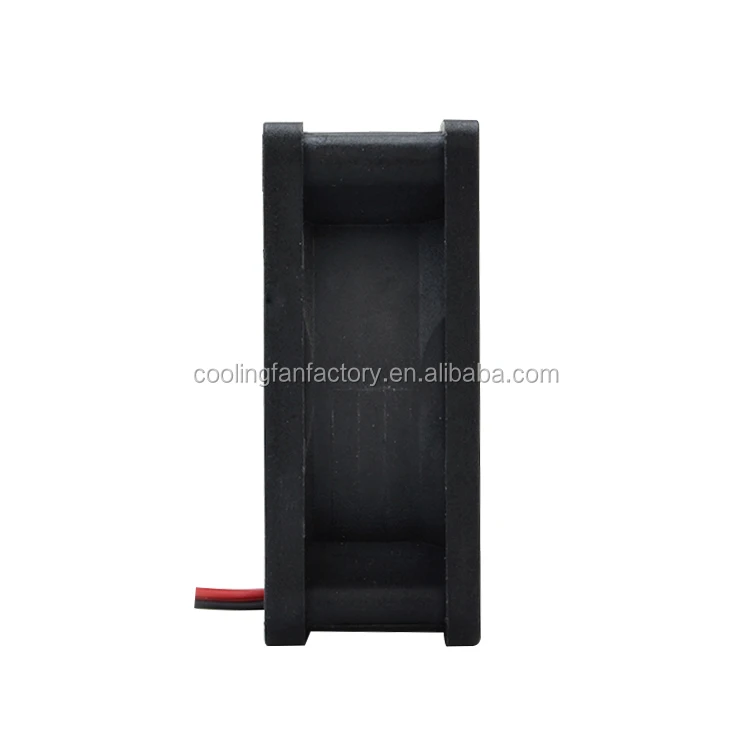

Product Showcase

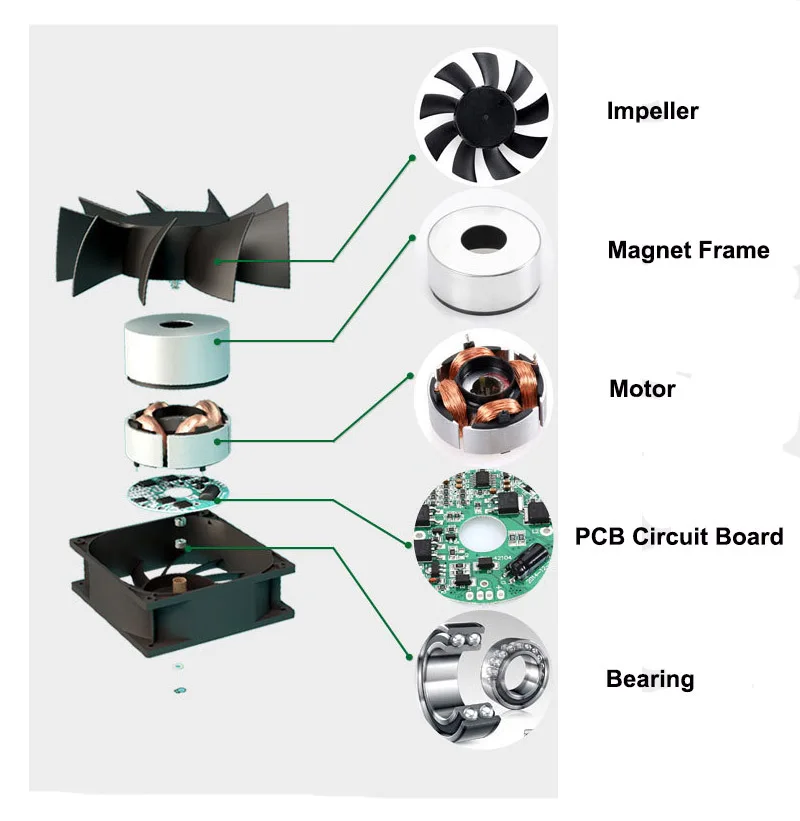

Product Structure
Company Information
Certificates
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
