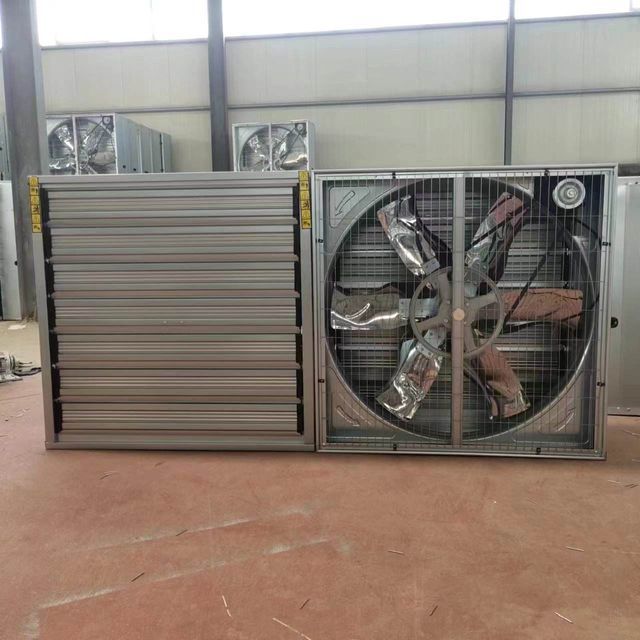

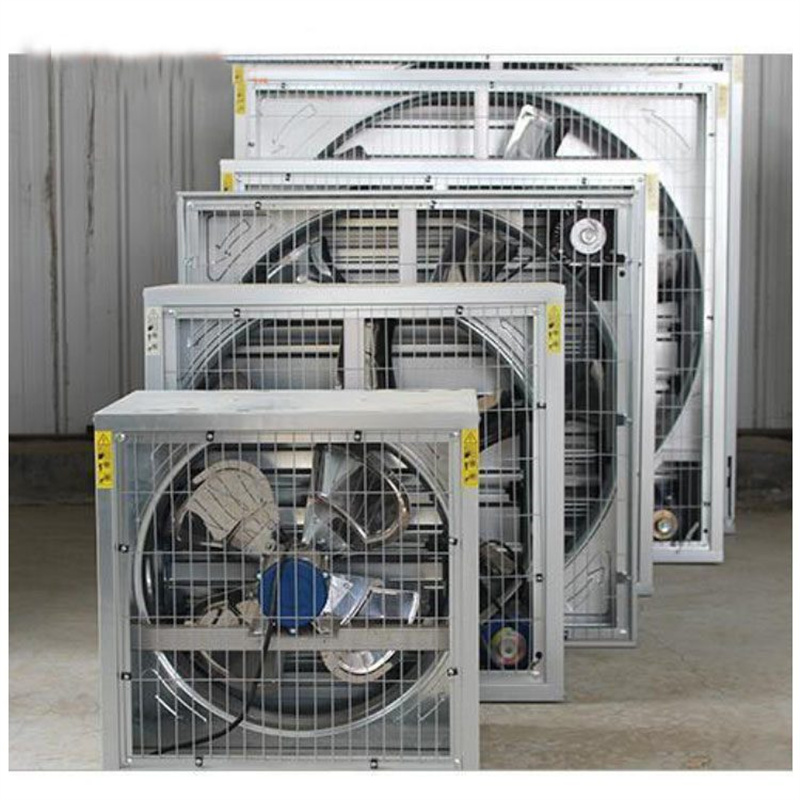

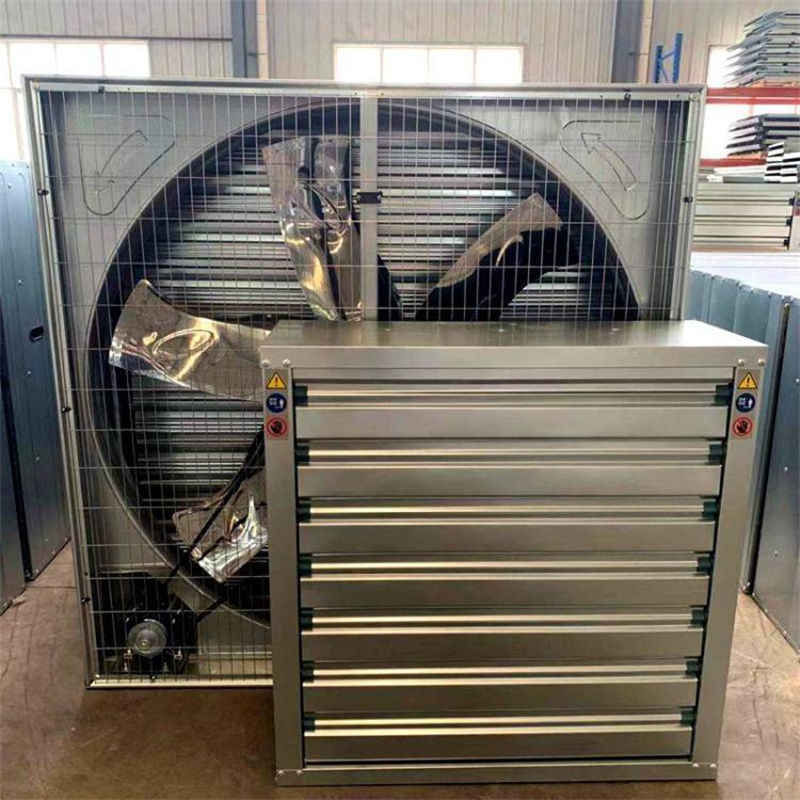

50" Cowshed\/dairy Farm\/chicken\/pig Houses Greenhouse Cooling Exhaust Fan

Click here to contact
Product details
Current type:air conditionertype:axial fan, axial fan
Packaging Details:With full cover box, tray, or according to customer requirementsMaterial:stainless steel, galvanized
Customization support:OEM productionPackage preview:
Frame material:275g/m² galvanized sheetpayment terms:L/C, D/P, D/P, T/T, MoneyGram
After-sales service provided:Video Technical Supportmodel:JWS, JW
Key words:industrial exhaust fanwork place:wall fan
MOQ:5 setsproduct name:exhaust fan
port:Tianjin. Qingdao. ShanghaiSupply capacity:3,000,000 sets per month
Origin:Shandong ChinaBlade material:Stainless steel
Install:wall fanusage:industrial greenhouse
brand:DustInstall:Window/Wall Mount
Warranty:3 yearsApplicable industries:Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Retail Stores, Printing Shops, Construction Works, Others
Motor speed(r/min):≥1400Voltage:120V, 380V, customized
Product Description
The negative pressure fan uses the principle of air convection and negative pressure ventilation to cool down. It naturally inhales fresh air from the installation location - the door or window, and quickly forces the indoor hot air out of the room to improve poor ventilation.
Product parameters
push-pull fan
Specifications
Blade diameter (mm)
Frequency (Hz)
Motor speed r/min
Air volume m³/h
Noise (decibel)
input power w
Rated voltage (v)
aspect
Govet
JWS-800
710
50
≥1400
22000
≤64
370
220/380
800*800*450
JWS-1000
910
50
≥1400
32000
≤64
750
220/380
1000*1000*450
JWS-1100
1000
50
≥1400
40000
≤64
750
220/380
1100*1100*450
JWS-1380
1380
50
≥1400
45000
≤64
1100
220/380
1380*1380*450
JWS-1530
1400
50
≥1400
52800
≤64
1500
220/380
1530*1530*450

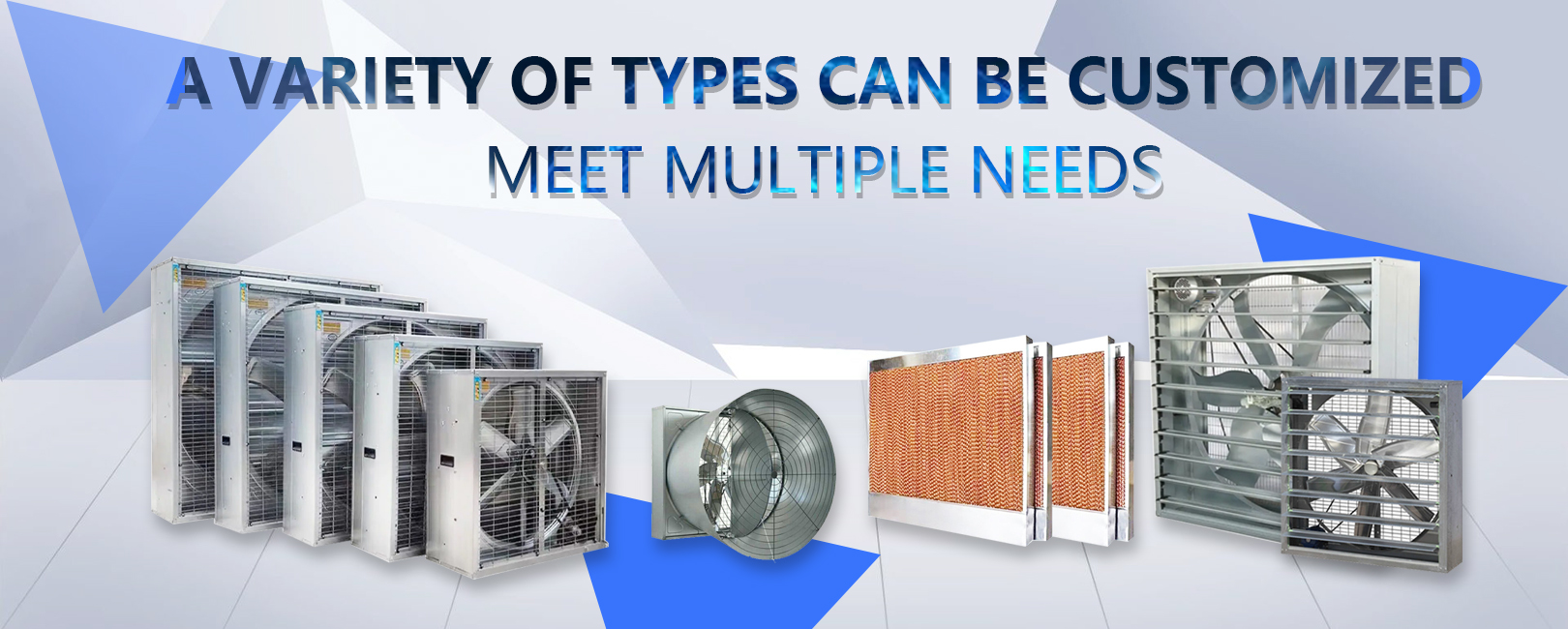

Other sizes can be customized. Please consult customer service for specific specifications

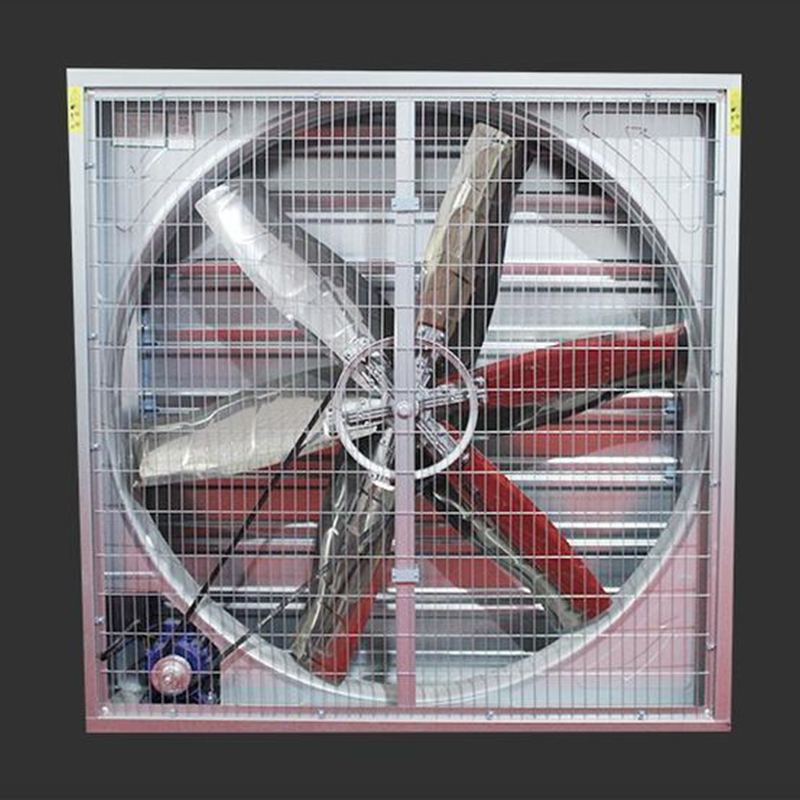

Heavy hammer fan
Specifications
Blade diameter (mm)
Blade speed(r/min)
Motor speed r/min
Air volume m³/h
Noise (decibel)
input power w
Rated voltage (v)
aspect
Height Width Height (mm)
JWS-800
710
650
710
18000
≤70
370
220/380
800*800*370
JWS-900
750
630
750
22000
≤66
550
900*900*400
JWS-1000
910
610
900
23000
≤70
550
220/380
1000*1000*400
JWS-1100
1000
600
1000
32500
≤70
750
220/380
1100*1100*400
JWS-1220
1100
460
1100
35000
≤73
1100
1220*1220*400
JWS-1380
1250
439
1250
41000
≤56
1100
220/380
1380*1380*400
JWS-1530
1400
325
1400
50800
≤60
1500
220/380
1530*1530*400
Other sizes can be customized. Please consult customer service for specific specifications

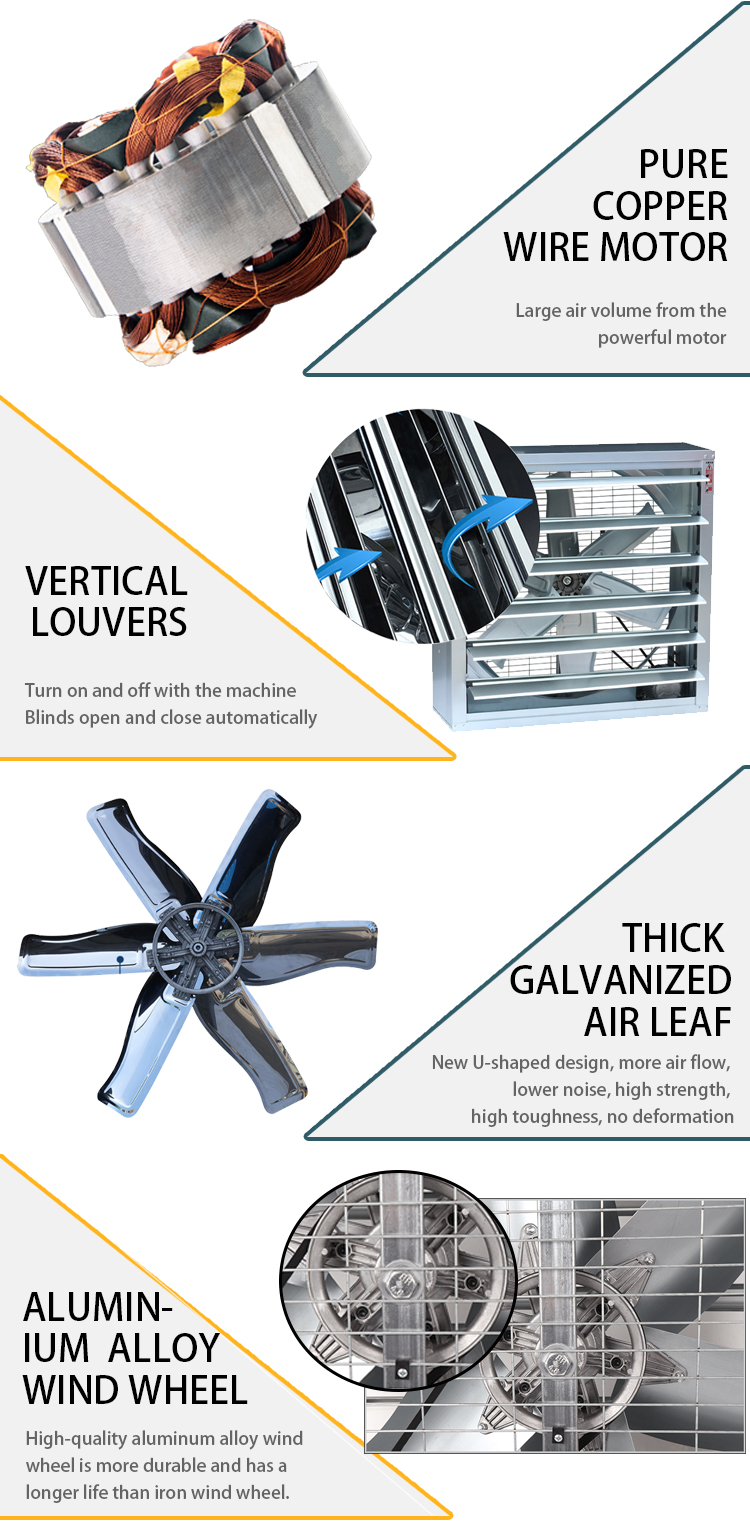

main feature1) The hot-dip galvanized sheet adopts 275g/㎡ galvanized layer, which does not rust. 2) 95% of the parts are self-produced, reducing processing costs, sharing profits with customers, ensuring quality, and the highest cost performance in the world. 3) Complete CNC production line, 100% assembly hole accuracy, easy to assemble, and guaranteed quality. 4) Wall-mounted fan, easy installation and maintenance 5) Belt drive, large air volume

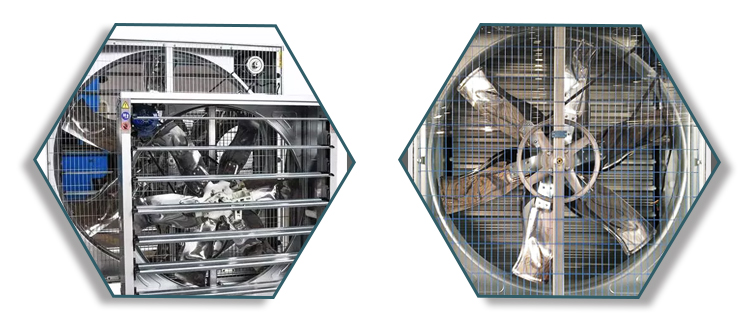

Product Details

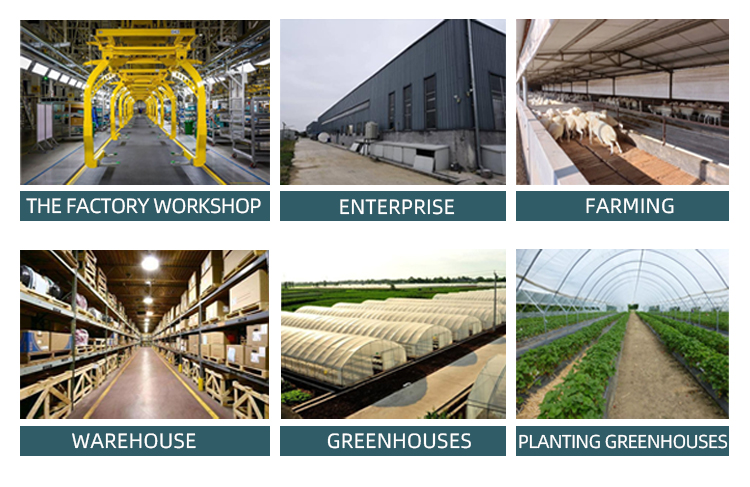

Application field
Product Application Exhaust fans are widely used in agricultural and industrial ventilation and cooling. Mainly used in animal husbandry, poultry houses, livestock breeding, greenhouses, factory workshops, textiles, etc., the selection of panels and accessories, strict quality control, and high-quality testing requirements make the fans produced by Da Shepherd have the following characteristics: high total pressure , large air volume, low noise, low energy consumption, stable operation, long life and so on.
