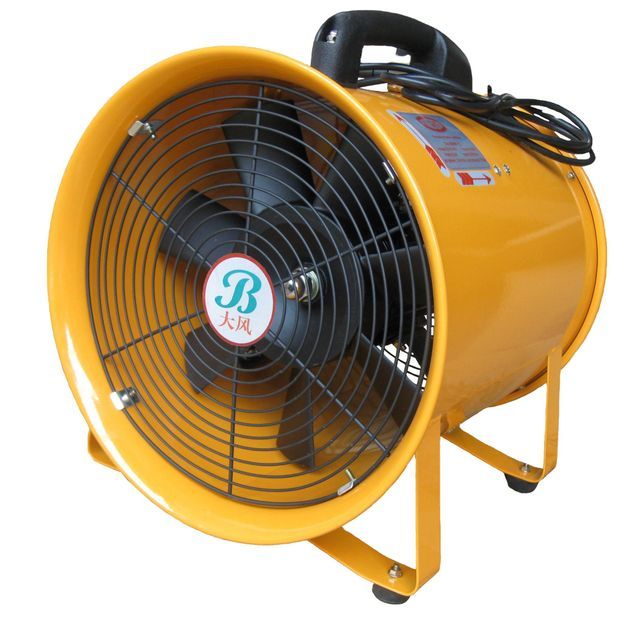

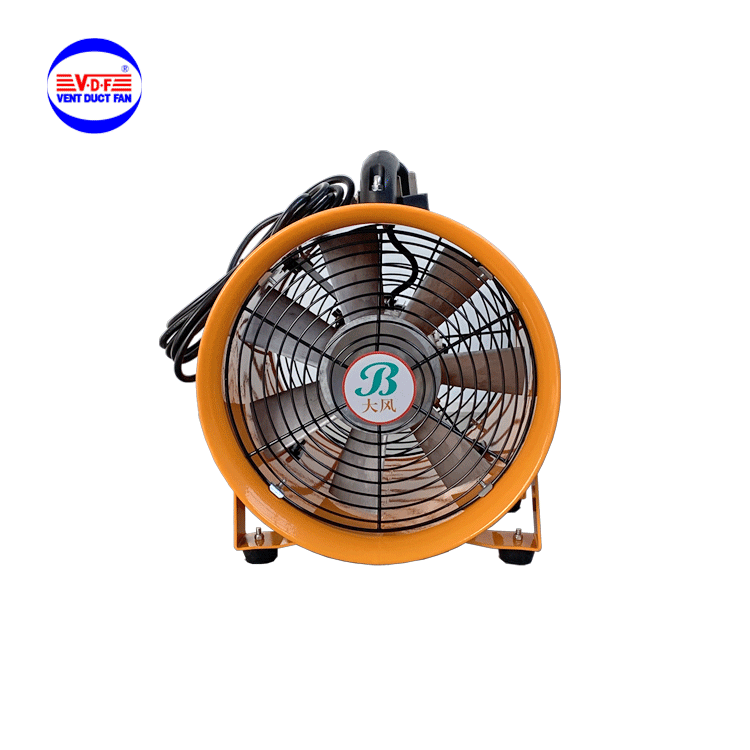

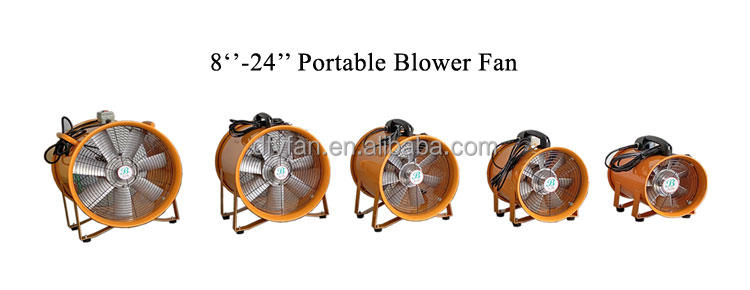

12" 300mm 220V 50/60HZ AC Fan Industrial Portable Axial Flow Exhaust Fan

Click here to contact

Product details

diameter:	12"(300mm) for industrial portable ventilation fans	Install:	duct fan
Supply capacity:	3000 pieces per month	Origin:	Guangdong, China
Applicable industries:	Building materials stores, manufacturing plants, machinery repair shops, energy and mining	Current type:	air conditioner
Blade material:	other	Voltage:	220V
Package:	1PC/CTN, neutral carton packing	payment terms:	Western Union, L/C, D/P, D/A, T/T, MoneyGram
Customization support:	OEM production	type:	Axial Fan

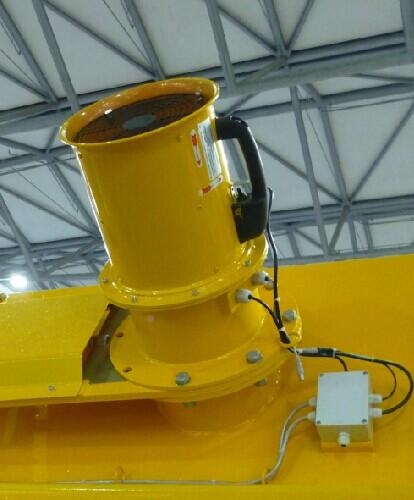

Package preview:		application:	Cable maintenance, ship repair, container storage tanks and chemical plants
Warranty:	1 year	frequency:	50/60HZ Industrial Portable Ventilation Fan
plug:	US plug, other plugs available	model:	SHT-30
Packaging Details:	1PC/CTN Portable Blower	Material:	Stainless steel
MOQ:	1PC FOR Industrial Portable Ventilation Fan	color:	yellow, red, orange
brand:	VDF	After-sales service provided:	online support

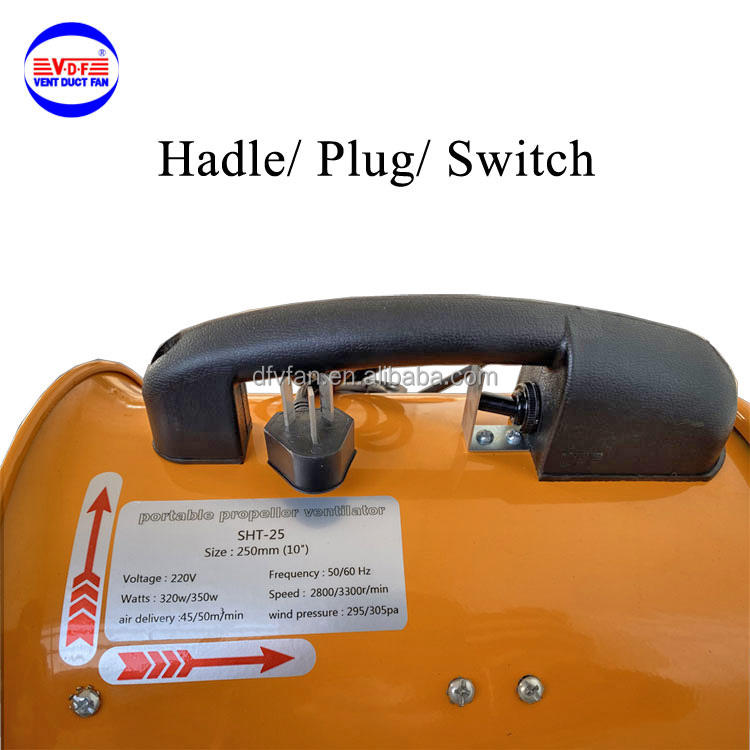

change:	press the button or press the bottom	product name:	Industrial Portable Ventilation Fan
port:	Guangzhou

Product overview

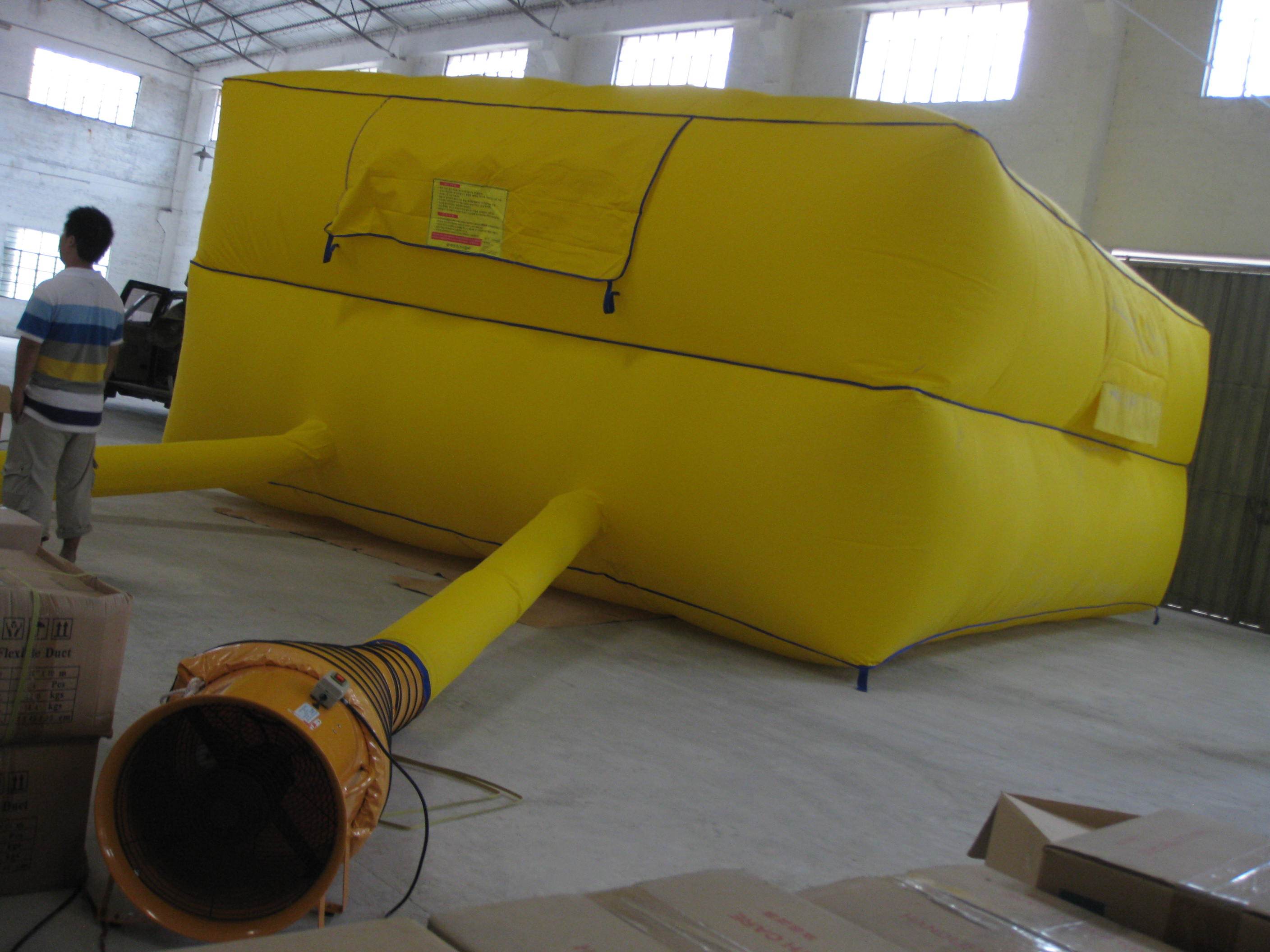

This fan is mainly used for ventilation, it can be used to blow fresh air in, and it can also be used to expel bad air.

It is a 2-way industrial axial fan.

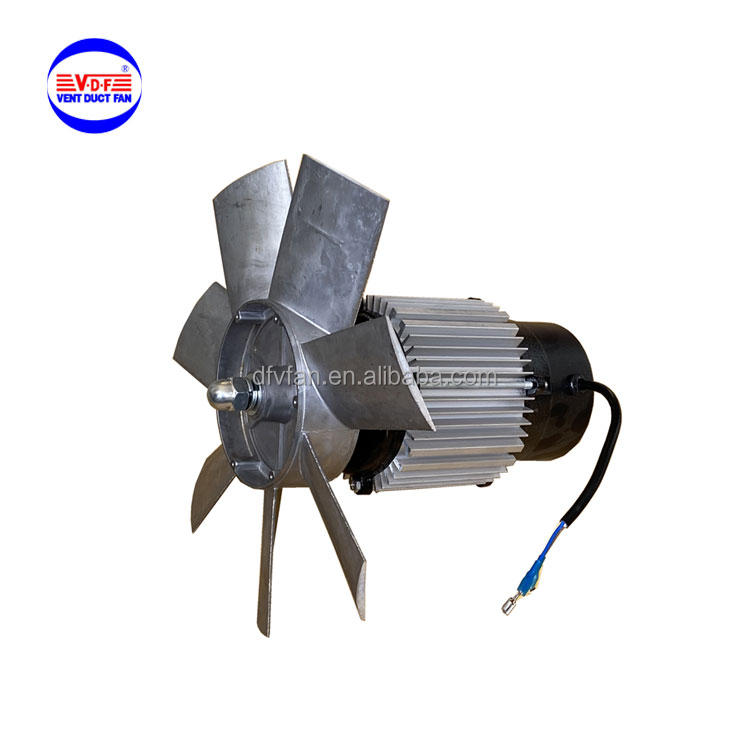

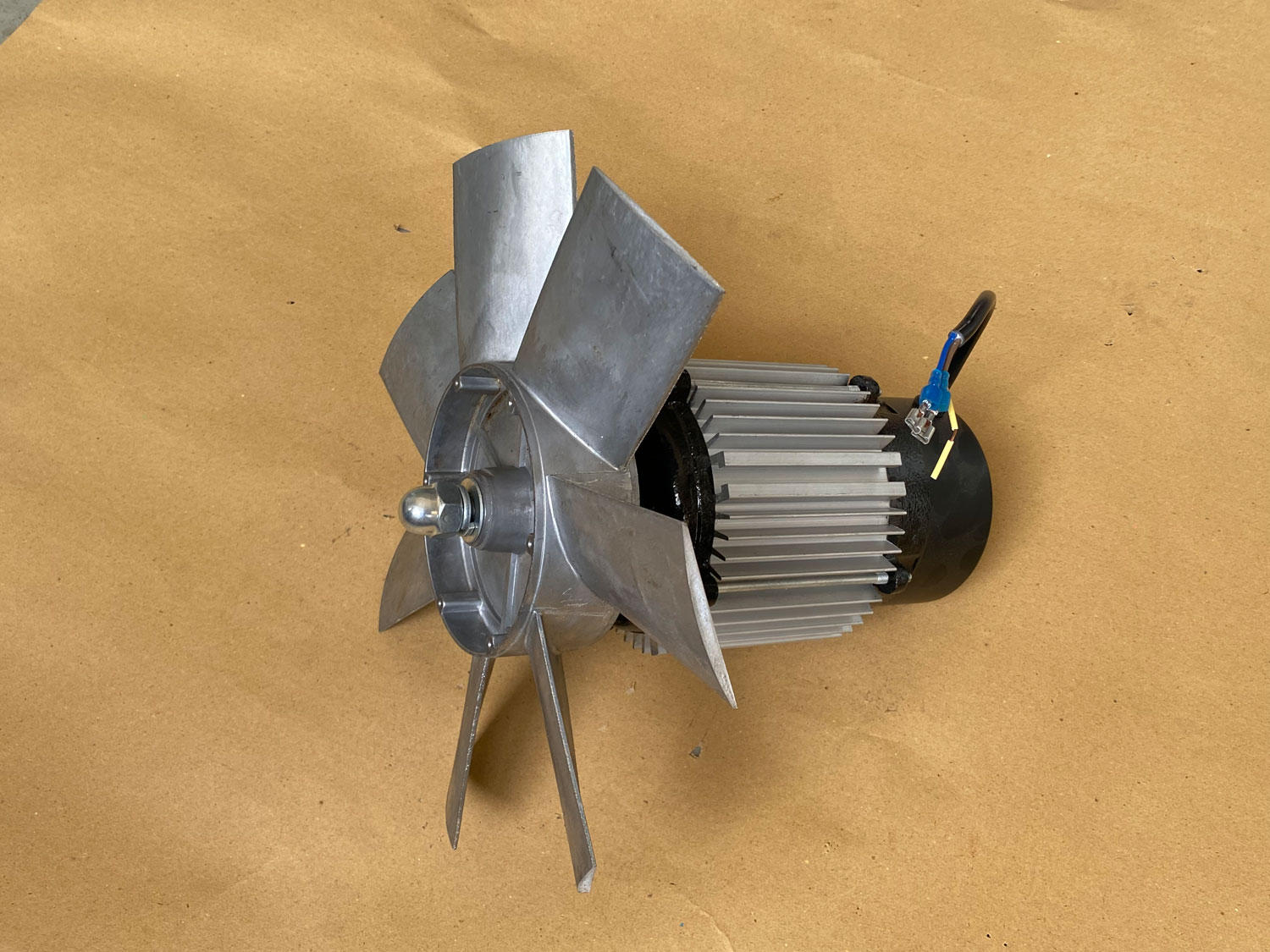

Aluminum blades bring large air volume, and pure copper coil motor ensures long life.

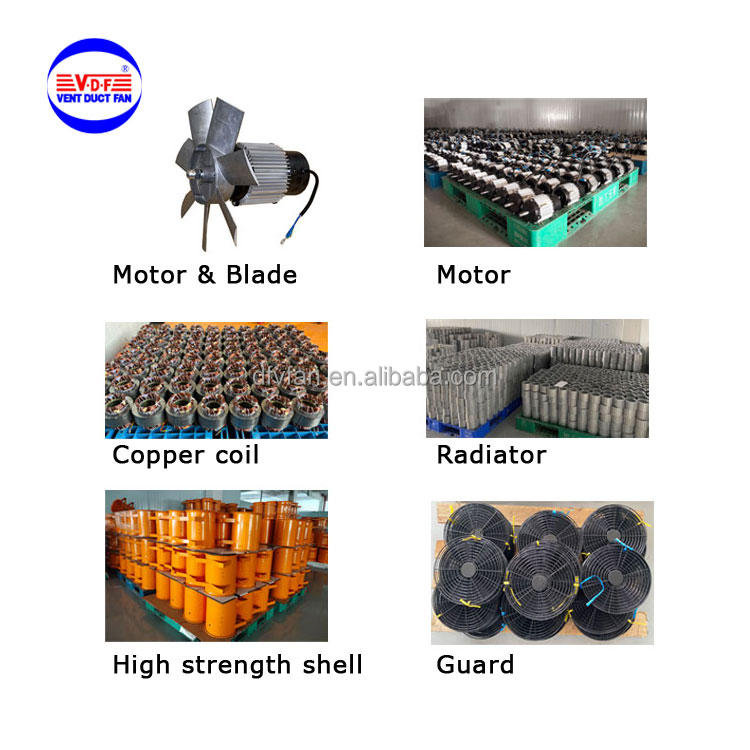

List of functions

Heavy Duty Industrial Fans

Axial Fan

high strengthsteel case

castingaluminum blade

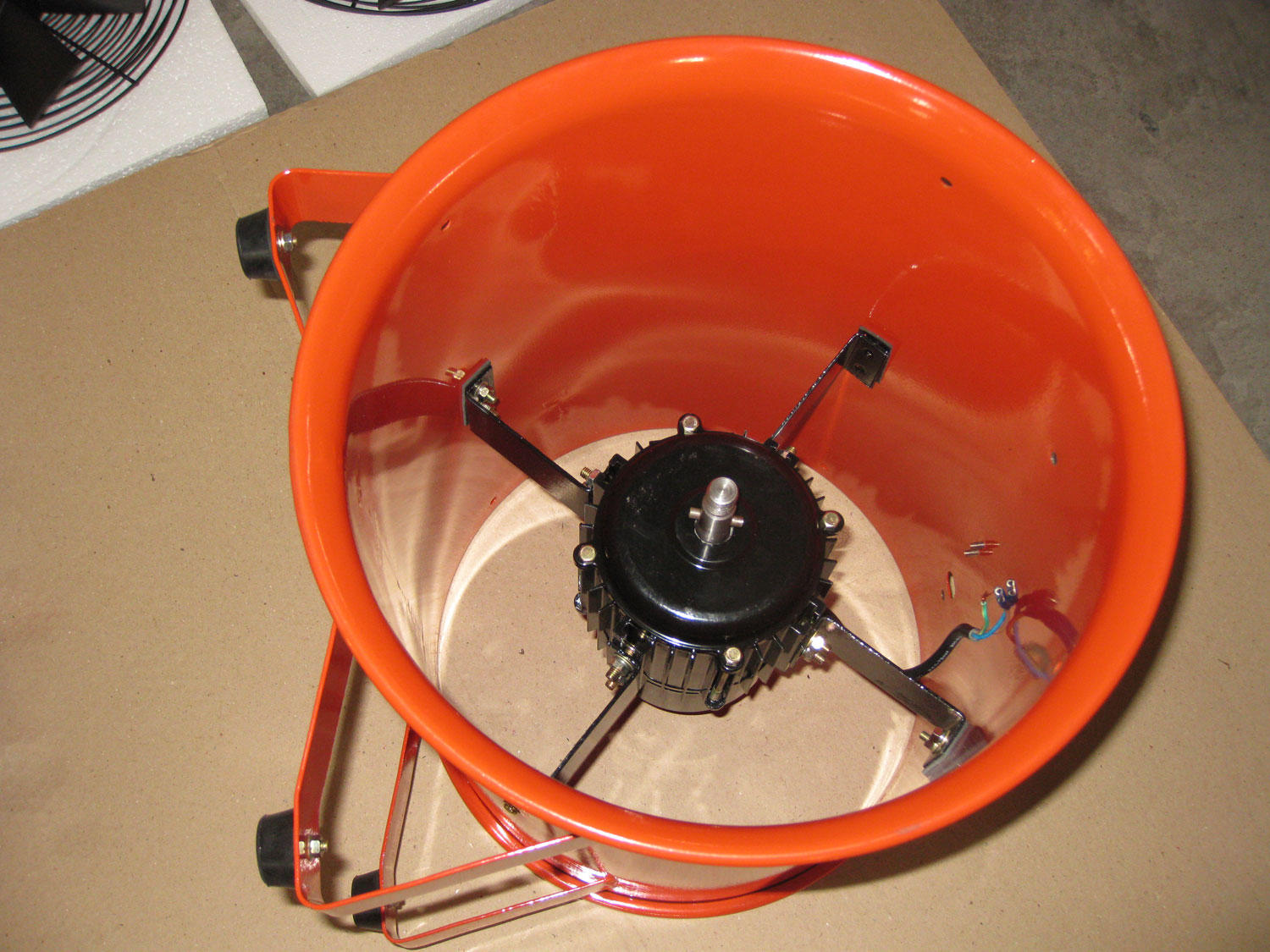

long lastingPure copper coil motor

castingAluminum motor radiator

Airblow/exhaust

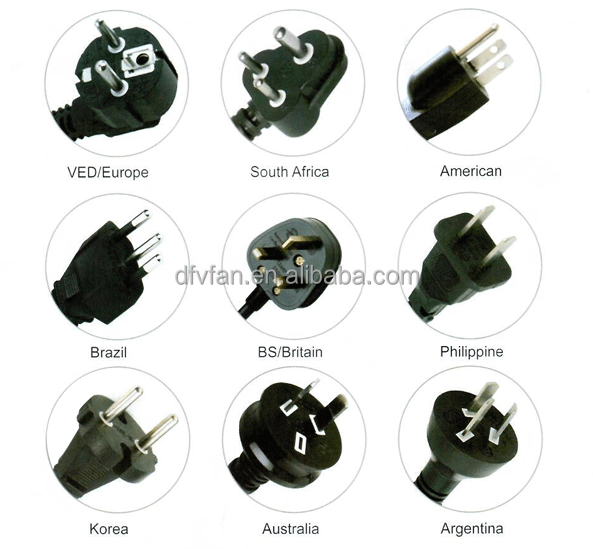

Your market plug is available

Changchai high power engine

Imported Eaton regulating valve

Shimadzu hydraulic motor

product specification

No.	thing	size	V. & frequency.	strength ( )	speed (revolutions per minute)	capacity ( rice³/minute)	pressure (Pa)
1	SHT-20	200mm	220V 50Hz/ 110V 60Hz	230/ 250	2800/ 3300	28 / 32	245 / 285

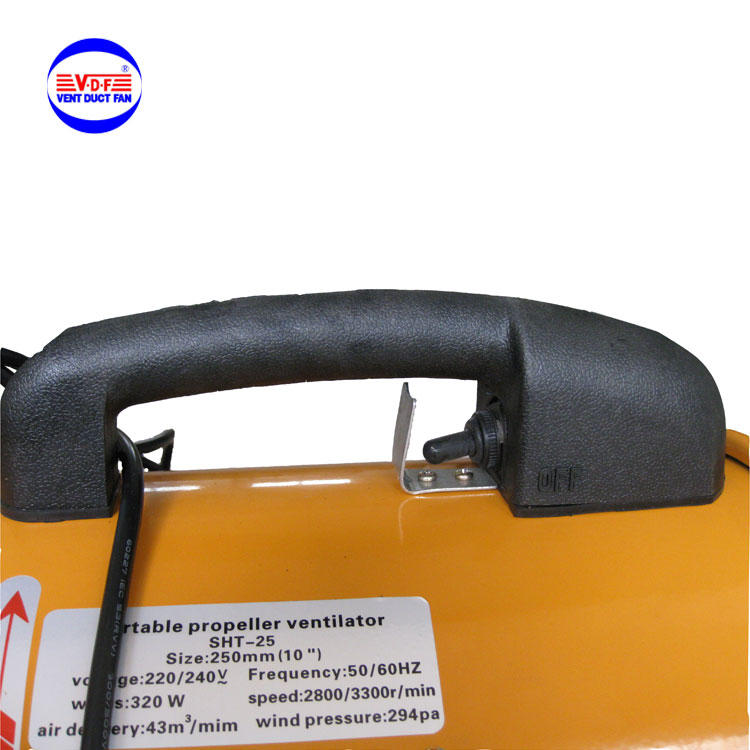

2	SHT-25	250mm	220V/ 50Hz/ 110V 60Hz	320/ 350	2800/ 3300	45 / 50	295 / 305
3	SHT-30	300mm	220V/ 50Hz/ 110V 60Hz	520/ 550	2800/ 3300	65 / 81	375/ 412
4	SHT-35	350mm	220V/ 50Hz/ 110V 60Hz	750/ 900	2800/ 3300	82 / 87	598 / 673
5	SHT-40	400mm	220V/ 50Hz/ 110V 60Hz	1100/ 1200	2800/ 3300	96 / 270	700/1000
6	SHT-45	450mm	220V/ 50Hz/ 110V 60Hz	1500/ 1700	2800/ 3300	200/ 330	972/ 1170
7	SHT-50	500mm	220V/ 50Hz/ 110V 60Hz	2200/ 2500	2800/ 3300	330/ 350	1050/ 1280
8	SHT-60	600mm	220V/ 50Hz/ 110V 60Hz	2200/ 2400	1400/ 1600	300/ 330	1100/ 1185
