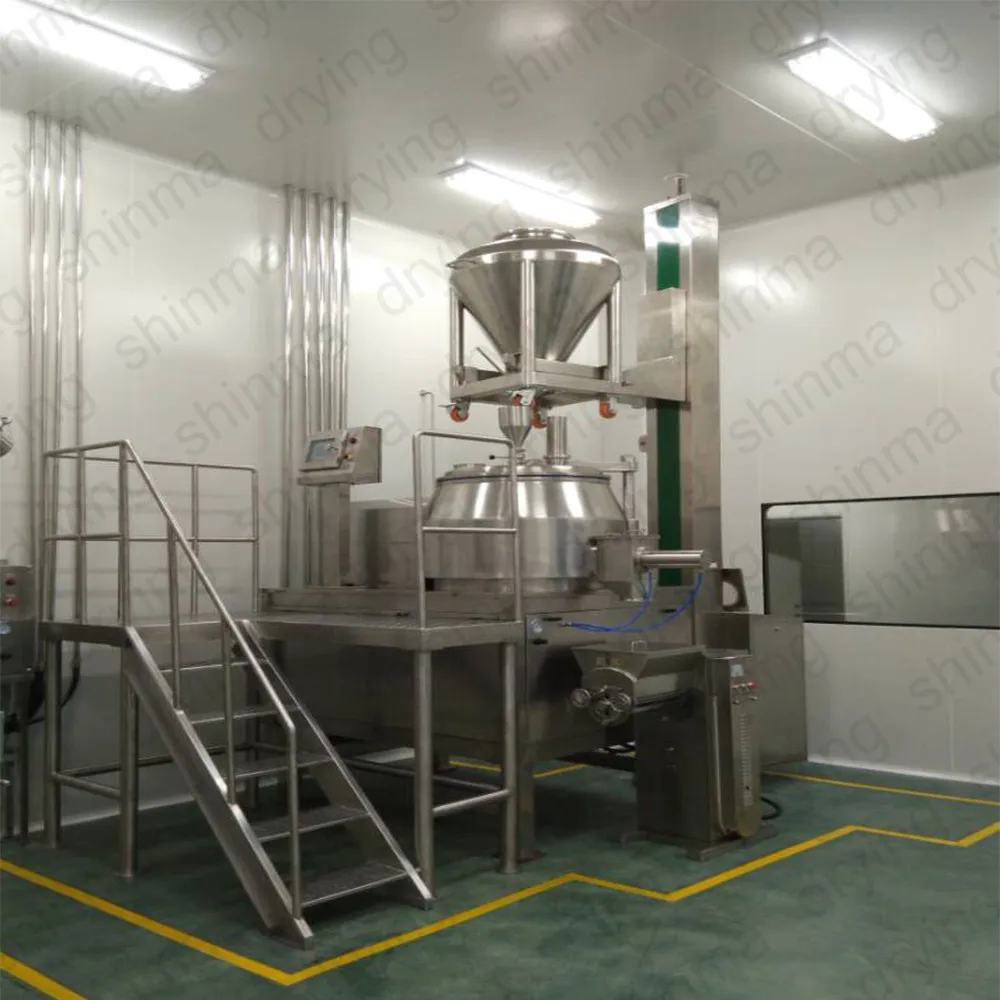

GHL-300 High shear mixing granulator

Supplier: Changzhou Shinma Drying Engineering Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jack Xie
Price: $7000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	ISO9001, ISO14001,CE;	Installation:	Engineer's Guide;
Place of Origin:	Jiangsu China;	Power(W):	13KW;
Volume:	250L;	Cutting power:	4.5kw;
Mixing power:	13kw;	Payment Terms:	L/C,T/T;
Port:	Shanghai;	Product Type:	food;
Function:	granulating;	Condition:	New;
Supply Ability:	60 Set/Sets per Year;	Machine Type:	Granulator;
Capacity:	80kg;	Weight:	1500KG;
Brand Name:	SHINMA;	Packaging Detail:	as per customer's requirement;
Voltage:	380V/220V;	After-sales Service Provided:	Engineers available to service machinery overseas;
Warranty:	1 year;	Certificate:	ISO9001,ISO14001,CE;

General applications of GHL-300 High shear mixing granulator

GHL high speed mixing granulator is a high efficiency equipment that can mix different powder materials and ·granulate granule in one procedure. It is wide used for pharmaceutical industry, foodstuff industry and chemical industry, etc.

Features of GHL-300 High shear mixing granulator

The machine adopts horizontal barrel(cone) structure. Its structure is reasonable.
The inner surface of equipment has no dead corner. It works at sealed state and conforms to the requirements of GMP.
Short granulating time, high efficiency and energy saving
The character of granule is uniform and the fluidization of granule is good. It provides ideal granule material for tablet pressing procedure.
Compare with traditional process, it can reduce 25% of binder and shorten drying time too.
Each batch needs 2 minutes to dry mixing and 1 ~ 4 minutes to granulating. Compared with traditional process, its efficiency can raise 4 ~ 5 times. Whole operation has strict safe protective measures.

Technical data of GHL-300 High shear mixing granulator

Item		model
Name	unit	10	50	150	200	250	300	400	600
Volume	L	10	50	150	200	250	300	400	600
Capacity	kg/batch	3	15	50	60	80	100	135	200
Mixing speed	r.p.m	300/600	200/400	180/270	180/270	180/270	140/220	106/155	80/120
Mixing power	kw	1.2/2.2	4/5.5	6.5/8	9/11	9/11	13/16	18.5/22	22/30
Cutting speed	rpm	1500/3000
Cutting power	kw	0.85/1.1	1.3/1.8	2.4/3	4.5/5.5	4.5/5.5	4.5/5.5	6.5/8	9/11
Size of installation for reference	B	750	950	1000	1100	1100	1150	1150	1250
	CxD	1000x650	1250x800	1350x800	1650x850	1650x850	1700x900	1860x1050	2000x1050
	E	745	970	1050	1450	1450	1500	1650	1800
	F	1350	1650	1750	2050	2050	2200	2350	2400
