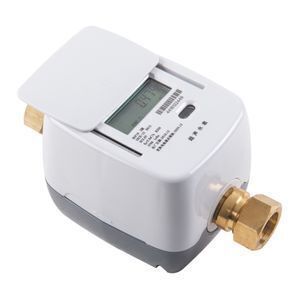

Residential Ultrasonic Water Meter Manufacturers

Product details
Selling Units:Single item;Brand Name:SECK;
Place of Origin:Zhejiang China;Advantage:10 Years;
Keyword:Cold water meter;Package Preview:https://sc02.alicdn.com/kf/HTB15FX_J9zqK1RjSZFLq6An2XXaS.jpg_640x640.jpg;
Dynamic range:R250;Type:Ultrasonic meters;
Material:ABS;Size:DN15mm~DN25mm (1 /2''~1-1/2'');
Product name:Residential Ultrasonic Water Meter Manufacturers;Package Type:Carton;
Single gross weight:1.5 KG;Model Number:SK-UM11;
Single package size:16.5X9.6X10.2 cm;
Hot Product

LoRa Wireless Ultrasonic Water Meter


LoRa Wireless Water Meter


LoRaWAN Remote Read Water Meter


Product Description


SECK Ultrasonic Water Meter can be equipped with various communication interfaces. It can communicate with other equipments and form a remote meter reading management system, which is convenient for the statistics and management of the user's water consumption.

The Remote Reading System we use can be LORA/LoRaWAN Wireless or M-BUS.

Product Details
Item
Parameter
Accuracy
Class 2
Nominal Diameter.mm
DN15-DN20
Dynamic Range R
250
Max. Permissible working Pressure
1.6MPa
Temperature class
T30,T50,T70, default: T30
Upstream Flow Field Sensitivity
U0
Downstream Flow Field Sensitivity
D0
Climate &Mechanical Environmental Conditions Class
C
Electromagnetic Compatibility
E1
Content of Display
Cumulative flow rate: m³, Instantaneous flow rate: m³/h, Water Temperature, ℃, Cumulative effective running time: h, Date: y/m/d, Clock: h/m/s, Software version, Screen test
Display Resolution
Cumulative flow rate: 0.001m³;
Display Range
Cumulative flow rate: 0 m³~+999999.999m³
Keyboard
Light-sensitive Keys
Type of Communication
M-BUS,Photoelectric Interface,Radio Frequency
Data storage
Storing accumulated flow monthly, automatically storing data for the last 24 months
Power Supply
Battery Powered DC3.6V
Powder Consumption
0.22mW
Protection Class
IP68
​Pressure loss rating
△P63
Our Company
Dimension
Nominal diameter
longL1
Long L
Wide W
High H
Connecting threads
d
d
D
15
165
116
96
102
R1/2
G3/4
20
195
116
96
102
R3/4
G1
