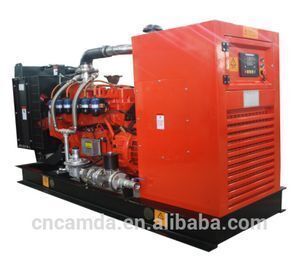

25KW-500KW Biogas/CNG/Natural gas engine/LPG genset

Supplier: Camda New Energy Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Genset Camda
Price: $13500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Output Type:	AC Three Phase;	Brand Name:	Camda;
Auto Controller:	Automatic and Intelligent UK Deep Sea 6020 or Comap IG-NT;	Engine:	Biomass electric generator/CNG gas generator/Gas cogenerator;
Rated Current:	40A to 2000A;	Rated Voltage:	230V,400V,220V,415V,380Volt (can adjust);
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,O/A 90 DAYS;	Delivery Detail:	About 35 working days after received advanced payment;
Cooling type:	CHP/Water Radiator;	Speed:	1500RPM/1800RPM;
Frequency:	50HZ/60HZ;	Place of Origin:	Guangdong China;
Model Number:	HG4B,HG6B,HGN14,HGK19,HGK38;	Supply Ability:	5000 Set/Sets per Year;
Option:	CE and ISO quanlity control certificate approval;	Packaging Detail:	PLASTIC MEMBRANE PACKING FOR DIESEL GEN-SETS AND CARTON FOR STANDARD ACCESSORIES;
Air intake:	Natural or turbocharger;	Mixer:	Automatic adjustment system;
Alternator:	France Leroy Somer/UK Stamford/Engga/Marathon,etc.;	Use life:	25-30 years;
Port:	FOB Shenzhen,China;	Ignition system:	USA Altronic;
Rated Power:	20KW to 1000KW;	Acceptable gas:	Biogas,natural gas,lpg,cng,coal gas,biomass;

CE Approved Biomass electric generator/Bio-gas genset/Gas cogenerator/Natural gas engine/Methane gas engine

Product Description

Advantages For Biomass Electric Generator (gas engine)

Natural gas and biogas as fuel
CE,ISO international quality control certificate approval
Low operation cost
Low gas consumption

1.Adopt gas engine block,so the instructure is very strong. Also it is easy for customer to get maintenance spare parts.

2. Adopt advanced Hall ignition sensor and Highly capable USA Altronic ignition system, the engine ignition will be more reliable and easier to start. Besides,there is Top End Center mark on the engine,it is easy for users to adjust the top end certer when commissioning generator set.

3. Adopt ComAp Interligen/Interlisys controller to make synchronization for generator set, all the parameters can be set in the program and can realize the remote controlling through cell phone or computer.

4.The gas inlet pressure is only 2~12kPA,so almost all city pipe gas pressure can be satisfied,not to mention biogas. So there is no need for customer to install blower to increase pressure and save cost for you.

5. Electrical Air/Gas mixer. The mixer guarantees optimum air-fuel ratio to improve efficiency and reduce NOx emission. Unique air-fuel ratio adjusting system is suitable for 30%~90% methane concentration.

6. Long designed overhaul term: 25000~30000 hours

7. Comply with CE standard, ISO9001:2008 quality management system, ISO14001:2004 and OHSAS 18001:2007.

Packaging & Shipping

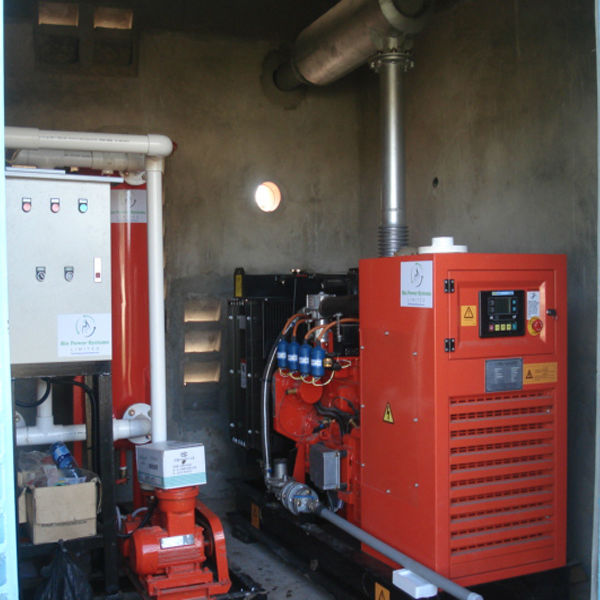

Biomass Power Plant in Kenya

Our Services

Biomass Electric Generator Standard Working Conditions

1.Gas genset can run for continuously at rated power on the conditions of:

Atmospheric Pressure:100kPa,Ambient Temp:20°C, Relative Humidity:30%.

2.Gas genset can also run stably and reliably on the conditions of:

Ambient Temp-40°C~+40°C, Relative Humidity<90%(20°C),Altitude≤1000m above sea level.

Natural Gas Power Plant in Nigeria

Fuel Requirements of gas engine

1.Adapted Gas:Biogas(Marsh gas/Biomass/Methane gas),natural gas,lpg,cng,coalmine gas,wood gas,sygas,etc.

2.Acceptable Biogas pipeline pressure:2~12kPa

3.Gas heat value≥5500kcal/Nm3 (23MJ/Nm3 ).Genset output power will increase as the gas heat valueincrease,if use low heat value gas for fuel(Heat value<5500kcal/Nm3, it willl lower the power efficiency.

4.CH4 content≥50%.

5.Gas doesn’t include free water or free materials (the size of impurities should be less than 5μm.)

6.Sulphur content≤200mg/Nm3, the excessive sulphur in impurity gas should be removed.

Gas Engine Generator Specifications

Model Item	KDGH30-G		KDGH50-G	KDGH80-G	KDGH120-G
Power (KVA/kWe)	37/30		62/50	100/80	150/120
Rated Voltage (V)	400/230		400/230	400/230	400/230
Frequency (Hz)	50		50	50	50
Speed (RPM)	1500		1500	1500	1500
Engine model	HG4B		HG6B	HGN14	HGN14
Mechanical Efficiency (%)	36.5		37.4	37.8	38.5
Electrical Efficiency (%)	34.6		35.5	35.7	36.4
Rated current(A)	45		90	135	217
Voltage Stabilized regulation	≤±1.5%		≤±1.5%	≤±1.5%	≤±1.5%
Voltage Instantaneous regulation	≤±20%		≤±20%	≤±20%	≤±20%
Voltage Recovery time(S)	≤1		≤1	≤1	≤1
Voltage Fluctuation ratio	≤1%		≤1%	≤1%	≤1%
Voltage Wave aberration ratio	≤5%	≤5%		≤5%	≤5%
Frequency Stabilized regulation	≤1%(adjustable)	≤1%(adjustable)		≤1%(adjustable)	≤1%(adjustable)
Frequency Instantaneous regulation	-10%~12%	-10%~12%		-10%~12%	-10%~12%
Frequency Recovery time(S)	≤7	≤7		≤7	≤7
Frequency Fluctuation ratio	≤1%	≤1%		≤1%	≤1%
Generator Insulation class	H	H		H	H
Noise level(dB)	≤95	≤95		≤95	≤95
Dry weight(kg)	900	1100		1700	2600
Dimension(mm)	1800x710x1350	2250x820x1400		2450x820x1550	2800x1100x1550
