Biogas power plant/Gas generator set with CE approved,generators gas
- 12000.00 unit
| Rated Power: | 24-500kw; | Port: | Shenzheng; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Output Type: | AC Three Phase; |
| Control panel: | Harsen, Deepsea, ComAp; | Frequency: | 50/60HZ; |
| Alternator: | Leroy Somer, Stamford, Marathon; | Model Number: | KDGH120-G; |
| Packaging Detail: | Membrane for generator and Case for standard accessories; | Place of Origin: | Guangdong China; |
| Engine: | Cummins; | Rated Current: | 40A~4000A; |
| Supply Ability: | 5000 Unit/Units per Year; | Market: | Asia, Europe, South Amercia,Africa, Austrilia; |
| Speed: | 1500/1800RPM; | Brand Name: | Camda; |
| Rated Voltage: | 220V~480V; | Delivery Detail: | 45 days since the L/C or deposit has been recieved; |
Product Description |
Welcome to the showroom of Camda New Energy Equipment
Co.,Ltd.(http://cncamda.en.alibaba.com) We are professional and dedicated system supplier of energy production by diesel and gas powered generator set, waste treatment projects and solar energy. The company, based in Dongguan of Southern China, is basically a manufacturer of generator set for various kinds of fuel such as diesel, natural gas, biogas, coal bed methane (CBM), associated gas and syngas.
Genset working condition:
l Acceptable working conditions:
Ambient temperature : -10°C~+40°C
(antifreeze or preheater needed for below 0°C)
Relative humidity:<90%(20°C)
Altitude:≤1000m
Normal working conditions:
Genset can run at rated power on the conditions:
Atmospheric Pressure: 100kPa, Ambient Temp: 20°C, Relative Humidity: 30%.
l Applied gas:
Natural Gas, Biogas, LPG, Landfill gas, Oil gas, Syngas, Coal mine gas
Acceptable fuel gas pressure: 5~12kPa
CH4 content: for natural gas≥85% CH4 content:for biogas≥55%
Gas heat value≥5500kcal/Nm3 (23MJ/Nm3 ). Genset output power will increase as the gas heat value increase, if use low heat value gas for fuel (Heat value<5500kcal/Nm3, it will lower the power efficiency.
Gas doesn’t include free water or free materials (the size of impurities should be less than 5μm.)
H2S content≤200mg/Nm3
NH3 content≤20mg/Nm3
Impurities content≤30mg/Nm3;size≤5μm
Water content≤40g/Nm3, no free water.
Standard Scope of Supply:
1. Brand new gas engine, 90% parts include engine body , crank shaft, cam shaft, piston, cylinder head, etc made by with best quality
2. Brand new brushless France Leroy Somer alternator
3. Rating: 3 phases 4 lines. 400/230V, 50 HZ , 1500rpm, 0.8PF, IP22-23, Insulation class H
4. Radiator for 40°C/50°C ambient temperature
5. Ignition system adopted USA ALTRONIC
6. Emergency stop mounted
7. Battery,Battery cable and Battery charger
8. Standard tool box
9. Standard Accessory for installation (include bellows,silencer,flange, pad,Anti-rust water,screw )
10. Gas Train include Regulator valve,Electromagnetic Valve, Fire arrestor,Ball Valve (Chinese brand)
Accessories list
1. Maintenance Operation manual
2. Quality certificate, Gen-sets ex-factory testing report
Optional:
1. Sound-proof canopy
2. CHP system
3. Grid parallel system
4. Remote radiator
5. Auto oil filling system
6. Water heater
7. Oil heater
8. Gas leaking detector
9. Flame detector
10. Gas scrubber
assembly of inlet
Air fuel ratio control automatically
Cylinder water heat exchanger& pump
Altronic Ignitin system
gas pipe configuration& Ignition coil
Exhaust heater for second step heating

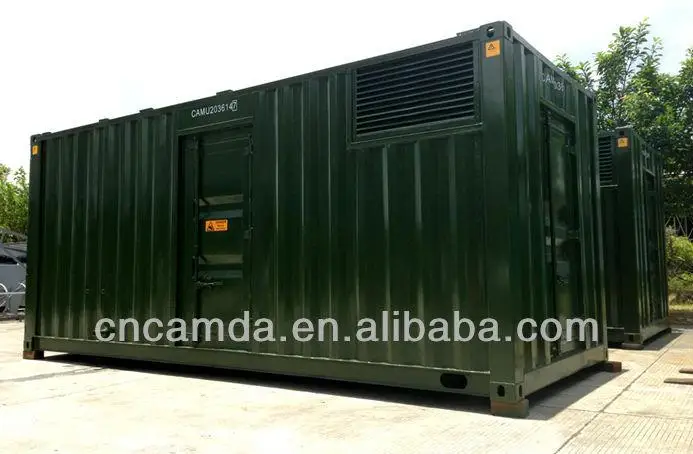

Optional container for high efficiency soundproof,dust proof,Harsh environment protection,portable.
Choose us,don't hesitate |
As the OEM and sales agent for , Perkins and Daewoo, Camda cooperates with these world famous brand to provide clients with reliable after-sell services:
1.Our factory is equipped with exquisite test platform and maintenance center. We have the completed spare parts warehouse, clients can get all the parts from our factory directly.
2.Our factory has a whole day maintenance team with strict training and rich experience. This team responses to the installation and maintenance within 24 hours.
3.Our factory will have two free training every year. Moreover, we will provide customers with technical support to update technology. .
4.After warranty period, any equipment maintenance and spare parts replacement will be charged with lowest price.
5.Our factory guarantee that we will come up with professional solution for all of your power issues.
6.All of our models are approved by ISO9001,ISO14001,OHSAS18001,CE,TUL and our factory has been verified by SGS,BV,TUV.
Contact us |
With good quality products, competitive prices and excellent services, we have won a good reputation among customers at home and abroad. We warmly welcome friends from all walks of life to cooperate with us.
Camda New Energy Equipment Co., Ltd.
Company Address:Tangchun Industrial Zone, Liaobu Town, Dongguan, Guangdong, China (Mainland)
Contact: Samantha Liang
Tel:86-769-88996268 Fax: 86-769-88996200
Website:www.camdagenerator.com
