DT Series hot sale Multifunctional digital speedometer tachometer
- 18.00 piece
| Laser: | 2.5~99,999r/min; | Power: | 4x1.5V AA Size(UM-3)Battery; |
| Accuracy: | ±(0.05%n+1d); | Port: | Any port in china; |
| Power Supply: | 80mA(Testing); | Display Type: | -; |
| Supply Ability: | 10000 Piece/Pieces per Month; | Place of Origin: | Zhejiang China; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Test Range Select: | Automation; |
| Model Number: | DT-2859 DT-2236 DT-2858 DT-2857 DT-2856; | Dimensions: | -; |
| Memory: | Max / Min / Last Value; | Sampling Time: | 1.0 s(Over 60 r/min); |
| Operating Temperature: | 0-50C; | Voltage: | -; |
| Measuring Range: | -; | Usage: | Industrial Measurement; |
| Brand Name: | OEM; | Color: | Black; |
| Weight: | 300g 280g 260g; | Accuracy Class: | -; |
| Packaging Detail: | Standard export packaged; |

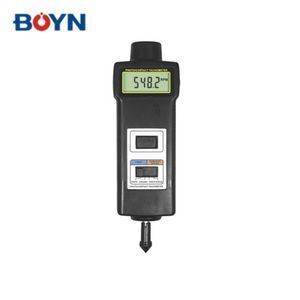

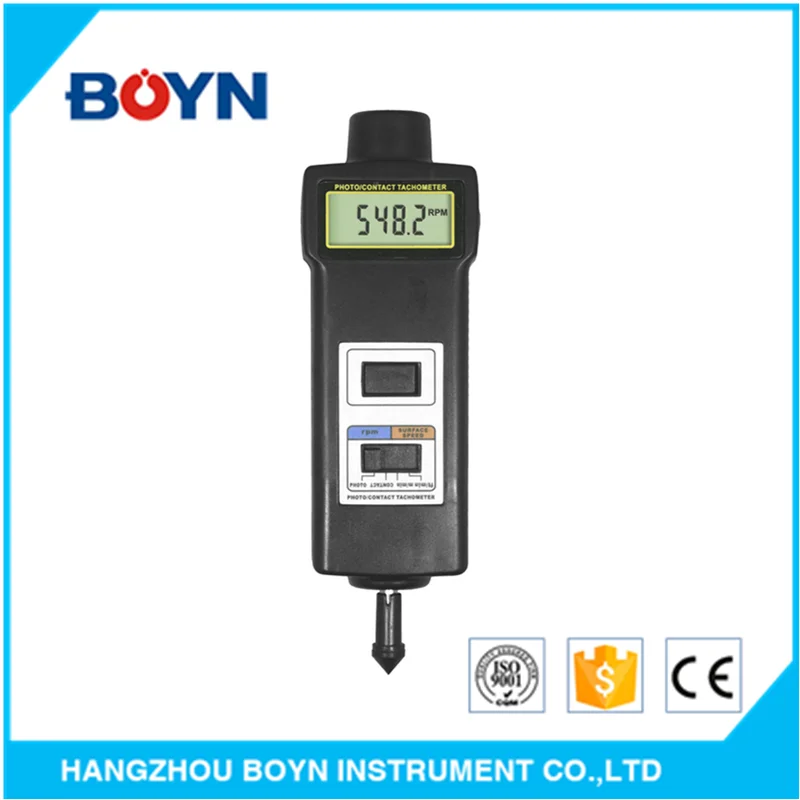

DT Series Multifunctional digital speedometer tachometer
Spec:
Used to measure rotative velocity, surface speed, frequency of motor. Applicable to the product departments of motor, fan, paper-product, chemical fiber, washing-machine, automobile, airplane, steamer
Features
* Multifunctional, one instrument combines PHOTO TACH.(RPM) & CONTACT TACH. (RPM , m / min, ft / min ).
* Digital display with no guessing errors.
* Wide measuring range and high resolution.
* The last value / max. value / min. value will be automatically stored in memory.
* The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures elegant shape and ease of use.
Model and Applications
Model | Photo | Contact | Surface Speed | Frequency | Cycle | Pulse Times | Pulse Distance |
DT-2859 | √ | √ | √ | √ | √ | √ | √ |
DT-2236 | √ | √ | √ | — | — | — | — |
DT-2858 | √ | √ | √ | — | — | — | — |
DT-2857 | √ | — | — | — | — | — | — |
DT-2856 | √ | √ | — | — | — | — | — |
Specifications
Model | DT-2236 | DT-2858 | DT-2857 | DT-2856 | |
DT-2236L(Laser Type) | |||||
Range | Laser | 2.5~99,999r/min | |||
Contact | 0.5~19,999r/min | ------- | 0.5~19,999r/min | ||
Surface Speed | 0.05~1999,9 m/min | ------- | ------- | ||
0.2~6560 ft/min | ------- | ------- | |||
Resolution | Tachometer | 0.1 r/min(0.5~999.9 r/min) | |||
1 r/min(Over 1000 r/min) | |||||
Surface Speed | 0.01 m/min(0.05~99.9 m/min) | ||||
1 m/min(Over 100 m/min) | |||||
0.1 ft/min(0.1~999.9 ft/min) | |||||
1 ft/min(Over 1000 ft/min) | |||||
Accuracy | ±(0.05%n+1d) | ||||
Sampling Time | 1.0 s(Over 60 r/min) | ||||
Test Range Select | Automation | ||||
Memory | Max / Min / Last Value | ||||
Time Base | Quartz Crystal | ||||
Laser Tach Detecting Distance | 50~150mm/2~6inch(Typical),Max,300mm/12inch | 50~250mm/2~10inch(Typical),Max600mm/14 inch | 50~150mm/2~6inch(Typical),Max300mm/12inch | ||
Power Supply | 80mA(Testing) | ||||
Dimensions | 0~50ºC | ||||
Weight | 4x1.5V AA Size(UM-3)Battery | ||||
Standard Accessories | 215x64x38mm | 215x74x32mm | 145x74x32mm | 215x74x32mm | |
300g | 280g | 260g | 280g | ||
Main Unit | |||||
Surface Speed Test Wheel(AS35C) | ------- | ------- | |||
Cone Adapter(AS35A) |
------- | Cone Adapter(AS35A) | |||
Funnel Adapter(AS35B) | ------- | Funnel Adapter(AS35B) | |||
Reflective Tape 350mm | |||||
Carrying Case(B01) | |||||
Operation Manual | |||||
