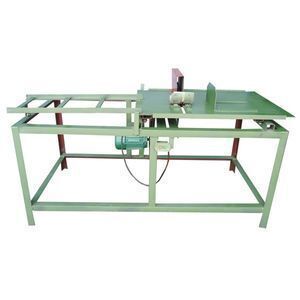

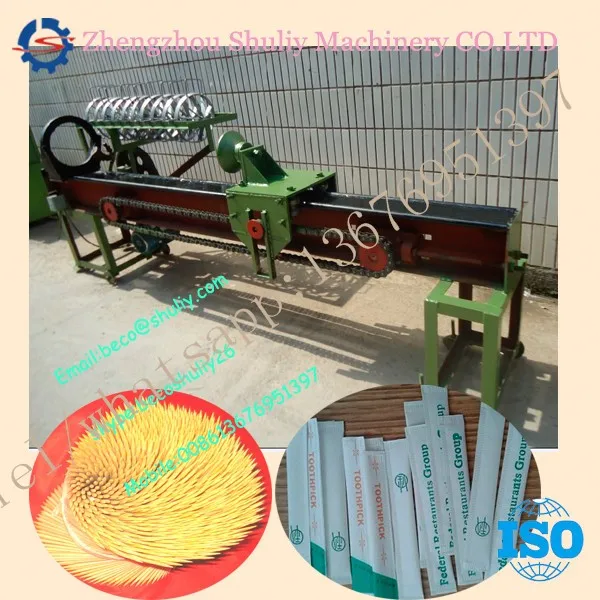

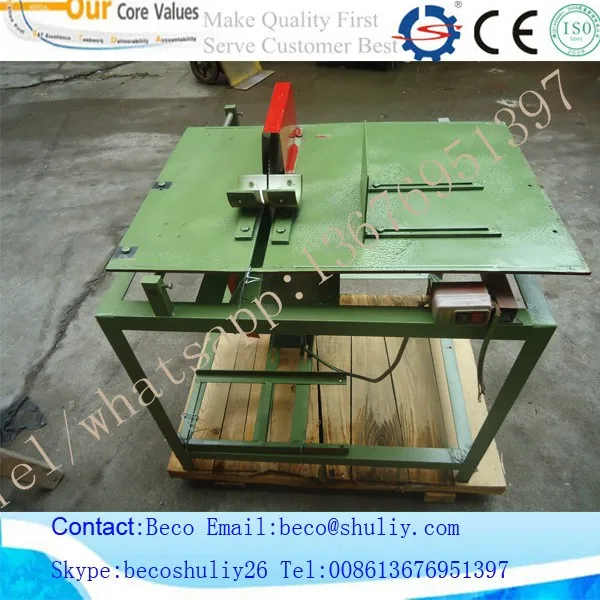

wooden toothpick making machine/bamboo toothpick producing machines 008613676951397

Click here to contact

Product details

Product type:	Toothpick product Machine;	Certification:	CE ISO;
Dimension(LWH):	15006601300;	Usage:	Making Bamboo Wood Toothpick;
Port:	QingDao/TianJin/NingBo;	Function:	Stick Processing Machine;
Warranty:	1 Year;	Weight:	450kg;
Power(W):	3.7KW;	Raw material:	Wood Bamboo;
Voltage:	220V/380V;	Application:	Bamboo Toopick Process;
COLOR:	Customer Made;	Delivery Detail:	Shipped in 7 days after payment;
Package:	Standard Wooden Crate;	Packaging Detail:	standard export package;
Supply Ability:	500 Set/Sets per Month;	Brand Name:	Shuliy;
Capacity:	800000 Pecs/8 Hours;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,RMB;
Name:	Toothpick Production Machine;	Place of Origin:	Henan China;
Productivity:	40000-120000pcs Toothpick / 8 Hours;	Condition:	New;
After-sales Service Provided:	Engineers available to service machinery overseas;

Wood toothpick making machine/bamboo toothpick production line

Contact information:

Contact:Ms Beco

QQ:2502563686

Mobile:008613676951397

tel:0086-371-86660712

fax:0086-371-86660713

skype:becoshuliy26

Brief introduction of toothpick making machines

The raw materials of toothpick making machine line can be wood or bamboo.

The wooden toothpick producing line is composed by eight machines.The bamboo

toothpick producing line is made up by ten machines.

Bamboo toothpick machine machine in top quality is used to produce bamboo

toothpick,the whole equipment list are as followed.

The output toothpick is safe and healthy.Its capacity is 3.5 million pcs/8 hours, an

need8-11 workers.It can be product 1.2 million pcs/m³(φ2.2mm x 65mm).

The general specification is φ2.2mmx65mm.

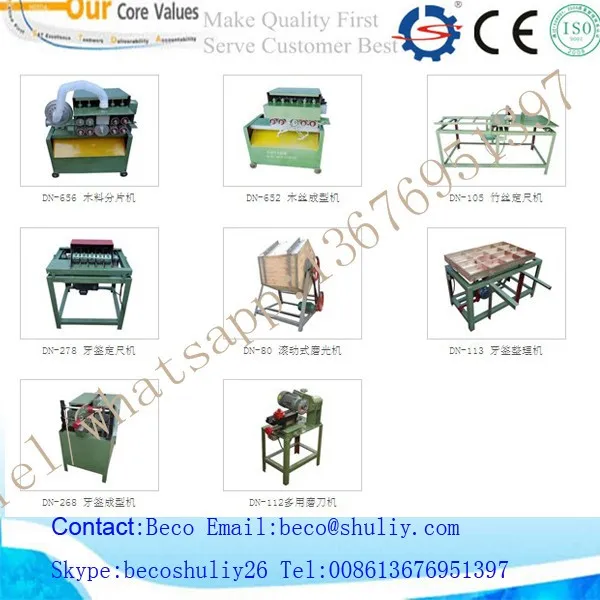

wood toothpick production line

Technical parameters

Item	Main Motor Power	Machine Dimension		Machine Weight
Wood Material Slicer	0.55kW 7.5kW 0.18kW	1250×700×1200mm		410kg
Wood-wool Shape Former	0.55kW 3.0×2kW 0.18kW	1200×700×1250mm		410kg
Wood-wool Ruler Fixer	0.75kW	1500×750×1050mm		150kg
Toothpick Ruler Fixer	3.0kW 0.37kW	880×700×1100mm		160kg
Toothpick polisher	1.5kW	1400×1200×1450mm		210kg
Put toothpick in order	0.55kW	1300×600×900mm		120kg
Toothpick Nib	1.1×2kW 0.55kW 0.12kW	1450×750×1250mm		400kg
Multifunctional Blade Sharpener	0.37kW	850×550×1100mm		90kg
Toothpick Packing Machine	0.55kW		1750×650×1700mm		360kg

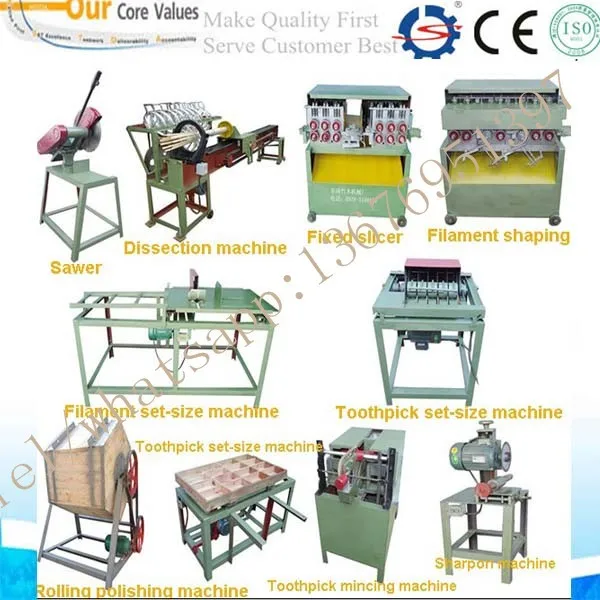

Bamboo toothpick making line

ITEM&DISCRIPTION	QTY(PC)	moter	Working data
1.Raw bamboo sawer SL-101	1	2.2kw	150mm depth/ time

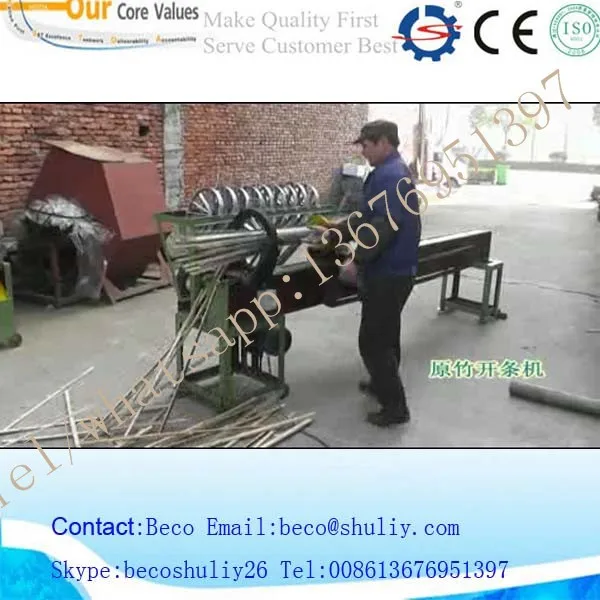

2.Bamboo dissection machine SL-102	1	1.5kw	1.5m/s
3. Flakers SL-103	1	3.7kw	85m/min
4.Bamboo filament shaping machine SL-104	1	8.1-10.2 kw	60m/min
5.Bamboo filament set-size machine SL-105	1	0.75kw	350mm
6.Toothpick set-size machine SL-278	1	2.75kw	60 mm
7.Polishing machine SL-80	1	1.5kw	0.25 m³
8.Toothpick finishing machine SL-113	1	0.55kw
9.Tooth pick mincing machine SL-268	1	2.75kw	0.12 million/ hour
10.Multi-sharpen machine SL-112	1	0.37kw	2800 time/min
