Complete machine to make toothpicks Bamboo Wood Toothpick Maker

Supplier: Zhengzhou Shuliy Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Beco Yang
Price: $1000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Name:	Automatic Bamboo Toothpick Making Machine;
Type:	Bamboo Toothpick Production Line Wooden Toothpick Machine;	After-sales Service Provided:	Engineers available to service machinery overseas;
Port:	QingDao;	Function:	Stick Processing Machine;
Shape of toothpick:	One Head OrTwo-head Sharp Toothpick;	Raw material:	Wood Bamboo;
Usage:	Making Bamboo Toothpick Stick;	Supply Ability:	500 Set/Sets per Month;
Dimension(LWH):	1650550900mm;	Condition:	New;
Brand Name:	shuliy;	Power(W):	2.5kw;
Package:	Wooden Case;	Packaging Detail:	wooden case;
Warranty:	1 year;	Product name:	Wood Chipper Toothpick Machine;
Weight:	260kg;	Voltage:	380v;
Place of Origin:	Henan China;	Certification:	CE ISO;
Application:	Bamboo Toopick Process;	Finished product:	Bamboo Tooth Picker;

Complete machine to make toothpicks Bamboo Wood Toothpick Maker

Product Description

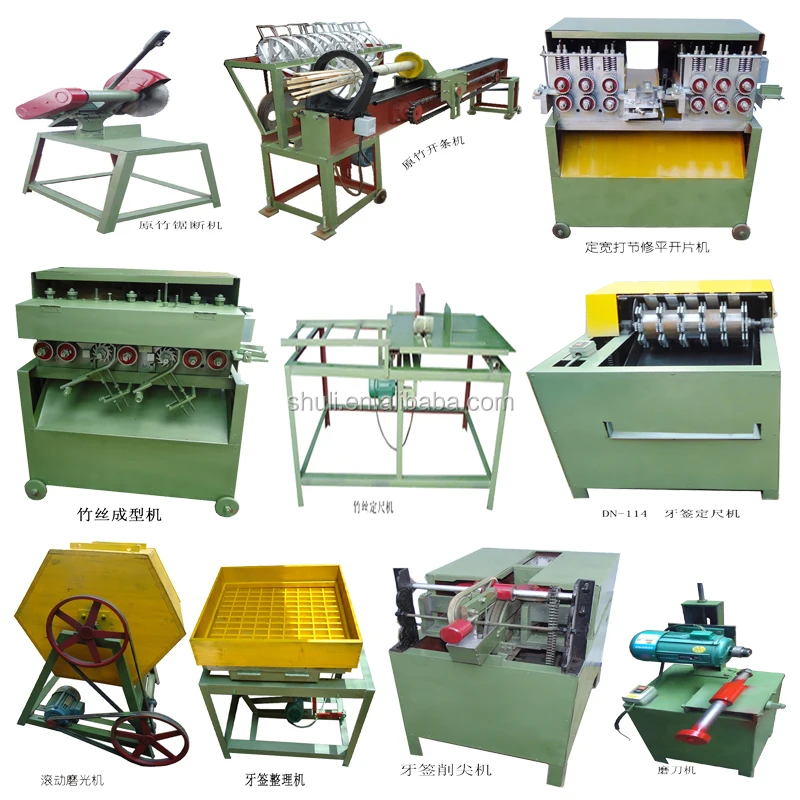

This production line is composed of these 10 machines above, which are able to produce bamboo toothpick .And the total output is 600,000-800,000 pieces/8hrs, this production need about 4-5 person to operate. total volume is about 11cbm

Name	Motor (kw)	Weight (kg)	Dimension (mm)	Model
Sawing machine	2.2	65	900X510X930	SL-101
Bamboo dissection machine	3.0	630	3000X850X1200	SL-102
fix thick and definitely wide flaker	3.7	450	1460X660X1000	SL-103
Bamboo filament shaping machine	9.1	450	1050X650X990	SL-104
Bamboo filament set-size machine	0 .75	85	1500X650X990	SL-105
Toothpick stick set size machine	2.0	210	900X600X800	SL-108
Polishing machine	1.5	120	1500X150X100	SL-109
Ordering machine	0.55	65	530X1000X800	SL-110
Toothpick sharpen machine	2.75	260	900X570X1010	SL-111
Multi-sharpen machine	0.55	65	370X330X720	SL-107

Machine function:

1.sawing machine (bamboo)

sawed 400mm*160T,used for feeding and cutting bamboo, better length is 1-1.2m

2. Bamboo split machine

dissection cutter head(9-18heads)total 10,put the finished bamboo into the suit cutter headaccording to the size and polish them into bamboo flakes, width from 20mm to 22mm,speed of feeding is 57m/min

3. fix thick and definitely wide flaker

put the polished bamboo flakes into this machine and make it to be square and straight every side, width from 18-20 mm, width of flaker is 3-4mm,speed of feeding is 87m/min

4. Bamboo filament shaping machine

molding the diameter of the bamboo filament as your request ,speed of feeding is 87m/min

5. Bamboo filament set-size machine

set uniform length of the stick ,as usual 5 or 6times of toothpick length

6.toothpick set size machine
cut the long stick into 65mm ,standard length of toothpick

7.Polishing machine

polish the raw stick after set-size

8.orderting machine

Order the stick from polishing machine ,easy for worker to pick them into sharpen machine

9.toothpick sharpen machine

Sharpen two tips or one sharpen one carve head

10 . Multi-sharpen machine
