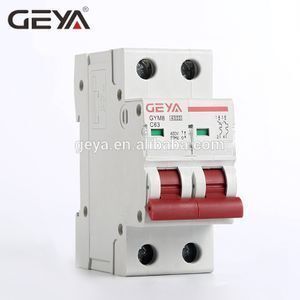

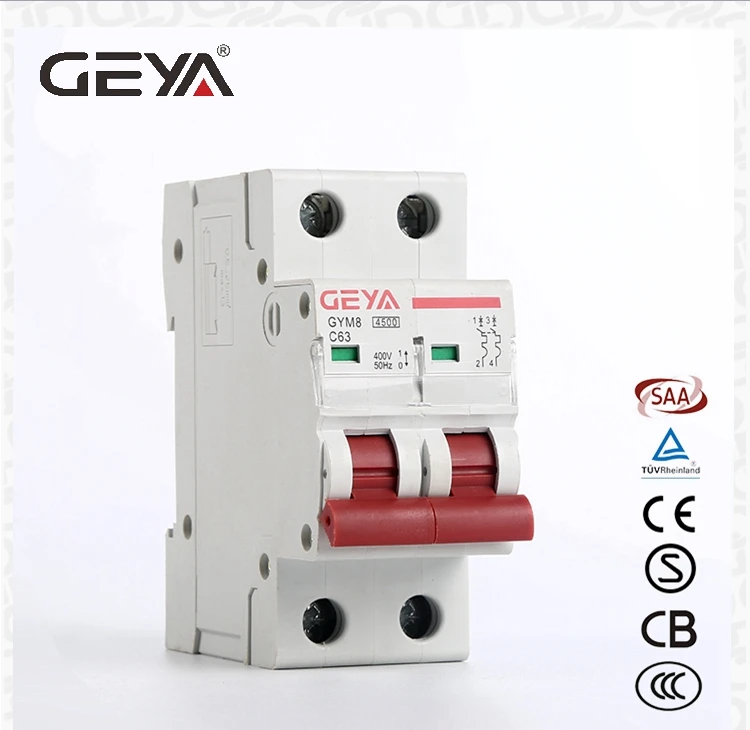

GEYA Solar PV system 250V 500V 800V 1000V 1200V DC C20 mcb mini circuit breaker/ mcb 2pole 4pole

Supplier: Zhejiang Geya Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Ms Cassie Zhang
Price: $1.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

MOQ:	1 PCS;	Poles Number:	2;
Electrical Life:	4000;	Brand Name:	GEYA OEM ODM;
Breaking capacity:	4.5KA/6KA;	Rated working voltage:	230V/400V;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;	Packaging Detail:	General sea worthy Package, export standard carton box. 1P MCB 240pcs/ctn OR 120pcs/ctn 2P MCB 120pcs/ctn OR 60pcs/ctn 3P MCB 80pcs/ctn OR 40pcs/ctn 4P MCB 60pcs/ctn OR 30pcs/ctn Carton Size 462433cbm G.W./N.W.: 26/24kgs;
Model Number:	GYM8-63;	Rated current in:	1 2 3 4 6 10 16 20 25 32 40 50 63A;
Delivery Detail:	According to your quantity, usually 10-25days;	Product name:	MCB Miniature Circuit Breaker;
Mechanical Life:	10000;	Supply Ability:	500000 Piece/Pieces per Month Circuit Breaker Manufacturer;
Type:	Mini;	Standard:	IEC60898;
Port:	Wenzhou Ningbo Shanghai;	Rated frequency:	50/60Hz;
Protection degree:	IP 20;	Place of Origin:	Zhejiang China;

GEYA Solar PV system 250V 500V 800V 1000V 1200V DC c20 mcb mini circuit breaker/ mcb 2pole 4pole

Banner

Product Description

General

GYM8 miniature circuit breaker is mainly used for protection against overload and short circuit under the AC 50Hz/60Hz,

reted voltage 230V/400V and rated current from 1A to 63A.

It also can be used for non-frequent on-and-off switch operation under normal circumstance.

1. In complicance with IEC/EN60898-1
2.With indicator function in the contact position.
3.Transparent cover designed to carry label.
4.Bilateral busbar wiring capabilities to adapt to the wider use of premises.
5.Maximum connecting ability of 25mm2, wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger
6.Protection calss: IP20

Technical Data

Rated Current In	1A 2A 3A 4A 6A 10A 16A 20A 25A 32A 40A 50A 63A
Poles	1P 2P 3P 4P 1P+N 3P+N
Rated Voltage Ue	1P: 230/400V 2P/3P/4P: 400V
Rated Breaking Capacity	4500A/6000A
Thermo-magnetic release characteristic	B C D
Electrical Life	4000
Mechanical Life	10000
Combination with Accessories	Auxiliary, Alarm, Shunt Release, Under Voltage Release
Certificate	CE CB SEMKO SAA CCC TUV
Guarantee	2YEARS
