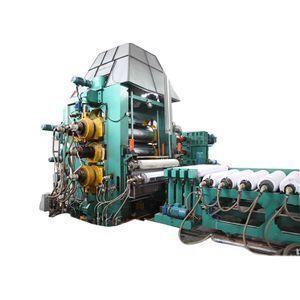

PVC Plastic Soft Film Calender System Making Machine
- 107718.30 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Port: | Shanghai; | Place of Origin: | Shanghai China; |
| Payment Terms: | L/C,D/A,D/P,T/T,MoneyGram; | Color: | custom; |
| After-sales Service Provided: | Free spare parts,Field maintenance and repair service,Video technical support,Field installation, commissioning and training,Online support; | Condition: | New; |
| Power(W): | 75-380kw; | Warranty: | 1 Year; |
| Weight: | 500-1500kg; |

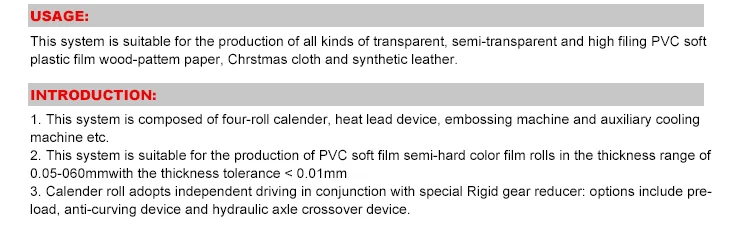

Product Description
| No. | SY-4Γ1400 | SY-4Γ1500 | SY-4Γ1600 | SY-4Γ1800 | SY-4Γ1950 | SY-4Γ2100 |
| Roll size(mm) | Φ400×1400 | Φ450×1500 | Φ510×1600 | Φ560×1800 | Φ610×1950 | Φ660×2100 |
| Arrangement pattern | Γ types | Γ types | Γ types | Γ types | Γ types | Γ types |
| Calendering speed | 6-30n/min | 7-35m/min | 8-40m/min | 9-45m/min | 10-50m/min | 10-55m/min |
| Roll quantity | 4 | 4 | 4 | 4 | 4 | 4 |
| Thickness of Calender product(mm) | 0.06-0.6 | 0.05-0.6 | 0.05-0.6 | 0.05-0.6 | 0.05-0.6 | 0.05-0.6 |
| Largest width of Calender product(mm) | ≤1100 | ≤1200 | ≤1300 | ≤1450 | ≤1600 | ≤1750 |
| Driving power | 75kw | 125kw | 155kw | 230kw | 300kw | 380kw |
| Heating power | 120kw | 180kw | 205kw | 235kw | 300kw | 400kw |
| Theoretic capacity | 500kg/h | 650kg/h | 800kg/h | 950kg/h | 1100kg/h | 1500kg/h |
Product Application

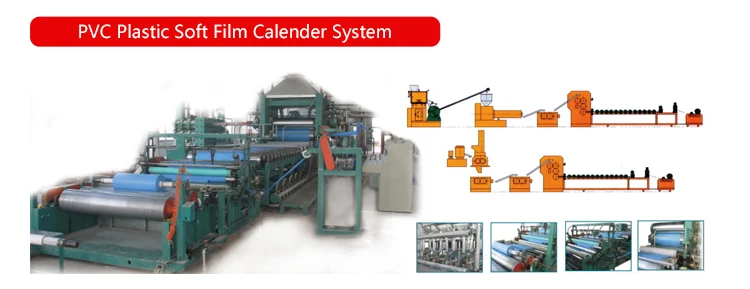

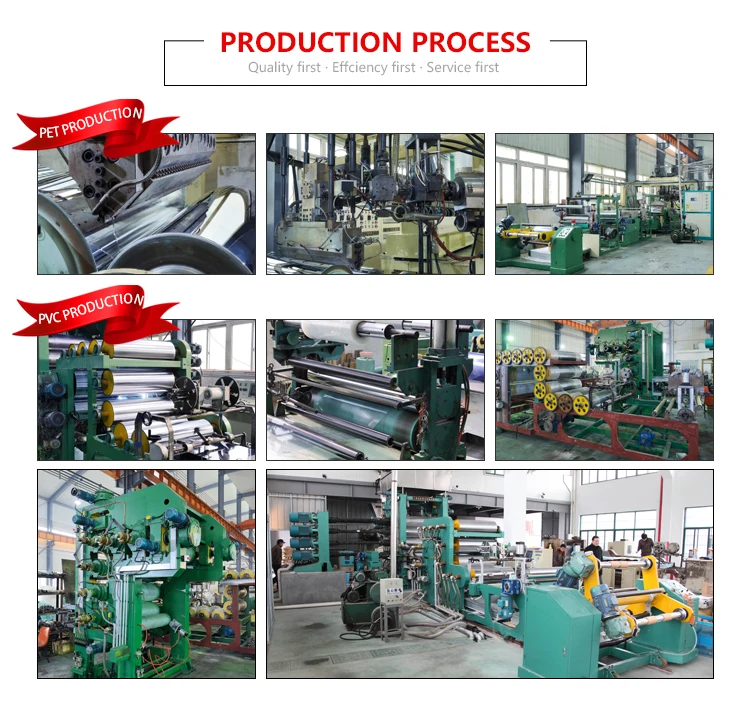

Product Process
Company Profile
Certificate
Exhibition photos
Contact
