PCB design and layout, Android TV box RK3399 design /RK 3288 PCB PCBA layout

Supplier: Shenzhen DYC Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Spancer Huang
Price: $0.80 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Supply Ability:	60000 Square Meter/Square Meters per Month;	Type:	RK3399 pcb design and layout;
Product name:	TV BOX RK3399 PCB PCBA;	Board Thickness:	1.6mm;
Min. Line Width:	0.12mm;	Payment Terms:	T/T,Western Union;
Place of Origin:	Guangdong China;	System:	Andriod 8 android 7 Linux support;
Min. Line Spacing:	0.01mm;	Port:	shenzhen/Hongkong;
Copper Thickness:	1 oz;	Brand Name:	DYC;
Application:	Human face recognition;	Solder mask color:	Green/blue/ red;
Packaging Detail:	Packaging Details: Inner packing: Vacuum and Anti-static bubble bag. Outer packing: High standard cartons box. Delivery Details: Sample5-7 days; Mass:15-25days;	Surface finishing:	HASL;
Certificate:	ROSH. ISO9001;	PCB Item:	Andriod TV BOX mother board;
Surface Finishing:	HASL;	Model Number:	rk3399 design;
Chipset:	RK3399/ RK3288;	Base Material:	FR4/Aluminum;
Min. Hole Size:	0.004";

About DYC

PCB design and layout, Android TV box RK3399 design /RK 3288 PCB PCBA layout

Established time	Aug 2007
Number of emplooyes	250
Factory area	15,000 sqm
Location: 6,7 floor, Yuxing Second7 floor, Yuxing Second industrial park, xixiang, Bao'an district, Shenzhen.	Near by shenzhen airport, 15 minutes.
	Near by Hongkong airport, 74 km.
	Near by shekou terminal, 22 km.
Fabrication	8 million spot SMT/day.
Certification	ISO9001-2008, CE, RoHS.
Sales avenue	0.3 billion

6 SMT Lines, 2 DIP lines, 2 end-products assembly lines

DYC services

RK 3399

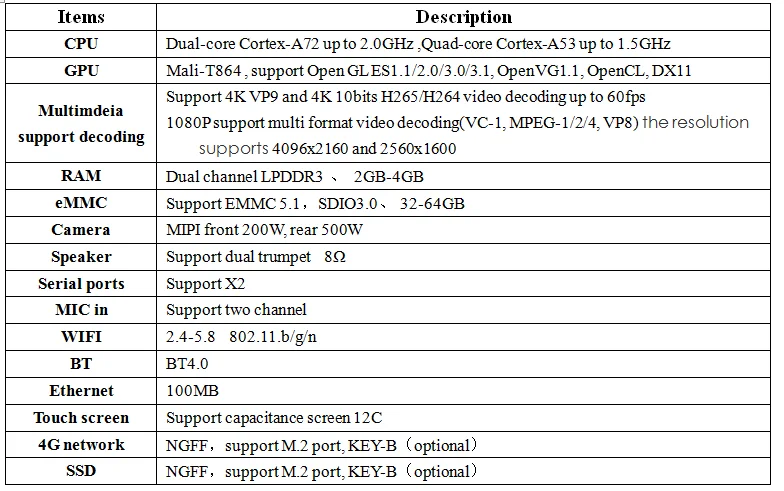

Basic information of RK 3399:

Application used:

1.VR, game integrated machine, advertising machine, industrial control panel, etc.

2. Industry control, network player, intelligent treadmill, digital signs, face recognition, cash register, vehicle terminal.

3.Android 8. 1 OS support 4 GB DDR3, eMMC 64 GB support camera, light sense 4G network and SSD hard drive.

4.Support 4K 60FPSN HDMI 1.4U H.265 digital power amplifier, loudspeaker output IR output digital MICIN.
5.Support 7-40 inch EDP, MIPI LCD, rechargeable, touch screen, serial port, headset, network card.

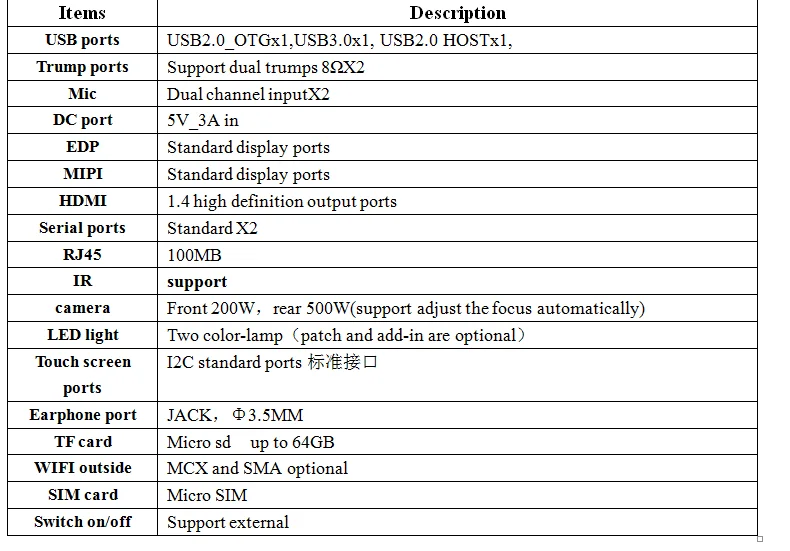

Port informations:

Services:

We provide RK 3399 PCBA board, or the full products of RK 3399 with OEM, Relayout of the 3399 PCBA board, software update, prototype etc.

PCBA manufacture

PCBA CAPACITY

Max size of pcb board	500* 400mm
Max thickness	3mm
Min thickness	0.5mm
Min chip	1005
Max SMD components weight	100g
Max part height	25 mm
Max part size	150*150 mm
Min pin space	0.3mm
Max BGA components space	0.3mm
Max BGA components space	0.3mm
Max SMD accuracy	25um@ IPC
SMD capacity	8 Million point/day

How to make your PCBA

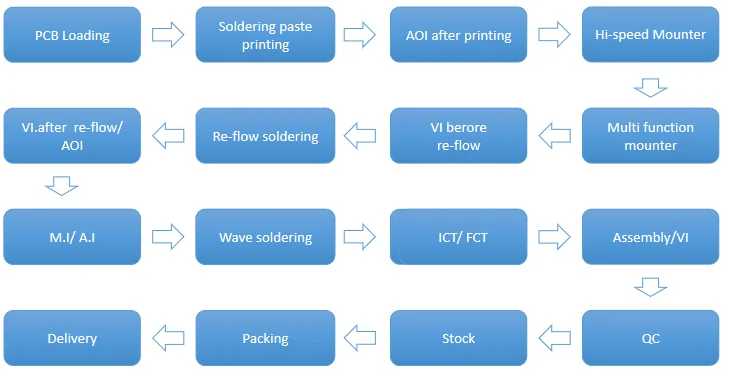

PCBA flow:

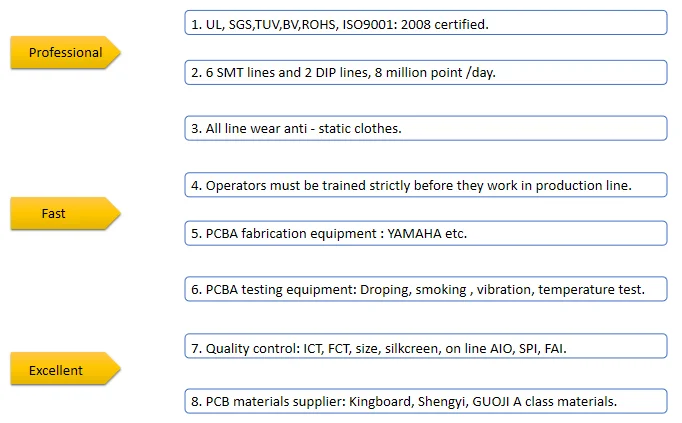

Strength of PCBA manufacture

FAQ:

Q: What should i provide to get one PCB quotation?

A: Gerber file, PCB technical, quantity and bom list.

Q: Will you check my files before production?

A: Yes, our engineer will check your gerber file and BOM list to avoid any mistake.

Q: What's the lead time for PCBA?

A: 8-10 days for sample, 15-20 days for bulk order.

Q: My budget is limited, can you provide solutions to save cost ?

A: Yes, we can. For example: Replace the DIP components with SMD components, so it can narrow the PCB board size to save cost. Relayout the pcb to reduce the size, it can save cost, Also we can recommend you alternative components.

Q: Do you have any other special discount ?

A: Yes, we provide free panel, free test and free packaging.

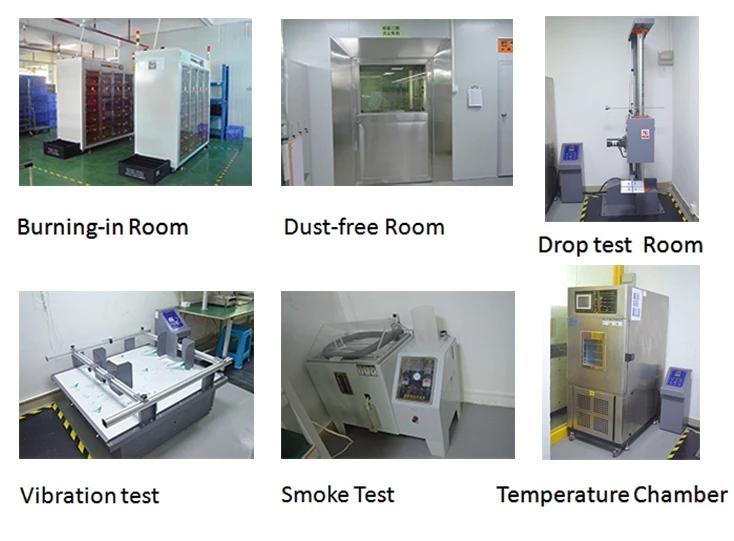

Testing equipment
