plasma cutter cut 63A 100A 120A 160A 200A steel cnc plasma cutting machine 1530
-
Supplier: JINAN LXSHOW MACHINERY CO.,LTD -
Region: Shandong, China -
Contact: Mr Kim Lee -
Price: $5250.00 /set -
Min. Order: 1 set
| Weight (KG): | 1500; | Document trasmission form: | USB interface; |
| Arc: | Untouched arc striking; | transmission: | Linear rails and gear rack; |
| Condition: | New; | Name: | cnc plasma cutting machine; |
| Software: | FASTCAM; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Retail,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; |
| Brand Name: | UNICHCNC; | Dimension(L*W*H): | 1500*3000mm; |
| Warranty: | 2 Years; | Port: | Qingdao; |
| Packaging Detail: | Free fumigation wood box; | Rated Power: | Huayuan 200A; |
| Control system: | Beijing Starfire; | Place of Origin: | Shandong China; |
| Voltage: | 220V/380V; | Working voltage: | 3-Phase 380V/60Hz, 220V/60Hz; |
| Supply Ability: | 800 Set/Sets per Month cnc plasma cutting machine; | Cutting thickness: | 0-30mm; |
| Motor and drive: | Leadshine stepper motor; | Motor Type: | Stepper Motor; |
| After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support; | Payment Terms: | L/C,T/T,Western Union,paypal and Alibaba trade assurance; |
| Certification: | CE ISO; | Working area: | 1500*3000mm; |
| Key Selling Points: | High Productivity; |

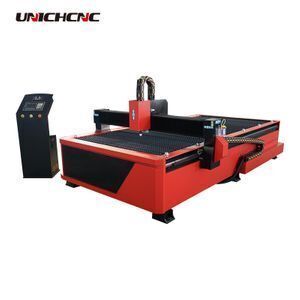

plasma cutter cut 63A 100A 120A 160A 200A steel cnc plasma cutting machine
#color could be customized#
Model | LXP1530 |
Working area (X-Y) | 1500mmx3000mm |
Working material | Iron, Steel, Aluminum sheets, Galvanized sheets, Titanium Plates |
Working Thickness | 0.1-35 mm |
Cutting Speed | 0-6000mm/min |
Power | 8.5kw |
Input Voltage | 380V 50HZ (or according to your need) |
Plasma Current | 63A/100A/120A/160A/200A |
Connecting Way | USB |
Working Mode | Untouched arc striking |
Cooling method | With water pump and tank provide circulating water cooling |
Z axis travel | 0-70mm |
The automatic elastic raise | 0-5mm |
Rail guide | Taiwan HIWIN linear square rails |
Transmit way | Taiwan imported ball screw |
Operation language | English (Option) |
Command | G code, *uoo, *mmg, *plt |
Optional power source | USA brand Hypertherm |
Spare parts | Electrode ,Electricity nozzle and Water jacket |
Advertising industry: Advertising signs, logo making, decorative products, production of advertising and a variety of metal materials.
Mold Industry: Engraving metal molds made of copper, aluminum, iron and so on.
Metal industry: For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate, gold, silver, Titanium and other metal plate and tube.

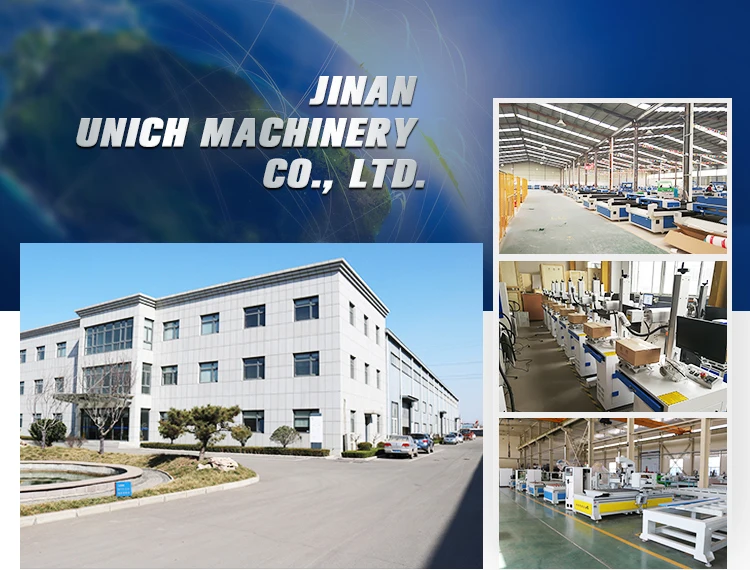

JINAN UNICH MACHINERY CO.,LTD
Is established in July 2004 ,owns more than 500 square meters of researching and office space,
more than 32000 square meters factory.All machines ,passed the European Union CE authentica-tion,American FDA certificate and are certified to ISO 9001. Products are sold to USA, Canada,
Australia, Europe, South east Asia, Africa etc,more than 120 countries and areas, and supply
OEM service for more than 30 manufactures.
Our Products includes All kind of
1. Plasma cutting machine.
2. Laser marking machine(Fiber/CO2/UV/Green light) and laser-welding machine.
3. Fiber cutting machine.
4. CNC knife cutting machine.
5. Cnc router machine.
6. Co2 laser machine and so on.
We can also customized non-standard assist equipment as your detailed work requirements.
-
