National Instruments Data Acquisition Device DSA Series

Supplier: Hefei Fanyuan Instrument Co., Ltd.
Region: Anhui, China
Contact: Ms MIN LIU
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Model Number:	DSA series;	Payment Terms:	L/C,T/T,Western Union;
Product Name:	strain gauge amplifier;	Warranty:	1 Year;
Power supply:	220V, 50Hz;	Packaging Detail:	Standard packaging of small sock knitting machine;
Place of Origin:	Anhui China;	Brand Name:	FYI;
Port:	By negociation;	Supply Ability:	1000 Set/Sets per Year;

Product Description

Product Application

DSA Series National Instruments Data Acquisition Device is a versatile and reliable data acquisition system that can be used in many fields for accurate measurement and analysis of different physical quantities including stress, strain, load, pressure, torque, displacement, temperature, etc.

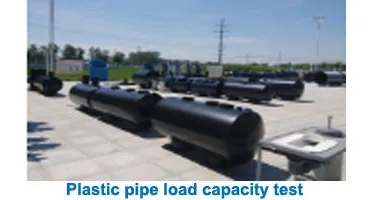

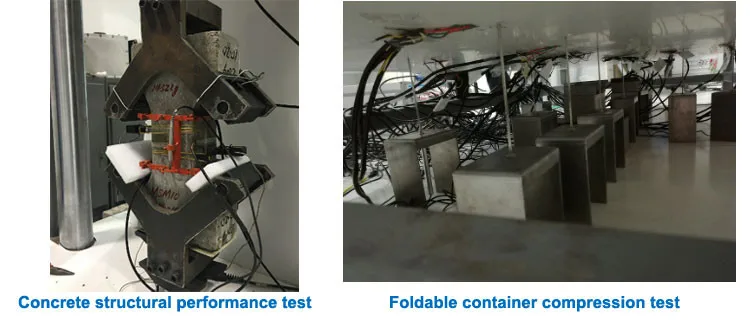

Typical applications: civil and hydraulic engineering, bridge and road, high-speed railway, automobiles, ships and other transportation equipment, mechanical engineering and manufacturing equipment, power engineering, etc.

SYSTEM COMPONENTS:

To fulfill different measurement task, the data acquisition system mainly consists of:
1. Suitable strain gauges: many geometries and size available;
2. Different types of sensors;
3. Multiple channel data acquisition instrument, having the ability to acquire any signal and sensor information from different strain gauges and sensors;
4. Data acquisition & analysis software, suitable for the mainstream PC;
5. Essential parts such as PC, signal lines, USB cable, etc.

Key Specifications

DSA Series National Instruments Data Acquisition Device

1. Number of channels:8, 16, 24, 32, 40, 48, 56, 64

2. Sampling frequency: 0.1Hz~200kHz

3. Strain measuring range: ±32,768με (or ±50,000με,

±100,000με)

4.Voltage measuring range: ±10mV, ±50mV, ±100mV,

±500mV, ±1V, ±5V, ±10V

5.Current measuring range: ±20mA, ±80mA, 0~20mA,

4~20mA

6. Temperature measuring range; Thermocouple: 0~1500℃; Pt100: 0~300℃
7. Measuring accuracy: ±0.2%FS (at 23±5℃)

8. Storage media: Computer hard disk
9. Storage format:txt, excel, etc.
10. Interface: USB2.0
11. Power supply: AC 220V,50HZ

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Certifications

Packing & Delivery

DSA Series National Instruments Data Acquisition Device
Size	483×424×147mm (L×W×H)
Weight	2kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
