ffu laminar air flow purification

Supplier: Guangzhou Kelaichuang Purification Equipment Manufacturing Co., Ltd.
Region: Guangdong, China
Contact: Ms Vanessa Wang
Price: $2700.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	18months;	Port:	Guangzhou;
Condition:	New;	Power(W):	600W*2;
Weight:	550kgs;	Product name:	softwall clean room;
Model Number:	AL-GS-1800;	Brand Name:	Anlaitech;
Packaging Detail:	Standard export packing (Stretch film+foam+Wooden case);	Certification:	Electrical safety;
Voltage:	380V 220V 230V;	Payment Terms:	T/T,Western Union;
Place of Origin:	Guangdong China;	After-sales Service Provided:	Engineers available to service machinery overseas;
Dimension(LWH):	180010002180;	Supply Ability:	500 Set/Sets per Month;

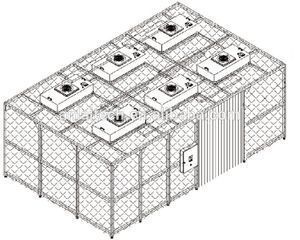

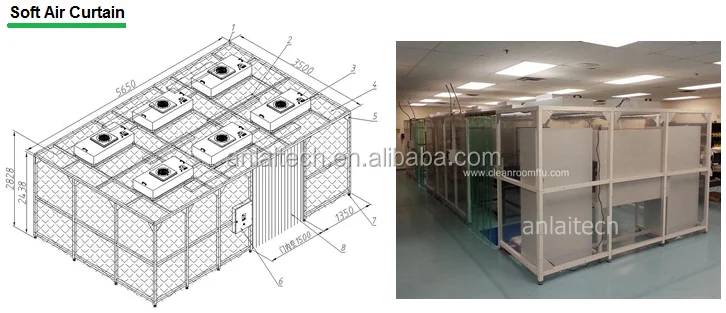

Dust free Modular cleanroom laminar flow Capsule clean room

With FFU (Fan Filter Unit) as the core, clean booth provides a high level of cleanliness. It is a good option to create a cleaner space within an existing normal room or a room with low-level of cleanliness.

Easy installation, low cost, modularized design and easy upgrading

Application: LCM, CMOS Camera Module, Touch Play, Optical Module, FILM, Biological Pharmacy,Packing,Food

Configuration:

Parameter		Softwall Clean Booth	Hardwall Clean Booth
Cleanliness		From Class 100 to Class 10,000
External Dimension		As per requirement
FFU	Dimension	2'X4'
	Cabinet Material	Stainless Steel
	Power source	110V/60hz/av/dc, 220V/60HZ/AV/DC

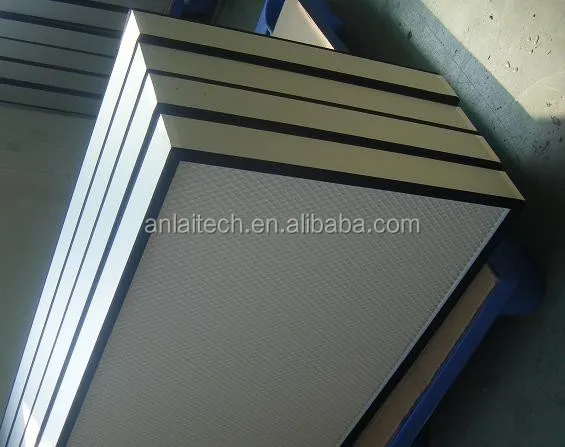

HEPA Filter		H14 Hepa filter
Frame Material		Stainless Steel

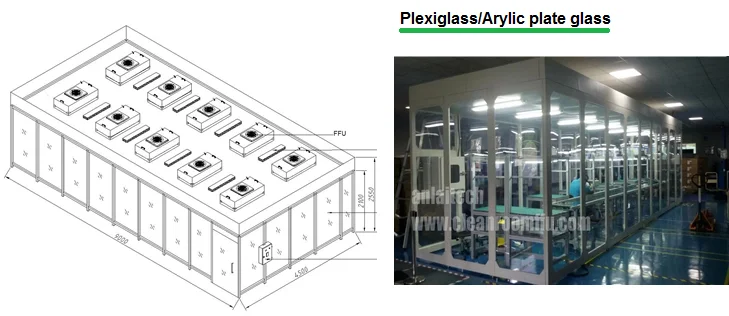

Wall Material		Anti-static soft PVC wall 106~109Ω	Anti-static acrylic 106~109Ω
Lighting	Lamps	Available in LED and T5
Air condition	As per requirement	Available in constant temperature air conditioner/constant temperature and humidity conditioner

Besides above configuration, we can customized as required.

Technical Paremeters:

Class Level	Model	Inner dimension	Number of	Air volume(m3/h)
Class Level	Model	W * D * H (mm)	FFU	Air volume(m3/h)
Class100	ALCS6 * 8	2000 * 3000 * 2200	6	6600
	ALCS 8 * 12	2440 * 3660 * 2200	12	13200
	ALCS 8 * 16	2450 * 4880 * 2200	16	17600
	ALCS 8 * 20	2440 * 6100 * 2200	20	22000
Class 1000	ALCS6 * 8	2000 * 3000 * 2200	2	2200
	ALCS 8 * 16	2440 * 4880 * 2200	4	4400
	ALCS 12 * 16	3660 * 4880 * 2200	6	6600
	ALCS 20 * 24	6100 * 7300 * 2200	12	13200
Class 10000	ALCS6 * 8	2000 * 3000 * 2200	1	1100
	ALCS 8 * 16	2440 * 4880 * 2200	2	2200
	ALCS 12 * 16	3660 * 4880 * 2200	4	4400
	ALCS 20 * 24	6100 * 7300 * 2200	8	8800

Please contact with us for your best clean room solutions.

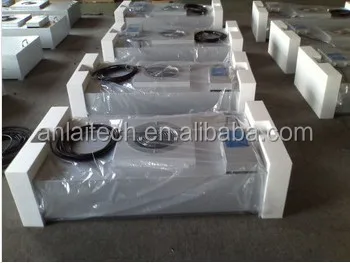

Design into production:

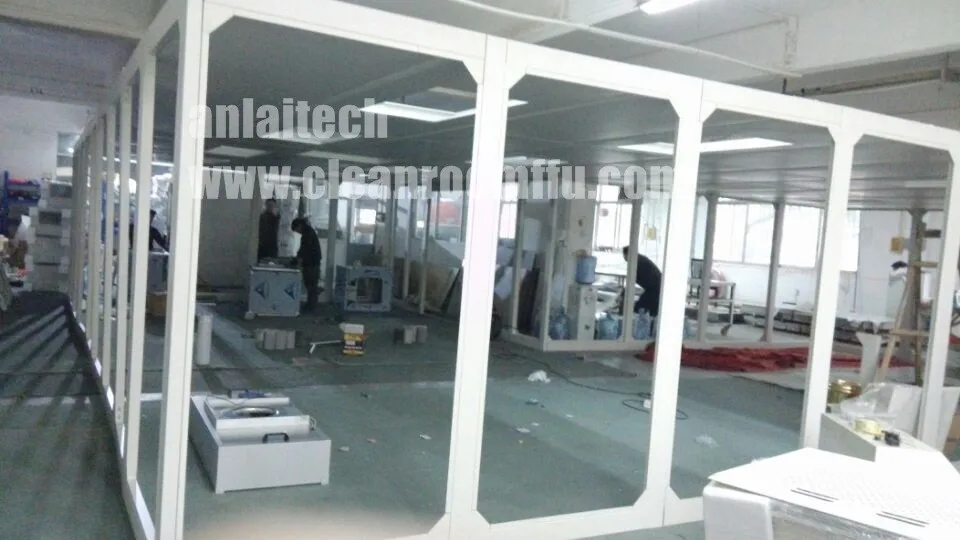

OUR FACTORY INSTALLATION:

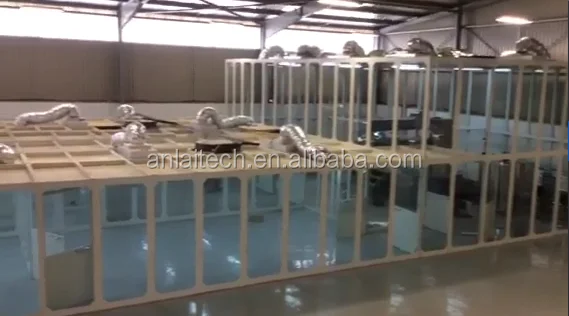

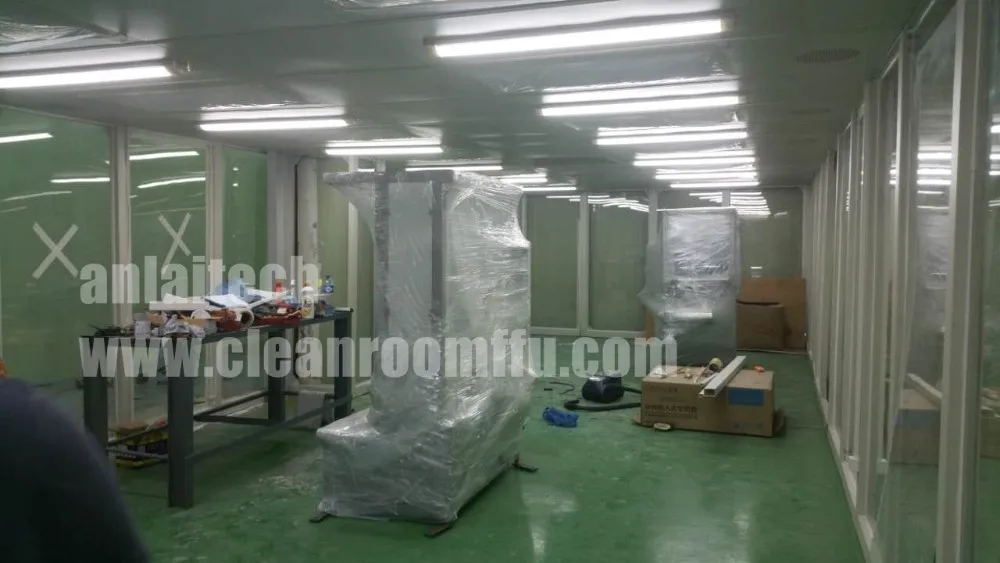

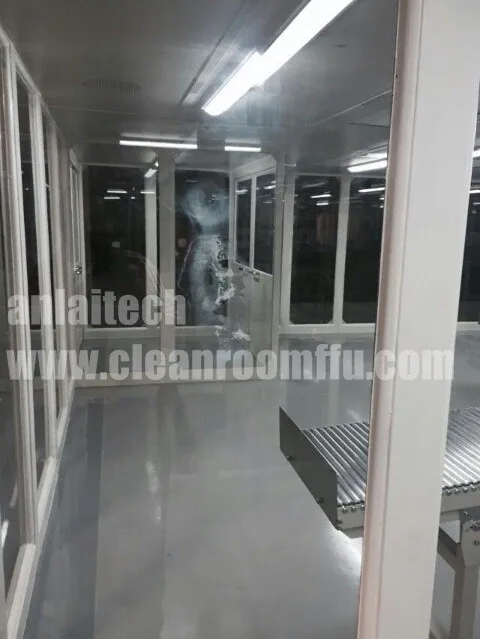

CUSTOMER SITE INSTALLATION:

Air Filtration System

Features:

(1) Assembly structure designed, easy installation and easily moved

(2) Directional wheels can be installed, suitable for small building and high cleanliness area;

(3) Modular design: clean booth can be as small as several square meters and can be as large as hundreds of square meters

(4) It has large useful and effective area; while compared with traditional clean room, it has such features like low investment, high return and stable.

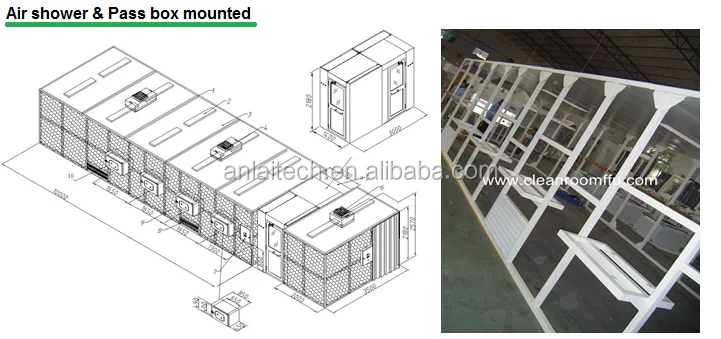

Following options are available

1. Pass box

2. Air shower

3. ULPA filter

4. Sticky mats

5. Barometer

6. Gowning area

7. Pressure different control device

8. Transparent/grid PVC curtain

9. Thermo-static and humid-static air conditioning system.
