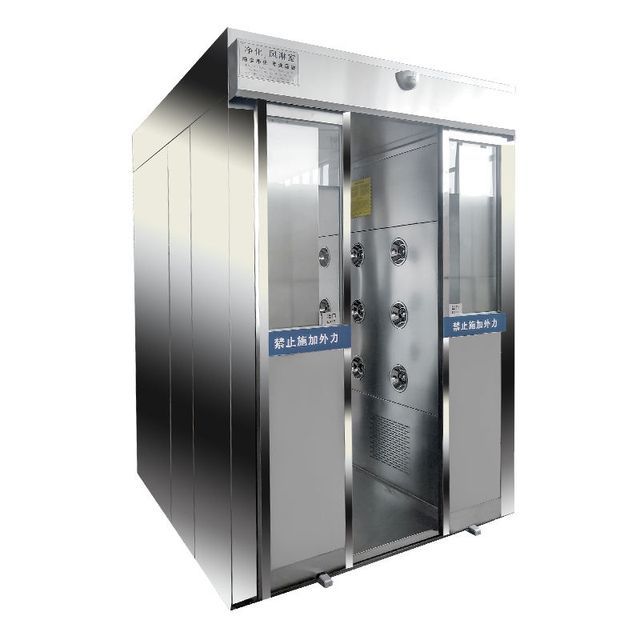

Attractive price all stainless steel automatic door air shower

Supplier: Weihui Lipu Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Jack Hu
Price: $2000.00 / 1 - 9 sets
$1200.00 / 10 - 999 sets
$900.00 / >=1000 sets
Min. Order: 1 set

Click here to contact

Product details

Air shower time (s):	0-99s adjustable	brand:	Lipu
Packaging Details:	Any air shower room is packed in a fumigation-free wooden box	Showroom location:	not any
Key words:	Air shower	weight:	450 kg
Warranty:	3 years	Supply capacity:	300 sets per month cheap air shower clean room door price high quality
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	port:	Qingdao Shanghai Guangzhou
Core component warranty:	3 years	nozzle:	12~36 pieces
Health status:	new	application:	clean room entrance
Origin:	Henan, China	Door:	Electronic interlock
Package preview:		Mechanical test report:	if
Applicable industries:	Manufacturing plant, machinery maintenance shop, food and beverage factory, food store, printing shop, food and beverage store, others	size:	custom size
Voltage:	220V/380V	Core components:	PLC, engine, gearbox
Material:	Stainless steel 201/304	strength:	2200
Video shipment inspection:	if	After-sales service provided:	3 years

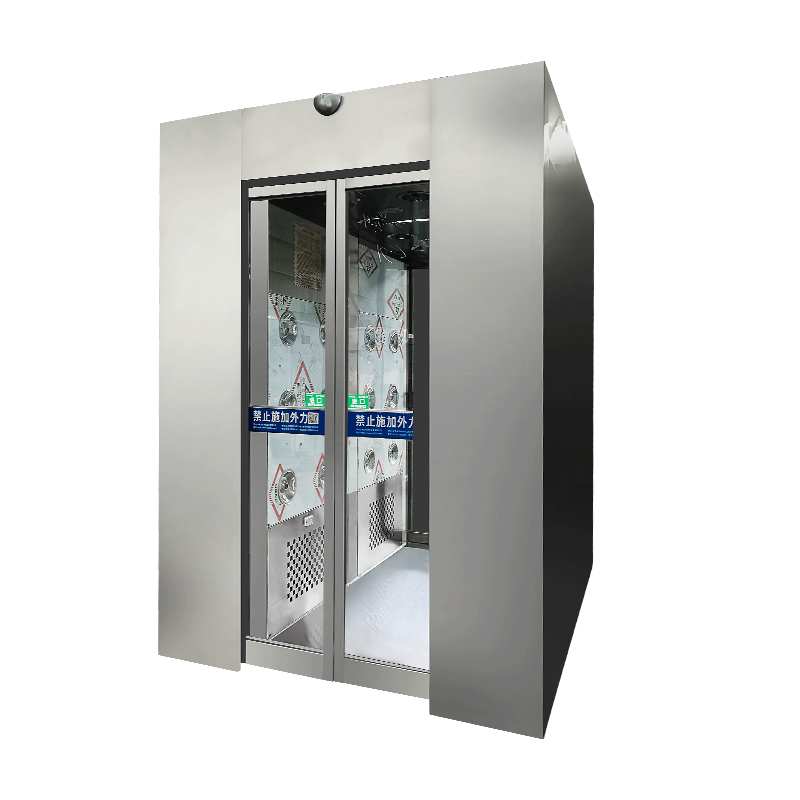

Dimensions (LWH):	custom made	product name:	sliding door air shower
Marketing Type:	New Products 2020	air filter:	High efficiency filter (99.99%@0.3um) primary filter

Lipu Machinery is a professional manufacturer of air showers. It has been in this industry for 15 years and is deeply trusted and supported by users.
The main product air shower is exported to all over the world, with EU CE certification, quality assurance, and the best price.

Specification

Air shower

The clean room air shower is the only passage for personnel to enter and exit the clean room, and it also acts as a closed room for the air lock room. In order to reduce a large amount of dust particles generated by people entering and leaving, the air shower air filtered by the high-efficiency filter is sprayed on the surface of people/cargo through the rotatable nozzles on both sides of the box, effectively and quickly removing dust particles. The air shower of the clean room is filtered by the primary filter and the high efficiency filter and then circulated to the air shower area.

Specifications and Features:

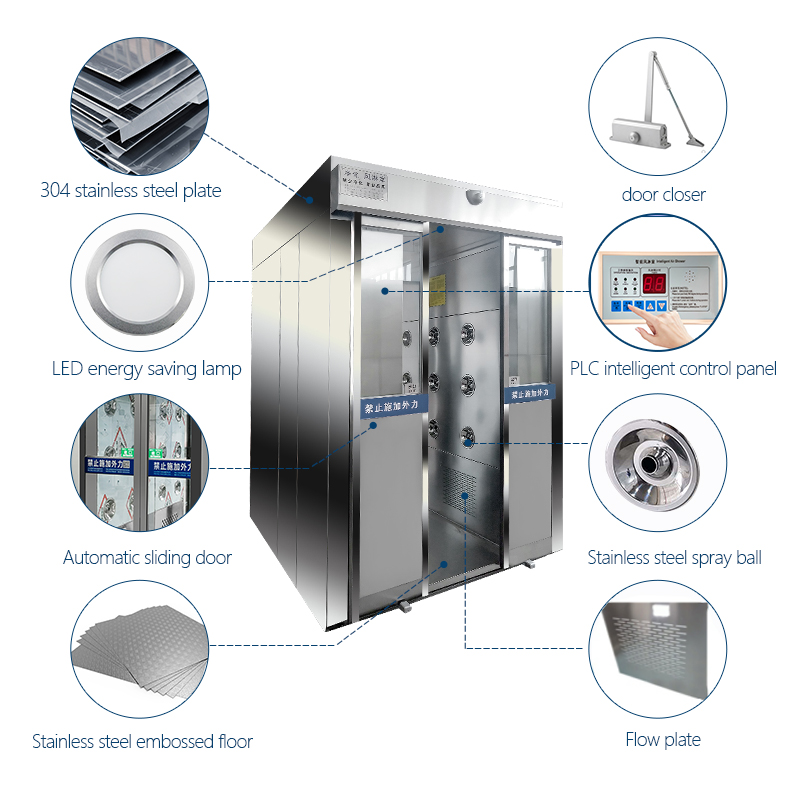

The advantages and functions of our air shower are as follows:
1) Material: stainless steel SUS304;
2) Electronic interlock. When door A is open, door B is locked. Doors A and B cannot be opened when blowing air;
3) Install an emergency stop button according to customer needs, in case of emergency. Once pressed, both doors open;
4) Color LCD screen, control blowing time and lighting time. Display a reminder to change the HEPA filter when needed;
5) Infrared sensor automatically blows air and stops automatically;
6) Blow air on left and right sides, stainless steel nozzle.
7) German DORMA door closer, stable. Chinese KFC stores also choose this type as their door closers;
8) Install 360-degree rotatable nozzles according to customer needs to maintain efficient blowing of particulate matterpersonnel.

Regular Size Air Shower
Model	LPFIS-WLB1-1	LPFIS-WLB2-1	LPFIS-WLB2-2	LPFIS-WLB3-2
product name	single blow	double blow	double blow	multiplayer double blow
Shell material	Exterior: Painted cold-rolled steel/stainless steel Internal: stainless steel 201/304
Number of nozzles	6	12	24 sheets (12 sheets per side)	24 sheets (12 sheets per side)
Nozzle diameter	diameter 30mm
speed	≥20m/s
Wind shower time	0-99s (adjustable)
filter	600600120 (1 piece)	600600120 (2 pieces)	600600120 (4 pieces)	600600120 (4 pieces)
Light	LED No. 1 built-in type
DimensionsWLH(mm)	120010002100	120015002100	140015002100	140019202100
Internal size WLH(mm)	8009201980	80014202000	80014202000	80014202000
blower	220/380V, 50Hz or according to customer needs
Maximum power (W)	500	1100	2200	2200
interlock	Electrical interlock or mechanical interlock
Weight (kg)	200	300	400	300
Size, material and shape can be customized
