AL-AS-1300-S1 PERSONAL AIR SHOWER

Product details
Applicable Industries:Manufacturing Plant,Food & Beverage Factory,Energy & Mining;Warranty:1 Year;
Condition:New;After-sales Service Provided:Video technical support;
Place of Origin:Guangdong China;Weight:415KGS;
Single package size:11X11X11 cm;Brand Name:ANLAITECH;
Selling Units:Single item;Voltage:380V 220V;
Power(W):2.2KW;Certification:CE;
Single gross weight:11 KG;Dimension(L*W*H):1300*1500*2100MM;

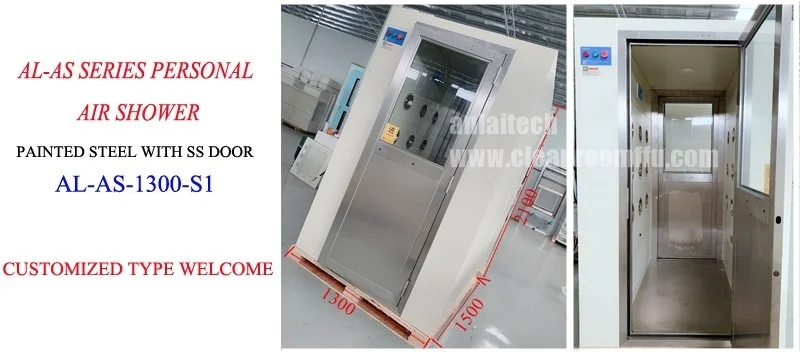

AL-AS SERIES PERSONAL AIR SHOWER



ANLAITECH brand AS Series Personal Air Shower is available in three different materials: full Stainless Steel, Stainless Steel Interior, and Steel Plate. With patented air shower design technologies that which ensures a clean seal that prevents contaminant seepage, it  can educe large amounts of dust particles brought by staff, and includes 360-degree air jet nozzles that work at more than 25 m/s. with automatic air showering type and clear working indication lights that easy operation.







AL-AS Series Personal Air Shower Spec Sheet

Model

AL-AS-1300/P1

AL-AS-1300/S1

AL-AS-1300/P2

AL-AS-1300/P3

TUNNEL TYPE

Exterior Size

LxWxH (mm)

1300x1000x2100

1300x1500x2100

1300x2000x2100

1300x3000x2100

1300x6000x2100

Interior Size

LxWxH (mm)

800x930x1960

800x1430x1960

800x1930x1960

800x2930x1960

800x6930x1960

Users

1

2

2-3

3-4

8-10

Material

Available in 100% SUS304 Stainless Steel and/or High-Quality 1.2 mm Cold-Rolled Steel Plate

Air Shower Time

0-99 seconds

Jet Nozzles

12

18

24

36

72

Nozzle Diameter

30 mm

Air Velocity

> 25 m/s

Door Closer

Dorma (German) Door Closer

Electronic Lock

LCJ Electronic Lock

Filter Efficacy

≥99.995% of Particles ≥0.3μm

Filter Size

LxWxH (mm)

595 ×595×80

595 ×595×80

595 ×595×80

595 ×595×80

595 ×595×80

No. of Filters

2

2

4

6

12

Power Source

380V/50Hz (Also Available in 220V and 110V)

Lighting

1 Recessed LED

2 Recessed LED

2 Recessed LED

3 Recessed LED

4 Recessed LED

Fan Power

(# x Kw)

2 x 0.55

2 x 0.75

4 x 0.55

4x 0.75

8 x 0.75

Weight (kg)

350

450

600

900

1800

CUSTOMIZED DESIGN WELCOME.

















ANLAITECH Air Shower Main Features

1. Special ultra thin blowing tube housing and fan, match with rotatable embedded stainless steel nozzle, greatly increased the space utilization and blowing tube effect.

2. High quality infrared sensor automatically showering;

2. Time for showering can be adjusted from 0 second to 99 seconds, Adopts single chip microcomputer control, LCD display working status;

3. Imported electronic interlock device, two doors can not opened at same time;

4. With G1 and H13 99.99%@0.3 micron HEPA filter to ensure the purification class;

5. Standard of the modular design, make field assembly faster and more convenient maintenance.

6. But according to user needs and site condition transformation function and form.





VARIOUS OPTIONAL PARTS FOR ANLAITECH AIR SHOWER



Cargo air showers are frequently put to use in a variety of manufacturing environments. Cargo air showers offer a convenient and automated solution to cleaning the surfaces of work in progress or finished goods, as well as provide a buffer area between two areas of different cleanliness. Modern cargo air showers can be categorized into four main types:

(1) Manual Door Cargo Air Showers- Less common; mostly used for smaller items

(2) Automatic SWING Door Cargo Air Showers - Suitable for small trailers and/or channels that are double use for cargo and personnel

(3) Automatic SLIDING Door Cargo Air Showers - Suitable for forklifts and other large vehicles, as well as channels with high amounts of traffic

(4) Assembly Line Cargo Air Showers - Suitable for cleaning products moving along an assembly line



+

AL-GS Series Cargo Air Shower Spec Sheet

Model

AL-GS-1700/1

AL-GS-1700/3

AL-GS-2000/1

AL-GS-2000/3

Exterior Size

LxWxH (mm)

1700x1500x2100

1700x3000x2100

2000x1500x2100

2000x3000x2100

Interior Size

LxWxH (mm)

1200x1430x1960

1200x2930x1960

1500x1430x1960

1500x2930x1960

Material

Available in 100% SUS304 Stainless Steel and/or High-Quality 1.2 mm Cold-Rolled Steel Plate

Air Shower Time

0-99 seconds

Jet Nozzles

18

36

18

36

Nozzle Diameter

30 mm

Air Velocity

> 25 m/s

Door Closer

Dorma (German) Door Closer

Electronic Lock

LCJ Electronic Lock

Filter Efficacy

≥99.995% of Particles ≥0.3μm

Filter Size

LxWxH (mm)

595 ×595×80

595 ×595×80

595 ×595×80

595 ×595×80

No. of Filters

2

4

2

4

Power Source

380V/50Hz (Also Available in 220V and 110V)

Lighting

1 Recessed LED

2 Recessed LED

1 Recessed LED

2 Recessed LED

Fan Power

(# x Kw)

2 x 0.75

4 x 0.75

2 x 0.75

4x 0.75

CUSTOMIZED DESIGN WELCOME.











+

AL-GS/F Series FAST-ROLLING Door Air Shower Spec Sheet

Model

AL-GS-2500/F1

AL-GS-2500/F2

AL-GS-2500/F3

Exterior Size

LxWxH (mm)

2500x1500x2700

2500x2000x2700

2500x3000x2700

Interior Size

LxWxH (mm)

2000x1400x2200

2000x1900x2000

2000x2900x2200

Material

Available in 100% SUS304 Stainless Steel and/or High Quality 1.2 mm Cold-Rolled Steel Plate

Air Shower Time

0-99 seconds

Jet Nozzles

24

32

48

Nozzle Diameter

30 mm

Air Velocity

> 25 m/s

Door Closer

Dorma (German) Door Closer

Electronic Lock

LCJ Electronic Lock

Filter Efficacy

≥99.995% of Particles ≥0.3μm

Filter Size

LxWxH (mm)

595 ×595×80

595 ×595×80

595 ×595×80

No. of Filters

2

4

6

Power Source

380V/50Hz (Also Available in 220V and 110V)

Lighting

1 Recessed LED

2 Recessed LED

1 Recessed LED

Fan Power

(# x Kw)

2 x 0.75

4 x 0.75

6 x 0.75

CUSTOMIZED DESIGN WELCOME.





All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.

Factory test include:

--appearance testing

--functional test and visual inspection

--electrical safety tests

--air velocity testing

--noise testing



Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.
