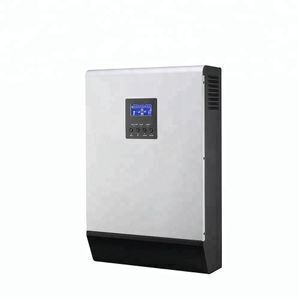

5000W MPPT solar inverter hybrid solar inverter with mppt charge controller

Click here to contact

Product details

certification:	CE,ISO,IEC61730;	Input Voltage:	12V/24V/48V;
Packaging Detail:	carton;	Weight:	5-10KG;
Type:	DC/AC Inverters;	Output Type:	Single;
Output Frequency:	50Hz/60Hz;	Payment Terms:	L/C,T/T,Western Union,paypal;
Model Number:	HY101012P / HY3022M / HY5032M;	Place of Origin:	Guangdong China;
Delivery Detail:	10days after receive the payment;	Output Voltage:	220V/230V/240V;
Port:	Foshan/Shenzhen/Guangzhou;	Supply Ability:	10000 Piece/Pieces per Month;
Output Power:	1 - 200KW;	Size:	100272385;
Output Current:	4A-30A;	Brand Name:	OUYAD;

5000W MPPT solar inverter hybrid solarinverter with mppt charge controller

Features:

1. Pure sine wave inverter

2.Built-in MPPT charge controller

3.Configurable input voltage range for home appliances and personal computer via LCD setting

4.Configurable battery charging current based on appliances via LCD setting

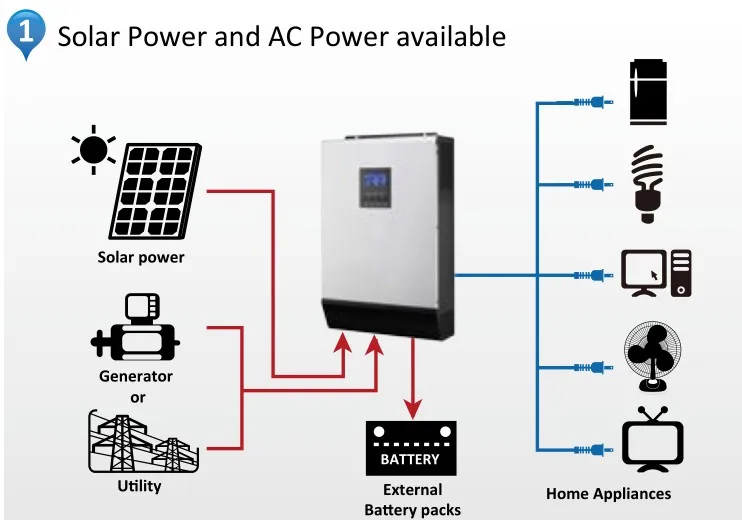

5.Configurable AC/solar charger priority via LCD setting

6.Auto restart while AC is recovering

7.Overload/over temperature /short circuit protection

Specifications

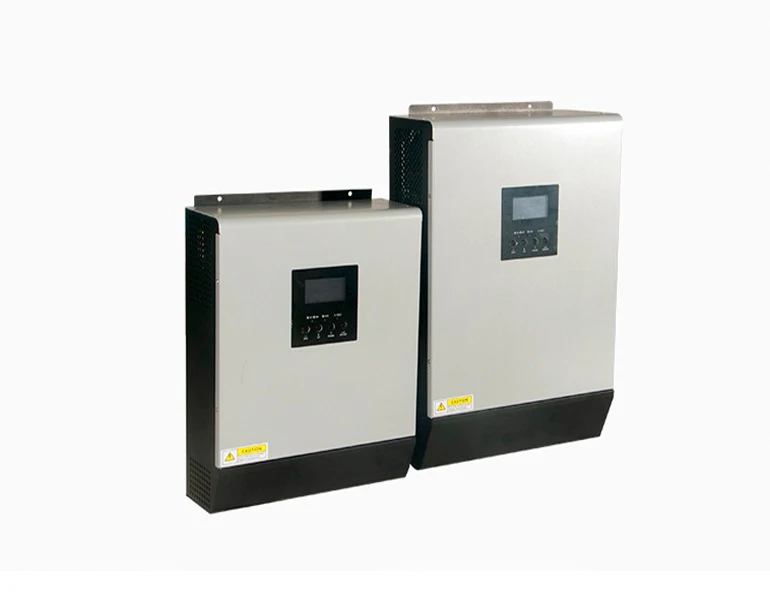

Model No.		HY1012P	HY3022M	HY5032M
Rated power		1000VA /800W	3000VA /2400W	5000VA /4000W
Input	voltage	230VAC
	selectable voltage range	170-280VAC (for personal computers) 90-280VAC (for home appliances)
	Frequency range	50Hz/60Hz (auto sensing)
Output	AC voltage regulation (Batt.mode)	230VAC±5%
	Surge power (5 seconds)	2000VA	6000VA	10000VA
	efficiency (peak)	90%-93%	93%
	transfer time	10ms(for personal computers); 20ms (for home appliances)
	waveform	pure sine wave
Battery& AC charger	battery voltage	12VDC	24VDC	48VDC
	floating charge voltage	13.5VDC	27VDC	54VDC
	overcharge protection	15.5VDC	31VDC	62VDC
	maximum charge current	10A/20A	20A/30A	2A/10A /20A/30A /40A/50A/60A
	MAX PV array power	600W	600W	4000W
	MPPT range@ operating voltage	15 ~ 80V	30~66V	60-115V
	maximum PV array open circuit voltage	102VDC	75VDC	145VDC
	maximum charging current	50A	25A	60A
	maximum efficiency	98%
	standby power consumpsion	2W

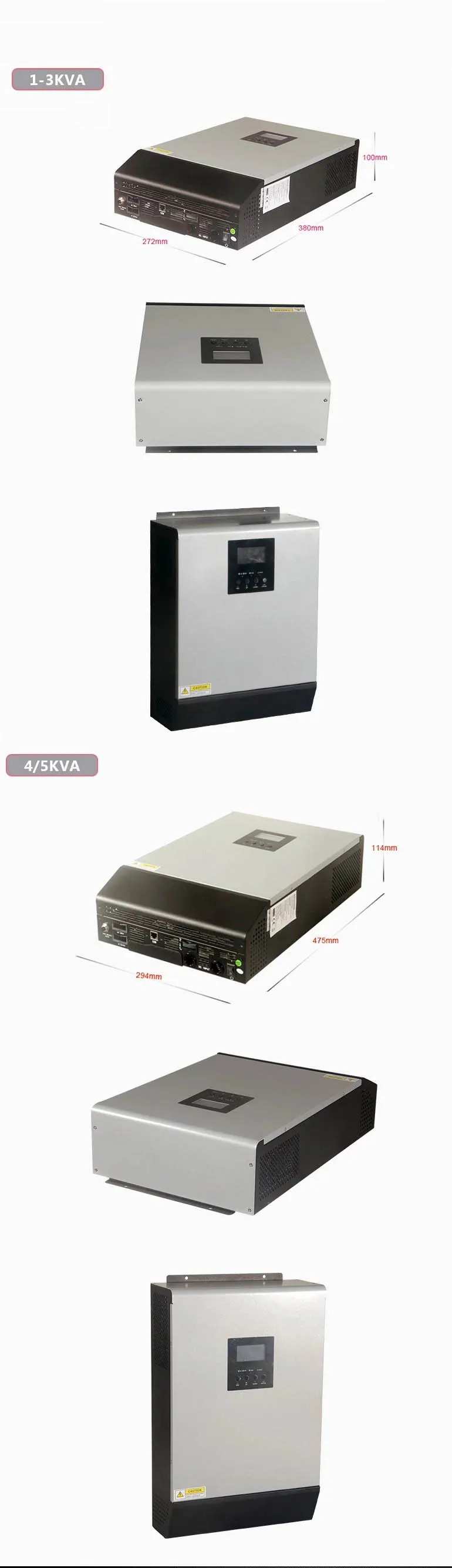

Physical	Dimension, DWH(mm)	95240316	100272385	155295455
Physical	Net weight (kgs)	5KG	7KG	10KG
operating Environment	humidity	5%-95% relative humidity ( non-condensing)
	operating temperature	0℃-55℃
	storage temperature	-15℃-60℃
