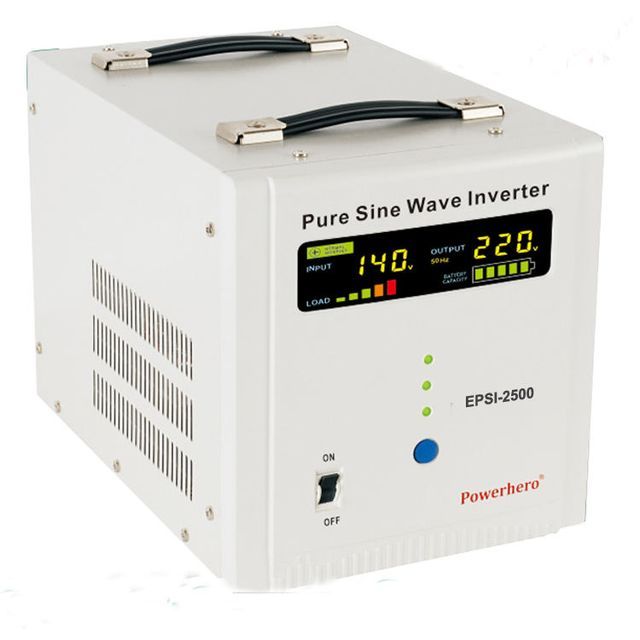

OEM Factory Sale 2.5KVA 24V DC Input 220V AC Output UPS Solar Power System Pure Sine Wave Inverter

Supplier: Huizhou Yinghua Electronic Co., Ltd.
Region: Guangdong, China
Price: $10.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

port:	Guangzhou or Shenzhen	brand:	Super hero
type:	DC/AC Inverter	output type:	single
exhibit:	LED LCD graphic display	color:	white
Inverter type:	online interactive	The output voltage:	AC220V
AVR Range:	140-275Vac	payment terms:	L/C, D/P, D/P, T/T
Control panel:	Metal	Packaging Details:	1pc/gift box, 1pc gift box/carton; best to ship by sea in a full container. Carton size: 410x290x320mm GW/CTN: 14.8Kgs.
Output current:	8.18A	Origin:	Guangdong, China
Supply capacity:	30000 pieces per month	model:	EPSI-2500
Output frequency:	50Hz/60Hz	weight:	14.8 kg
size:	355x220x250mm	Input voltage:	24V

1. OEM factory sale 2.5KVA 24V DC input 220V AC output UPS solar system pure sine wave inverter

EPSI series are pure sine wave inverters, also known as pure sine wave UPS. Why is it called "UPS" again? Because it has the same function of providing backup power in the event of a grid outage. Therefore, the main function of a pure sine wave inverter is to convert DC to AC.

The power range of our EPSI series is 500VA-7000VA. Output voltage, socket, chassis color, etc. can be customized according to different customer needs. So OEM is available. Now our this type is widely used in Europe, Africa, Middle East. More technical details are as follows:

Model		EPSI-500	EPSI-800	EPSI-1000	EPSI-1500	EPSI-2000	EPSI-2500	EPSI-3000	EPSI-5000
Rated Capacity		500VA	800VA	1000VA	1500VA	2000VA	2500VA	3000VA	5000VA
rated power		300W	500W	700W	1050W	1400W	1800W	2100W	3500W
transformer		Full power design CRGO toroidal transformer
interface		LCD graphics
Display state		Working & Loading & Battery
Operating mode		PV (photovoltaic priority) AC priority is optional
enter	Voltage	140-275Vac
	frequency	45-65 Hz
output	Voltage	220V+-3% Inverter
	frequency	50/60Hz +-0.3Hz, slave master
	waveform	pure sine wave
	Waveform distortion	<=3%
Protect		Overload, high temperature, high output voltage, short circuit, reverse connection, etc.
connecting time		4 milliseconds
battery voltage		12V	12V	12V	24V	24V	24V	48V	48V
Charging voltage		13.8+-0.5V	13.8+-0.5V	13.8+-0.5V	27.6+-0.5V	27.6+-0.5V	27.6+-0.5v	55+-1V	55+-1V
low voltage limit		10.9+-0.3V	10.9+-0.3V	10.9+-0.3V	21.8+-0.5V	21.8+-0.5V	21.8+-0.5V	42+-1V	42+-1V
Low voltage protection		10.2+-0.3V	10.2+-0.3V	10.2+-0.3V	20.5+-0.5V	20.5+-0.5V	20.5+-0.5V	41+-1V	41+-1V
recharging current		maximum. 10/15/20A
cooling system		Yes
environmental	Operating temperature	0-40℃
	Relative humidity	10%-90% RH, non-condensing
	Storage temperature	-15-45℃
Package	Machine size(mm)	146x340x210					220x383x275
	Number / Box	2					1
	Carton size	425x420x290					470x295x370
	kilogram	13.60	14.80	17.50	19.60	27.00	15.30	16.60	22.10
