220V output rated power 6000w pure sine wave DC AC inverter pure sine wave inverter 6000w 10000w 12000w 24V 48V

Supplier: TTN New Energy Technology (Wenzhou) Co., Ltd.
Region: Zhejiang, China
Contact: Mr Zhang
Price: $38.00 / 1 - 9 pieces
$32.00 / 10 - 99 pieces
$29.00 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Output current:	depending on load	USB:	5V 1000MA/2000MA
network:	NFC,SDK	Customization support:	software reengineering
Storage temperature:	-50℃~+70℃	product name:	12V 220V Inverter
Package preview:		output type:	single
size:	19.511.26cm	range of working temperature:	-40℃~+60℃

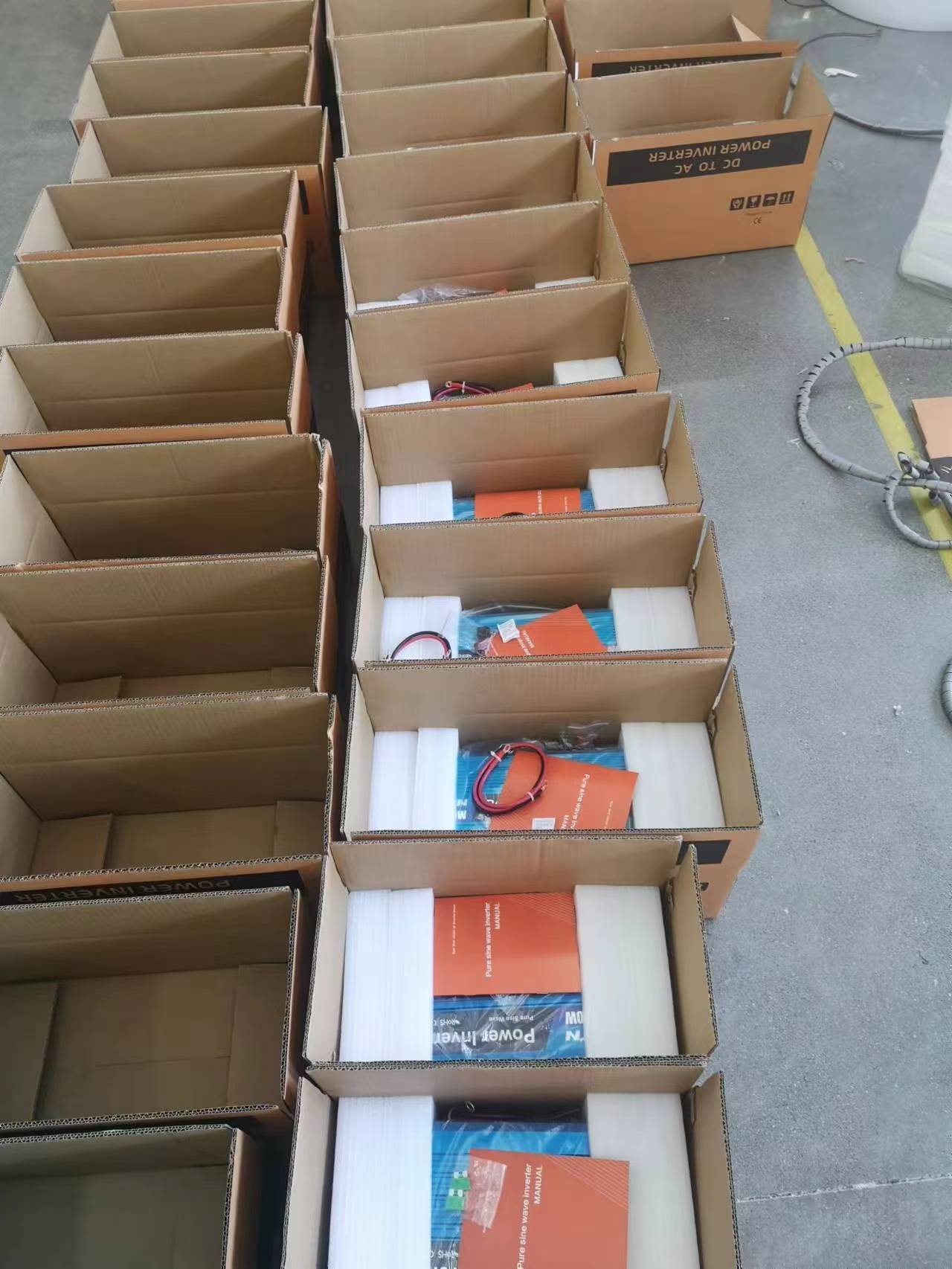

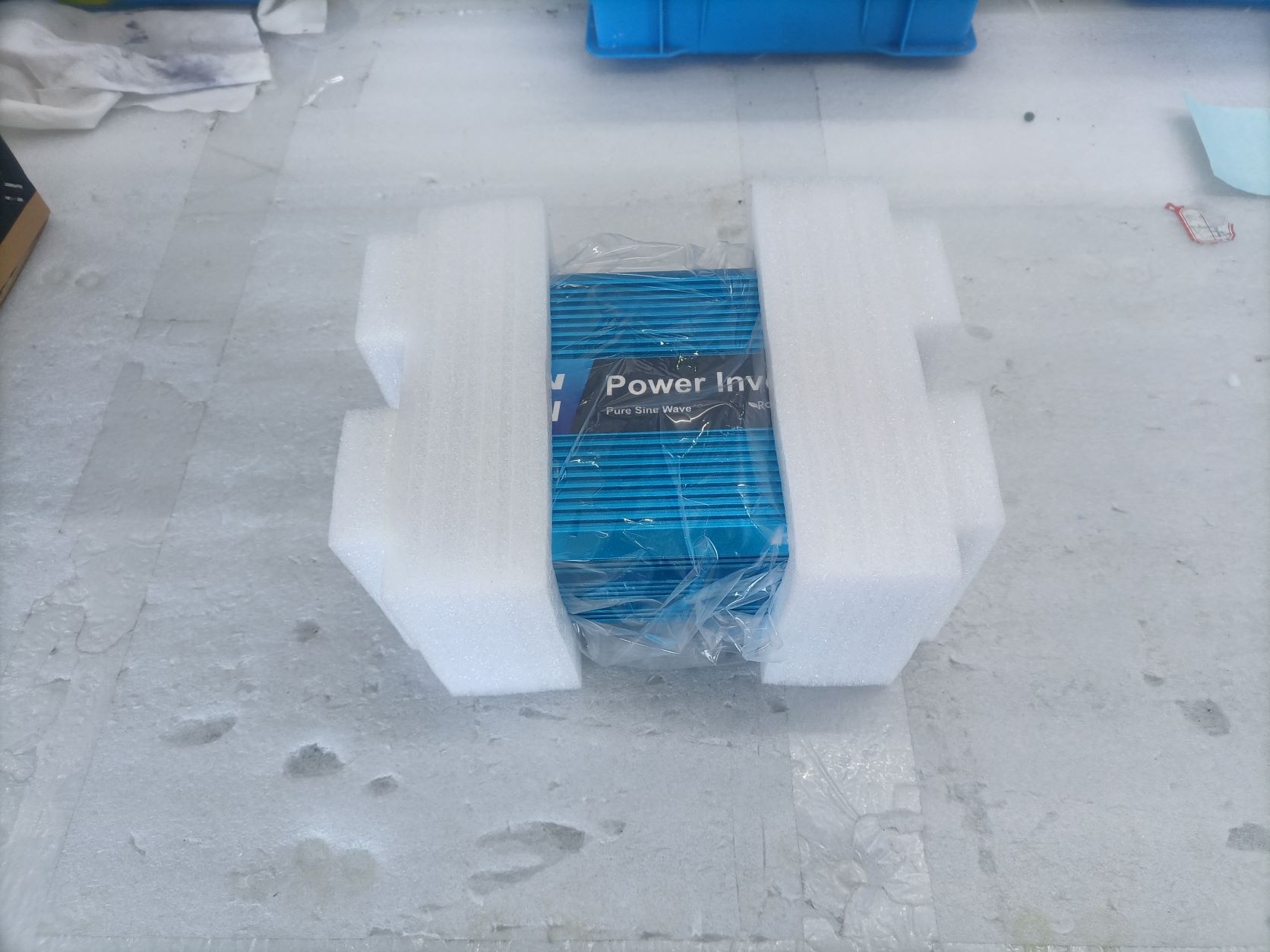

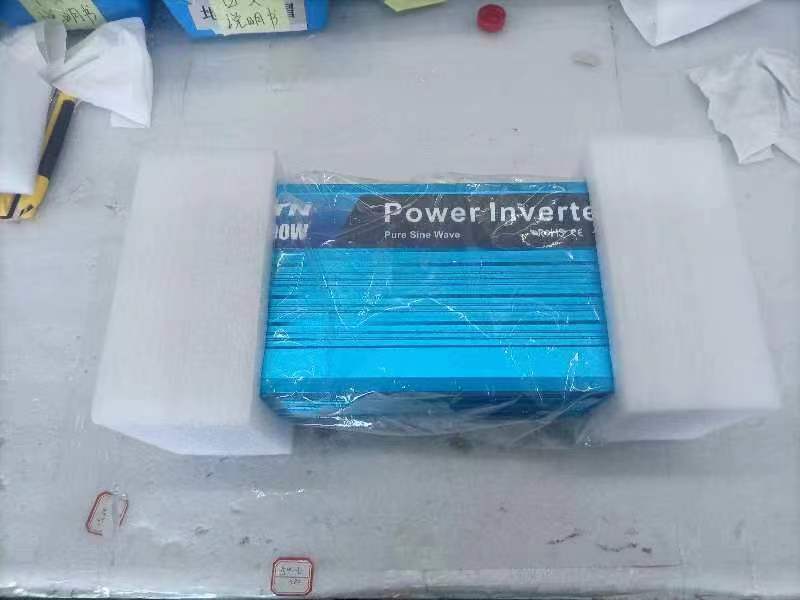

Packaging Details:	For small-capacity products (automatic voltage regulator/regulator), the color box is the inner packaging, and the cardboard box is the outer packaging. For large volume products, we use a strong plywood case.	payment terms:	wire transfer
Supply capacity:	600 pieces per day	port:	Ningbo or Shanghai or any other port in China.
Maximum working efficiency:	94%	Certificate:	EU Directive
weight:	1.2 kg	Protect:	Battery under/overvoltage, overload, AC short circuit protection
brand:	TTN	Output waveform:	pure sine wave
model:	TTN-SGPE	type:	DC/AC Inverter
Origin:	Zhejiang, China	Output frequency:	50Hz/60Hz

Product Description

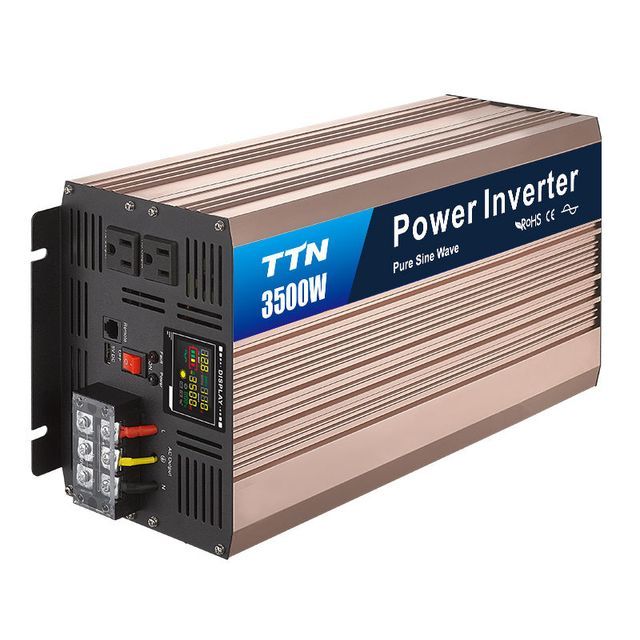

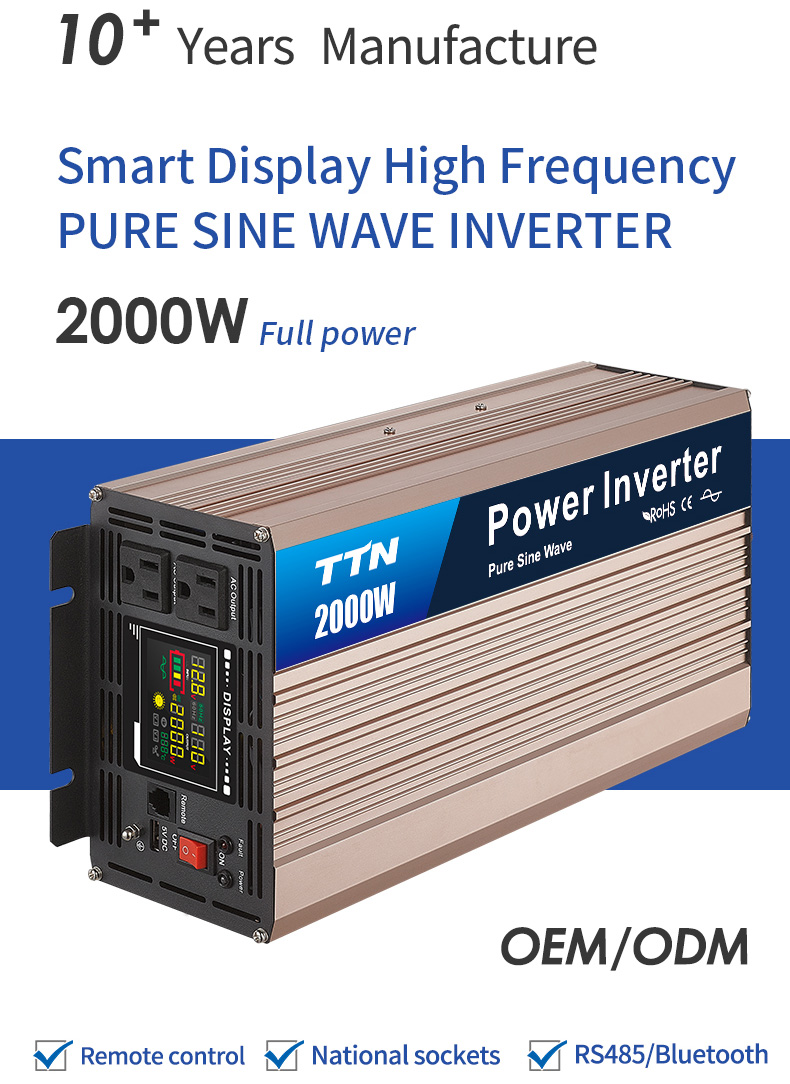

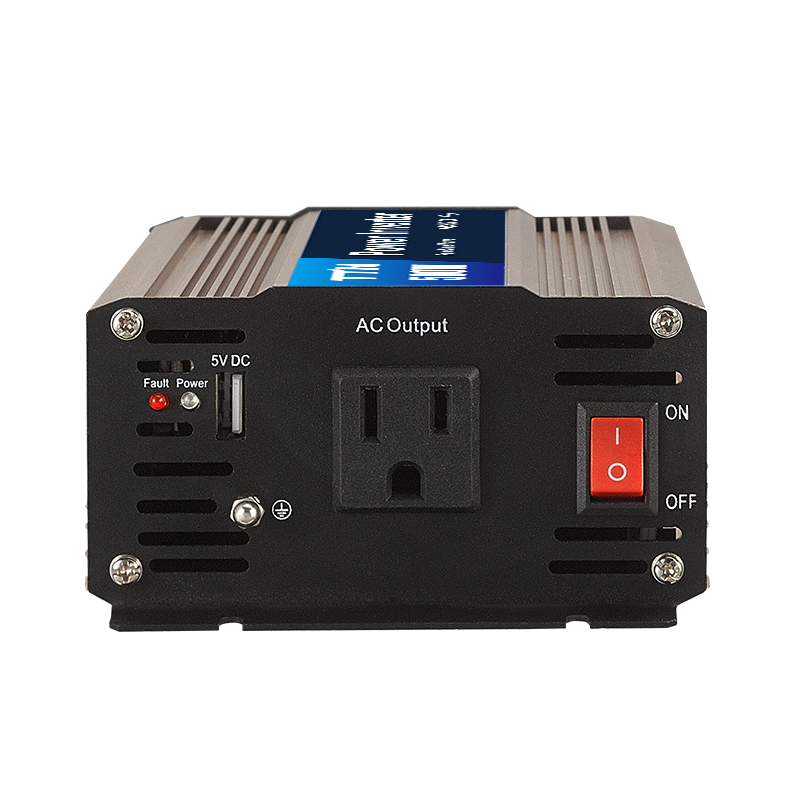

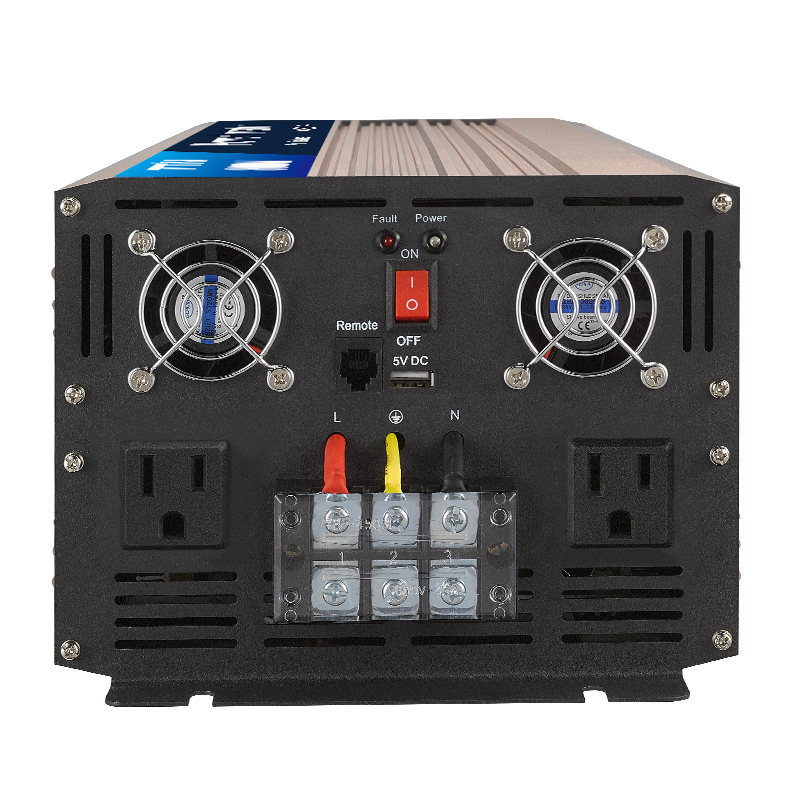

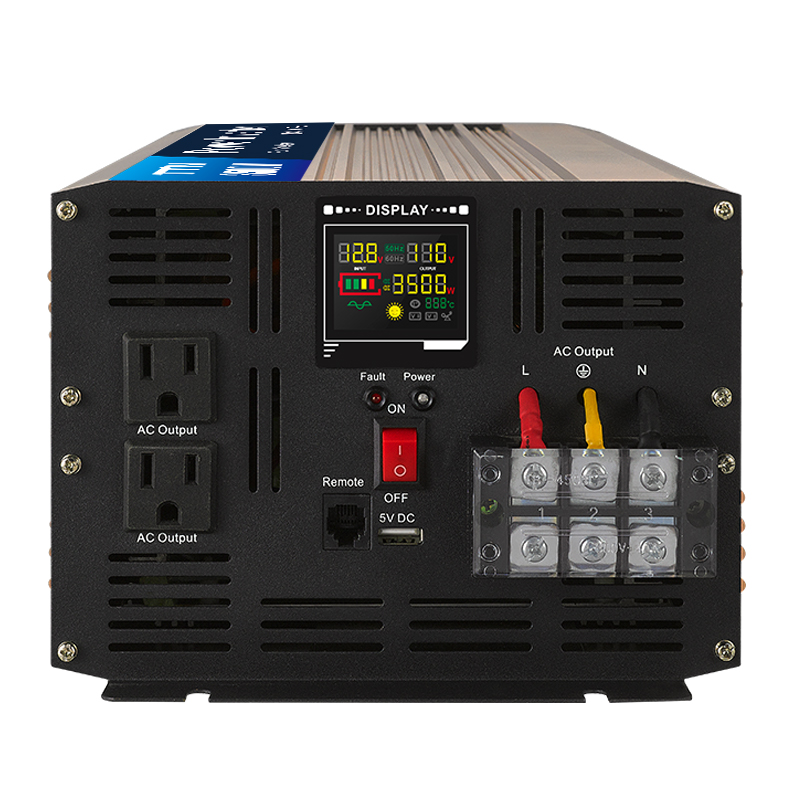

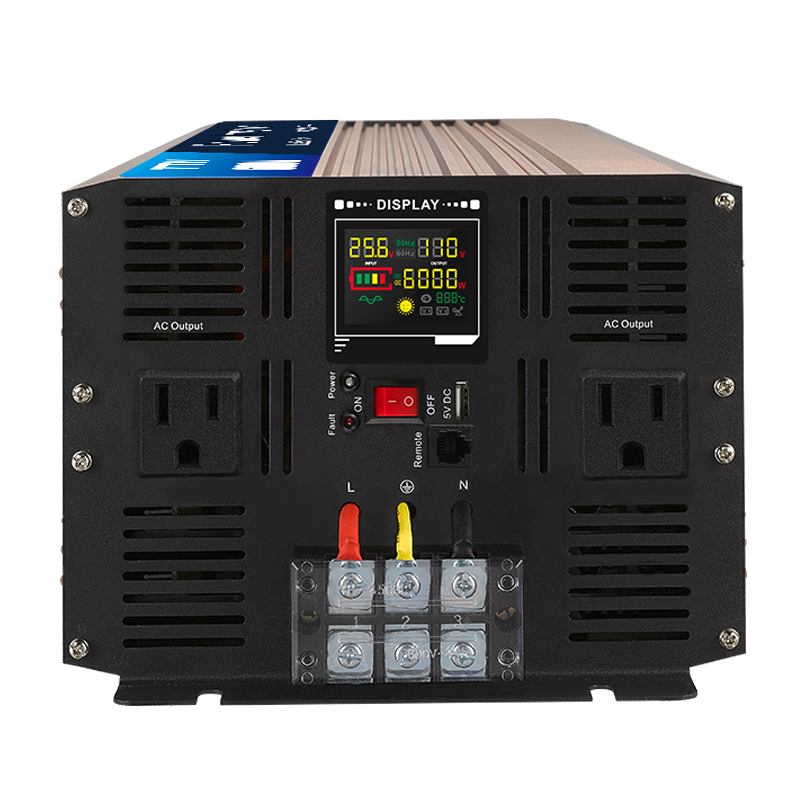

TTN pure sine wave inverter

TTN-SPGE 300W / 500W / 600W / 1000W / 1500W / 2000W

2500W / 3000W / 3500W / 4000W / 5000W / 6000W / 8000W

Brief introduction of power inverter:
1. This inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is really pure. The unique dynamic current loop control technology ensures reliable operation of the inverter.
2. Load adaptability, including inductive load, capacitive load, resistive load and mixed load. High performance overload capacity and impact resistance.
3. It has perfect protection functions such as input overvoltage, undervoltage, overload, overheating, output short circuit, etc.
ETC.

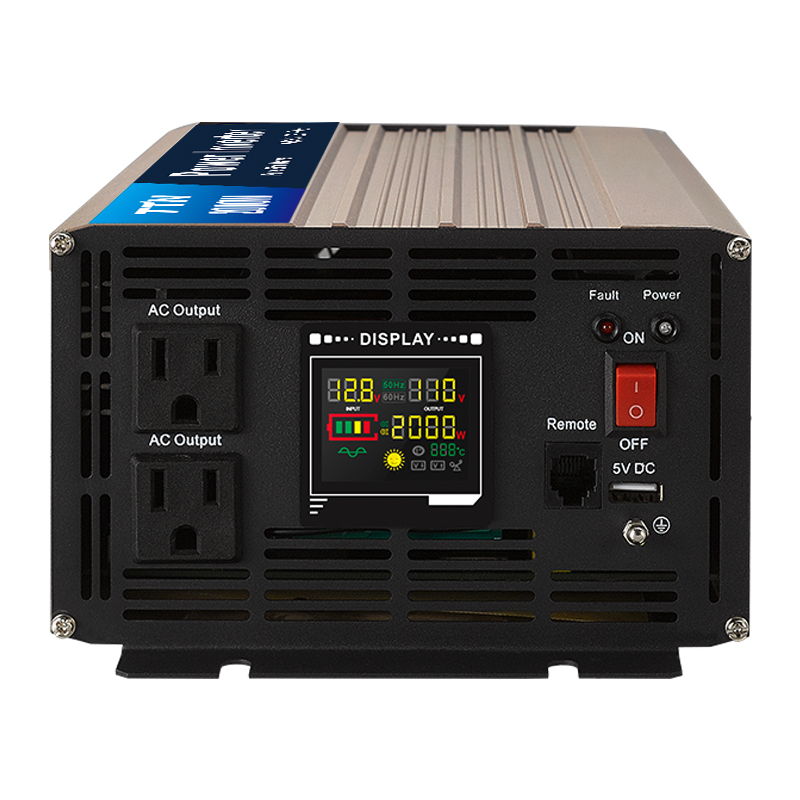

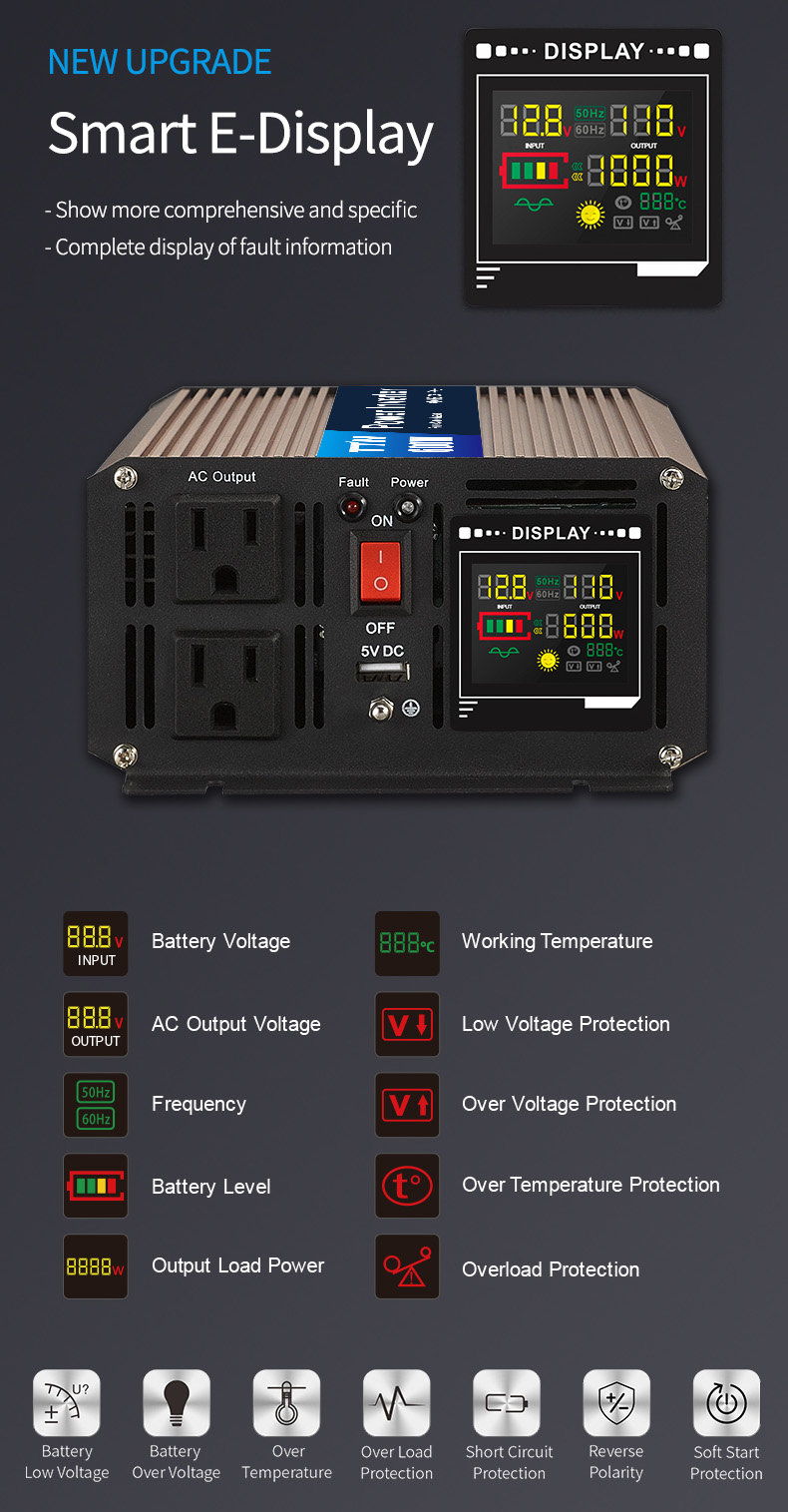

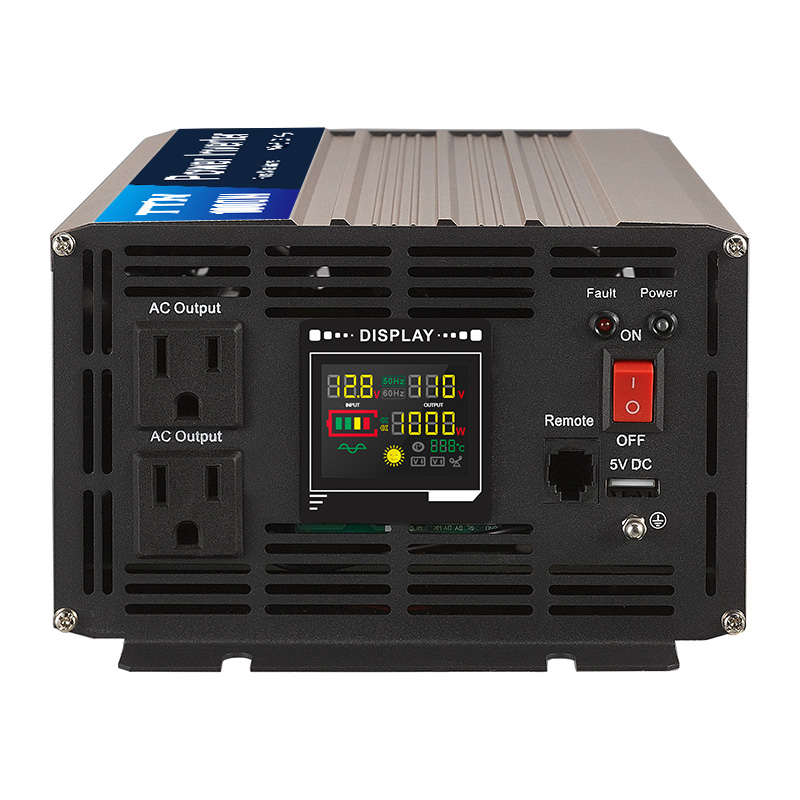

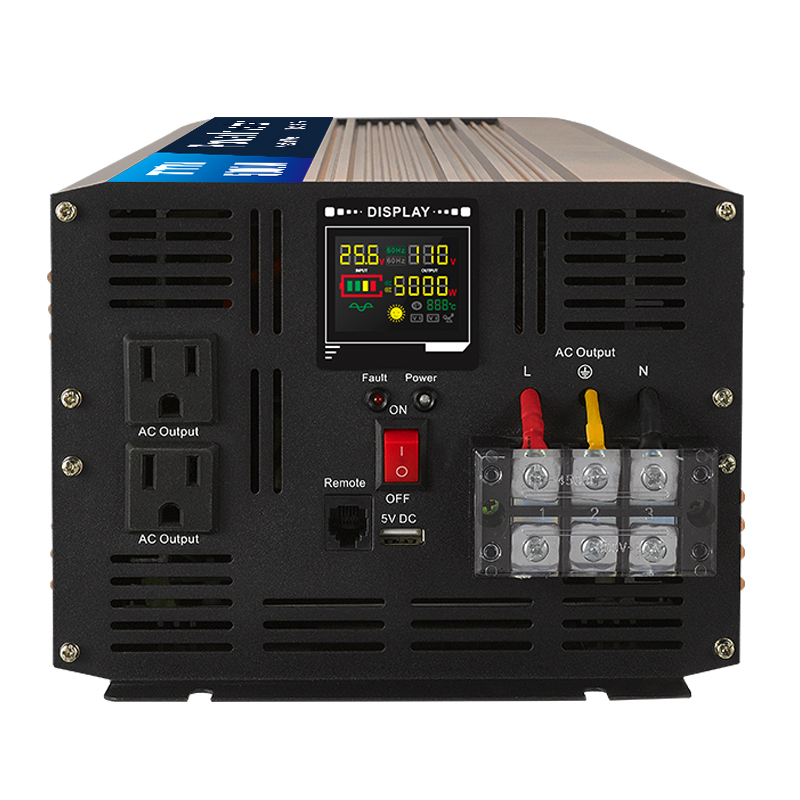

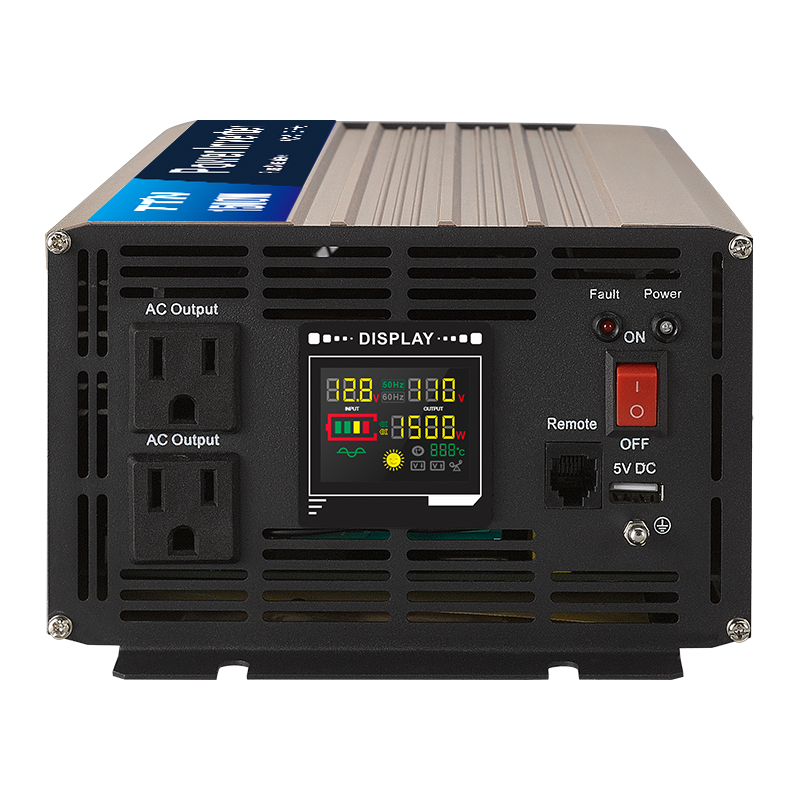

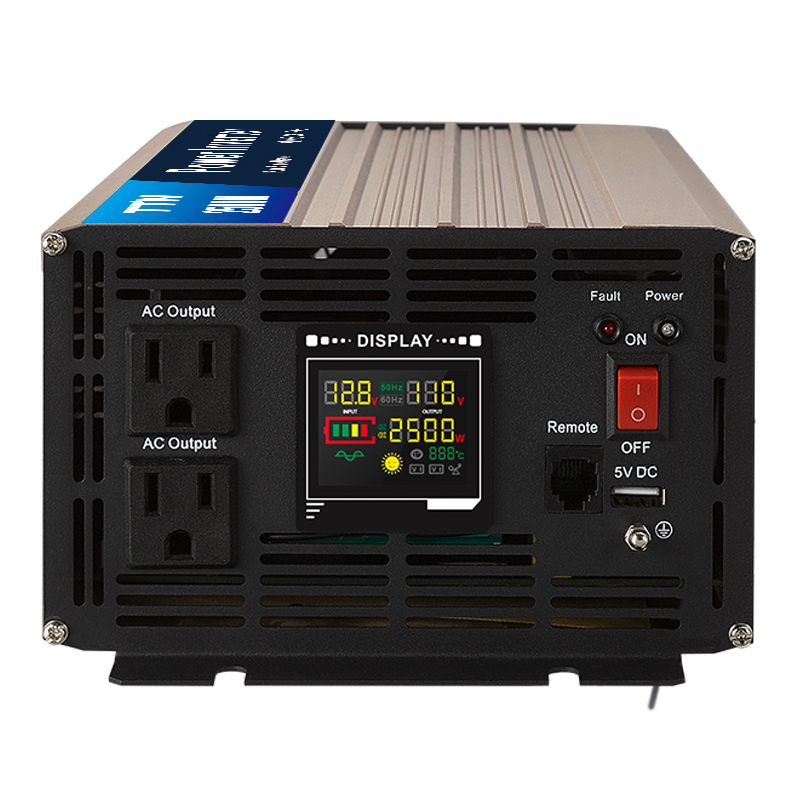

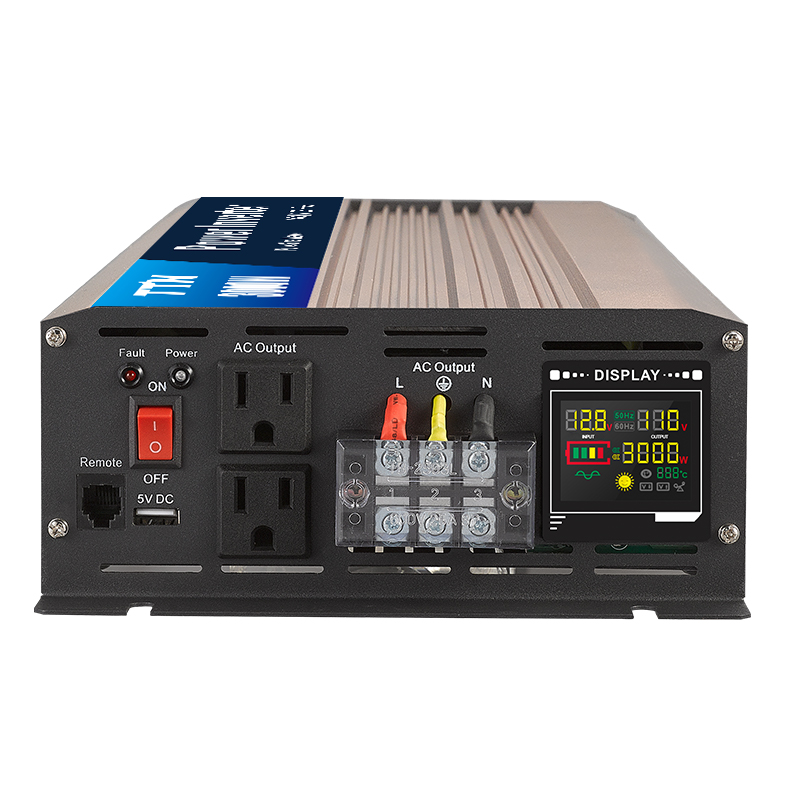

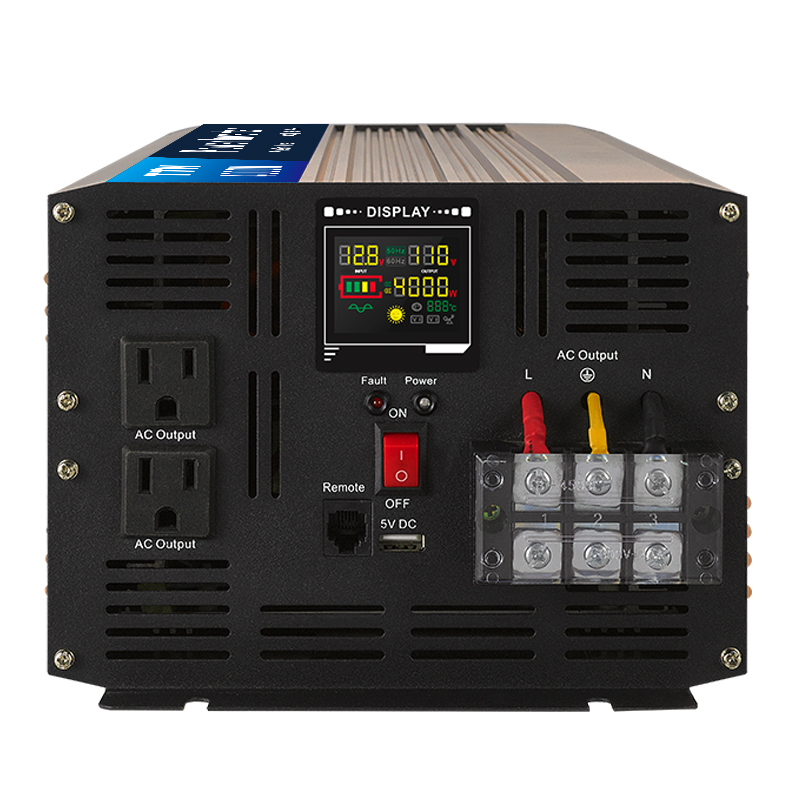

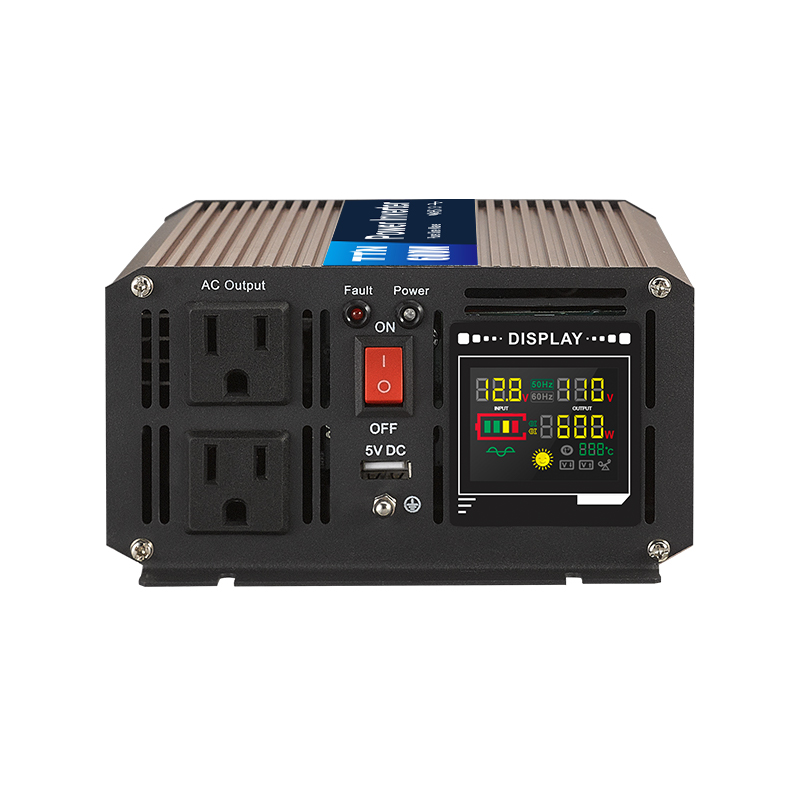

4. The sine wave inverter adopts LCD liquid crystal display mode, and the status is clear at a glance.
5. Stable performance, safe and reliable, long service life.

Model	300W- 12/24/48V	500W- 12/24/48V	600W- 12/24/48V	1000W- 12/24/48V	1500W- 12/24/48V	2000W- 12/24/48V	2500W- 12/24/48V
	3000W- 12/24/48V	3500W- 12/24/48V	4000W- 12/24/48V	5000W- 12/24/48V	6000W- 12/24/48V	8000W- 24/48/96V
Digital Display	300W/500W/8000W No display 600W/1000W/1500W/2000W/2500W/3000W/3500W/4000W/5000W/6000W LED display
rated power	300W~8000W
surge power	600W~16000W (a few seconds)

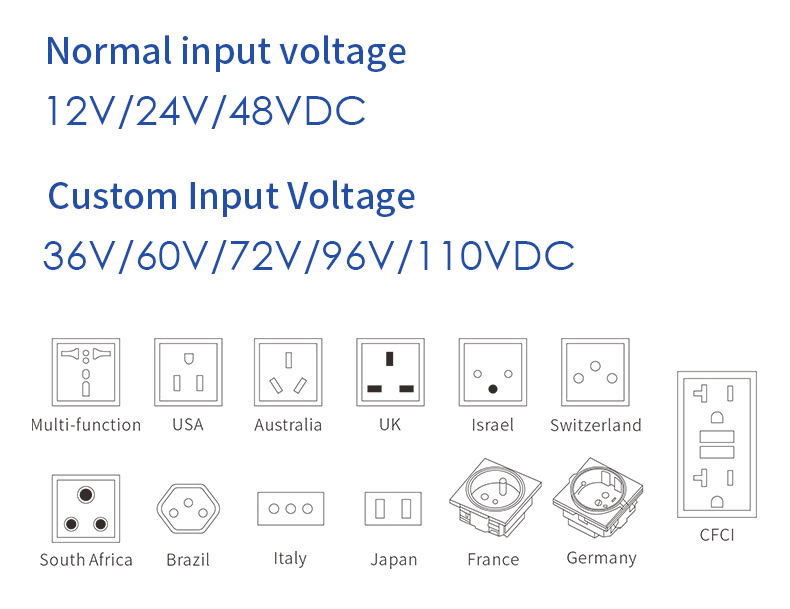

Input voltage	12VDC/24VDC/48VDC/96VDC
The output voltage	110VAC±5%/220VAC±5%
usb port	5V1A
frequency	50Hz±3 or 60Hz±3
output waveform	pure sine wave
slow start	Yes
AC regulation	THD<3% (linear load)
output efficiency	94% max
No-load current	0.1A~3.8A
Cooling method	Smart Cooling Fan
Protect	Battery low and overvoltage, overload, overtemperature, short circuit. reverse polarity
Operating temperature	-10°C - +50°C
Warranty	2 years

voltage range	12V	24V	48V	96V
DC voltage range	10-15.5V	20-31V	40-61V	80~120V
low voltage alarm	10.5±0.5V	21±0.5V	42±1V	83±1V
Low voltage shutdown	10±0.5V	20±0.5V	40±1V	80±1V
low pressure recovery	13±0.5V	24±0.5V	48±1V	96±1V
overvoltage shutdown	15.5±0.5V	31±0.5V	61±1V	120±1V
overvoltage recovery	14.8V±0.5V	29V±0.5V	59V±1V	96±1V

Model	300W	500W	1000W	1500W	2000W	2500W
net size	19.511.26cm	23.2157.8cm	32.616.58.7cm	36.216.58.7cm	4316.58.7cm	441710.5cm
Inner box size	25.6159.8cm	28.620.313cm	35.120.512.2cm	45.620.612.2cm	45.620.612.2cm	Knoll
Quantity/box	51x49x30.7cm/18pcs	633438.5cm/10pcs	67.537.329.7cm/6pcs	5247.538cm/4pcs	5247.538cm/4pcs	51.523.317.5cm/4pcs
Net weight/unit	1.0kg (1.2kg with inner box)	2.0kg (2.3kg with inner box)	3.1kg (3.5kg with inner box)	4.3kg (4.8kg with inner box)	5.2kg (5.7kg with inner box)	4.76kg (4.76kg with inner box)
Gross weight/box	23KGS	24KGS	22KGS	20KGS	24.5KGS	22.52KGS

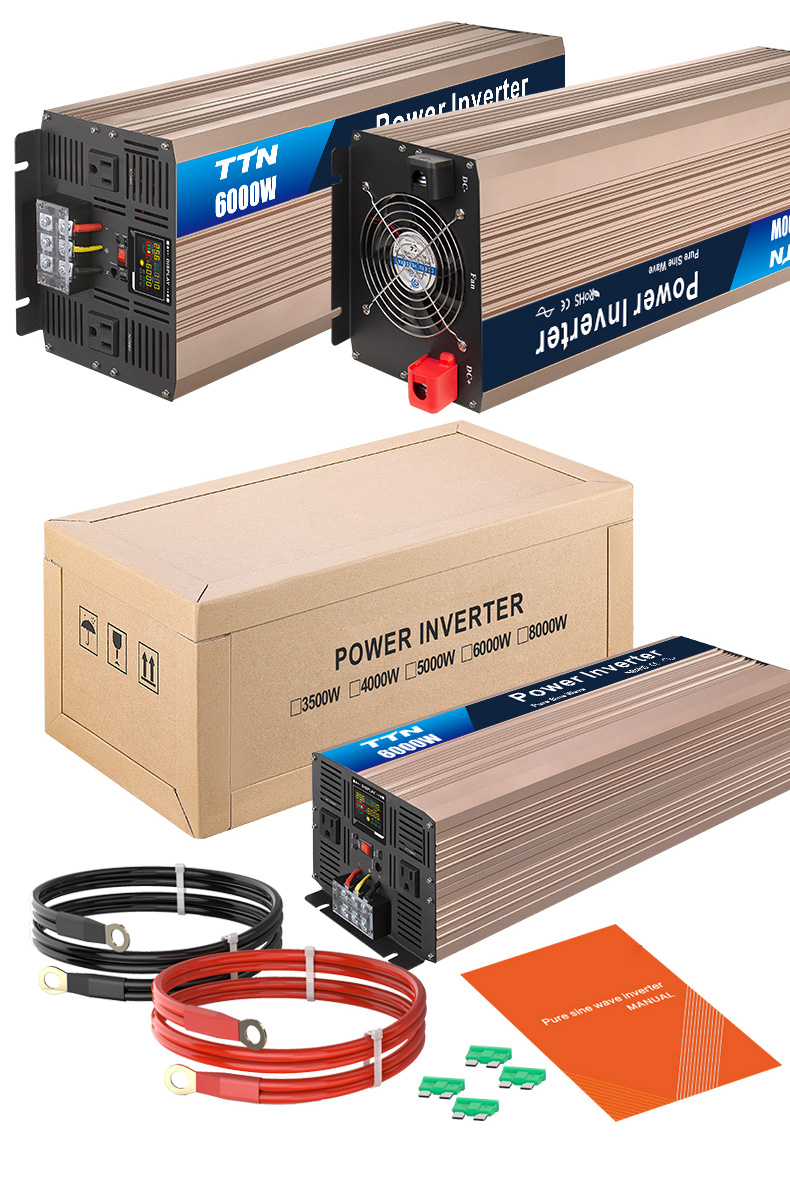

Package	color box	color box	color box	color box	color box	color box
Model	3000W	3500W	4000W	5000W	6000W	8000W
net size	46218.6cm(L×W×H)	442015 cm (L×W×H)	46.521.615.6cm (length x width x height)	46.521.615.6cm (length x width x height)	51.82014.5cm (length x width x height)	663023.5cm (length x width x height)
Quantity/box	53.551.527.5cm/4pcs	56.530.824cm/1 piece	57.531.525cm/1 piece	57.531.525cm/1 piece	64.33023.5cm/1 piece	743023.5cm/1 piece
Net weight/unit	26 kg	8.92 kg	10 kg	10.5 kg	12 kg	14 kg
Gross weight/box	28KGS	10.7KGS	12KGS	12.5KGS	14KGS	18KGS
Package	carton	carton	Honeycomb carton	Honeycomb carton	Honeycomb carton	Honeycomb carton
