GUOXIN CBD Oil Extraction Dehydrator Machine Hemp Dryer

Supplier: Gongyi Guoxin Machinery Factory (General Partnership)
Region: Henan, China
Contact: Mr Jack Lee
Price: $18000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	GUOXIN;	Weight:	16500kg;
Warranty:	One year;	Product can be dried:	hemp leaves,flower,herbal,vegetable etc.;
Place of Origin:	Henan China;	Capacity:	2 tons dried per day;
Name:	GUOXIN CBD Oil Extraction Dehydrator Machine Hemp Dryer;	Type:	Hot Air Furnace;
Power(W):	22kw;	Fuel:	Coal,gas,diesel,steam,electricity etc.;
Certification:	CE,ISO;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Escrow;
Mesh size:	According to vegetable size to customized;	Raw material:	304 Sainless Steel;
Application:	Medicine Processing,Chemicals Processing,Food Processing;	Dimension(LWH):	11000X2200X2500mm;
Packaging Detail:	Hemp dryer packed in nude and put into standard container 40HQ. motor and other parts will be packed in wooden case.;	Item:	Hemp Dryer;
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	Length:	8000mm,9000mm,12000mm;
Port:	Qingdao port,Shanghai port,Lianyun port,Tianjin port or as you required;	Supply Ability:	20 Set/Sets per Month Hemp dryer have storage;
Hemp dryer advantage:	Strong air reach 4000 cube meters per hour;	Voltage:	Customized;
Condition:	New;	Hemp dryer width:	2000mm;

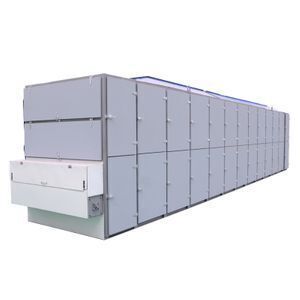

GUOXIN CBD Oil Extraction Dehydrator Machine Hemp Dryer

Remarks:Our factory is professional in hemp dryer, this is patent products in our factory. In 2018, we have exported more than 30 sets hemp dryer to the united states and Canada.

The flow chart of hemp dryer:

Including: Feeding conveyor, discharge conveyor, drying box, fan, control panel, heat exchange furnace,burner,connection pipes.

The purpose after drying:

Mostly customers after drying is used to extract the oil and cbd inside. it have high medical value.

Our hemp dryer is most popular in the united state,Canada, bulgaria etc.

Normally the input moisture: 80-85%, the output moisture: 8-10%.

The fuel: gas,diesel,wood chips,electricity,steam.

The working principle about the hemp dryer:

Hemp flower and hemp leaf are transported by the feeding conveyor to the inside of the dryer. The material passes from the first layer to the last layer via the conveyor belt, and the dried material is conveyed by the discharge conveyor. The belt dryer is using hot air as the drying medium. The hot air passes through the material from the bottom to top. The final moisture comes out of the top of the dryer.

The drying machine not only according to heat to dry, but also according to strong air. So it can increase the drying efficiency and drying time.

hemp dryer technical parameters:

Model	GX-2080	GX-2090	GX-2010	GX-2012
Layer	4 layers, 5 layers, 6layers
Material thickness	10-70mm
Drying temperature	40-120℃
Drying time	0.5-5hours
Moisture reduce	75% to 8% (Customized)
Main machine motor	1.5kw	1.5kw	2.2kw	3kw
Hot air draft fan	15kw	15kw	22kw	22kw
Discharing conveyor	B500(0.12kw)	B500(0.12kw)	B500(0.12kw)	B500(0.12kw)
The above parameters are for reference, we can according to customer required provide best solution.
