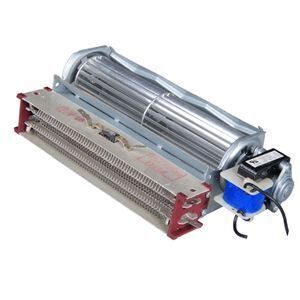

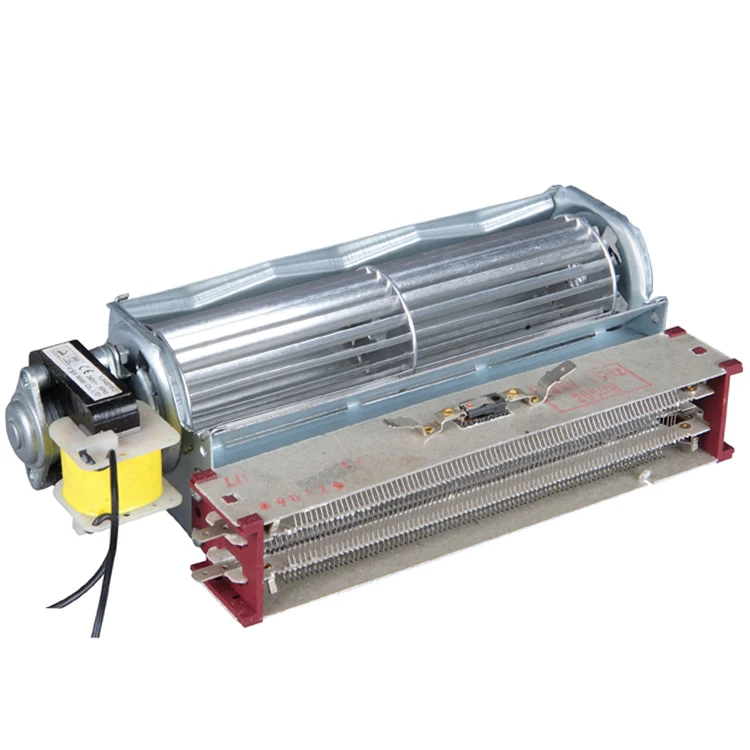

LWCA tangential fan d60x240mm for fireplace

Supplier: Ningbo Longwell Electric Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Angela Li
Price: $2.00 / >=200 pieces
Min. Order: 200 pieces

Click here to contact

Product details

Certification:	CCC,CE,UL;	Port:	NINGBO ,SHANGHAI;
Brand Name:	LONGWELL;	Bearing:	Ball Bearing /sleeve bearing;
motor type:	AC motor , BLDC motor;	Electric Current Type:	AC/DC;
Speed:	customization available;	Mounting:	Other;
Place of Origin:	Zhejiang China;	Blade Material:	aluminum;
Air Volume:	110-360;	Packaging Detail:	Fan packed in cartons or individual box if required , cartons packed on pallets . pallet size :1.1m x1.1m x0.1m 15000pcs-20000pcs can be loaded in one 20'' container .;
Voltage:	110/120/220/230/12/24;	Power:	20-60;
After-sales Service Provided:	Overseas third-party support available;	Application:	Over , heater , air purifier , home appliances , floor heating ,;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;	Fan Diameter:	30-150mm;
Supply Ability:	10000 Piece/Pieces per Month;	fan length:	customization available up to 800mm;
Fan casing material:	galvanized steel;	lead time:	15-25days;
Usage:	MICROWAVE;	Type:	Cross Flow Fan;
Item name:	fireplace tangential fan;

LWCA tangential fan d60x240mm for fireplace

Product Overview

Product Name	LWCA tangential metal cross flow fan
Diameter	30mm/40mm/43mm/45mm/50mm/60mm/80/90/100/110/120/150/180/200mm
Fan Length	50-1000mm , customization length available

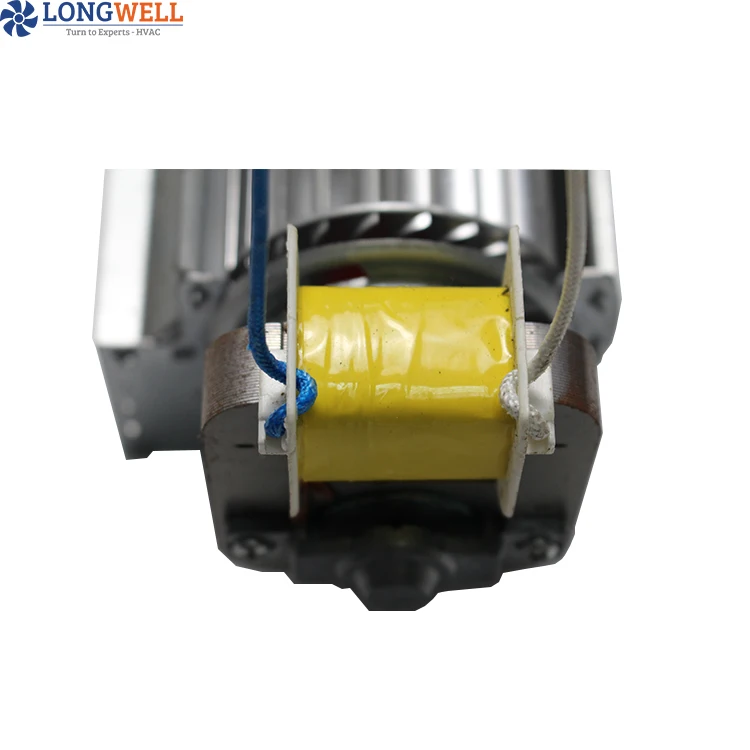

Motor	AC shaded pole motor , BLDC Motor ,AC capacitor motor
Voltage input	115v/230v/12VDC/24VDC/48VDC
Material	Aluminum
Bearing	Ball Bearings / Sleeve Bearings
Color	Aluminum color / black coating
Bearing	Ball bearing and sleeve bearing available
Application	Cooler ,heater , floor heating , convector , oven , home appliances
Advantages	Low noise , long life span , competitive prices , free maintenance

Related Products

+

Product Name	Diameter	Material	Wheel Length		Number Of Blades	Shaft Diameter	Usage
double tangential fan	Φ30*L	Aluminum Alloy	100,150,200,250,300 ,400…		20	∅3/∅4/∅6/∅8/∅10/∅12	Air Curtain /AirConditioner /Air purifier / Heater
	Φ43*L		100,135,150,180.200,300,350 …		20
	Φ45*L		100,115,150,180,200,240,300,360,400…		20
	Φ50*L		100,115,150,180,200,240,300,350,400,500…		20
	Φ60*L		80,120,180,240,300,360,400,450,500 …		22/24
	Φ65*L		80,120,180,240,300,360,400,450,500 …		22
	Φ71*L		80,120,180,240,300,360,400,450,500,560,600…		25
	Φ81*L		100, 145,380,391,480,550,630,......800		30
	Φ90*L		145,380,391,480,550,630,......800		35
	Φ100*L		250, 360,480,550,630,700,......1000		40
	Φ110*L		250, 360,480,550,630,700,......1000		45
	Φ120*L		250,360,480,550,660,680,706,......1000		48
	Φ150*L		200,360,480,515,580,660,680,810,880,....1050		50
	Φ200*L		250 360,480,515,580,660,680,810,880,....1050		50
	Customization is available for any length

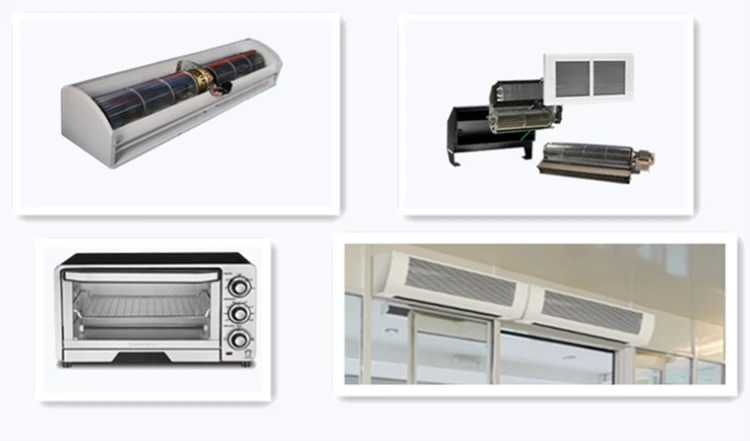

Application

Customization Available

Company Information

FAQ

1.Are you a manufacturer ?

Yes, we are . we own over 10 production lines for different products .

2.How is your quality ?

Aboove average and top class quality are your options in our range , The quality is pretty good,and trusted by many customers in overseas .

our quality is abov the average according customer same budget , customer have 1 year warranty , and free after sales technical support in product designed life span .

3. How is your price ?

Our price is very competitive by large scale production contribution .

4.What's your lead time ?

7days -25days , depengs on volume and different items .

5.How is your responding time ?

You will get reply within 2hours online by Wechat ,Whatsapp , Skype , trade manager .

You will get respond within 8hours offline by email .

Mobile is always availble for picking up your calls .
