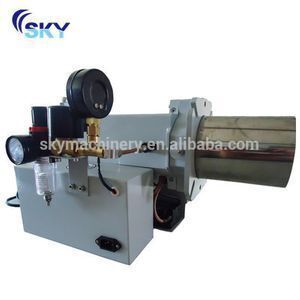

B-05 kerosene burner/industrial burner/waste vegetable oil burner

Supplier: Yantai Sky Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Allen Jiang
Price: $750.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	SKY;	Place of Origin:	Shandong China;
Supply Ability:	1000 Set/Sets per Month;	Port:	Qingdao;
Oil consumption:	2 - 5 (KG/Hour);	Model Number:	B-05;
Type:	Oil Burner;	Delivery Detail:	3 - 7 days against payment;
Voaltage:	220V/110V;	Package weight:	30KGS;
Packaging Detail:	export standard packing;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;

B-05 kerosene burner/industrial burner/waste vegetable oil burner

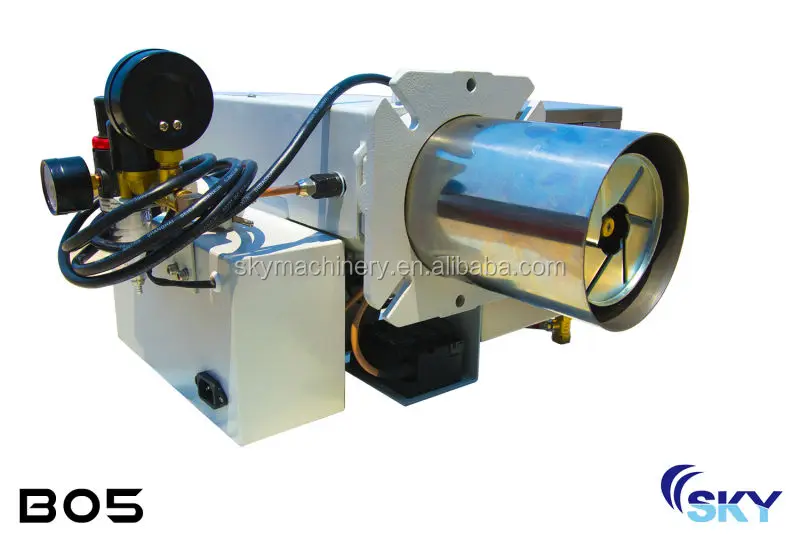

B-05

Oil consumption: 2 - 5 (KG/Hour)

Output heat power: 24-59 (KW)

Output heat: 20,400-52,000(KCal/h) / 80,000 -200,000 (Btu/h)

Distance from fire gun to flange: 173mm / 6.8 inchDistance of screw bore in the flange: 160x160 (mm) / 6.3x6.3 inch

Fire gun dia. 114mm or 100 mm / 4.49 inch or 3.9 inch

Compressed Air Pressure: 0.05-0.1MPa

220V/50Hz & 110V/60Hz both available;

Package weight: 30KGS / 66LBS

MODEL	B-05	B-10	B-20	B-30
Heat Range(KCAL/H)	20,400-51,100	20,400-102,000	20,400-204,000	20.400-306,000
Heat Range(BTU/H)	50,000-200,000	80,000-400,000	80,000-800,000	80,000-1,200,000
Output heat Power(KW)	24-59	24-237	24-237	24-355
Fuel input (KG/H)	2-5	2-20	2-20	2-30
Fuel input (G/H)	0.5-1.3	0.5-2.6	0.5-5.2	0.5-7.9
Air Pressure(MPa)	0.05-0.1	0.05-0.1	0.05-0.1	0.05-0.1
Power Supply(AC)	220v/110v	220v/110v	220v/110v	220v/110v
Cabinet Dimensions(mm)	520440310	520440310	520440310	520440310
N.W.(KG):	27	27	27	28

Features:

1. Various fuels are applicable, e.g. used engine oil, used vegetable oil, used crankcase oils, used Glycerin, used Hydraulic oil, used synthetic oils, waste machine shop cutting oil, waste mineral spirits solvent, waste grades #1, #3, #4 heating oils, waste mixed heavy oil etc., as well as regular oils, such as diesel, etc.

2. Automatic ignition, workers-nursing unnecessary.

3. Flame adjustable freely by air-inlet controller easily; from the “Observing Window” operators can easily see changes of the flame.

4. All parts tested thousands of times and improved to be of good quality and reliable.

5. All errors readable from the front panel, thus SKY burner is just “Smart Burner”!

6. Complete fuel burning ensures very low emissions, reducing pollution as much as possible. Environmentally –friendly, Exhausting air complies with the requirements of EURO III;

7. Big oil tank optional, as big as 100L container for holding waste oil, pumping system is held at the top to pump waste oil into burner machine; At the same time hold the burner machine during shipping from damage;

8. There is heating instrument at the bottom of big oil tank to pre-heat fuel before pumping, esp. considerate for using in cold area.

9. Double safety design for PC program.
