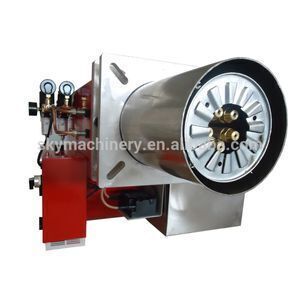

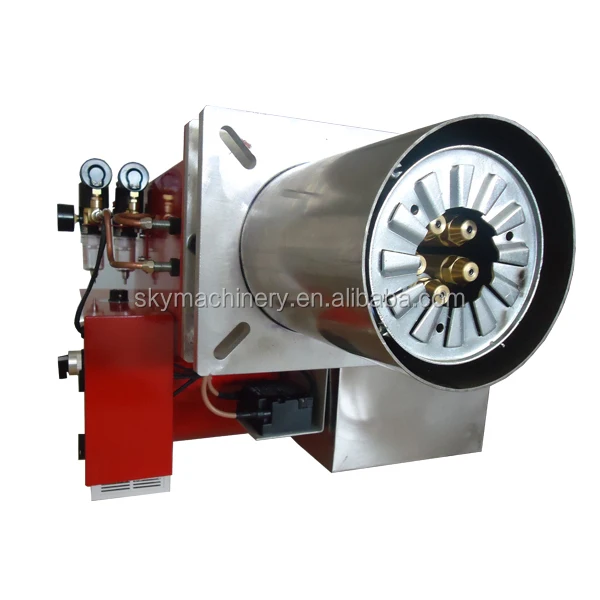

B-50B, Sweden tech burner/furnace burners/oil waste burner/used vegetable oil

Supplier: Yantai Sky Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Allen Jiang
Price: $1199.00 /set
Min. Order: 1 set

Click here to contact

Product details

Single gross weight:	49.5 KG;	Oil consumption:	2 - 50 (KG/Hour);
Net Weight:	55kg;	Single package size:	59X58X50 cm;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Selling Units:	Single item;
Package Preview:	https://sc02.alicdn.com/kf/HTB1xUHlh3KTBuNkSne1q6yJoXXaU.jpg_640x640.jpg;	Place of Origin:	Shandong China;
Fire gun dia:	114mm/4.5";	Nozzle(s):	4 x 2.5mm;
Type:	Oil Burner;	Model:	B-50B;
Brand Name:	SKY;	Package Type:	paper or plywood package;
Power:	24-595 (KW);	Package:	570565430mm;
Power supply:	220V/50Hz & 110V/60Hz;	Output heat:	20,400-500,000(KCal/H);
Power source:	multiple oil;

B-50B, Sweden tech burner/furnace burners/oil waste burner/ used vegetable oil

Product Description

Specifications of the waste oil burner :

Oil consumption: 2 - 50 (KG/Hour)

Output heat power: 24-595 (KW)

Output heat: 20,400-500,000(KCal/h) / 80,000 - 2000,000 (Btu/h)

Distance from fire gun to flange: 450mm

Fire gun dia.: 160mm

Compressed Air Pressure: 0.05-0.1MPa

220V/50Hz/1phase;

Package weight: 55KGS

Features of the waste oil burner :

1. Various fuels are applicable, e.g. used engine oil, used vegetable oil, used crankcase oils, used Glycerin, used hydraulic oil, used synthetic oils, waste machine shop cutting oil, waste mineral spirits solvent, waste grades #1, #3, #4 heating oils, waste mixed heavy oil etc., as well as regular oils, such as diesel, etc.

2. Automatic ignition, workers-nursing unnecessary.

3. Flame adjustable freely by air-inlet controller easily; from the “Observing Window” operators can easily see changes of the flame.

4. All parts tested thousands of times and improved to be of good quality and reliable.

5. All errors readable from the front panel, thus SKY burner is just “Smart Burner”!

6. Complete fuel burning ensures very low emissions, reducing pollution as much as possible. Environmentally –friendly, Exhausting air complies with the requirements of EURO III;

7. Double safety design for PC program.

Other Model	B-05	B-10	B-20	B-30
Heat Range(KCAL/H)	20,400-51,100	20,400-102,000	20,400-204,000	20.400-306,000
Heat Range(BTU/H)	50,000-200,000	80,000-400,000	80,000-800,000	80,000-1,200,000
Output heat Power(KW)	24-59	24-237	24-237	24-355
Fuel input (KG/H)	2-5	2-20	2-20	2-30
Fuel input (G/H)	0.5-1.3	0.5-2.6	0.5-5.2	0.5-7.9
Air Pressure(MPa)	0.05-0.1	0.05-0.1	0.05-0.1	0.05-0.1
Power Supply(AC)	220v/110v	220v/110v	220v/110v	220v/110v
Cabinet Dimensions(mm)	520440310	520440310	520440310	520440310
N.W.(KG):	27	27	27	28
