FS3 china chassis bench/straightening car/auto body frame machine

Product details
Mainly market:America;Kinds of clamps:Standard Clamps 4 Pcs;
Model Number:FS3;Worktable Width:2.0m;
Single gross weight:20 KG;Weight:2700KG;
Package Preview:https://sc02.alicdn.com/kf/H196c2e5a188244f4af51f2faca5daca68.jpg_640x640.jpg,https://sc02.alicdn.com/kf/H127416ee8a7d4848a1cf08f1aa04aa2eK.jpg_640x640.jpg;Bench Height:560 mm;
Worktable Length:5.5m;Why choose us:Price. High Qualityfactory Price. High;
Company history:15 Years Producing Experience;Max. Lifting Capacity:3500 KG;
Using range:4S Station/garage Store/according;Measuring system:3D Mechanical Measuring System;
Selling Units:Single item;Package Type:plywood box and paper;
Single package size:20X20X20 cm;Color:Customers' Request;
Certification:CE Approved;Toolings carts:Included;
Place of Origin:Shandong China;Product name:Auto Frame Machine;
Brand Name:SKY;Warranty:1 Years;

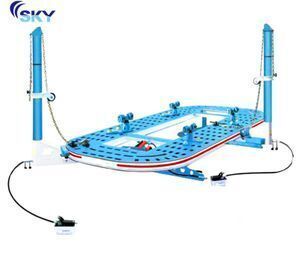

FS3 china chassis bench/straightening car/auto body frame machine

Product Description



FS3

-18

-19

-20

Deck Length (Feet/Meter)

18'/5.5m

19'/5.8m

20/6.1m

Deck Width (Feet/Meter)

6'7/2.0m

7/2.1m

7/2.1m

Net Weight (LB/KG)

5952LB/2700KG

6173LB/2800KG

6393LB/2900KG


Technical Data:
Working Platform Height: 22"/560 mm
Hydraulic System MWP: 70 MPa
Tower Hydraulic Cylinder Max. Lifting Force: 95 KN
Tower Pulling Range: 360
Inlet Air Pressure: 0.8 MPa
Max. Lifting Weight: 3500 KG

Features:
1. The platform is made of Manganese plate.
2. The hydraulic towers can be moved freely alongside the platform and turn 360 as operating. The hydraulic cylinders work vertically, resulting in maximum force and most powerful effectiveness.
3. High quality chains and plate tools are used flexibly and conveniently with long life. The entire series of tool accessories enable to do any misshape correction work.
4. Hydraulic system with good design has powerful driving force, long life and low failure rate.
5. Portable measuring system is easire for workers.
6. Major clamps fix the auto quickly, firmly and accurately.
7. Top-quality welding with high strength and good-looking.
8.  Removable cross-members.





Our Advantage

Why Choose YanTai Sky?

1 The deck thickness is 10mm, high strength,but other supplier’s thickness is only 8mm.

2  Unique adjustable design for the four universal main clamps jaw improve work efficiency.

3. The pulling tower is made of the seamless tube,which thickness is 10mm,height 2000mm,diameter 160mm,repair the high height cars easily.

4.Unique tower fixing system, makes the operating smoothly and safety. The pulling towers can be rotated 360 degree along the platform,The two pulling towers can pull the car at the same time in different position,this machine can be equipped with three pulling towers as customer’s request.

5.Hydraulic rolling jack is optional, more easy for auto repair.

6.3D Mechianical measuring system, with higher

accuration, easy operating.

7.Tool Cart: Enough sheet metal tools make the repair flexible and convenient, used for any straightening.
