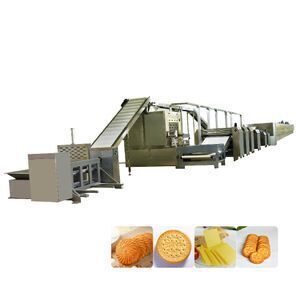

BCQ1500 Full Automatic Biscuit Production Line Biscuit Processing Machine

Supplier: Shanghai Target Industry Co., Ltd.
Region: Shanghai, China
Contact: Mr gang liu
Price: $500000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Shanghai China;	Weight:	60000KG;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory;	Condition:	New;
Automatic:	Full Automatic;	Brand Name:	TGMachine;
Certification:	ISO & CE;	Model Number:	250/400/600/800/1000/1200;
Electronic parts:	Siemens;	Warranty:	1 Year;
Voltage:	380V;	Dimension(LWH):	54000200015000mm;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Port:	Shanghai;
Power(W):	200;	Supply Ability:	10 Set/Sets per Year;
Control:	PLC Control;	Output product name:	biscuit;
Application fields:	Snack food factory;	Packaging Detail:	Regular Packing for Export(Water Proof Packing Covered with Wooded Case);
Biscuit Type:	Hard/Soft;	Capacity:	250-1200kg/h;
Material:	Stainess Steel;	Voltage:	380V;
After-sales Service Provided:	Online support;

Product Description

Description:

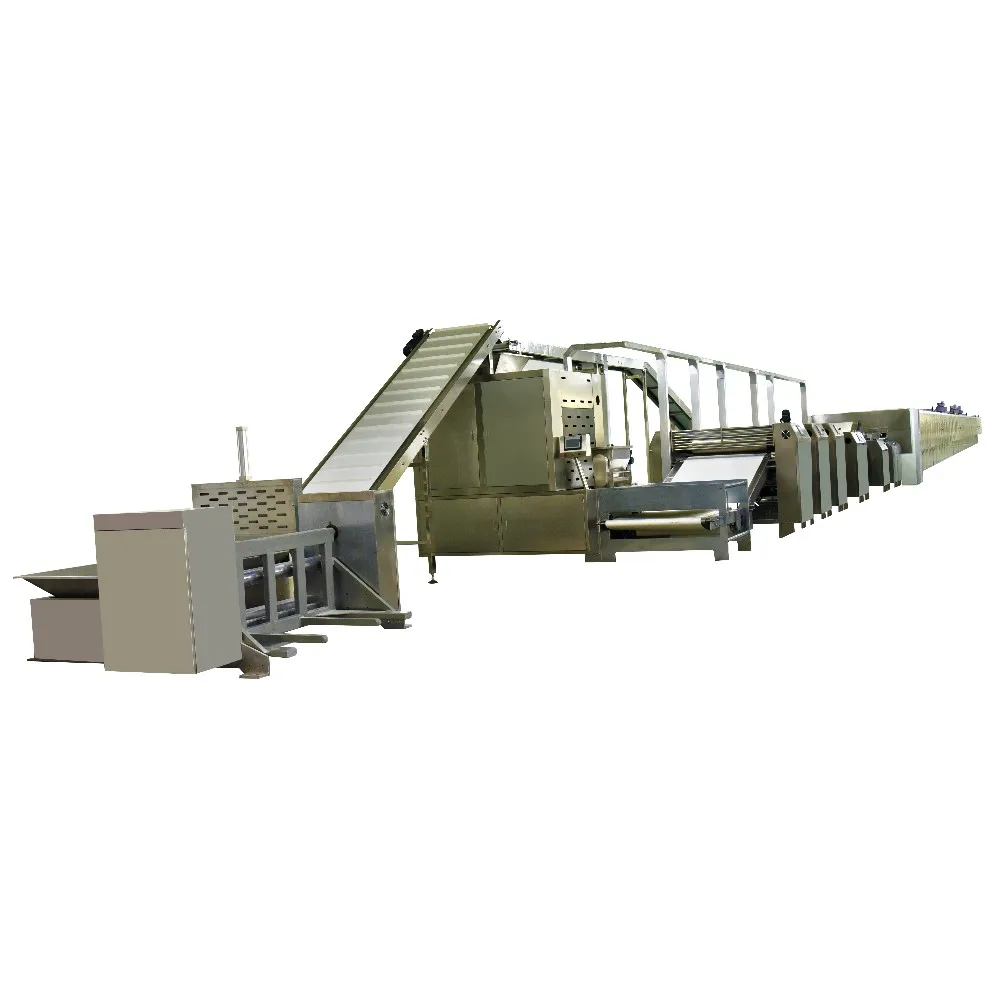

This biscuit production line is uesd for making hard & soft biscuit,soda cracker,sandwich biscuit, filled biscuit and cookies.

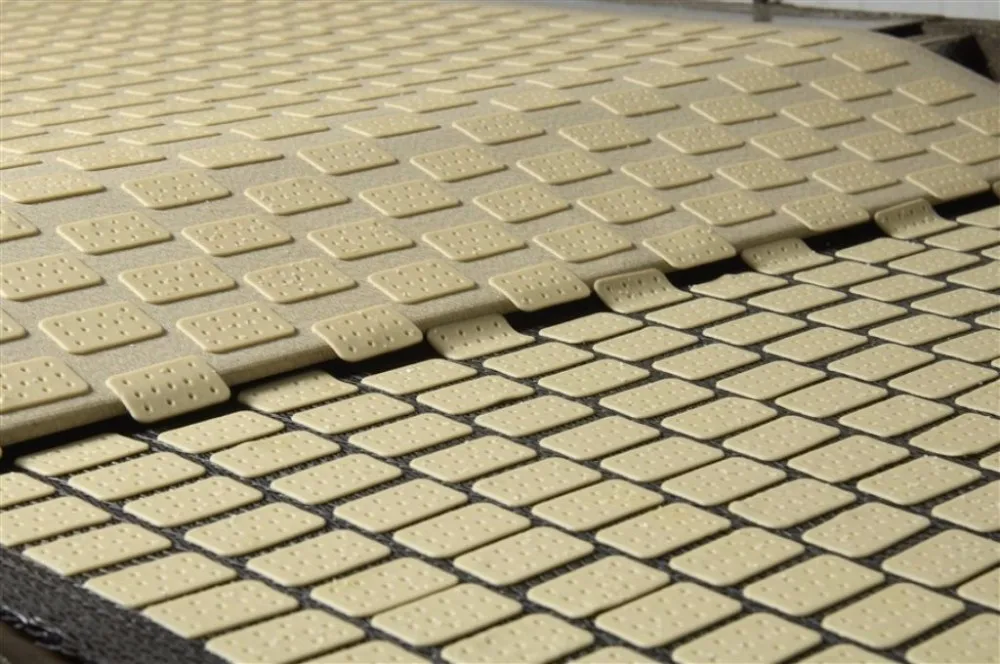

All working procedures that from dough mixing,feeding, sheeting, moulding, scrap recycling, baking,cooling to stacking can be completed automatically in one line.

Model	BCQ-250	BCQ-480	BCQ-600	BCQ-800	BCQ-1000	BCQ-1200	BCQ-1500	Remark
Production capacity(kg/h)	250	480	600	800	1000	1200	1500	Up to( Max)
Total length(mm)	29600	64500	85500	92500	125000	125000	150000	If No Turn Conveyor
Baking temperature(℃)	190-240℃	190-240℃	190-240℃	190-240℃	190-240℃	190-240℃	190-240℃	Depend
Whole line power (kW)	105	190	300	400	500	600	750	If Use Electric Oven
Whole line weight ( kg )	6000	12000	20000	28000	35000	45000	55000	Approx

Detailed Images

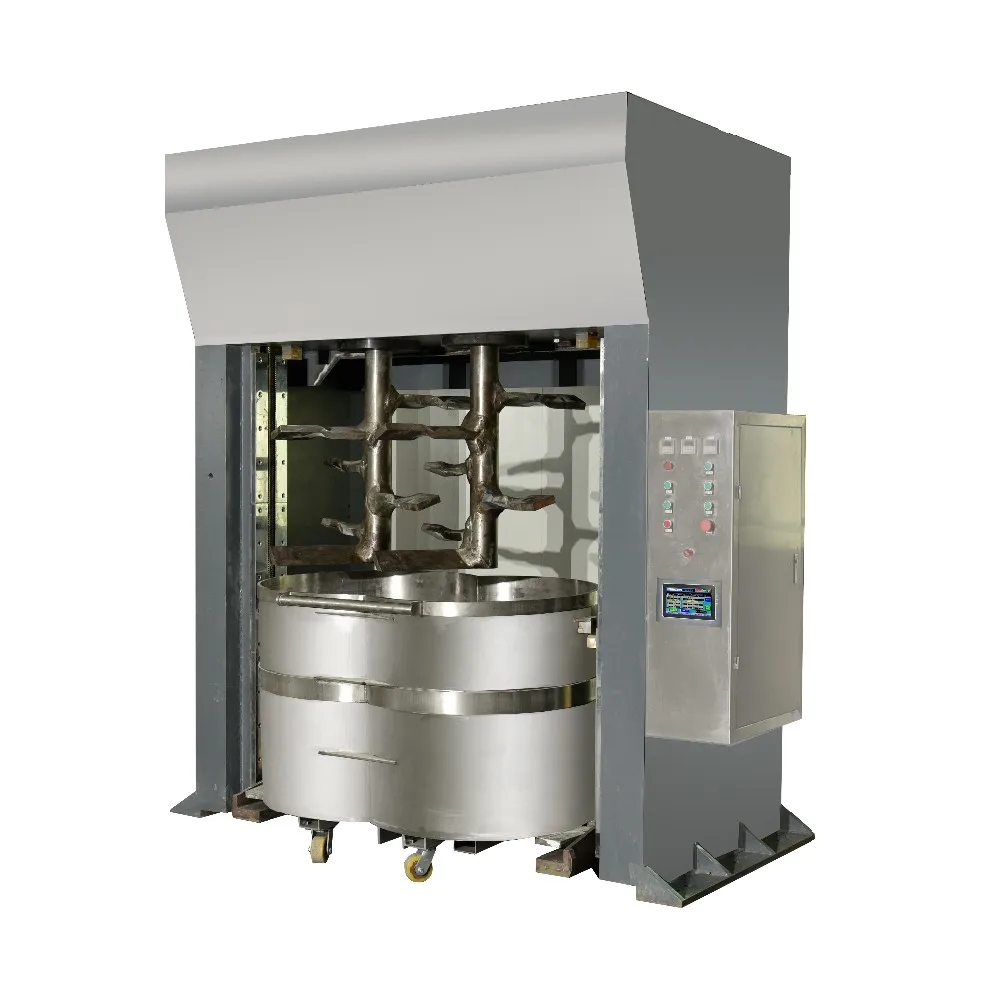

LH Vertical Dough Mixer

It is equiped with separate tub that can serve as ferment tub. It has big volumn of dough storage and high production capacity. This machine is applicable for mixing both hard and soft biscuit dough. It is especially good for making soda biscuit dough that requires fermentation.

Electric Heating Oven

Electric heating oven is so called far infrared heating oven, mainly depends on electrical heated pipe. Main features including clean and sanitary, accurate controlled temperature, easy to operate, easily maintain and wide range of application.

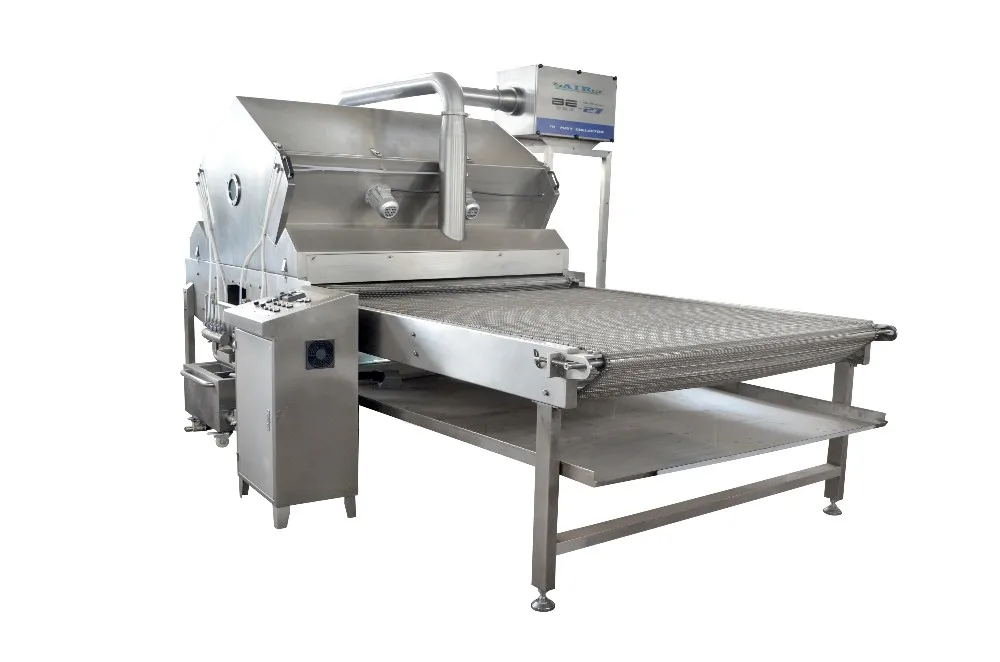

Oil Spraying Machine

The hot biscuits which are just out of the oven are immediately put into the oil-spraying process, which is necessary for production of high-grade biscuit, to better improve grades and colors of biscuit.

Biscuit Stacking Machine

This biscuit stacking machine accpects the biscuits from the cooling conveyor, forms them into lanes, stacks them on edge through the star wheel device, and conveys them to the packing conveyor.

Certifications

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

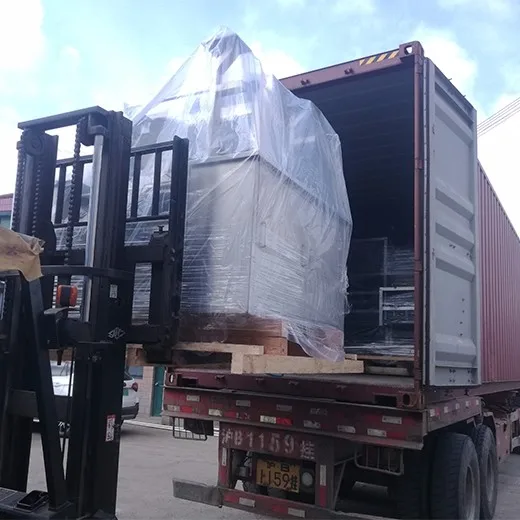

Packing & Delivery
