Hot sale and New Type Automatic Croissant production line for four rows

Product details
Weight:200kg/each;Voltage:380v;
Material:304 Stainless Steel;Local Service Location:United States;
Power(W):about 100kw;Extruder:three rollers;
Capacity:6-8tons/24h;Application fields:Bakery;
oven:Hot air rotary oven;After-sales Service Provided:Video technical support;
Showroom Location:United States;Certification:CE;
Port:SHANGHAI China;Product name:croissant;
Raw material:Water,Milk;Supply Ability:5 Set/Sets per Year;
Mixer:50L;Output product name:croissant;
Applicable Industries:Manufacturing Plant,Food & Beverage Factory;After Warranty Service:Video technical support,Online support;
Type:4 rows;Dimension(L*W*H):2000*1000*1300;
Brand Name:Shinwei/TGmachine;Payment Terms:L/C,T/T,Western Union;
Main machine:Flour flatting machine and Flour pressing machine;Key Selling Points:High Productivity;
Place of Origin:China;After-sales Service Provided:Engineers available to service machinery overseas;
Warranty:2 years;Application:baking;
Machinery Function:make bread;Packaging Detail:Wooden Package;

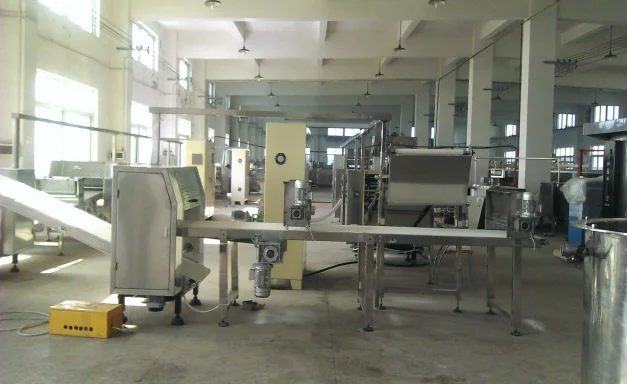

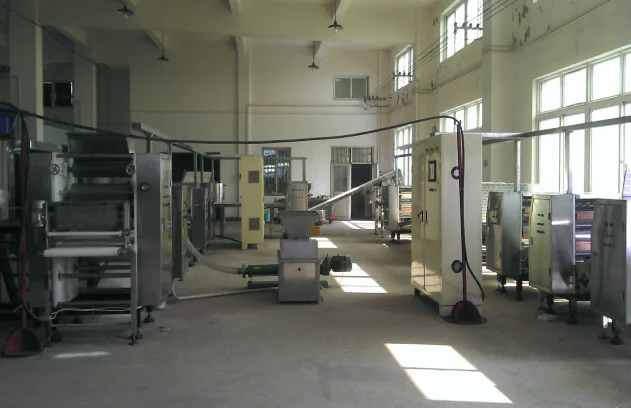

Automatic Croissant production line

TECHNICAL PARAMETERS:

No.

Seller

Content

Shanghai Target industry co.,LTD

1

Name of machine

Automatic Croissant production line

2

Capacity

6-8tons/24h

3

Original place

Shanghai, China

4

Type

4 rows































Processing flow:









No.

Machine

Configuration

1

HLY-50

Flour mixer

5 sets

1.including:

a. Stainless steel tank  1 set    b. Motor  2 sets

c. Stainless steel stirrer  1 set  d. Electrical equipment   1 set

e. safety net cover       1 set   f. belt pulley  6pcs

g. B-shape belt  9pcs   h. tank 1pc

2. Configuration and parameter

a. Agitator is made of 304-2B

 Stainless steel

b. Tank is made of 8-10mm A3

c. Belt pulley is made of cast iron

d. Voltage: 380V 50Hz

e. Power: 5.5kw

f. outside is high temperature baking finish

3. Wearing parts:

  a. B type belt

2

Three rollers extruder

1set

1. including:

a. rack and wallboard  1set

b. flour feeding roller  3 sets

c. adjust screw rod 1pc

d. turbine speed changing box 2pcs

e. cover  2pcs

f. motor 2pcs

g. conveyer belt 1pc

h. convey platen 1pc

2. Configuration and parameter

a. Rack is made of 20mm A3

Board

b. Flour feeding roller is

made of accurate grinding 45#

seamless steel tube with

chroming

c. Cover is made of 401 stainless
steel

d. PU conveyer

e. Voltage:380v, 50hz

f. Power: 5kw

3. Wearing parts:

PU conveyer

3

Flour pressing machine

1set

1. including:

a. rack and wallboard  1set

b. flour roller  12pcs

c. big roller  1pc

d. turbine speed changing box 2pcs

e. adjust screw rod  1set

f. conveyer belt 1pc

g. cover  2pcs

h. motor  2pcs

2. Configuration and parameter

a. Rack is made of 20mm A3

Board

b. Flour feeding roller is

made of accurate grinding 45#

seamless steel tube with

chroming

c. Cover is made of 401 stainless
steel

d. PU conveyer

e. Voltage:380v, 50hz

Power: 3kw

Packaging & Shipping



Wooden Packing:



1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing:

    a. Inside the machine put desiccant

    b. Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap

    c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: according to different products for reinforcement.

Our Services



After-Sale Service For Abroad Customers:



1. Free training of machine installation, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installation and adjustment.
