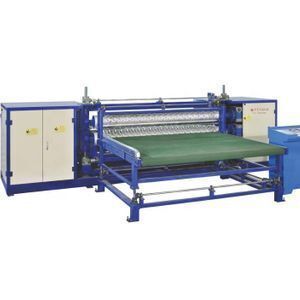

YX2300-AH Automatic Profile foam cutting machine

Supplier: Dongguan Hanwei Machinery Co., Ltd.
Region: Guangdong, China
Contact: Mr Charlie Pan
Price: $32000.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Max. Cutting Depth:	2300mm;
Payment Terms:	L/C,T/T,Western Union;	Applicable Industries:	Manufacturing Plant;
Brand Name:	HANWEI;	Application:	Foam;
Power(W):	11kw;	Rated Power:	25kw;
Saw Blade Diameter:	60mm;	Type:	Blade Cutting Machine;
Place of Origin:	Guangdong China;	Packaging Detail:	Paper&Film&Steel frame&Woodencase Packing;
Supply Ability:	5 Unit/Units per Month;	After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;
No-Load Rotational Speed:	6m/min;	Voltage:	380V/220V, 3 phase;
Certification:	ISO;	Warranty:	1 Year;
Condition:	New;	Port:	shenzhen;
Dimensions:	560025001700mm;

The machine is to cut one pcs of foam sheet into 2 pcs of concavp-convex foam sheet to save the foam, for example, the machine can cut 200mm foam sheet into 2 pcs 150mm foam sheet

The machine is to use 1 pair of profile roller to press the foam sheet, then use band knife to cut the foam sheet from the center point

Advantage:

the machine can cut the thickness up to 300mm for the foam mattress production

special grinding motor to sharpen the band knife

unique blade guide design to gurantee the cutting accuracy

inverter is used to adjust the cutting speed

special desig profile roller could be installed on the same machine

roller height is automatic control with digital setting

Automatic conveyor worktable to load the foam sheet, and worktable height is automatic control with digital setting

Press roll is installed to help to feed the foam sheet, roller height is automatic control with digital setting

The machine is with touch screen & PLC automatic control

Technical specification

MODEL			YX2300-AH
CUTTING WIDTH			W2300mm
CUTTING THICKNESS			25-300mm
CUTTING SPEED			0-6m/min
BLADE SIZE			11020600.65mm
TOTAL POWER			25KW
MACHINE WEIGHT			4500KG
MACHINE SIZE			L5600W2800H1700m
