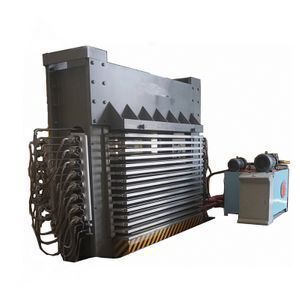

plywood hot vacuum press laminating machine

Supplier: Linyi Yuequn International Trading Co., Ltd.
Region: Shandong, China
Contact: Mr Robert Zhao
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	355013704200mm;	Oil cylinder:	360*2pcs;
Name:	hot press machine;	Packaging Detail:	The Hot Press will be load in nude by container or follow the customer's requirement;
Warranty:	12 months;	Hydraulic System:	Taiwan /Italian;
Voltage:	380V;	Condition:	New;
Brand Name:	YUE QUN;	Pressure:	500tons;
Supply Ability:	10 Set/Sets per Month;	After-sales Service Provided:	Field installation, commissioning and training;
Certification:	CE,ISO9001;	Port:	Qingdao port;
Working methods:	full automatic;	Place of Origin:	Shandong China;
Payment Terms:	L/C,T/T,Western Union;	Applicable Industries:	Manufacturing Plant;
Power(W):	26kw;	Weight:	35000kgs;
After-sales Service Provided:	Engineers available to service machinery overseas;	Press platen dimensions:	13702700mm42mm;

Product description

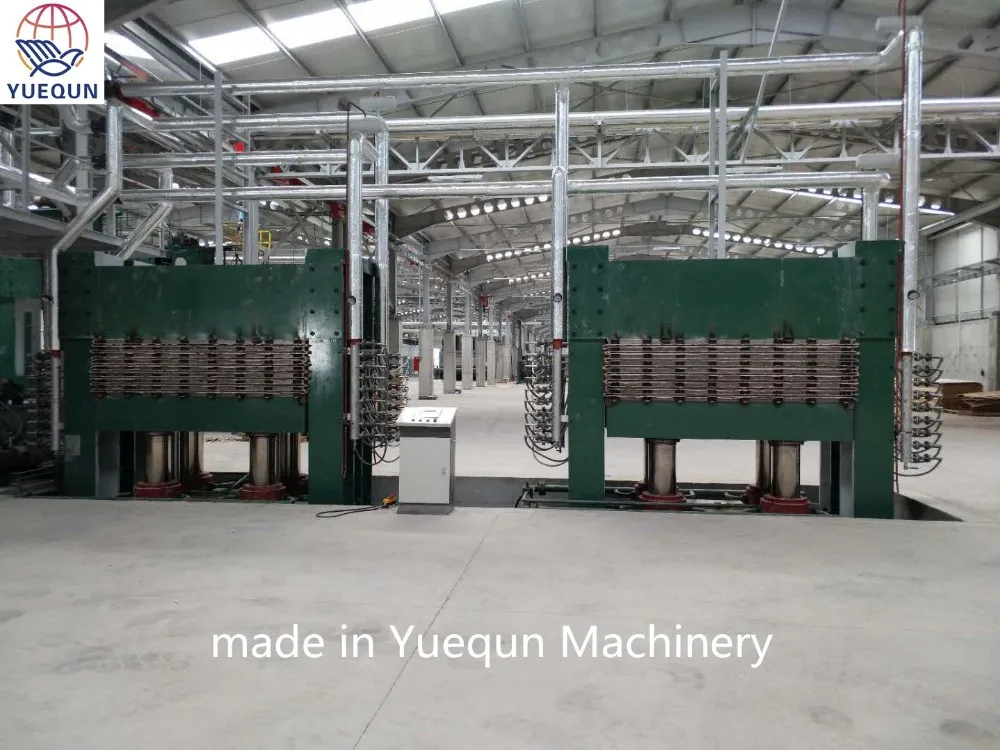

Type 1 ----- 15 layers 500 tons Hot press Machine
Model		YQHP 4* 8 /500/15
Max prssure		500 tons
Layers		15 layers
Layer spacing		70 mm
Hot press plate size		2700 * 1370 * 42 mm
Cylinder		2 * φ 360 * 1050 mm
Total power		7.5 kW + 18.5 kW
Overall dimension		3550 * 1370 * 4650 mm
Weight		about 38 tons

Type 2 ----- Melamine laminating 10 layers 600 tons Hot Press machine
Model		YQHP 4 * 8 /600/10
Max prssure		600 tons
Layers		10 layers
Layer spacing		100 mm
Hot press plate size		2700 * 1370 * 52 mm
Cylinder		6 * φ 220 * 1000 mm
Total power		11 kW + 22 kW
Overall dimension		3550 * 1370 * 4600 mm
Weight		about 43 tons

Type 3 ----- semi -auto loader and unloader 25 layers 800 tons Hot Press machine
Model		YQRYCC
Max prssure		800 tons
Layers		25 layers
Layer spacing		100 mm
Hot press plate size		2700 * 1370 * 52 mm ( 2 inlets and 2 outlets )
Cylinder		4 * φ 320 mm + 2 * φ 160 mm ( lifting cylinder )
Total power		11 kW + 30 kW
Overall dimension		3600 1400 6720 mm
Weight		about 86 tons

Remark : hot press machine can be Customized as your requirment

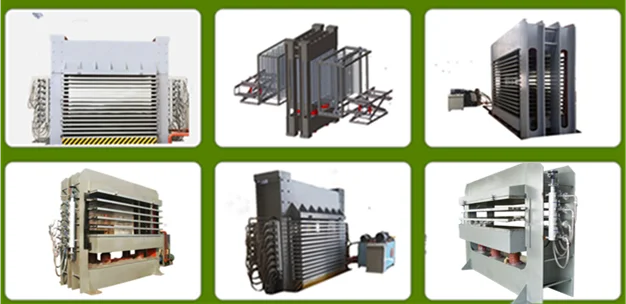

Detail images

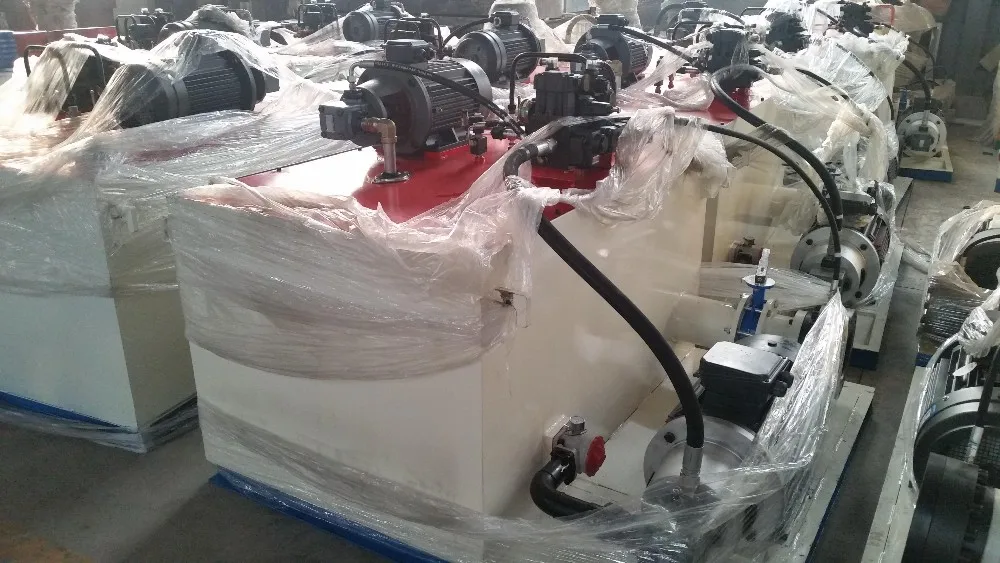

Taiwan hydraulic system ,fast press ,lower power consumption less noisy

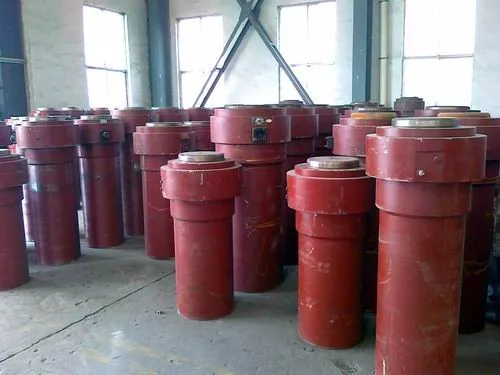

WUXI solid cylinders ensure high pressure and durable

Mitsubishi PLC and touch screen , Schneider electrical parts , easy to operate ,high efficiency

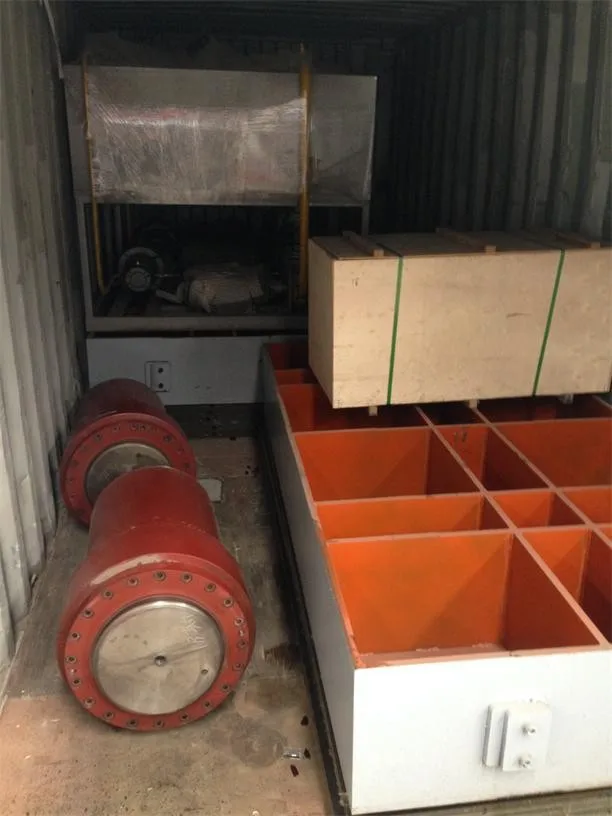

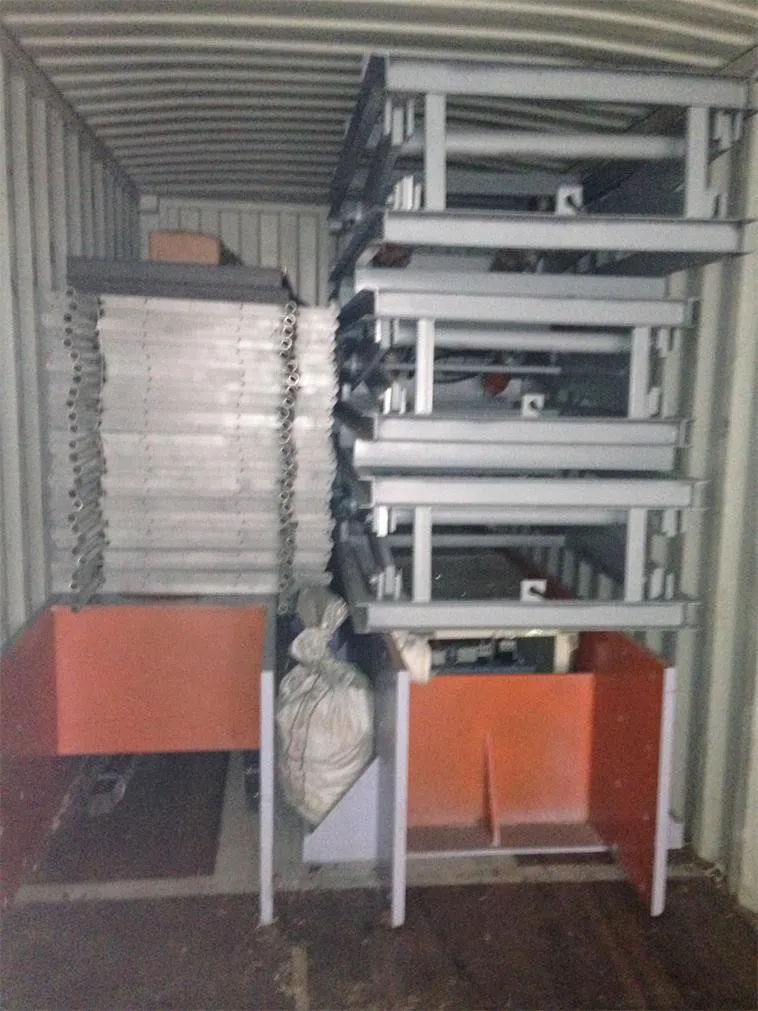

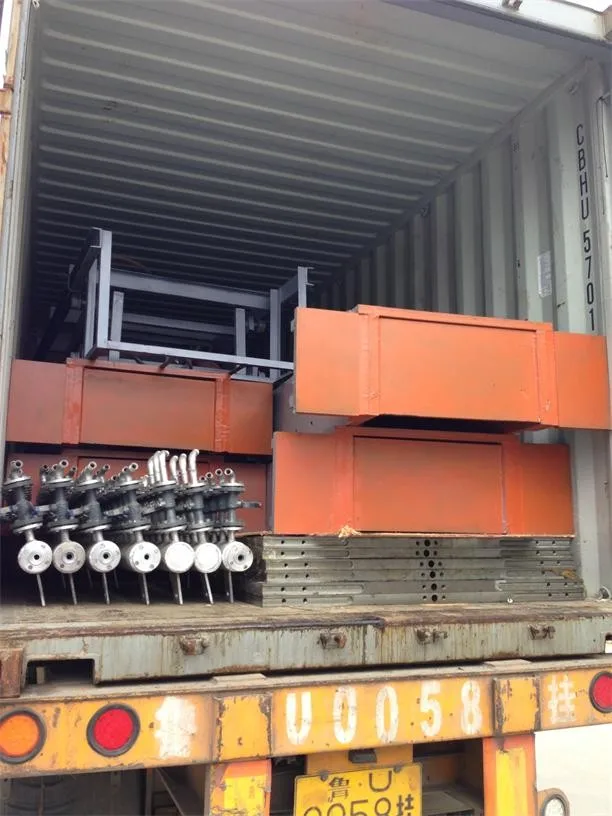

Deliverly details

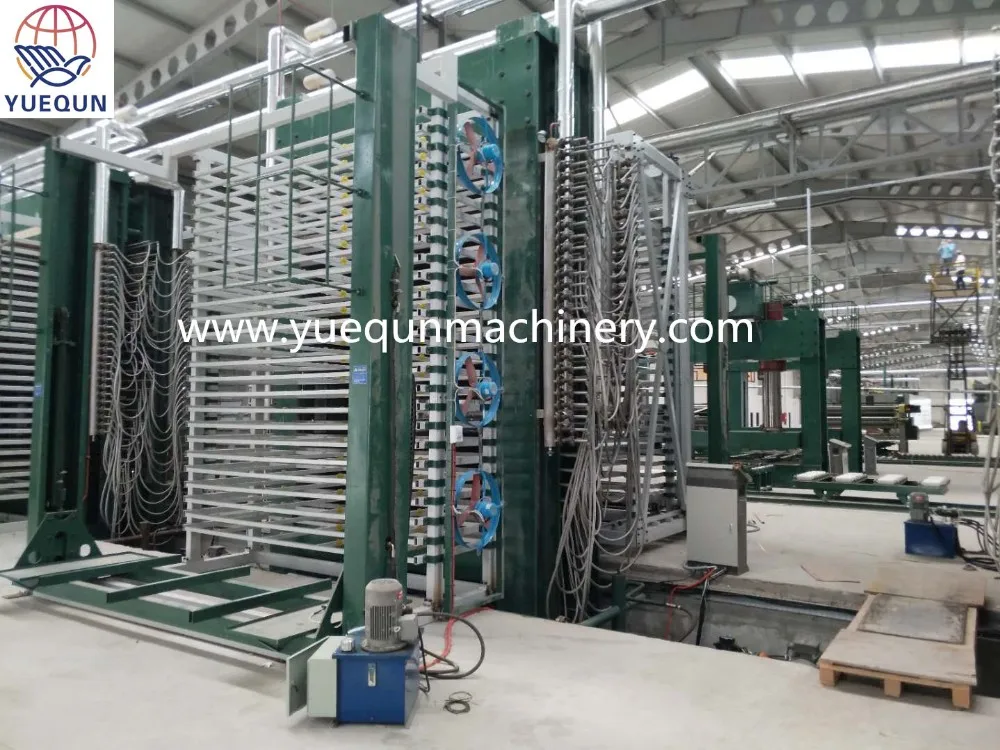

Customer feedback

Company Profiles

Shandong Yuequn Machinery established in 1994 , it's the biggest and professional

plywood production machinery Manufacturer in Linyi city China .all the machine

for exporting , over 50 countries .The complete complete line include : log debarker - veneer peeling machine - veneer dryer machine - veneer composer machine - glue spreader - cold press machine - hot press machine - plywood edge cutting saw - sanding machine and so on .

Our certificate

Related Products

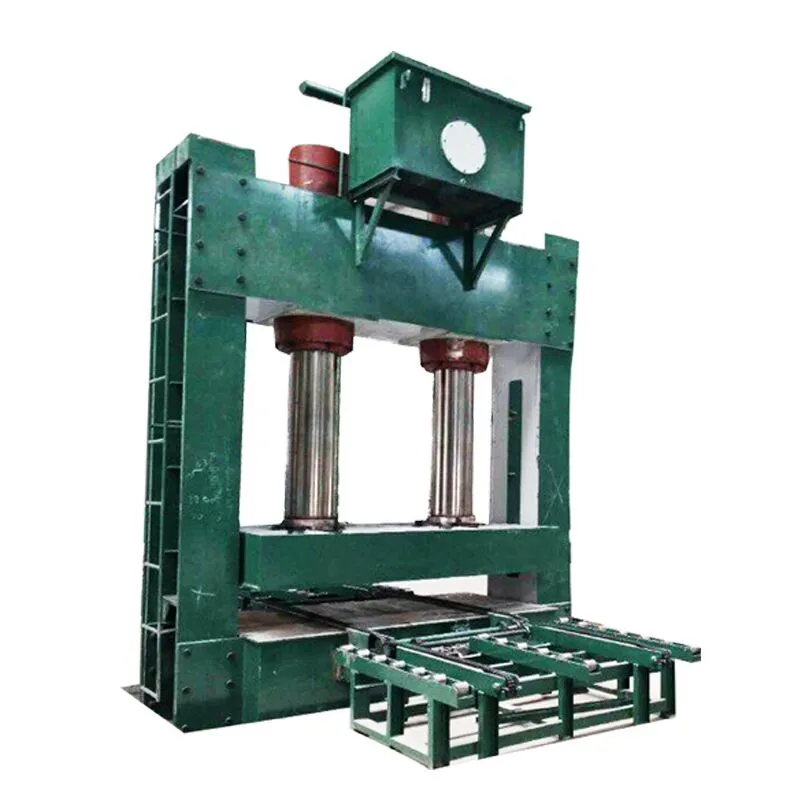

cold press machine

100% Response Rate

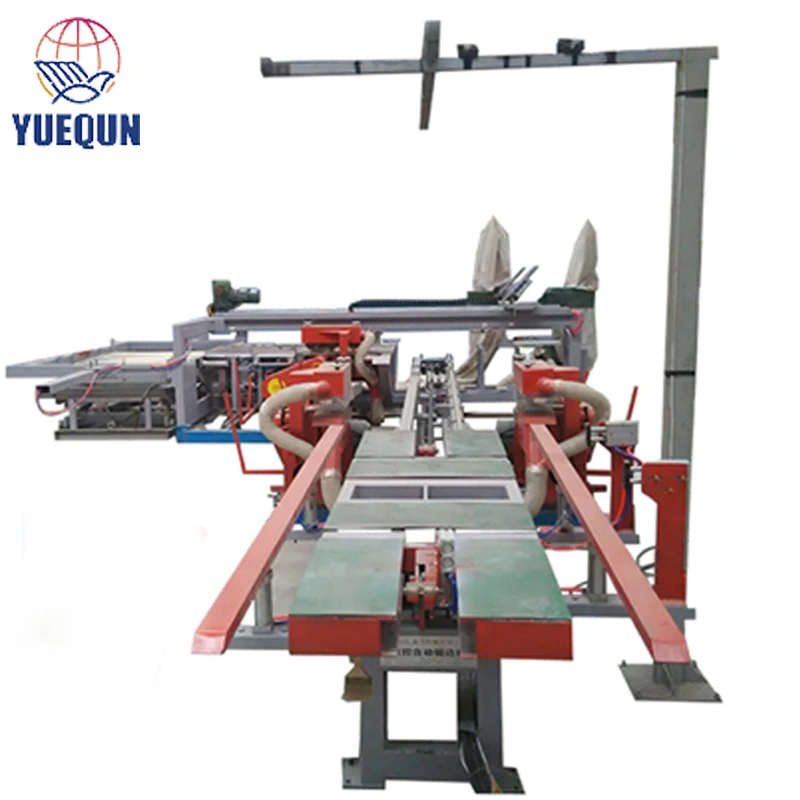

edge cutting saw machine

100% Response Rate

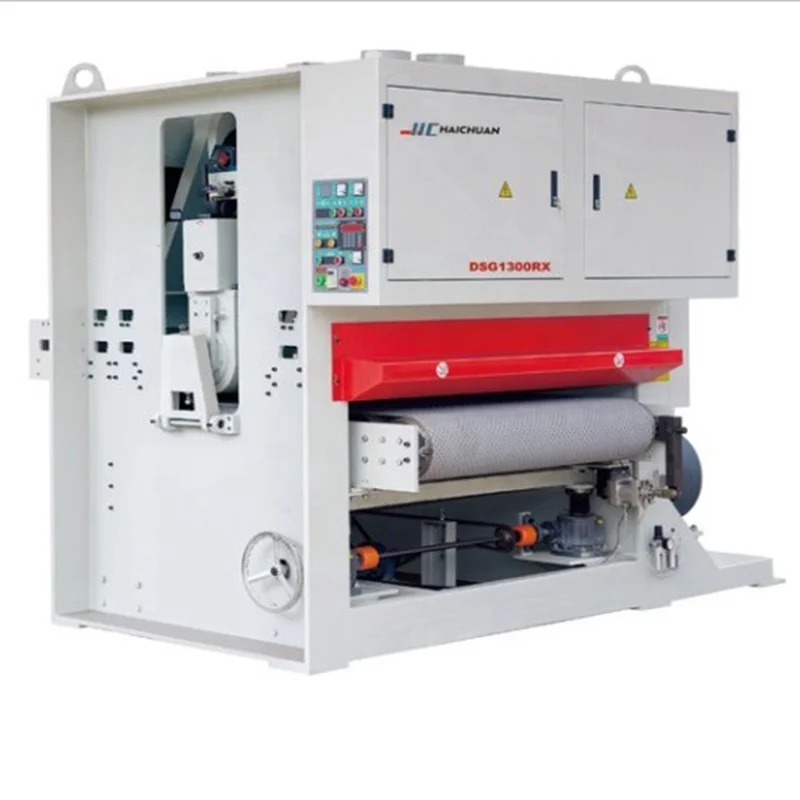

sanding machine
