3 layer hydraulic veneer door hot press machine
- 8000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Pressure: | 120T; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Warranty: | 1 Year; | Power(W): | 22KW; |
| Packaging Detail: | container; | Payment Terms: | L/C,T/T; |
| After-sales Service Provided: | Online support; | Condition: | New; |
| Weight: | 8500kg; | Place of Origin: | Shandong China; |
| Dimension(L*W*H): | 3260x1660x2280; | Brand Name: | chenen; |
| Certification: | ISO9001; | Port: | qingdao; |
| Voltage: | as requirement; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; |
| Supply Ability: | 10 Set/Sets per Month; |
hot press machine
specification of the hot press machine:
model | BY214 8/16(3) |
Max pressure | 100T |
stoke | 100mm |
Platen size | 1300x2500x42mm |
Platen number | 4 |
Cylinder number | 6 |
Cylinder diameter | 100mm |
Cylinder stoke | 300mm |
Hydraulic system pressure | 21mpa |
Hydraulic pump power | 5.5kw |
Conduction pump power | 2.2kw |
Heating power | 18kw x2 |
size | 3260x1660x2280 |
weight | 8000kg |

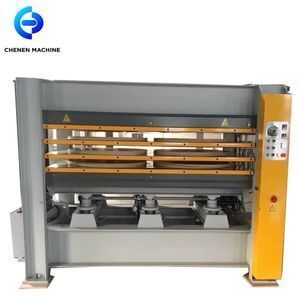

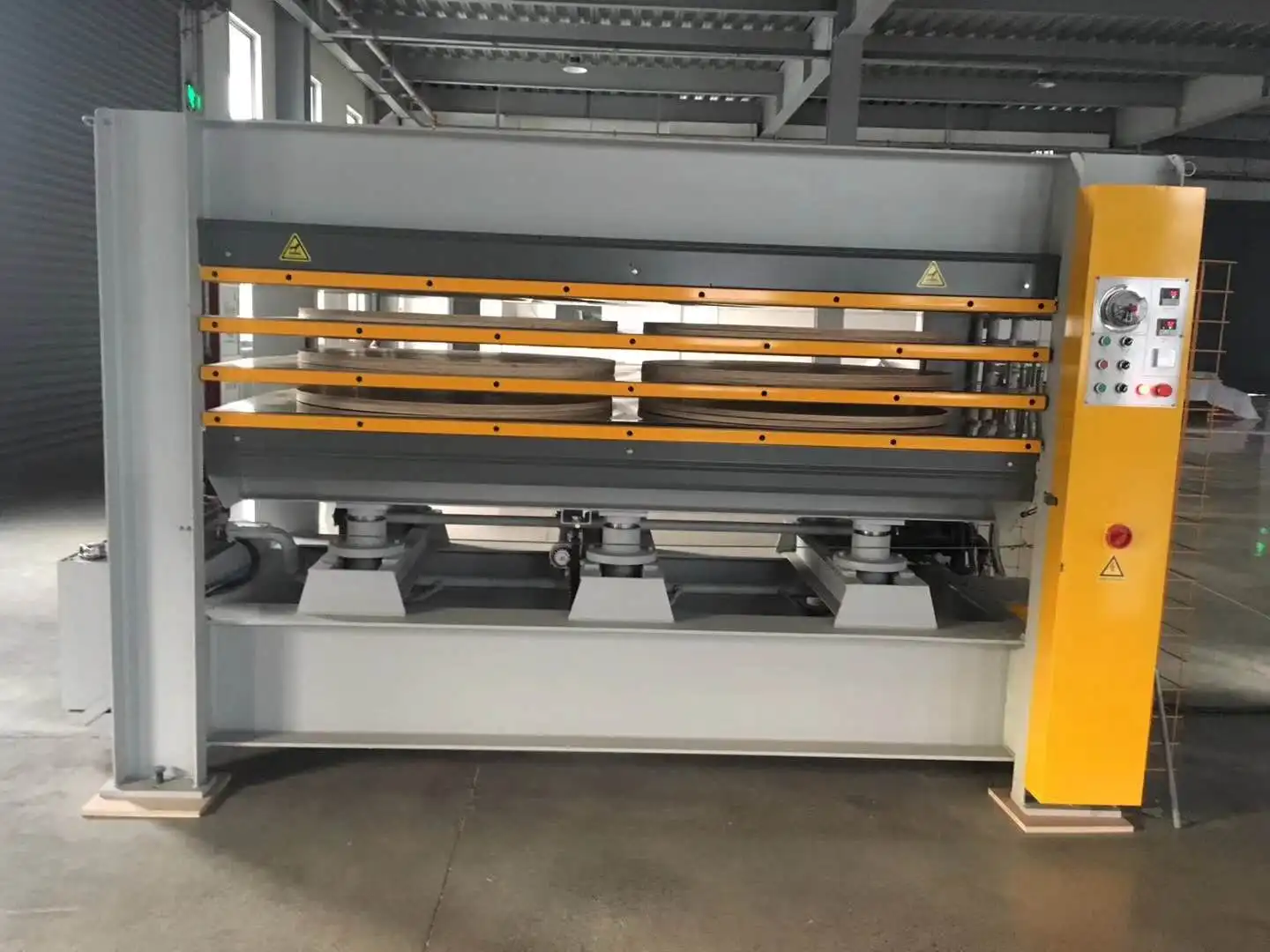

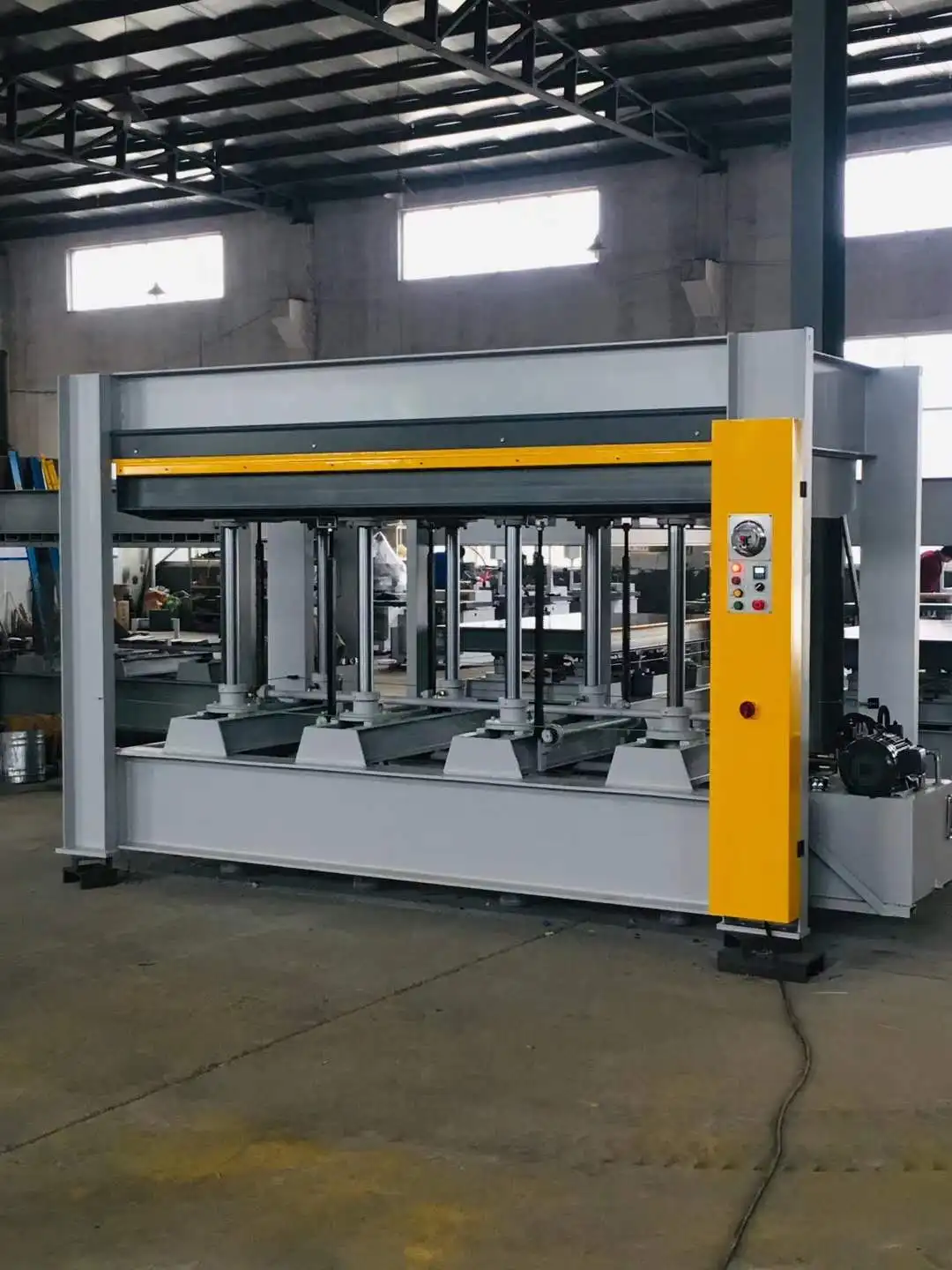

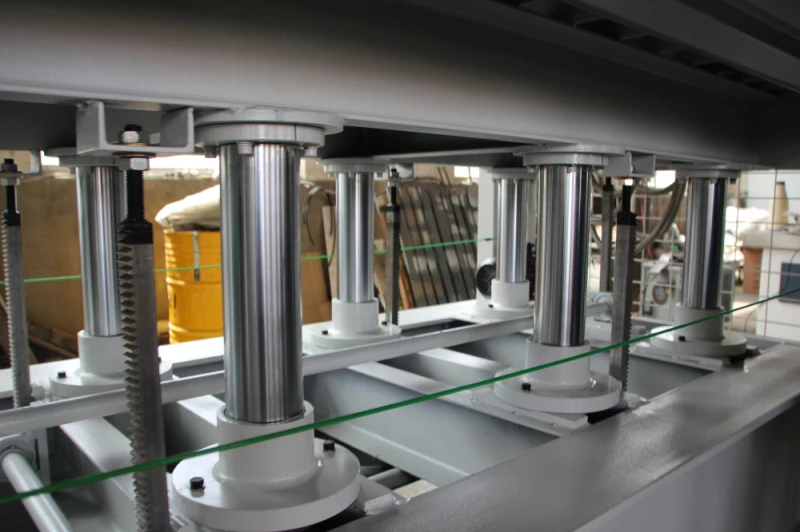

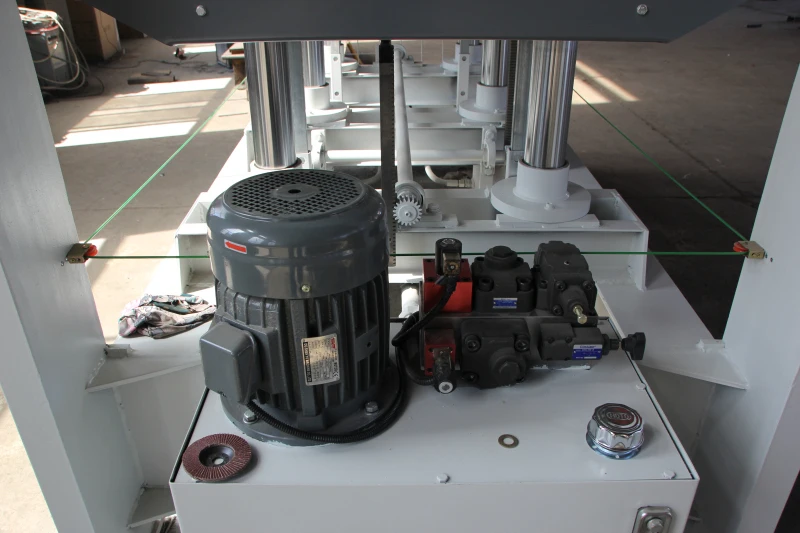

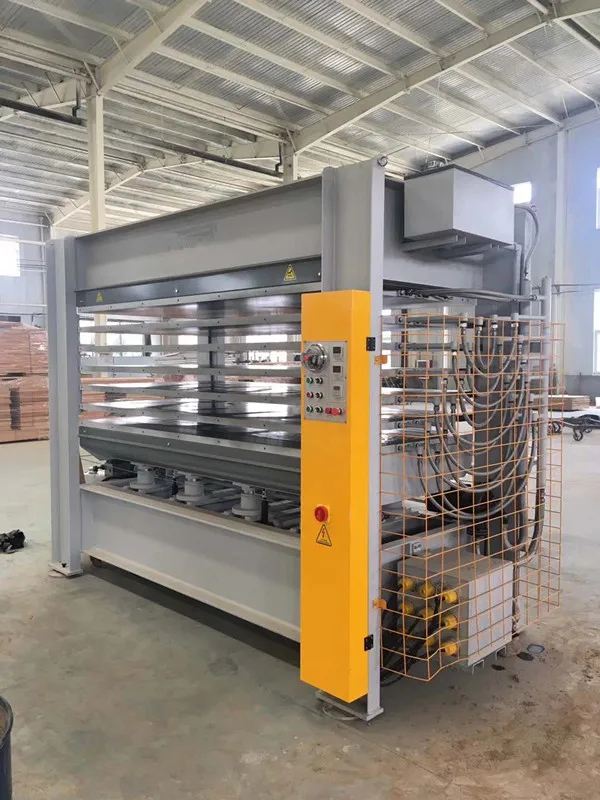

photo for the hot press machine

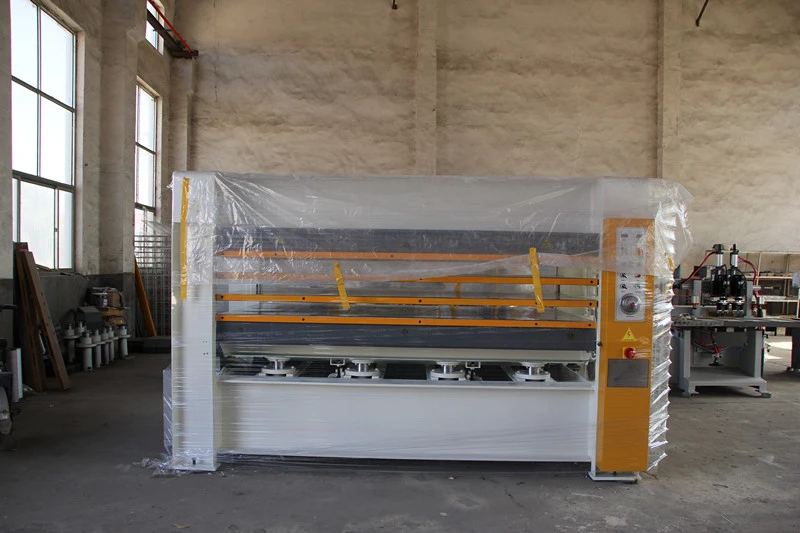

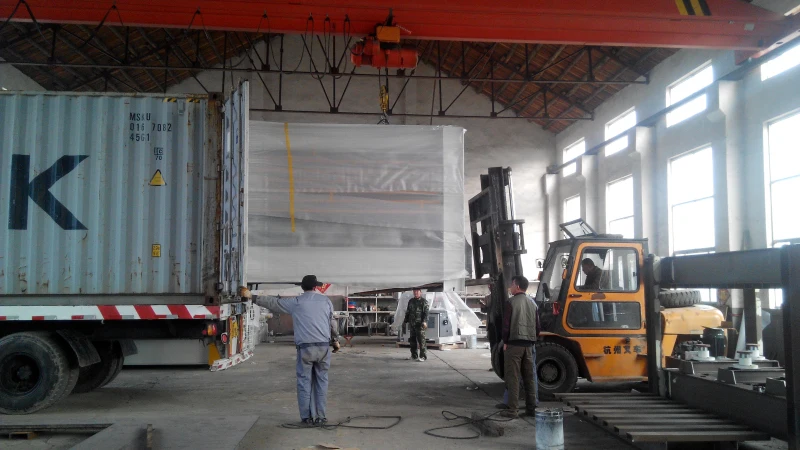

the packing and delivery
