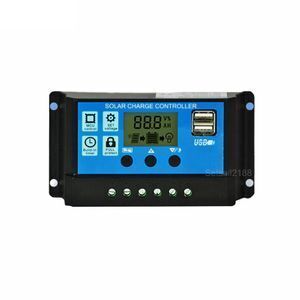

12V 24V 48V 30A Mini PWM Auto Solar Panel Charge Controller 30A 12V 24V Battery Charger Controller Dual USB 5V 3A
- 2.30 >=10 pieces
| Place of Origin: | Guangdong China; | Max PV Power: | NO; |
| Application: | Charger Controller; | Max PV Voltage: | 48V; |
| Work Time (h): | NO; | Dimensions: | 133*70*35mm; |
| Port: | shenzhen; | Discharging Current: | 30A; |
| Discharge reconnect: | 12.6V(defaul,adjustable); | Float charge: | 13.7V(defaul,adjustable); |
| Brand Name: | Setsail2188; | Packaging Detail: | yes; |
| style: | pwm solar charge controller; | Type: | PWM; |
| weight: | 160g; | USB output: | 5V/3A; |
| Model Number: | PWM30; | Discharge stop: | 10.7V(defaul,adjustable); |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal RMB; | type: | solar charge controller 30A; |
| Supply Ability: | 10000 Piece/Pieces per Week; | Equalization: | 14.4V(Sealed); |
12V 24V 30A Mini PWM Auto Solar Panel Charge Controller 30A 12V 24V Battery Charger Controller Dual USB 5V 3A
Note:we have 10A 20A 30A 40A 50A 60A version.
only charge for 12V 24V lead acid battery (automatic identification)
Description:
| PWM10 | PWM20 | PWM30 | PWM40S | PWM50S | PWM60S | |
| Charging Current | 10A | 20A | 30A | 40A | 50A | 60A |
| Discharging Current | 10A | 20A | 30A | 40A | 50A | 60A |
| Max Solar input | 50V(for 24V battery) 25V(for 12V battery) | |||||
| Equalization | 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) | |||||
| Float charge | 13.7V(defaul,adjustable) | |||||
| Discharge stop | 10.7V(defaul,adjustable) | |||||
| Discharge reconnect | 12.6V(defaul,adjustable) | |||||
| USB output | 5V/3A | |||||
| Mounting holespacing | 147mm*60mm | |||||
| Dimensions | 133*70*35mm | |||||
| Packing Size | 150*80*40mm | |||||
| Packing Weight | 150g | |||||
| Self-consum | <10mA | |||||
| Operating temperature | -35°C~+60°C | |||||
| Installation linenumber | ≤5#AWG(6mm2) | |||||
| Storage temperature | -40℃-70℃ | |||||
Note:
Connect BATTERY FIRST, then Connect LOAD and SOLAR PANEL. It will help the controller
recognize the battery voltage.
When you Disconnect the controller, please remove the SOLAR PANEL,and LOAD, the remove the BTTERY.
Safe use advice:
1.The controller is 12V/24V automatic identification, the first installation, make sure the battery has enough voltage, so that the controller can be identified as the normal battery type.
2.The controller as close as possible to install the battery to avoid the voltage drop caused by excessive lead, affecting the normal voltage to determiner
3.This controller is only suitable for a variety of lead-acid batteries (including openings, seals, colloids) Do not use other batteries (including lithium batteries, nickel-metal hydride battery...).
4.The controller can only use the photovoltaic board as a charging source, do not use DC or other power supply as a charging source.
5.When the controller is running, it will heat up. Please note that the controller is
installed on a smooth, well-ventilated surface.
Multiple Features
1.The image of the LCD display shows
2.Support light control, light time control, load more flexible
3.Comes with dual USB 5V 3A output
4.System voltage 12V / 24V automatic identification
5.Intelligent PWM charging mode, charging more efficient
6.Battery reverse discharge protection
7.Battery overvoltage protection
8.Battery undervoltage protection
Why choose us:
1.Fast shipment,most products are instock, we are in shenzhen,you can recieve package fast than other city.
2.We can give better price for most product.
3.We have many diffirent products,so you buy it together, don’t need choose more supplier.
4.Our employee is very professional,so we can give best service and fast reply.
our mail products:voltmeter/ammeter/battery capacity tester/temprature controller meter
DC DC converter/relay module/amplifier/motor controller
Payment:we can accept paypal west union TT RMB payment
Shiping:we will send out package asap,it normal 3-7days,we can send by DHL Fedex UPS DPEX
EMS....
