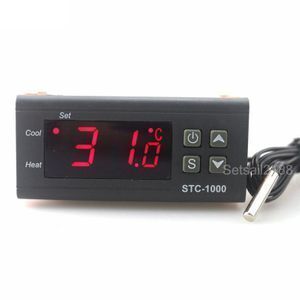

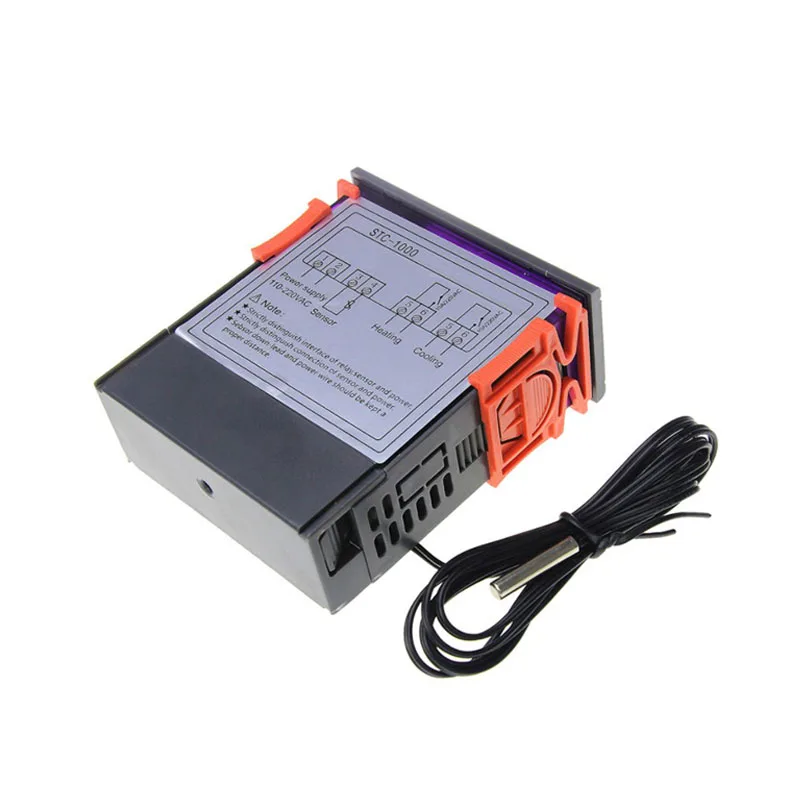

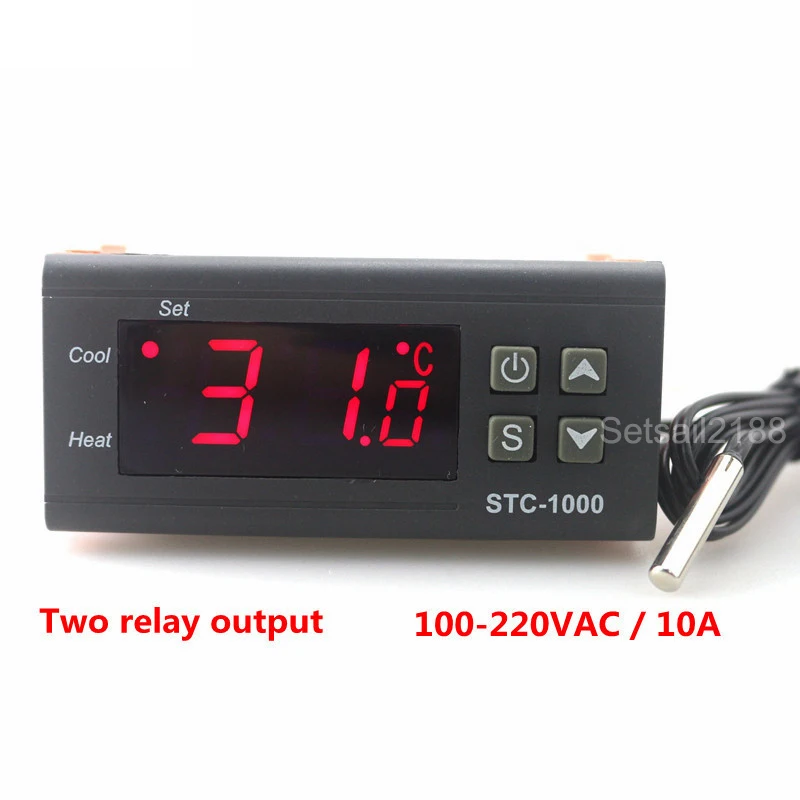

stc-1000 Two Relay Output thermostat STC 1000 Digital Temperature Controller for Incubator 12V 24V AC 110-220V 10A

Supplier: Shenzhen Setsail Business Co., Ltd.
Region: Guangdong, China
Contact: Mr Jason Chen
Price: $2.80 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal RMB;	Brand Name:	Setsail2188;
style:	stc 1000;	size:	75x34.5x85 mm;
Sensor length:	1.0m;	function:	cooling and Heating;
accept Customized:	yes;	Place of Origin:	Guangdong China;
Range:	-50 to +110°c;	Supply Ability:	10000 Piece/Pieces per Week;
Model Number:	T34C;	model:	STC-1000;
Packaging Detail:	yes;	type:	temperature controller;
Power Supply:	DC 12V 24V AC 110- 220V;	Port:	shenzhen;
Sensor error delay:	1 minute;

stc 1000 Two Relay Output thermostat STC-1000 Digital Temperature Controller for Incubator AC 110V 220V 12V 24V 10A

temperature controller has DC 12V 24V AC 110-220V version

Specification:

modle: STC-1000

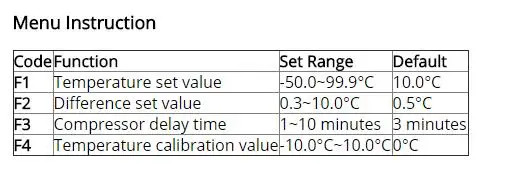

Switch the modes between cool and heat; Control temperature by setting the temperature setting value and the difference value; Temperature calibration; Refrigerating control output delay protection; Alarm when temperature exceeds temperature limit or when sensor error.

Technical Parameters:

1.Temperature measuring range: -50 ° C ~ 99 ° C
2.Resolution: 0.1 ° C;
3.Accuracy:+- 1° C (-50 ° C ~ 70 ° C);
4.Sensor error delay: 1 minute
5.Power supply: 110-220VAC 50/60Hz, 12V , 24V( Choose power supply when you place order ) ;
6.Power consumption: <3W;
7.Sensor: NTC sensor (1PC);

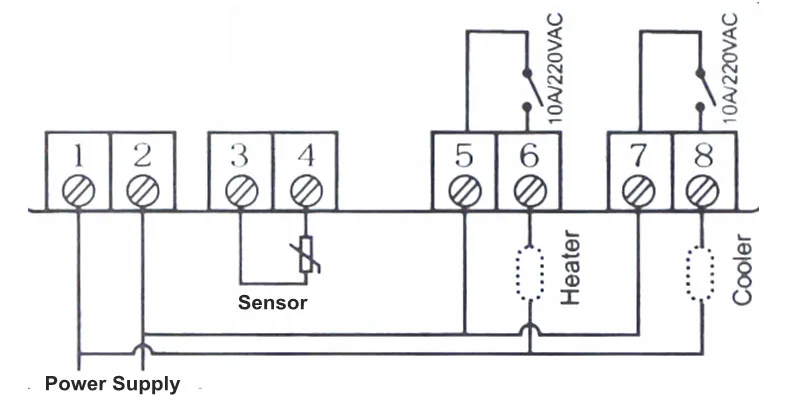

8.Relay contact capacity: Two Relay Cool 10A/220VAC; Heat 10A/220VAC;
9.Ambient temperature: 0 ° C ~ 60 ° C;
10.Storage temperature: -30 ° C ~ 75 ° C;
11.Relative humidity: 20% ~ 85% (No condensate)
12.Sensor length: 1.0m
13. Front Panel Size: 75x34.5mm ; Product Size: 75x34.5x85 mm ; Mounting Size: 71x29mm
