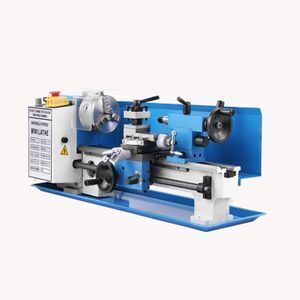

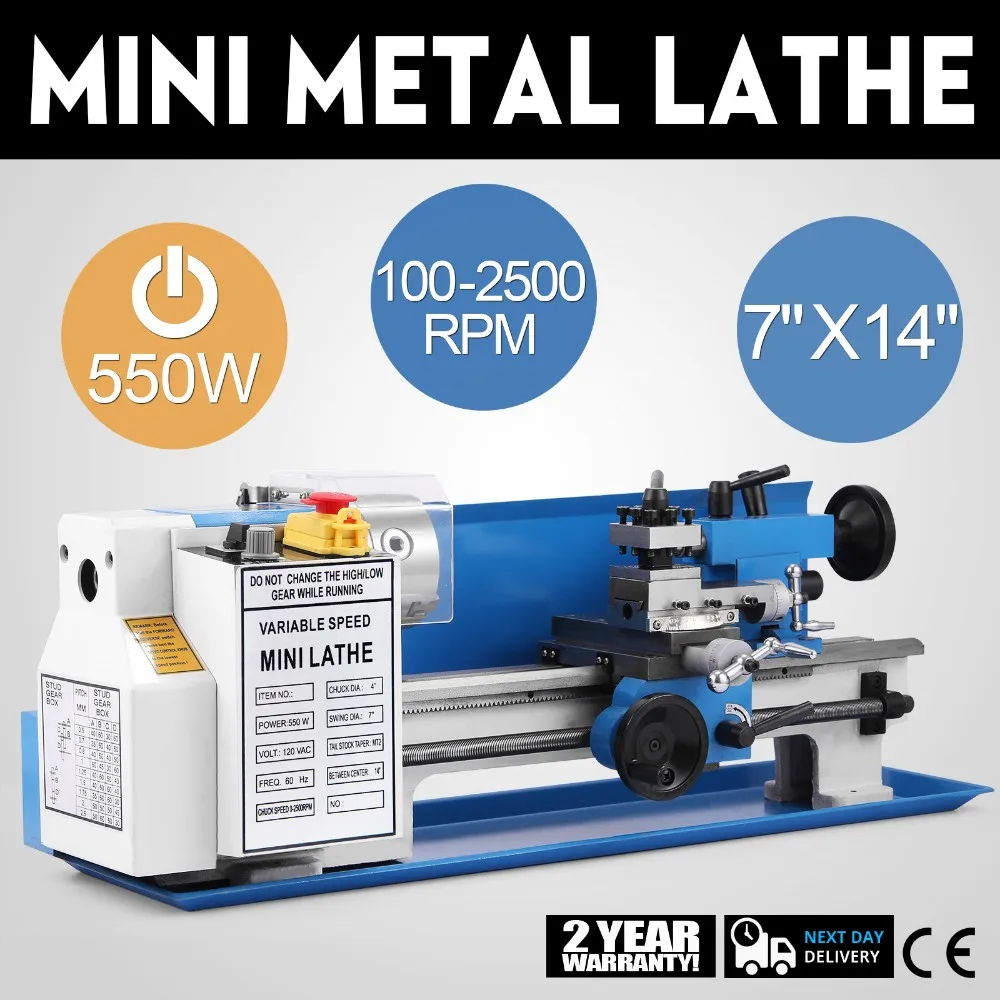

Mini Metal Lathe 550W 0618 Mini Tornio in Lavorazione Metal Lathe CNC Lathe Machine

Supplier: Shanghai Sihao Machinery Equipment Co., Ltd.
Region: Shanghai, China
Contact: Ms Sihao Sihao
Price: $370.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product name:	Metal lathe Mini lathe machine;	Condition:	New;
Type:	Horizontal;	Voltage:	220V/110V;
Package Type:	normal packaged;	Selling Units:	Single item;
Model Number:	0618;	CNC or Not:	Normal;
Automatic Grade:	Manual;	Max. Swing Diameter:	180mm;
Warranty:	2 Years;	Distance Between Centers:	14" (350mm);
Spindle Speed:	100-2500 RPM Infinitely Variable;	Power Of Motor:	0.75HP/550W/220V;
Power(W):	550W;	After-sales Service Provided:	Online support,Video technical support,Free spare parts;
Single package size:	83X38X35 cm;	Single gross weight:	45 KG;
Brand Name:	vevor;	Place of Origin:	China;
Application:	Metalworking Tool;

Product Description

Mini Metal Lathe 550W 0618 Mini Tornio in Lavorazione Metal Lathe CNC Lathe Machine

Variable Speed Gear	Plastic Nylon(if you need metal please tell)
Spindle Taper	MT3
Tail Stock Taper	MT2
Distance Between Centers	14" (350mm)
Swing Over Bed	7" (180mm)

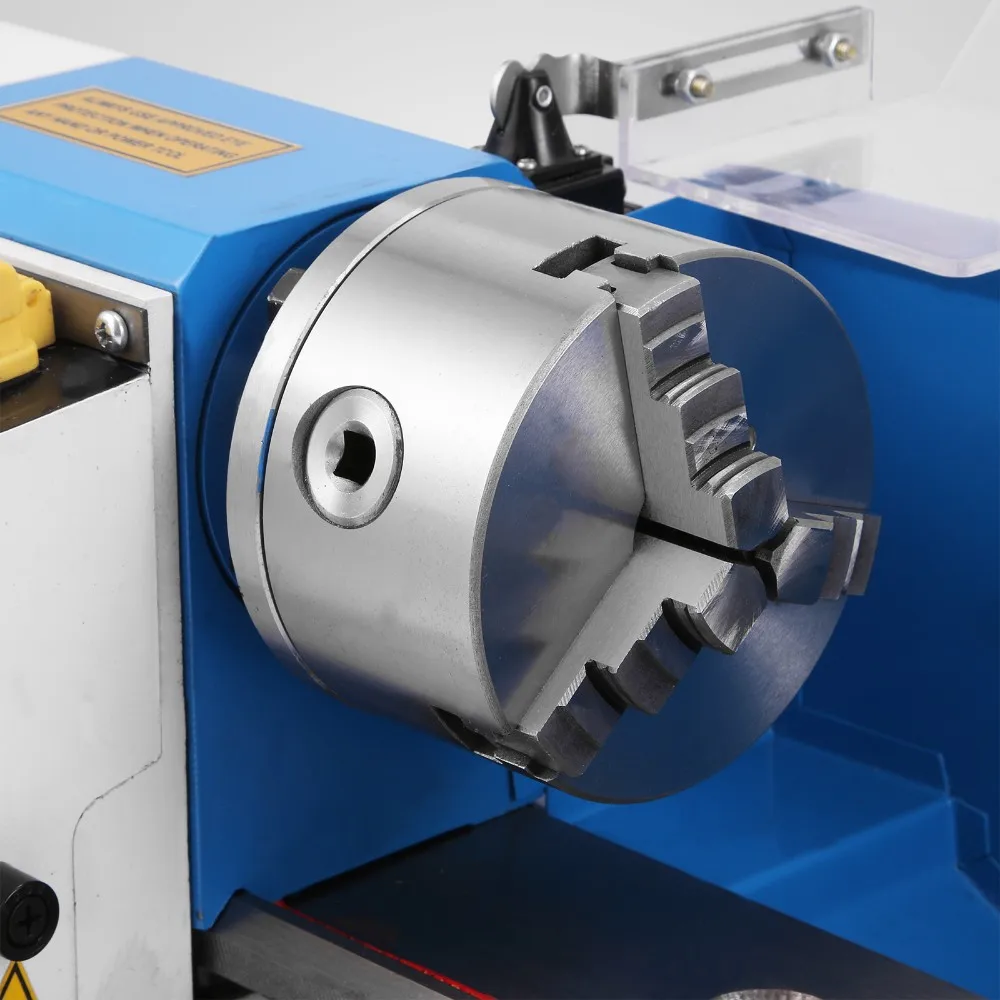

Chuck Diameter	3.93" (100mm)
Spindle Bore	0.8" (21mm)
Cross Slide Travel	2.56" (65mm)
Top Slide Travel	1.38" (35mm)

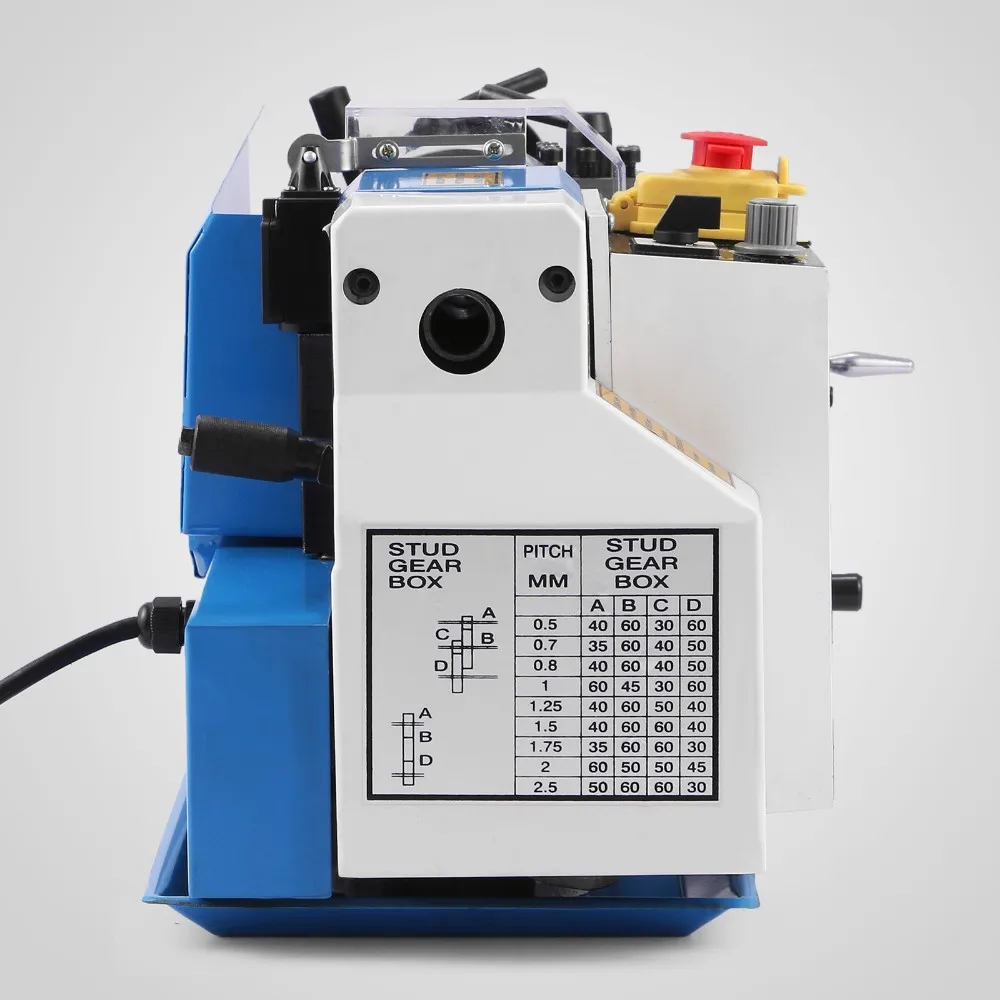

Range of Metric Threads	0.5-2.5" (12-52 T.P.I Range of Imperial Threads)
Spindle Accuracy	0.0004" (0.01mm)
Spindle Speed	100-2500 RPM Infinitely Variable
Power Of Motor	0.75HP/550W/220V

Detailed Images

Main Features

1) The spindle speed readout is infinitely variable from 100 to 2500RPM.

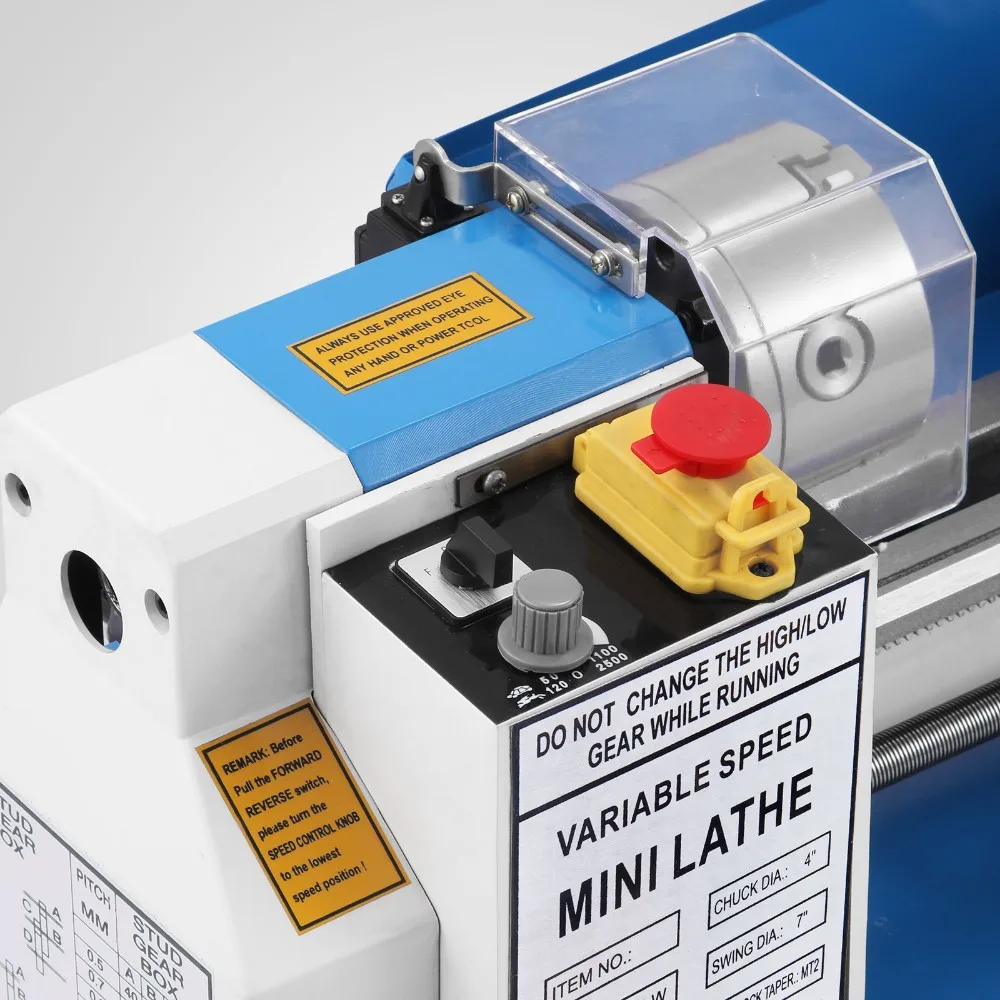

2) Spindle speed adjusted by MCU.Rotary direction"F"or"R"changed by key.

3) The feed can be adjusted according to the requirement of different workpieces.

4) This can be used as mini precision parts processing, sample processing, and modeling works.

5) With high precision, can turn out the standard qualified works.

6) Bed saddle tail scale precision, feed more precise fine-tuning, telescopic sleeve scale practical.

7) Automatic tool, Infinitely variable, professional tool post.

Package

MS2 # Fix The Top

Double-Headed Wrench

Oil Can

Nylon Gears

Chuck Claw

Hexagon Bar Wrench

Chuck Wrench

Protecting Mask

4 × Shockproof Foot Cushion
