Hot selling high quality 3IN1 variable speed belt sander 2"x82" 1.5kw grinder factory made

Product details
Packaging Details:60*58*44cm; 88kgs; wooden caseRubber Contact Wheel:Ph427 x 12"
Aluminum Contact Wheel:2.5" x 2"Rotating speed:0-2800RPM
No-load speed:10000 rpmShift:The drive will convert 1 phase to 3 phase, yes
flat:2.5" x 2.5" (Large Wheels) Solid Aluminum CNC Wheelsfrequency:50/60HZ
model:1.5KWTSSGJ0000001V2place of origin; place of origin:China Shanghai
port:ShanghaiRated input power:500-2350W
weight:88kgpayment terms:L/C,D/P,T/T,Western Union,Paypal
brand:WeaverEnergy source:Electricity
Toothed rubber tires:12 inches / 300 mmapplication:Metal
Knife making and steel processing belts:2" x 82"Supply capacity:100 sets per week
motor:2Hp/ 1.5KWAluminum Track Wheels:4" x 2"
Rated voltage:220V/110VSand pad size:180mm
Product Description

Applications

This new variable speed belt grinder is the ideal machine for cutting, profiling, handle and finishing, satin or mirror finishing. It is all steel construction with all steel frame welded at all joints which makes this sander very strong and precise belt control. Also, it runs smoothly and the tracking is very stable, so it doesn't make a lot of noise. The drive converts one phase to three for better control when doing detail work and reduces heat after blade heat treatment. This grinder has top-of-the-line idlers, motors and drives.
The following points should be considered:
1. According to different grinding types, users can choose three different grinding wheels.
First, you need to insert the movable rod of the grinding wheel, hang on the belt and compress the spring.
Second, the movable rod must be pulled at its maximum length.
Finally, lock the handle.
2. The user needs to manually turn the belt a few times before turning on the power. You can adjust the knob a little so that the wheel doesn't deviate.
3. Select the compatible line speed according to different grinding wheels. The sun gear is recommended at high speed (35-50Hz). Flat and curved grinding wheels at low to medium speeds (25-42Hz).
4. Warning! When grinding, the machine and the inverter must be isolated, and the inverter should be kept as clean as possible to prevent metal particles from falling into it and causing failure.

main feature

2HP Variable Speed ​​Grinder
PH427 X 12" Wheel Flatbed
Comes with Tool Rack - 2 Wheel Flatbeds
1 piece tracking mechanism for precise belt control.
4-wheel design to reduce vibration
Made by a full-time knife maker.

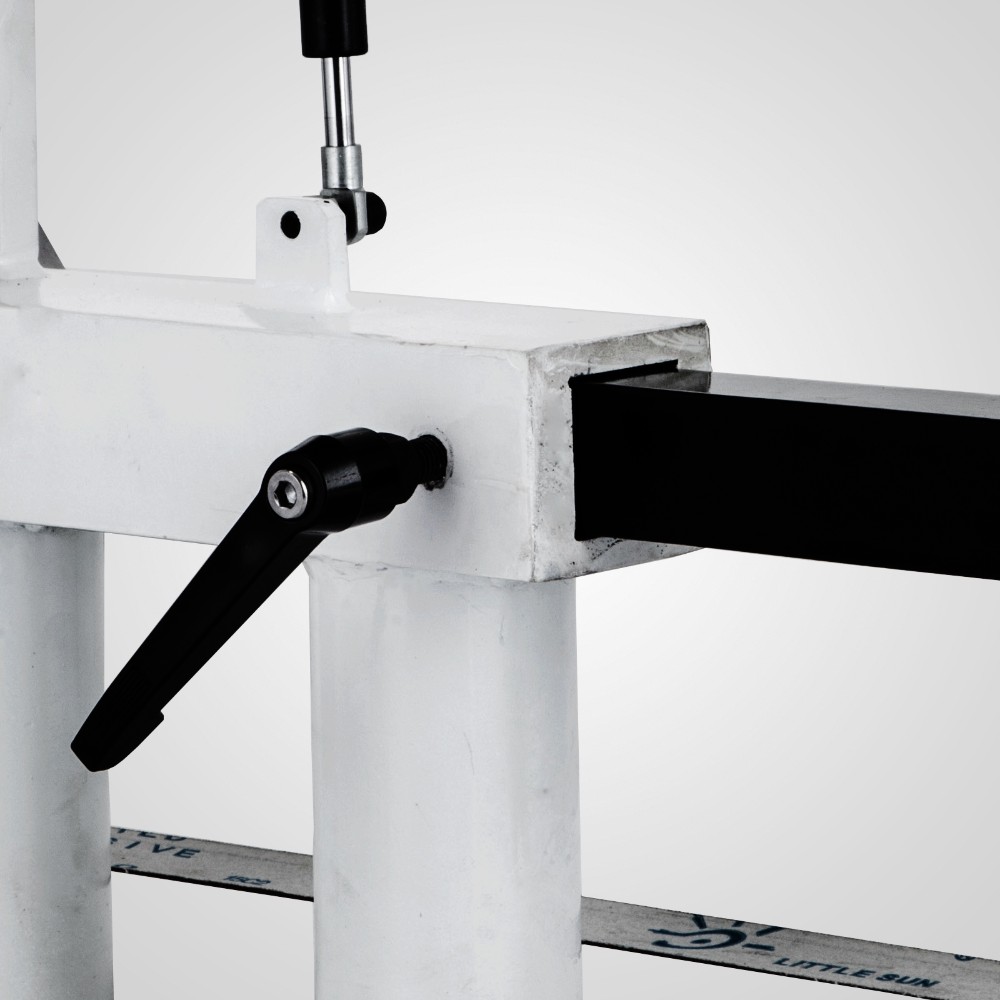

Easy to change platen or wheels/accessories Quick release tool arm and tool holder without tools,
Quick Change Belts - Use 2" x 82" Belts

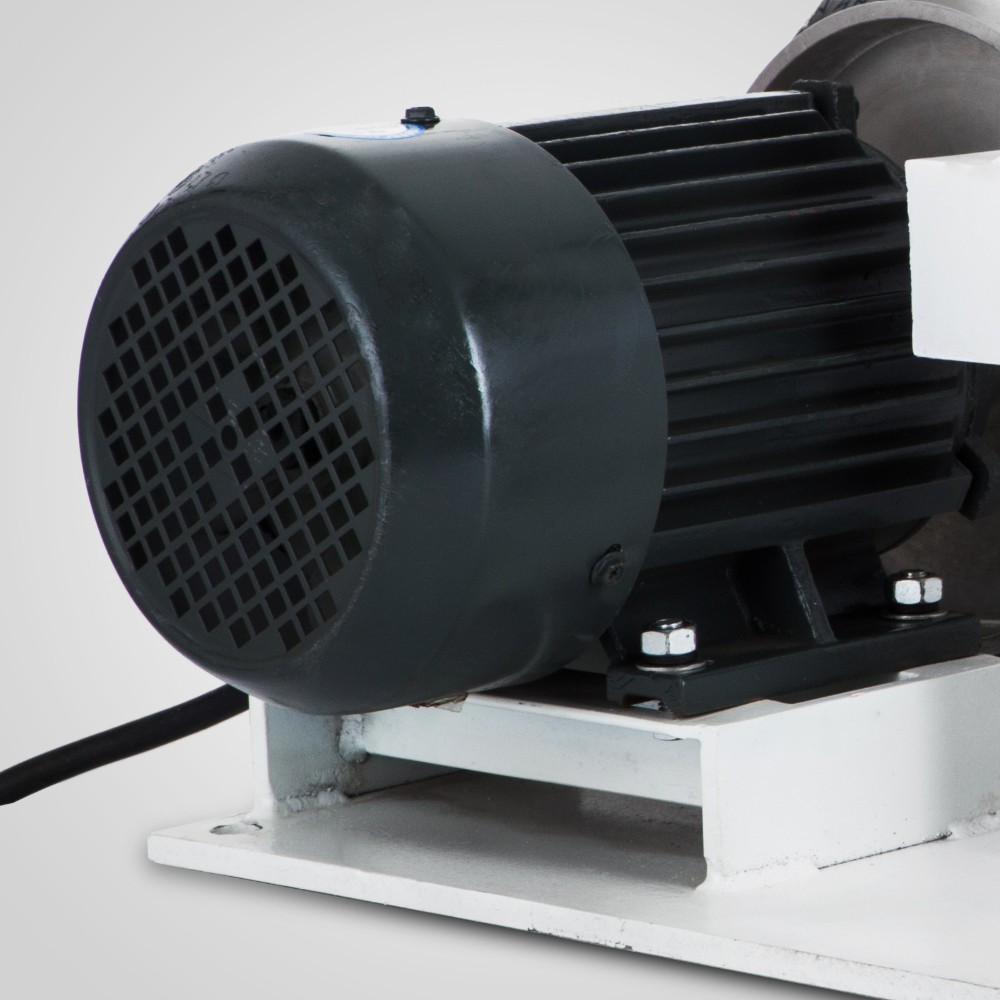

2hp industrial motor
2HP Variable Speed ​​Drive KBAC 24d. Speed ​​control range from 0 - 2800 rpm
Compatible with PH 454 belt grinder
Direct drive (no belts or pulleys cause/vibrate and take 30% of power)
Drive wheel separation (speed does not vary with contact wheel size)
Optionally upgrade 5, 6, 8" or 10" and 12" contact wheels without any modification.
13" x 22" footprint fits small countertops
Affordable Professional Grade Grinder
The steel frame is welded at all joints and is very strong.
Smooth operation without making a lot of noise

detailed image


Name:Belt Sander

Card:Weaver

The original:China

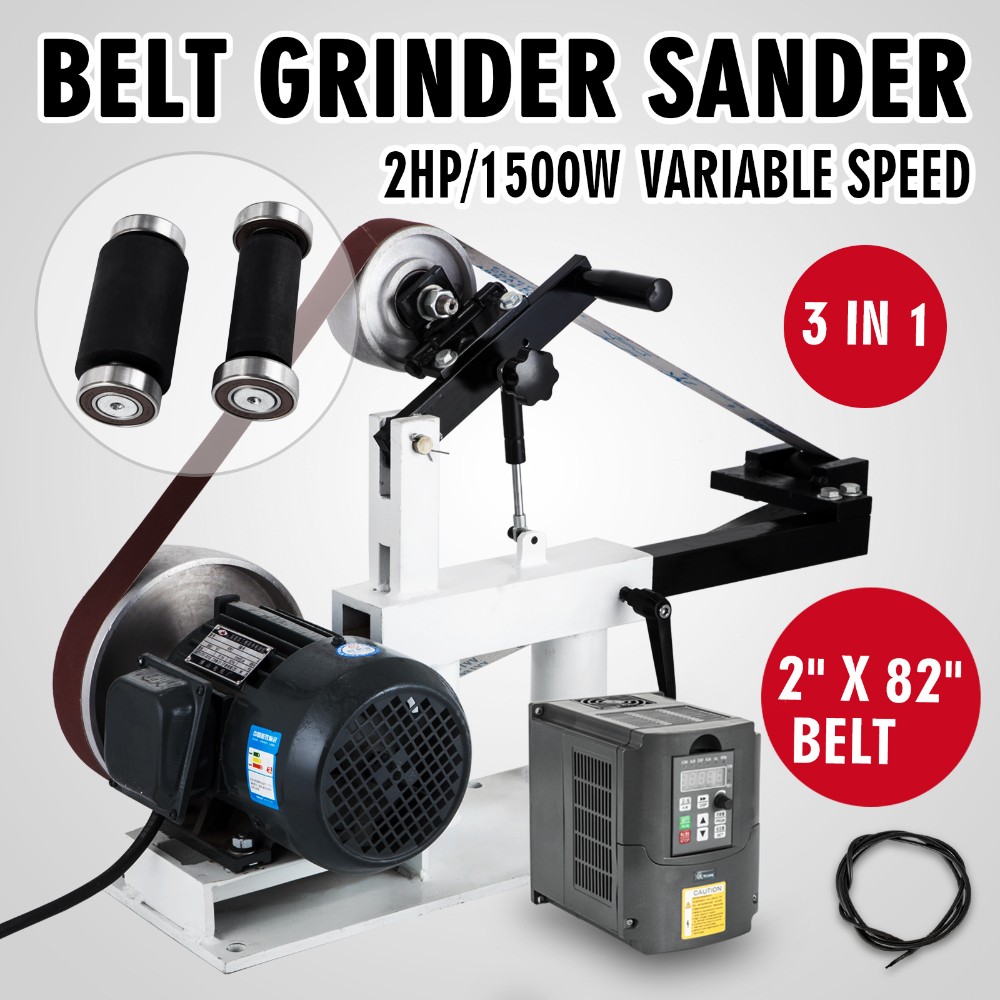

3-in-1 Variable Speed ​​Grinder

Rubber Contact Wheel: Ph427 × 12"

Speed: 0-2800RPM


Flat: 2.5" x 2.5" (large wheels) solid aluminum CNC wheels
Motor: 2 hp


Variable speed: the drive will convert 1 phase to 3 phase
Knife and Steel Band: 2" x 82"
Aluminum Contact Wheel: 2.5" x 2"


Aluminum Track Wheels and Aluminum Drive Wheels: 4" x 2"
Toothed rubber tire: 300mm
Concare Wheels: 25mm diameter and 40mm diameter
