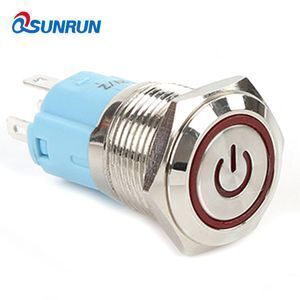

16mm Metal Momentary Push Button Switch LED Light 5V 12V 24V 220V StainlessLess Steel Waterproof Car Auto Engine PC Power Start
- 1.20 >=5 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Single gross weight: | 0.05 KG; | Single package size: | 3X3X5 cm; |
| Max. Voltage: | 3-220(V); | Wiring Method: | Welding; |
| Model Number: | MBS16-Momentary; | Protection Level: | IP65; |
| Certificate: | ccc; | Voltage: | 3-220V; |
| Operation type: | Momentary; | Type: | 16mm; |
| Display: | LED Display; | Color: | Red yellow blue green white; |
| Max. Current: | 4(A); | Usage: | Car Auto Engine PC Power Start; |
| Material: | Stainless Steel; | Product name: | 16mm Metal Momentary Push Button Switch; |
| Place of Origin: | Guangdong China (Mainland); | Selling Units: | Single item; |
16mm Metal Momentary Push Button Switch LED Light 5V 12V 24V 220V StainlessLess Steel Waterproof Car Auto Engine PC Power Start
Product Description
Introduction:
Metal LED Illuminated Momentary 16mm Push Button Switch Car Dash Red Blue Green White StainlessLess Steel Waterproof 1NO 1NC
switch is with NO (normally open) + NC (normally closed)

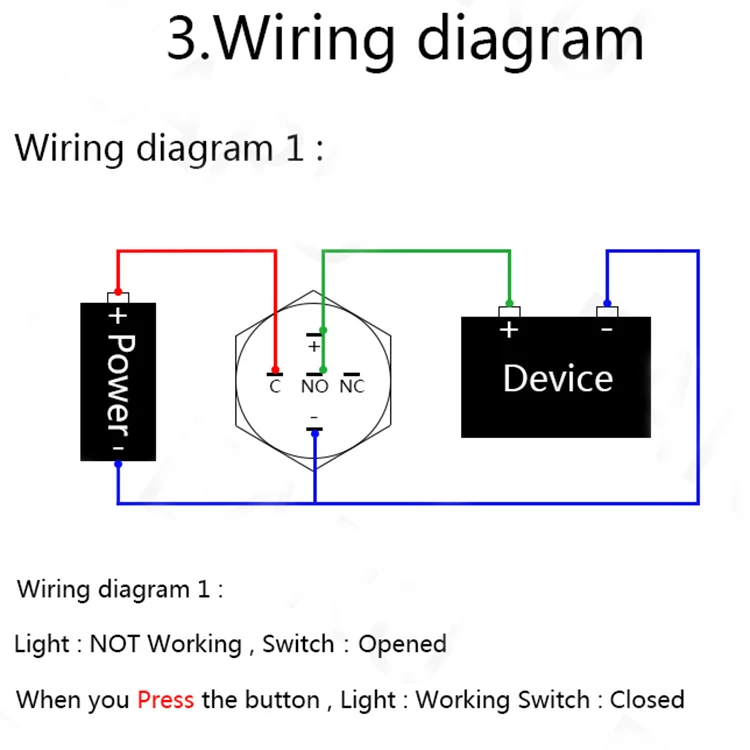

there are 5 terminals : ' + ' and ' - ' are for lamp ... C , NO , NC is for switch
specification
Item: Metal Push Button Switch

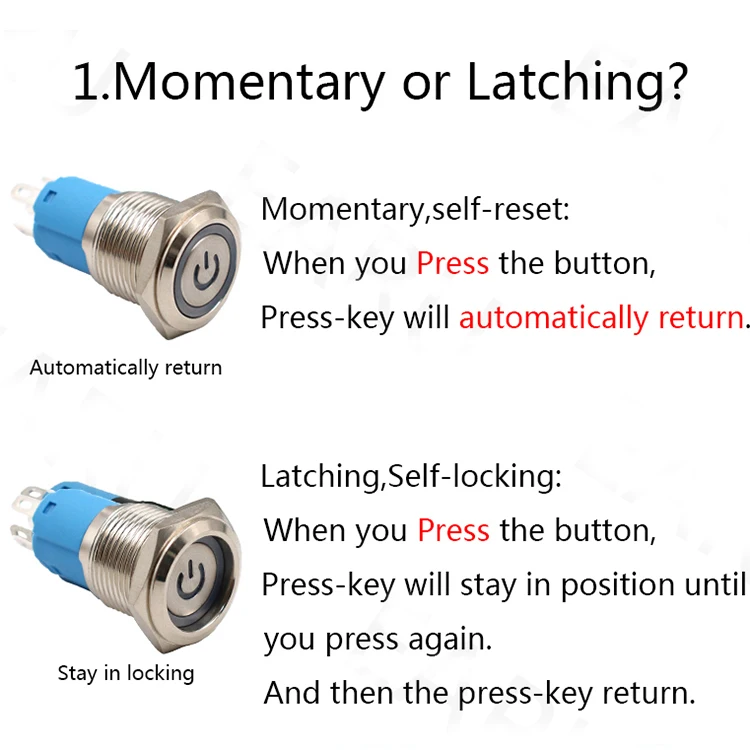

type :Momentary; 1 NO + 1 NC
Material : Nick-plated Brass
The Front Shape :Domed
illuminated : Dot

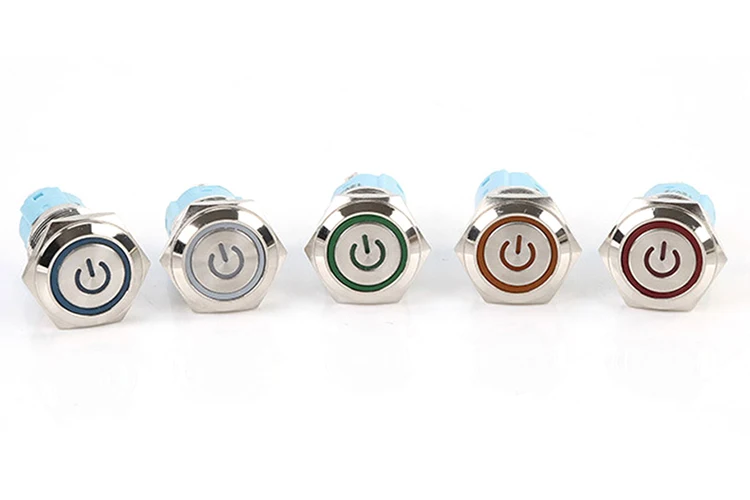

Lamp Color : R/G/Y/O/B/W
Protection Degree : IP65 , IK08Dot
Fetures:
High temperature resistance, environmental protection, wear resistance, pressure resistance

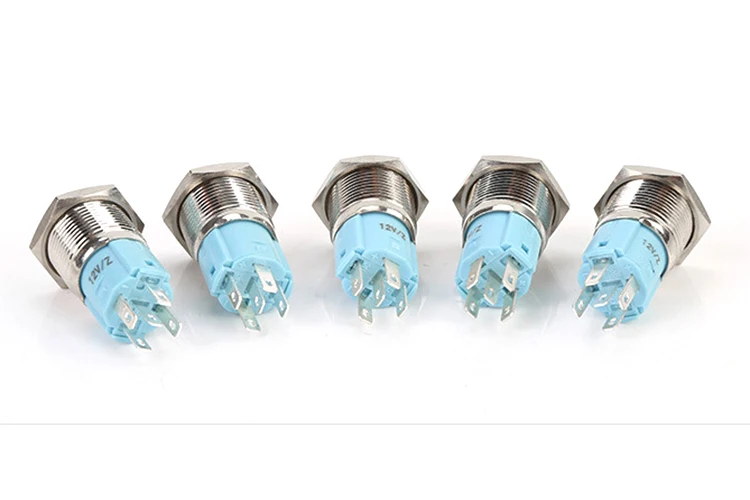

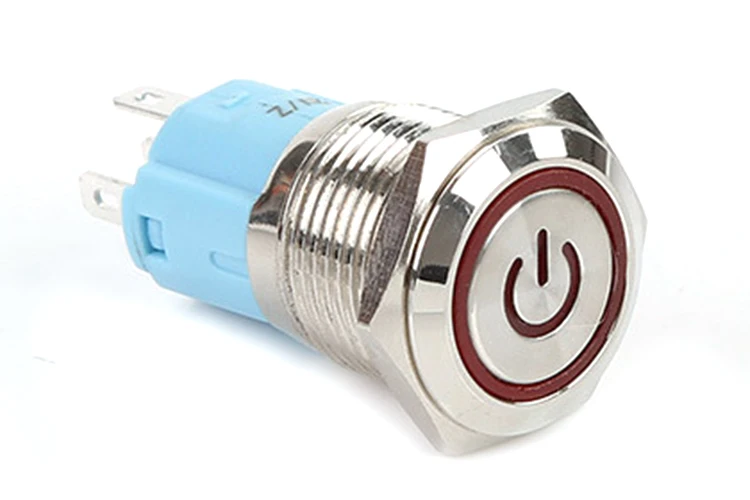

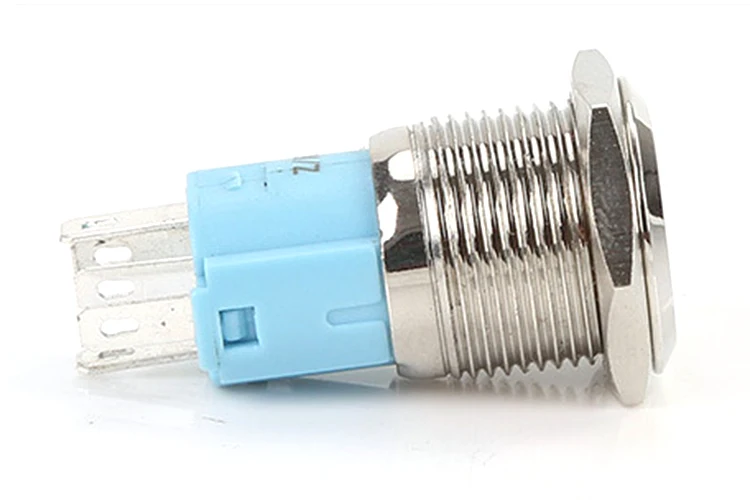

Product Detail Show
