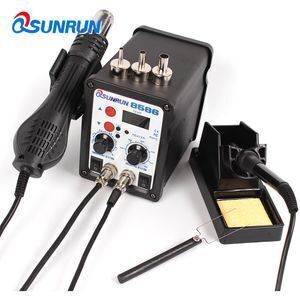

8586 Digital Rework Station & Soldering Station 700W 110/220V 2 In 1 Hot Air Soldering Mobile Phone Repair Tools

Supplier: Shenzhen SunRun Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms. abby ren
Price: $21.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Single gross weight:	2.5 KG;	Package Type:	cartons;
Weight:	2.5 KGS;	power consumption:	700W;
Brand Name:	QSUNRUN;	Weight:	2.5KGS;
Color:	Black;	Selling Units:	Single item;
Usage:	suitable for desoldering mobile phone cable and cable seat;	Name:	8586 ESD Soldering Station;
After-sales Service Provided:	No after-sales service;	Type:	Soldering Station;
Certification:	CE,ROHS;	Function:	Used For BGA SOIC CHIP QFP PLCC;
Place of Origin:	Guangdong China;	Usage:	For Welding ,Desoldering;
Package Preview:	https://sc02.alicdn.com/kf/HTB11OQPafjsK1Rjy1Xaq6zispXav.jpg_640x640.jpg;	Condition:	New;
Dimensions:	As the picture show;	Hot air gun Power:	60W;
Warranty:	1 Year;	Voltage:	110V/220V;
Application:	Desoldering of various components;	Single package size:	30X30X20 cm;
temperature range:	100°C-450°C;

700W 110/220V 8586 ESD 2 in 1 Soldering Station LED Digital Solder Iron Desoldering Station BGA Rework Solder Station Hot Air Gun

Product Description

Sepcifition:

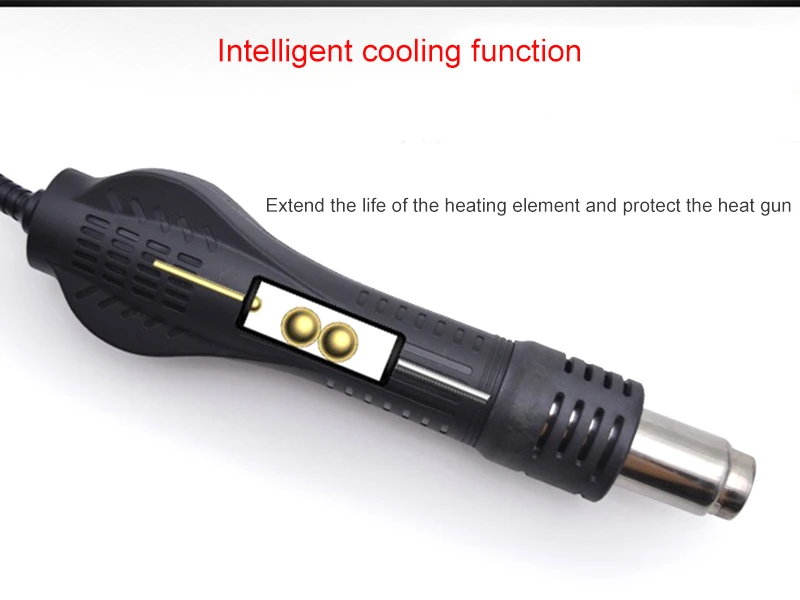

Hot Air GUN	Power :	700W
	Resistant :	<2Ω
	Handpiece Size :	<23mm
	Temp Stability :	± 1'C

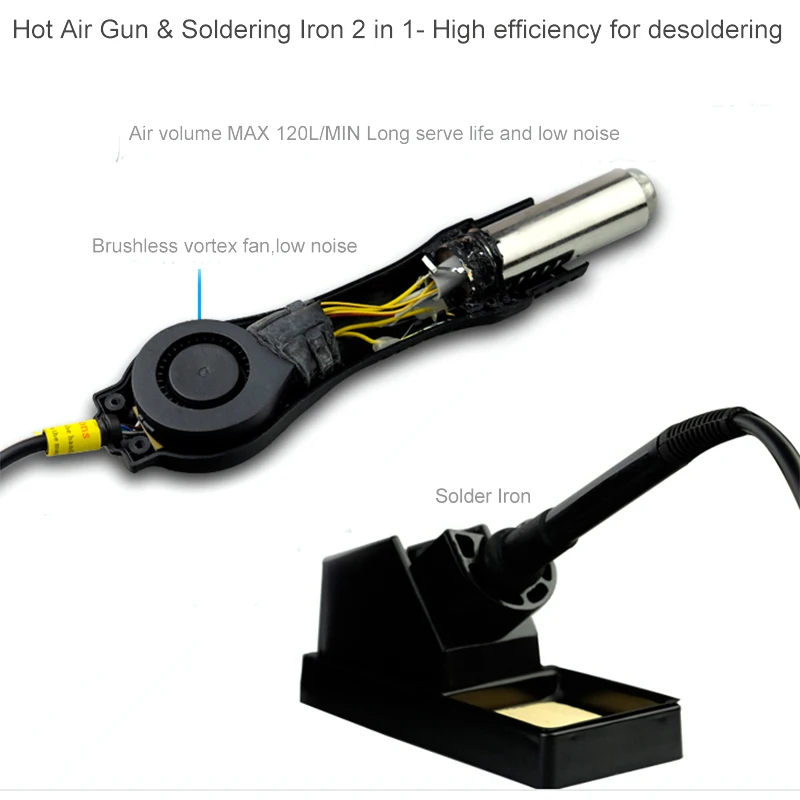

	Fan :	Brushless ball

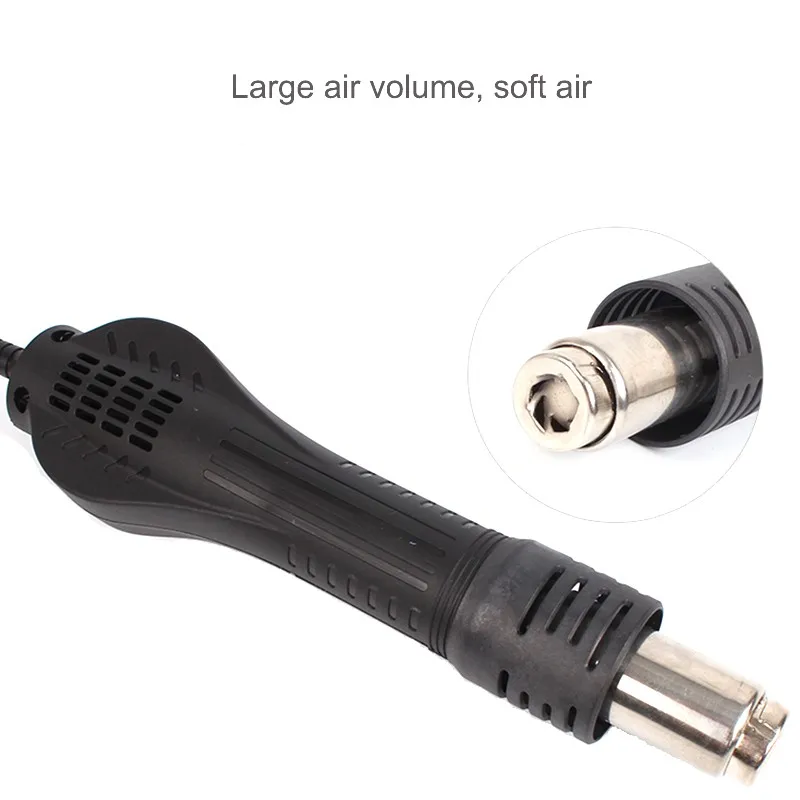

	Airflow :	120L/min(max)
	Noise :	<45dB
	Temp Control :	100~450'C
Hot Electric Soldering Iron	Power :	60W
	Resistant :	< 2Ω
	Temp Stability :	± 1'C
	Iron :	ESD design
	Heater Material :	Nichrome
	Temp Control :	200~480'C

Fetures:

1.Multifunctional Integrated Desoldering Maintenance System Combined.by Rework Station and Soldering Station.

2.The core of the whole machine controlled by the single and microwave chip to

make sure of temperature accuracy and stability of rework station and soldering station;
not simply combined by the two equipments.

3.Clear digital display of the current working temperature and conditions

4.Temperatures of rework station and soldering station continuously adjusted
by digital buttons to meet the needs in different workplaces.

5.The two stations can work separately.

6.Intuitive fault indication function.

7.LED digital display, anti-static handle;

Usage:

Unsoldering multiple components, such as SOIC ,CHIP, QFP, PLCC,
BGA and temperature-sensitive components(especially for flat cables and cable connectors) ;

Applicable for hot contraction, heating, depainting, defrosting. Preheating and rubber soldering, and so forth.

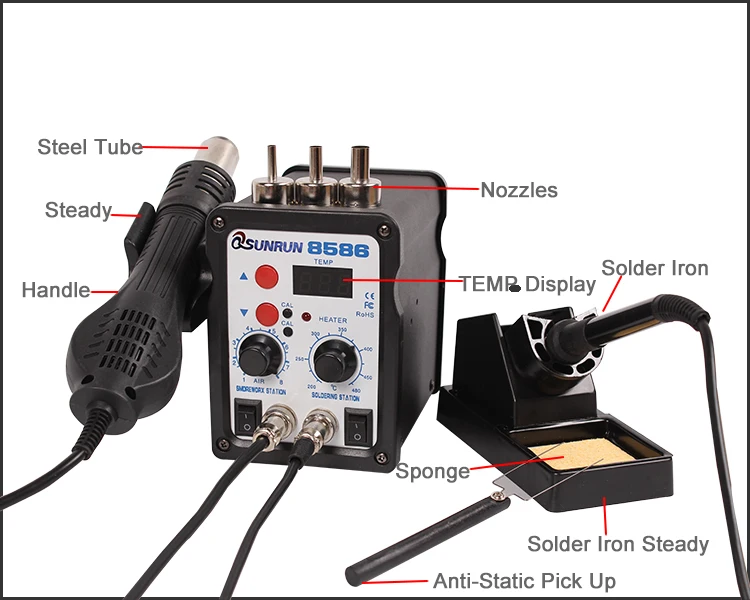

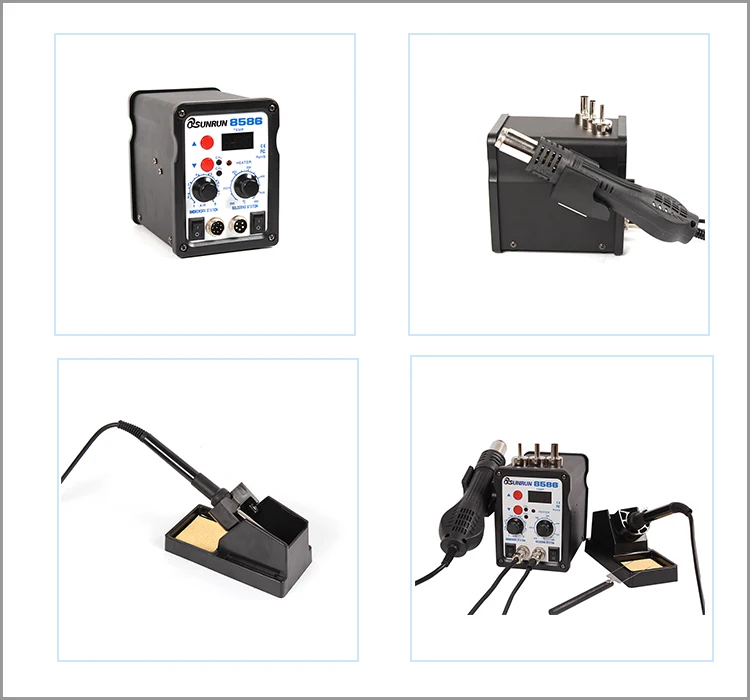

Detailed Images
