Automatic Chain Feeding Flexo Printing Slotting Corrugated Carton Box Making Packaging Machine corrugated machine manufacturer

Click here to contact

Product details

Type:	Flexo Printing Slotting Machine;	Max Printing size:	from 350x350mm to 500x500mm;
max. machine speed:	70-50 sheets/min;	Payment Terms:	L/C,T/T,Western Union;
Supply Ability:	15 Set/Sets per Month Chain Feeding Printing Slotting Machine;	printing plate thickness:	7mm;
Max Feeding size:	from 1200x2000mm to 1800x3000mm;	Max Slotting size:	100-130mm;
Port:	Shanghai;	Packaging Detail:	Seaworthy packing suitable for long distance sea transportation.;
Product name:	Chain Feeding Printing Slotting Machine;

Auto Chain Feeding Flexo Printing Slotting Corrugated Carton Making Machine corrugated machine manufacturer

⌈ Chain Feeding Printing Slotting Machine ⌋⌈ Flexo Printing Machine ⌋⌈ Semi-auto Flexo Printing Slotting Machine ⌋

Product Description

Product Information

Model	ZSYC-D 1200x2200	ZSYC-D 1400x2600	ZSYC-D 1400x2800	ZSYC-D 1600x2800	ZSYC-D 1800x3200
Max. feeding size (mm)	1200x2000	1400x2450	1400x2650	1600x2650	1800x3000
Min. feeding size (mm)	350x350	350x350	350x350	450x450	500x500
Max. printing size (mm)	1150x1800	1350x2200	1350x2400	1550x2400	1750x2800
Max. slotting size (mm)	7x300	7x350	7x350	7x400	7x450
Max. slotting clearance (mm)	100	110	110	120	130
Slotting blade thickness (mm)	7	7	7	7	7
Standard printing plate thickness (mm)	7	7	7	7	7
Max. machine speed (sheets/min)	70	65	65	60	50
Number of Colors for Printing	1 color, 2 colors, 3 colors, 4 colors, pls select the numbers of colors for printing at the time of inquiring

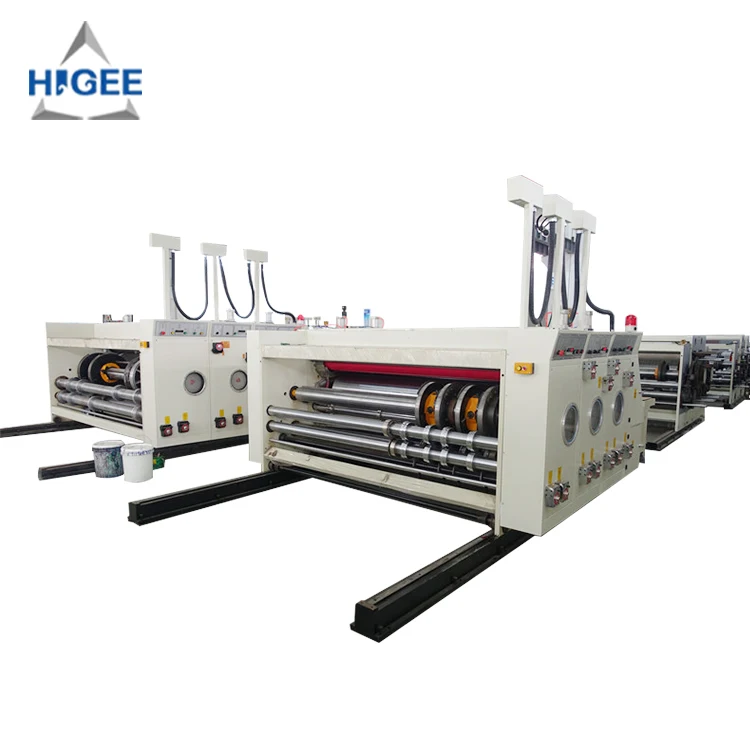

Product Display

The pictures are for reference only,more products please click HERE.

Detailed parameter

Technical Specification

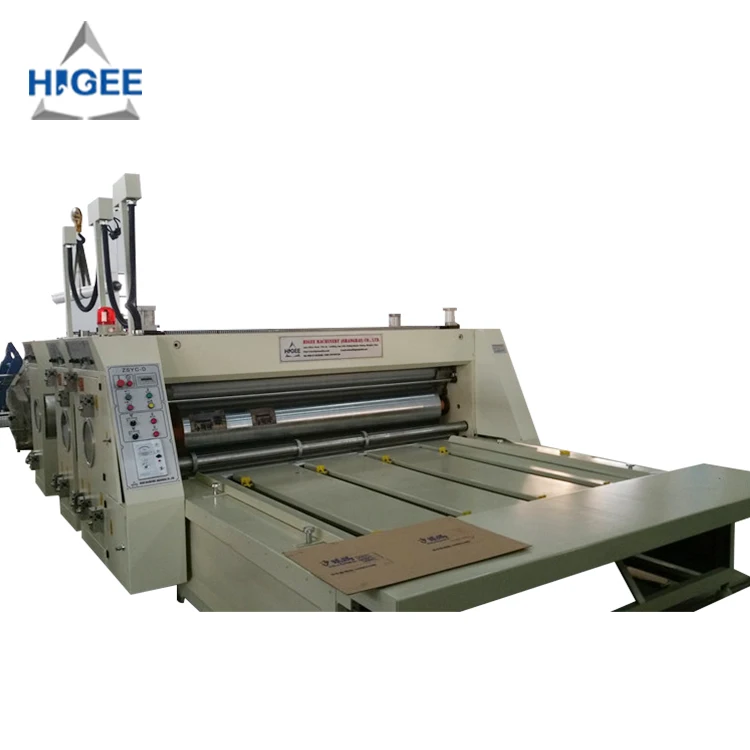

1. Chain feeding table
	Automatic chain cardboard feeding The props fixes position, ensures the cardboard feeding is accurate. Automatic counting.

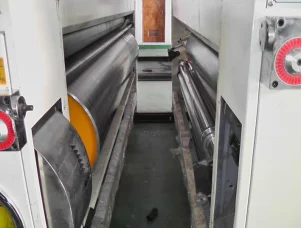

2. Printing Unit
Planetary transmission and electrical phasing, any 360-degree adjustment in both dynamic and static condition. The anilox roller will automatically disengage from the printing plate once machine stops. The upper ink roller with idling system that prevents ink from getting dried when machine is running.
Colors of 1 to 4 can be combined easily. The pneumatic self-priming ink supply circulatory system. With lighting for the operation in the evening. Printing roller equipped with a rapid hanging device for the printing plate Electric foot switch is used to control the front side or opposite side of printing plate during mounting and dismounting.

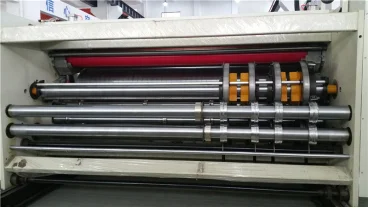

3. Slotting Unit
	360 degree electric adjustment of slotting phase. Linkage between the four slotting blades. High quality sawtooth-type slotting blades are used to ensure slotting smoothness. Gear wheel made of forging steel #45, with high frequency quenching.
	Drive gear with keyless connection, which ensures long-term printing precision. Dip-in lubrication ensures long life usage. Electric shifting and pneumatic locking is used on printing and slotting units
