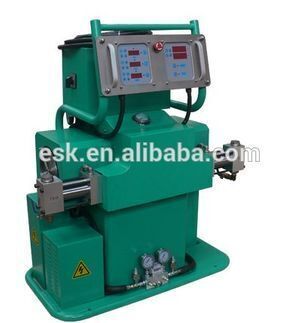

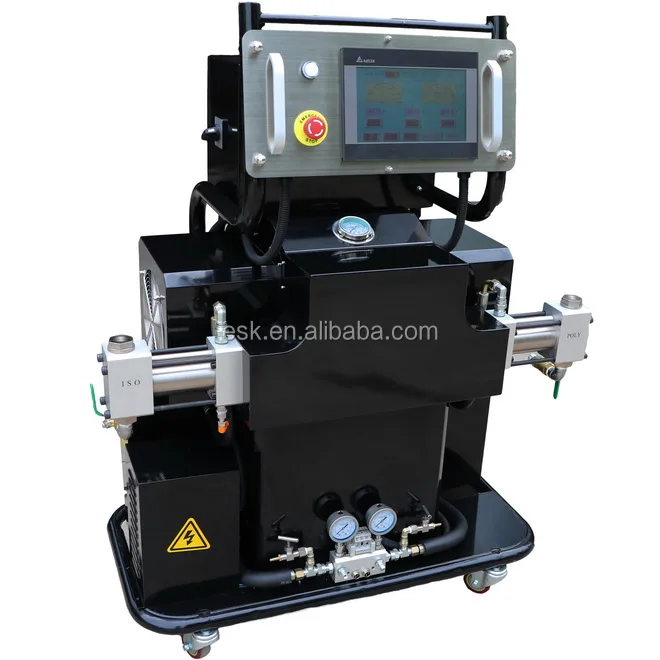

high pressure hydraulic polyurethane / polyurea spray foam insulation machine Fd-511

Click here to contact

Product details

Supply Ability:	10 Set/Sets per Month;	Voltage:	220v or 380v;
Condition:	New;	Processing Type:	Foaming Machine;
Packaging Detail:	polywood box;	After-sales Service Provided:	Engineers available to service machinery overseas;
Warranty:	18 months;	Place of Origin:	China (Mainland);
Application:	wall roof insulation;	Weight:	300kgs;
Operating:	digital control;	Special:	Hydraulic Eps Shape Molding Machine;
color:	green ,black,;	Material:	iso /poly 1:1;
capacity:	20kgs per minute;	air compressor capacity:	115psi 0.8Mpa 11CFM 0.4m3 per minute;
Product Type:	insulation foam;	Certification:	CE;
mix heat hose:	90 meters;	After-sales Service Provided:	Video technical support,Free spare parts,Online support;
Feature:	Both use polyurethane and polyurea;	Brand Name:	ESK;
Payment Terms:	L/C,T/T,Western Union;	Dimension(LWH):	1120mm900mm1500mm;
Power(W):	18kw;	Port:	Qingdao;

Product Description

Advantage

Whole machine controlled by MCU, running more steady;

Feeding and pressurization separate,reduce the failure rate;

Three-way independent heating, operating safety

Specifications PU foaming machine for:

foam insulation spraying machine,

wall roof insulation foam spraying machine.

External wall insulation

Heat insulation of wall, refrigeration storage,roof

Freeze house

Insulation for solar water tanks

Rigid polyurethane only

Item	FD-511 Polyurethane spray/injection foaming machine.
Terms of Payment	100% T/T in advance.
MOQ	1 set.
Delivery time	Within 20 days after receipt of your T/T payment.
Warranty	18 months.
Standard configuration	Proportion Fixed Mainframe 1 set
	Self-cleaning foaming gun 1 set ( spray/injection optioanl)
	Feeding pump 2 sets
	Heating hose 49.2 feet (15m)
	Connecting hose from feeding pump to machine 10 feet(3m)
	Connecting hose from heating hose to gun 5 feet(1.5m)
	Rings and Tools
Technical Data	The ratio of raw material 1:1(Fixed)
	The viscosity range of raw material 200-1000CPS (Under the operate temperature)
	Max working pressure 25 MPa (250 bar)
	Max fluid temperature 88°C (190°F)
	Max Output 20kg/min (44 lb/min)
	Heater power 6000W *2
	Heating hose power 1000W/15m
	Whole power 18000W
	Voltage 230/400V 3-ph ,50/60hz
	Operate temperature 0°C-70°C
	Clean mode Self-clean by air
	Max heating hose length 295 feet (90m)
	Pneumatic source 115psi 0.8Mpa 11CFM 0.4m3 per minute
	Machine size 1120mm900mm1500mm 600mm450mm960mm
	Gross weight 350KG. Net weight 300KG
