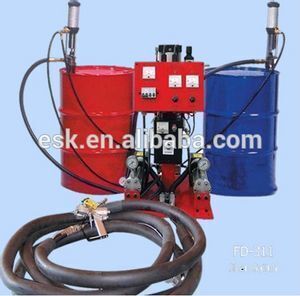

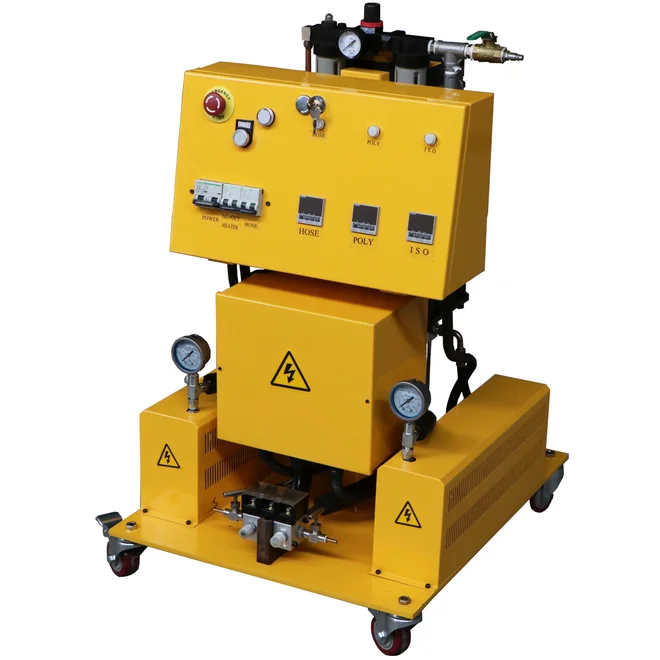

Closed cell polyurethane spray foam insulation machine FD-311A

Click here to contact

Product details

After-sales Service Provided:	Video technical support,Free spare parts,Field maintenance and repair service;	Payment Terms:	L/C,T/T;
After Warranty Service:	Online support,Spare parts;	Core Components:	Pump,PLC,Pressure vessel;
Machinery Test Report:	Provided;	Marketing Type:	Hot Product 2019;
Supply Ability:	50 Set/Sets per Month;	Max Output:	10kg /min;
Warranty:	1.5 years;	color:	yellow;
Pressure:	17 Mpa;	Weight (KG):	180;

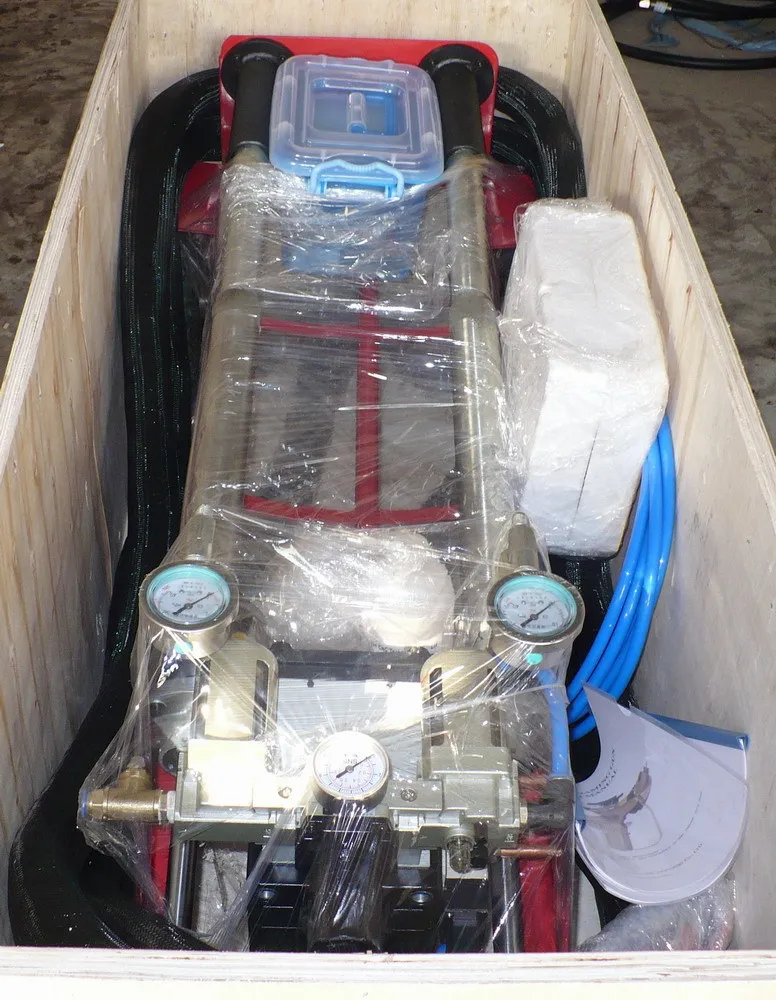

Machine Type:	pneumatic,Pneumatic;	Packaging Detail:	polywood box;
Port:	Qingdao;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Retail,Construction works ;
Ratio:	1:1;	Package Preview:	;
Certification:	ce;	Brand Name:	ESK;
Power (kW):	7.5;	Place of Origin:	China;
Video outgoing-inspection:	Provided;	Processing Type:	Foaming Machine,Foaming Machine;
Product Type:	PU foam insulation machine,thermal insulation foam;	Warranty of core components:	1.5 years;
Key Selling Points:	Competitive Price;	Showroom Location:	Canada,United States,Philippines,Romania,Ukraine,Australia;
Local Service Location:	None;	Air source:	0.5-0.8Mpa 0.9m3/min;
Dimension(LWH):	800x700x1150mm;	Raw material:	Polyols A + isocyanate B;
Voltage:	220/380;	Condition:	New;
Application:	Spray Wall roof;

Product Description

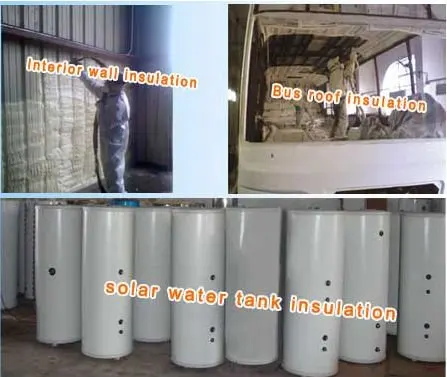

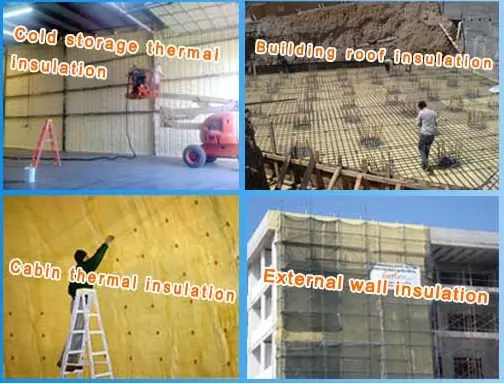

PU foaming machine used for:

Technical data

Item	FD-311A Polyurethane foaming machine.
Price term	FOB QINGDAO USD
Terms of Payment	100% T/T in advance.
MOQ	1 set.
Delivery time	Within 20 days after receipt of your T/T payment.
Warranty	18 months.
Standard configuration	Proportion Fixed Mainframe 1 set

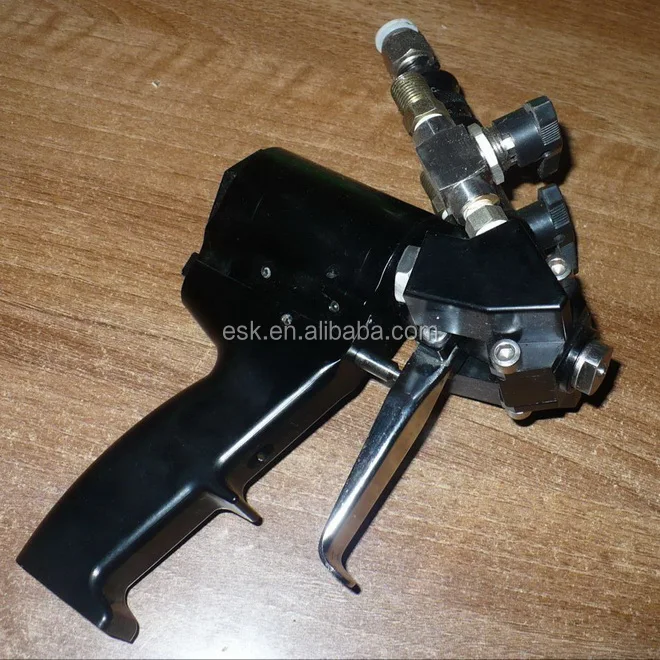

	Self-cleaning foaming gun 1 set ( Spray or injection )

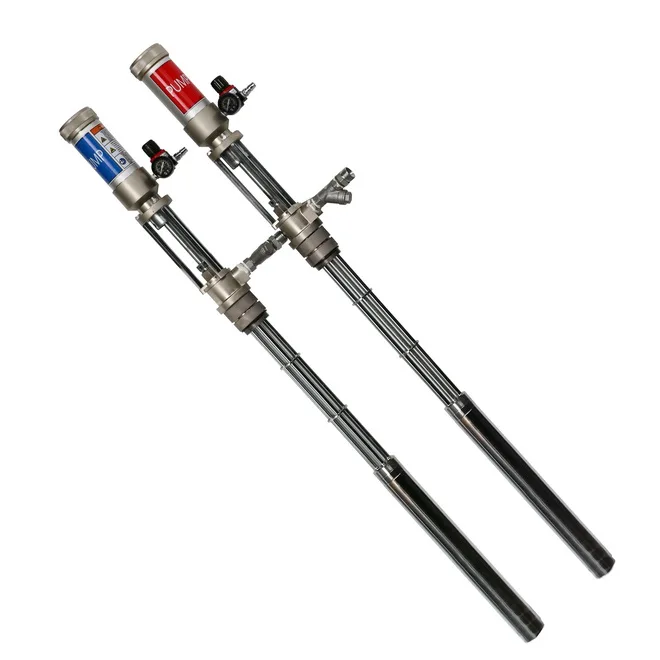

	Feeding pump 2 sets

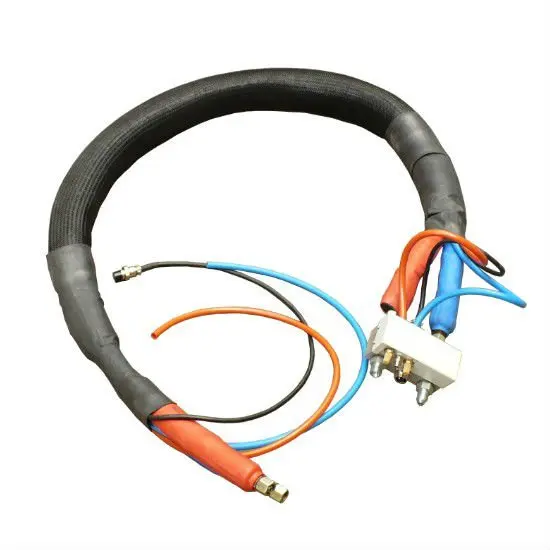

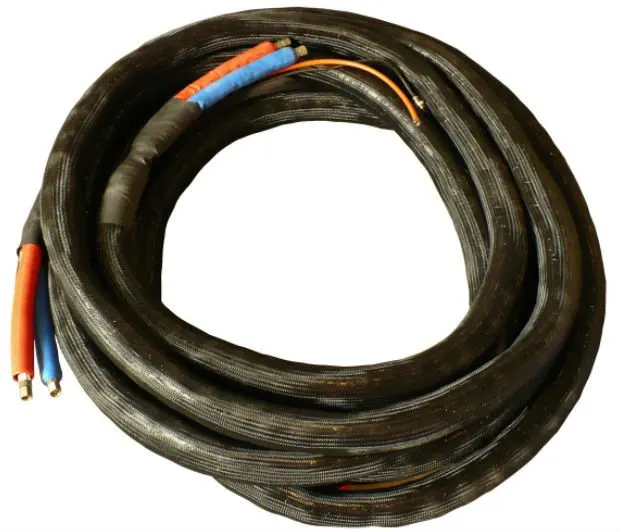

	Heating hose 50 feet (15m)

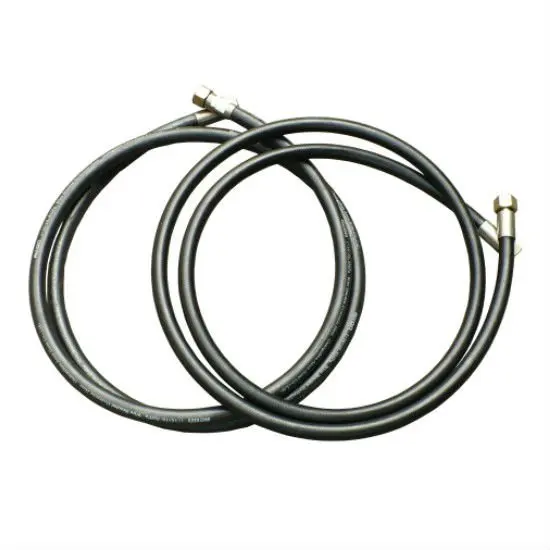

	Connecting hose from feeding pump to machine 10 feet(3m)
	Connecting hose from heating hose to gun 5 feet(1.5m)

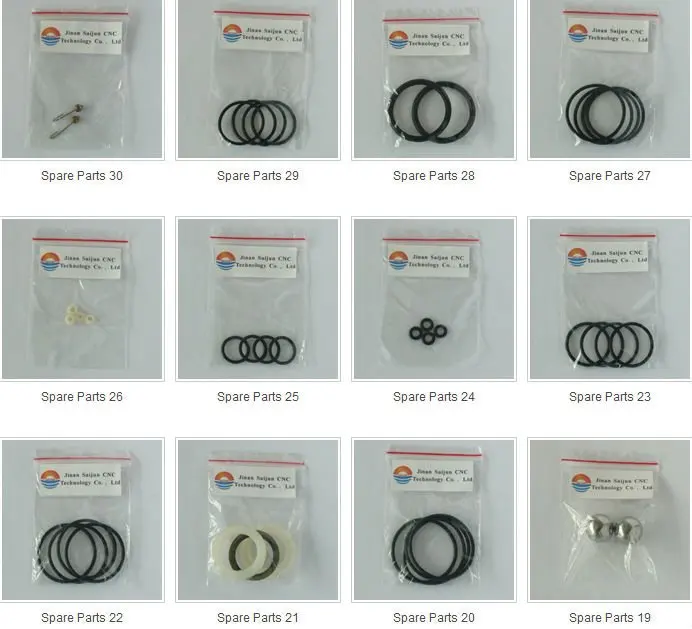

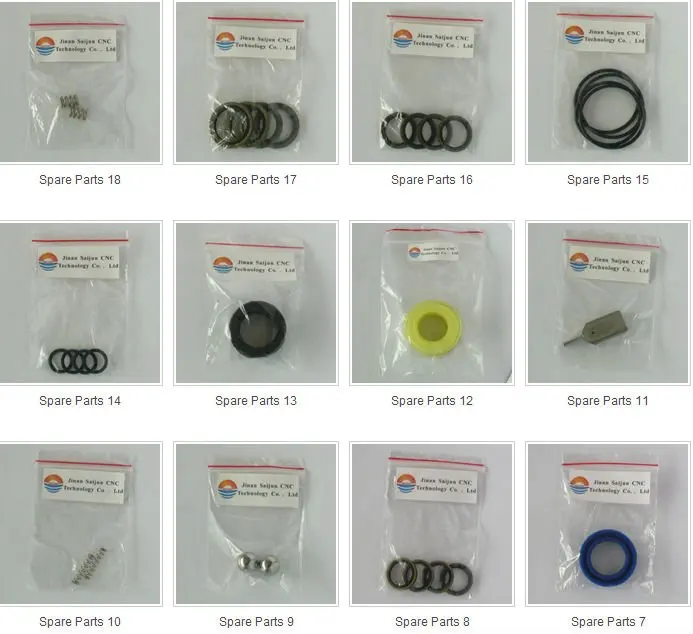

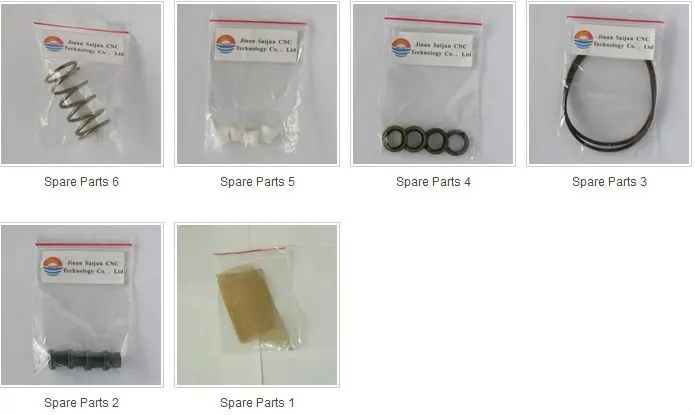

	Rings and Tools
Technical Data	The ratio of raw material 1:1(Fixed)
	The viscosity range of raw material 200-1000CPS (Under the operate temperature)
	Max working pressure 13.8 MPa (138 bar)
	Max fluid temperature 85°C (185°F)
	Max output 8kg/min (17.6 lb/min)
	Air motor diameter 5 inch
	Heater power 3000W each one
	Heating hose power 1000W/15m
	Whole power 7500W
	Voltage 230V 1-ph/400V 3-ph /50/60Hz
	Operate temperature 0°C-70°C
	Clean mode Self-clean by air
	Max heating hose length 147.6 feet (45m)
	Pneumatic source 1Mpa (10 bar, 145 psi)

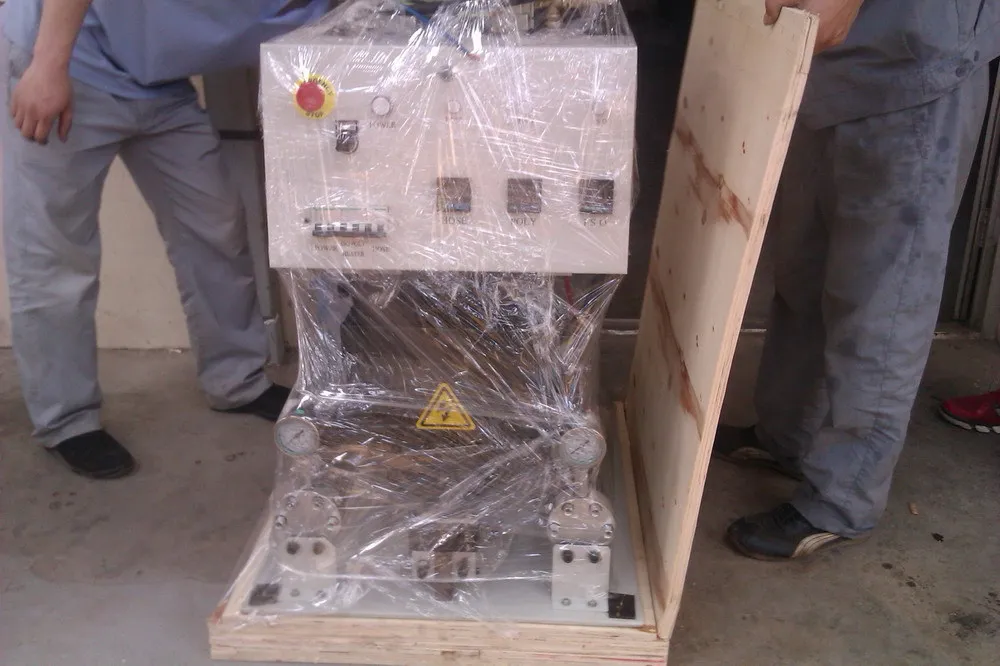

	Packing size 800mm700mm1150mm 1450mm400mm550mm
	Gross weight 220KG
