2018 Hot Selling pcb relay 5pin 6pin JQX-15F T90 5V 6V 9V 12V 15V 18V 24V 48V 70V 110V 20a 30a pcb relay

Supplier: Asia Dragon Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Tracy Li
Price: $0.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

Rated Coil Power:	DC 0.9W;	Port:	Shanghai / Ningbo;
color:	Black;	Usage:	PCB;
Contact from:	1Z 1H 1D;	Model Number:	JQX-15F/T90;
Payment Terms:	L/C,D/P,T/T,Western Union;	Place of Origin:	Zhejiang China (Mainland);
terminal type:	PCB Mounting;	Size:	Miniature;
Contact Load:	Low Power;	contact material:	AgCdO AgSnO2;
Protect Feature:	Sealed;	Packaging Detail:	cartonPacking;
Product Keywords:	pcb relay 12v 30a t90;	certification:	ROHS,TUV,TS16949;
lead time:	15days;	Theory:	Electromagnetic Relay;
name:	relay series;	Brand Name:	Asiaon;
Supply Ability:	500000 Piece/Pieces per Month;

2018 Hot Selling pcb relay 12v 30a t90

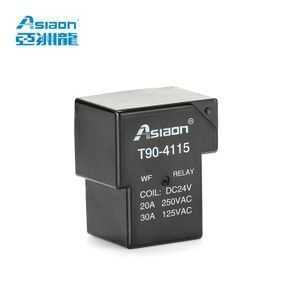

PCB Relay: JQX-15F (T90)
Coil voltage 5,6,9,12,18,24,48VDC
Contact Specification
Contact form	1H	1D	1Z
Contact resistance	≤100mΩ(1A 6VDC)
Contact material	AgCdO
Contact capacity	7200VA/560W\3600VA/280W\4800VA/560W\2400VA/280W
Technical Specification
Insulation resistance	≥100MΩ(500VDC)
Dielectric strength	BCC ≥2500VAC 1min
Dielectric strength	BOC ≥1500VAC 1min
Operate / Release time	≤15ms/10ms
Terminal type	PCB mounting
Coil Specification
Rated coil power	DC:0.9W
Coil Data
Nominal voltage	Operate voltage	Release voltage	Coil resistance
VDC	VDC	VDC	Ω±10%
5	3.75	0.5	30
6	4.5	0.6	45
9	6.75	0.9	100
12	9	1.2	160
15	11.25	1.5	260
18	13.5	1.8	385
24	18	2.4	660
48	36	4.8	2560
70	52.5	7	5500
110	82.5	11	13450

Outline dimension,Mounting holes(Bottom view),Wiring diagram(Bottom view)
