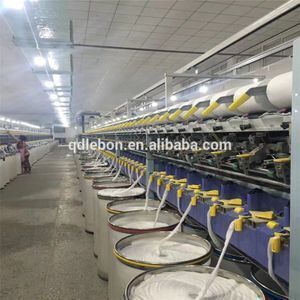

open end spinning machinery used for spinning cotton yarn

Supplier: Qingdao Lebon Industry Co., Ltd.
Region: Shandong, China
Contact: Ms Sophia Ding
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Shandong China (Mainland);	Power(W):	18kw;
Color:	white and blue;	Scope of application:	spinning mill;
Dimension(LWH):	13900*4035mm;	Packaging Detail:	export standard package;
Brand Name:	lebon;	Production Capacity:	100%;
Application:	spinning yarn;	Warranty:	1 Year;
Density for yarn(Tex):	200-1250;	Drafting multiple:	4.2-12;
Max mechanical speed(r/min):	1800;	Supply Ability:	300 Set/Sets per Month;
Weight:	12000kg;	After-sales Service Provided:	Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Product name:	open end spinning machine/rotor spinning machine;	Automatic:	Yes;
Spindle number:	240;	Certification:	ISO9001 CE;
Port:	Qingdao port;	Usage:	cotton,wool,man-made fiber;
Condition:	New;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Drafting system:	Three roll double-short apron drafting system;	Type:	Spinning Production Line;
Control type:	Computerized control;	Spinning Method:	Rotor Spinning;

Product Description

ROTOR SPINNING PRODUCTION LINE PROCESSING:

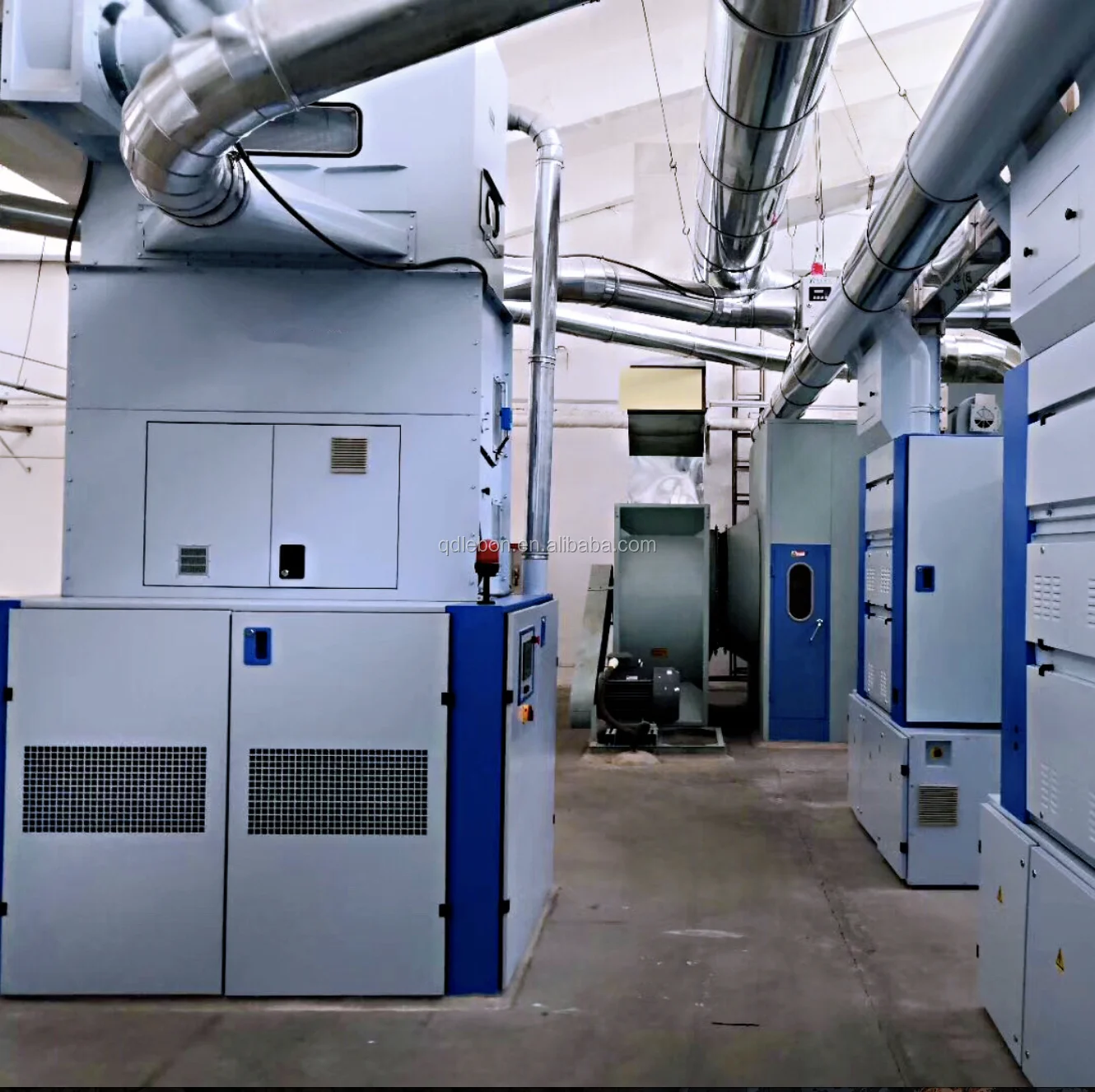

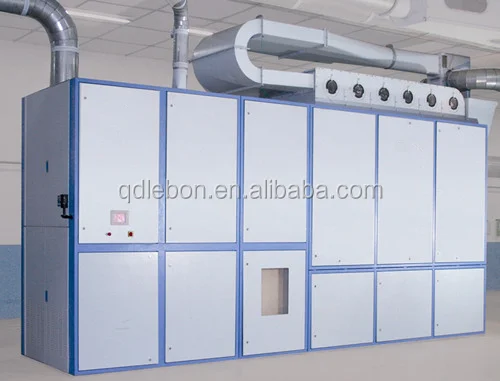

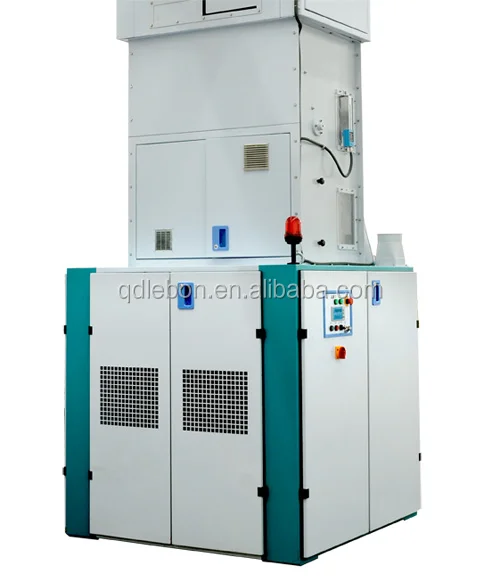

cotton/wool/chemical fiber→cotton plucker→blower→fiber opening and blending machine→multi mixer→fine opener→blower→chute feeder→carding machine→drawing frame→rotor spinning machine.

Application:

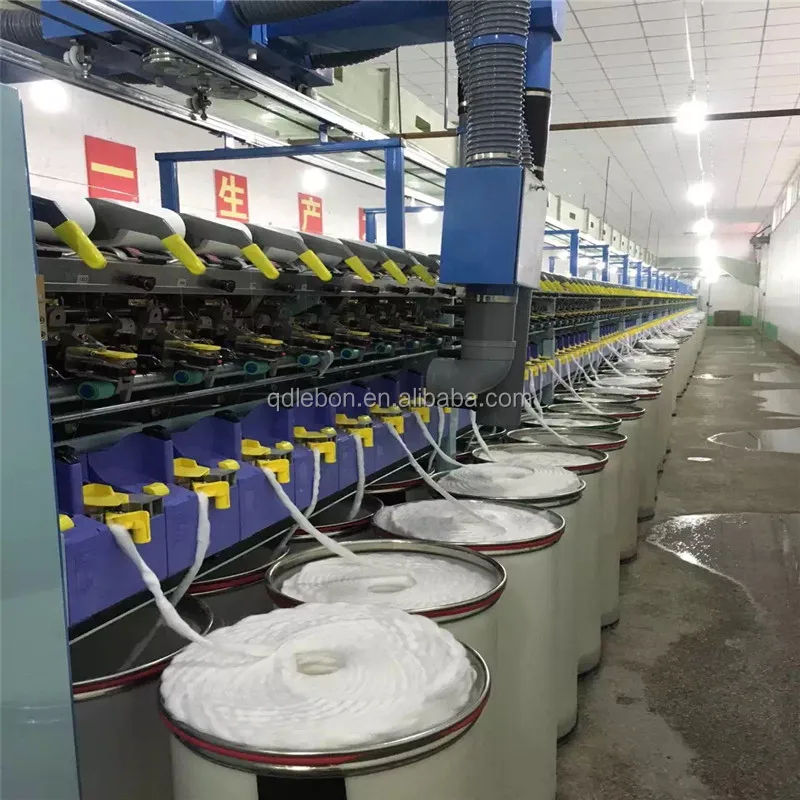

The Rotor Spinning Machines manufactured are high speed, efficient and self-exhausting open-end spinning machine with impurities discharge mechanism. They are suitable for spinning cotton, wool, ramie, silk, polyester, acrylic, viscose, vinylon, polypropylene, polyamide and their blends.

Main specifications:

Main Features:
1. They can spin the yarn 10-68 Nm (100-14.7tex) directly from two passages drawn sliver 0.2-0.45 Nm (5000-2200tex).
2. For the requirement of wineling and furthure processing, the machine is equipped with a third hand and the bunch device.
3. For saving labor, the machine is equipped with a full-package conveyer.
4. The machine is pre-assembled and can be delivered section by section.
5. The machine is controlled by programmable controller (pc).
6. The machine is equipped with monitoring and display device for processing parameter.
7. The machine is fitted with the tension compensator device and yarn starage device, it can take up the taper package.
8. The machine adopts inverter to control motor speed and adjust spinning parameters

Parameters:

Model RS30

Guage 200mm

No. of Unit 20-500 spindle

Rotor Speed 30000~95000rev/min

Rotor Dia. 43,54,66mm

Combing Roller Speed 5200,6200,6700,7200,7700,8200rev/min

Drafting Ratio 35~230.5

Take-up Speed 0.2~0.45Nm(5000~2200Tex)

Can Dimension 20~116.7m/min

Tube dimension 250*900,300*900,350*900,400*900mm

Package Dimension Bigger ending*62*170mm(3o30’
Cylinder Tube),
