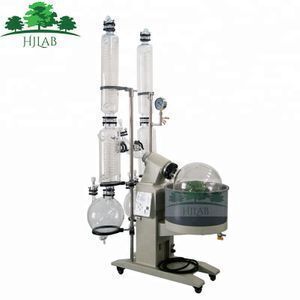

HOT SALE 10L to 50L Rotary Evaporator from China

Supplier: Shanghai Hjlab Instruments Co., Ltd.
Region: Shanghai, China
Contact: Mr Evan Zhang
Price: $2980.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	Shanghai HJLab;	Dimension(LWH):	14006002300 mm;
Certification:	CE ISO;	Single package size:	98X53X117 cm;
Rotating Speed:	0 ~ 120 RPM;	Collecting Flask:	5~20L;
Delivery Detail:	0 days after payment;	Power Source:	Electric;
Power(W):	8000;	Motor:	DC Brushless;
Condition:	New;	Package Type:	Wooden Package;
Condenser:	2-Stage+Triple Coil;	Single gross weight:	110 KG;
Sealing:	PTFE & Viton;	Package Preview:	https://sc02.alicdn.com/kf/HTB1TvFNB_lYBeNjSszcq6zwhFXaw.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB1ZHtvB49YBuNjy0Ffq6xIsVXad.jpg_640x640.jpg;
Rotation Flask:	10~50L;	Heating Power:	4500 W;
Voltage:	110V/220V;	After-sales Service Provided:	Engineers available to service machinery overseas;
Place of Origin:	Shanghai China (Mainland);	Selling Units:	Single item;
Vacuum Degree:	0.098 MPa;	Power Supply:	220V/50Hz;
Weight:	100 KG;	Process:	Vacuum Distillation;

Product Description

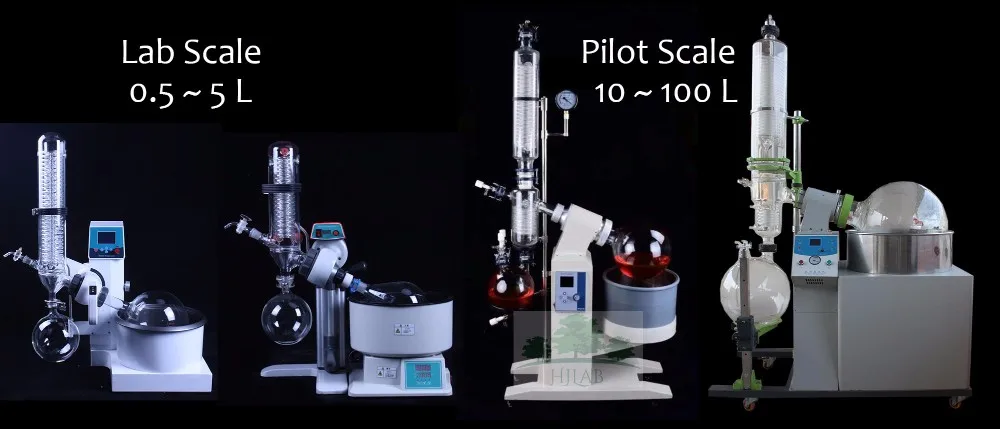

Industrial Rotary Evaporators (10 ~ 100 Liter)

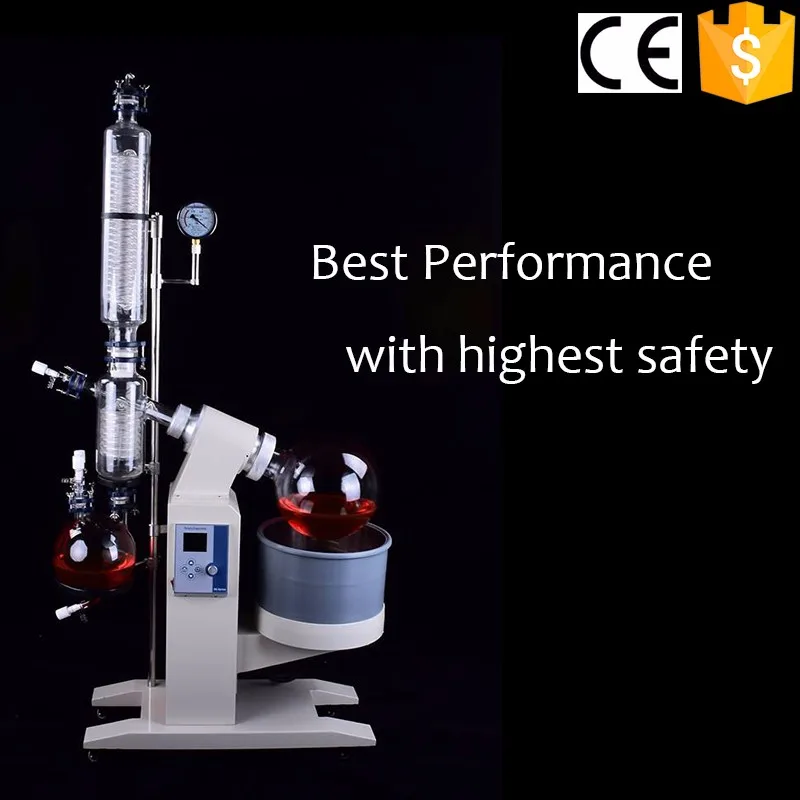

Best performance at highest safety

CE standard and China Factory Price

Shanghai HJLab offers highest performance, efficiency and safety. Intuitive operation and handling for reliable and highly productive industrial distillation.

_Benefits

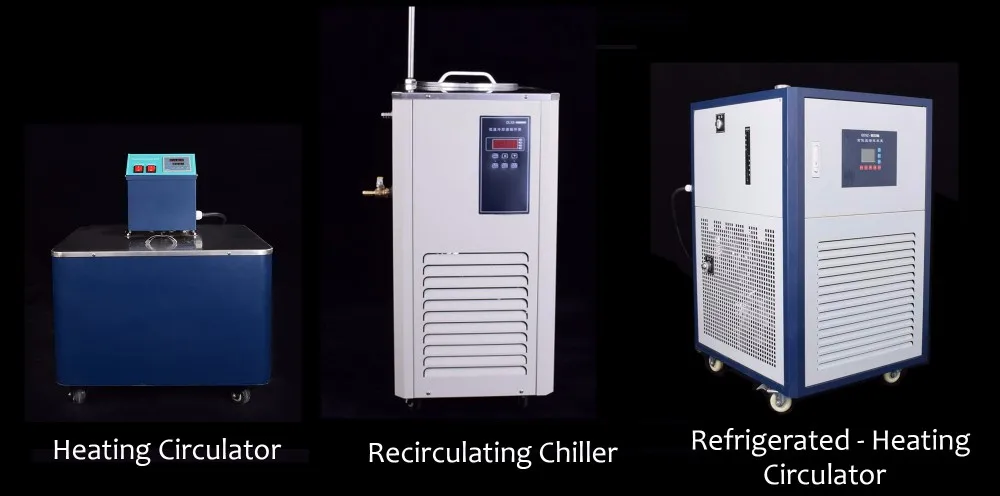

High performing	• Fast distillation due to high heating capacity • Large batches in a flask of 10, 20, 30, 50 and 100 liters • We offer the following related product for completing your portfolio 1) Recirculating Chiller 2) Water Circulating Vacuum Pump 3) Diaphragm Pump 4) Vacuum Controller
Easy and safe	• Intuitive operation of the Rotary Evaporator and its vacuum controller(optional) • Excellent handling by large and easy readable display • Easy flask handling due to the unique flask coupling • Safe handling and spring loaded valves protect the glass
Durable	• Long life time due to exclusive use of corrosion-free stainless steel • Low maintenance by using high chemical resistant materials • Trouble-free operation thanks to robust industrial valves

Technical Data
Electrical
	Voltage	110V, 220V, 380V
	Frequency	50 - 60 Hz
	Max. power consumption	4500 - 8000 W
Standards
	CE marking	Yes
Safety
	Safety coated glassware	Yes, accept the evaporating flask
	Over temperature protection of the bath	Automatic power-off if temperature is 10°C above set value
	Rotation	Soft start
	At any error	Bath lowering, heater off, rotation off Type of error showed on display Reset with main switch
Display
	Bath temperature	Yes (1 °C steps)
	Vapor temperature	Yes (1 °C steps)
	Set rotation speed	Yes (1 rpm steps)
	Set bath temperature	Yes (1 °C steps)
	Actual vacuum	Optional Vacuum Controller
	Set vacuum	Optional Vacuum Controller
Cooling
	Condenser	2-Stages, Triple-Coils
	Recirculating Chiller	Optional

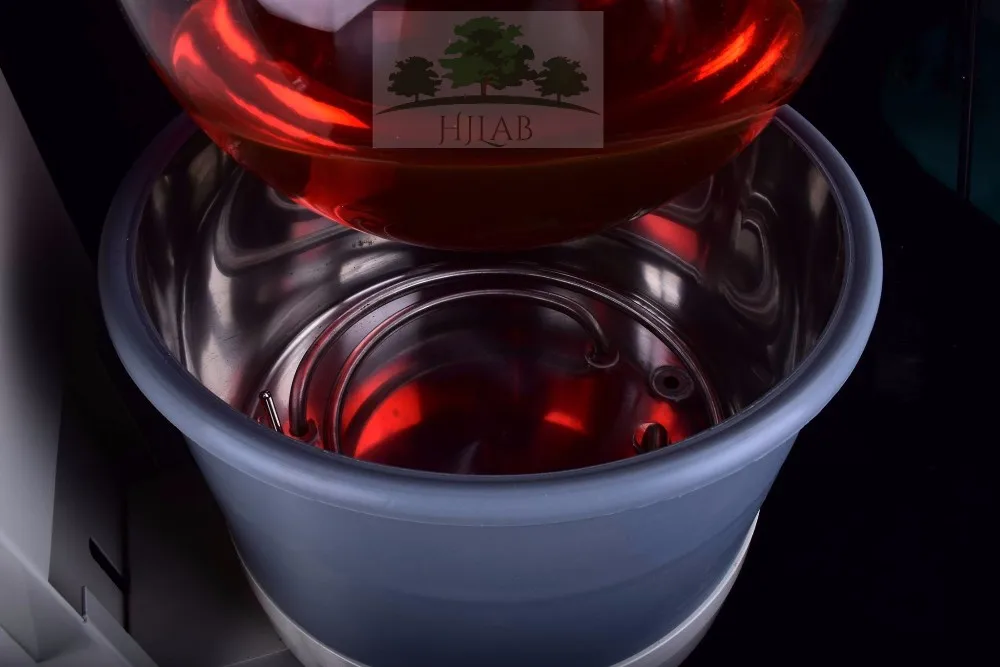

Heating bath
	Medium	Water or Oil
	Temperature range	Ambient to 200°C
	Heating capacity	4500 - 8000 W
	Accuracy	+/- 1 °C
Rotation
	Motor	DC brushless motor
	Controlling	Frequency converter
	Speed	5 - 120 rpm
	Accuracy	+/- 1 rpm at 5 rpm to +/- 5 rpm at 120 rpm
Material
	Housing	Stainless steel (SS 304)
	Gear head	Aluminum cast
	Painting	Powder coated with
	Bath pan	Stainless steel (SS 304)
	Heating element	Stainless steel (SS 304)
	Glass	Borosilicate 3.3
	Leakage of the complete system	Fluorine rubber and Teflon bidirectional combined sealing <1 mbar/min
Sensor
	Vapor temperature	PT100
	Bath temperature	PT100
	Speed sensor	Hall-sensor
	Vacuum	Optional vacuum controller

For other solvents the following maximum general figures apply(50-liter evaporating flask):
Water	Methanol	Ethanol	Toluene	Ethylacetate	Hexane	Trichlorethane
9 L/h	14 L/h	19 L/h	36 L/h	38 L/h	55 L/h	40 L/h

Optional: Increase condensation rate up to 100%

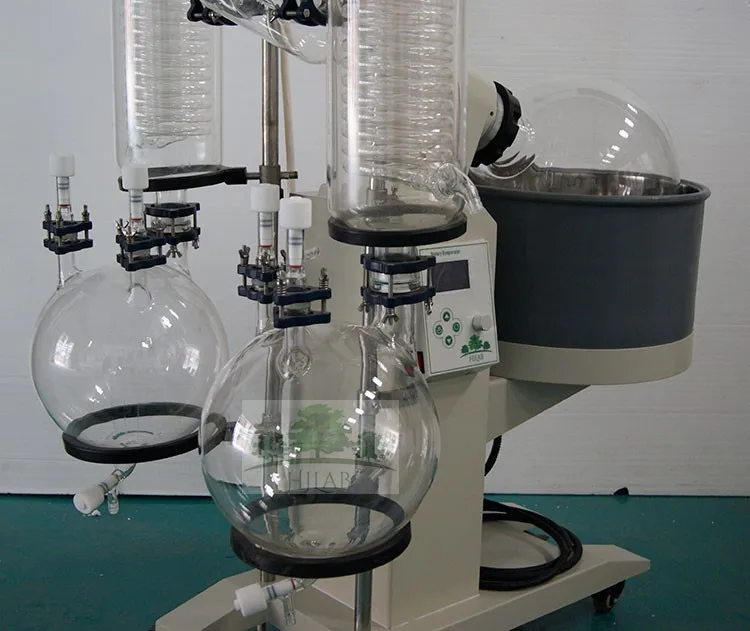

Dual Main Condensers

Dual Auxiliary Condensers

Dual Receiving Flasks

Product Detail

Shanghai HJLab Glass Quality Criteria
High-quality glass	Inert industrial glass(borosilicate 3.3, ISO3585), resistant to chemicals, little dulling from contact with acids and alkalis.
Generous wall thickness	Uniform thickness, also at the base, hence fewer breakages.
Resistant to temperature changes of 200°C	Heat-resistant, suitable also for oil baths, no thermal bursting
Exactly centred flanged screw couplings	No loss of vacuum, no untrue running of evaporating flasks, no splashing in the heating bath
Closed surface	No sticking of substances, no entrainment, easy cleaning

Pre-Sales Service

* Inquiry and consulting support.

* Quick response with detailed reasonable quotation

* Confirm price, quantity, shipment, delivery time and payment terms.

* Sample testing support.

* View our Factory with video meeting.

After-Sales Service

* 1 year complimentary warranty

* Training how to install the machine, training how to use the machine.

* Free lifetime maintenance service and 24-hours technical support

* Engineers available to service machinery overseas.

Warranty & Services

1. Warranty period: one year from the purchase day.
2. During the warranty period, use the product in accordance with the printed instructions but encountered a problem and then we will provide free maintenance. If the product didn't work and after the confirmation and then we'll send a new one for free.
3. Engineers available to service machinery overseas
4. Beyond the warranty period, the product problems also can be solved by our company, but charge component cost and maintenance cost properly.
5. We welcome your call our hotline or email us for consulting, maintenance and other services.
6. OEM and ODM available
7. "Good quality, Reasonable price, Punctual delivery, Sincere service" is our company's commitment to you

Packing & Delivery

1. Wooden packing

2. Fumigation certification, certification of original

3. The goods can be shipped by sea, air or train, small goods or spare parts will be shipped by express.

4. Also you can specify your own forwarder.

Our Company

Shanghai HJLab Instruments is one professional Chinese manufacturer of lab and pilot apparatus applied in biochemical, pharmaceutical, fine chemical and research field.

Main products are Rotary Evaporators, Glass Rectors and complementary Vacuum Pumps, Heating/Cooling Circulators, etc.

With nearly 10 years development, HJLab accumulated rich customer groups and huge amount of application experiences; Brand has won wide market recognition on reliable technology, low repair rate, sincere service and strong customization ability.

We work during out of our regular working hours (9AM to 6PM Beijing Time).

"Good quality, Reasonable price, Punctual delivery, Sincere service" is our company's commitment to you.

So Please feel free to give us a call or drop us a message, and you will be our next story of success.

Tel:	+86-21-34662527
Mobile/WhatsApp:	+86-135-2454-6911
Email:	evan.zhang@hujiayq.com
Skype:	sales@hujiayq.com
Website:	http://sh-lab-equipment.en.alibaba.com
Address:	Rm. 1023, Building 4, Lane 1388, XingXian Road, JiaDing Dist. Shanghai China(Mainland)
