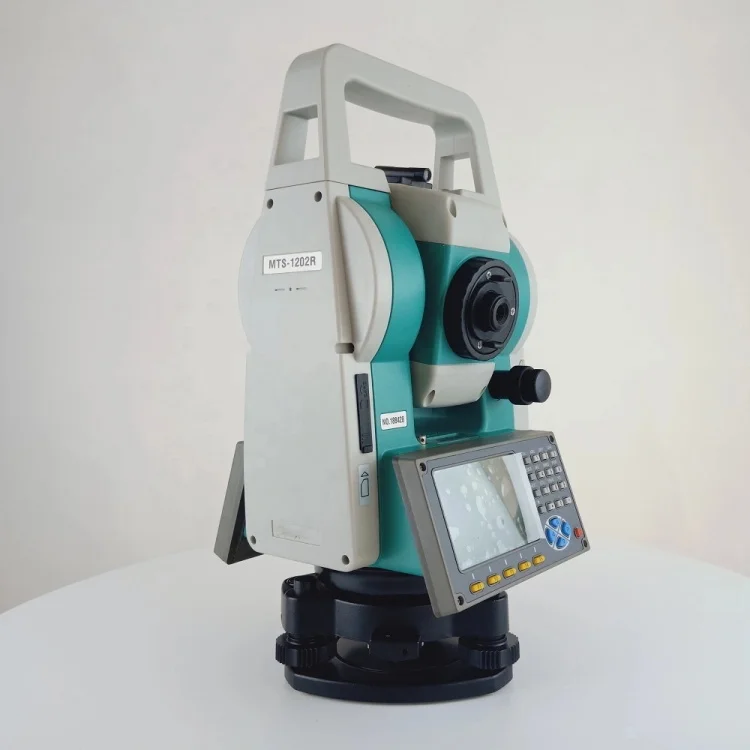

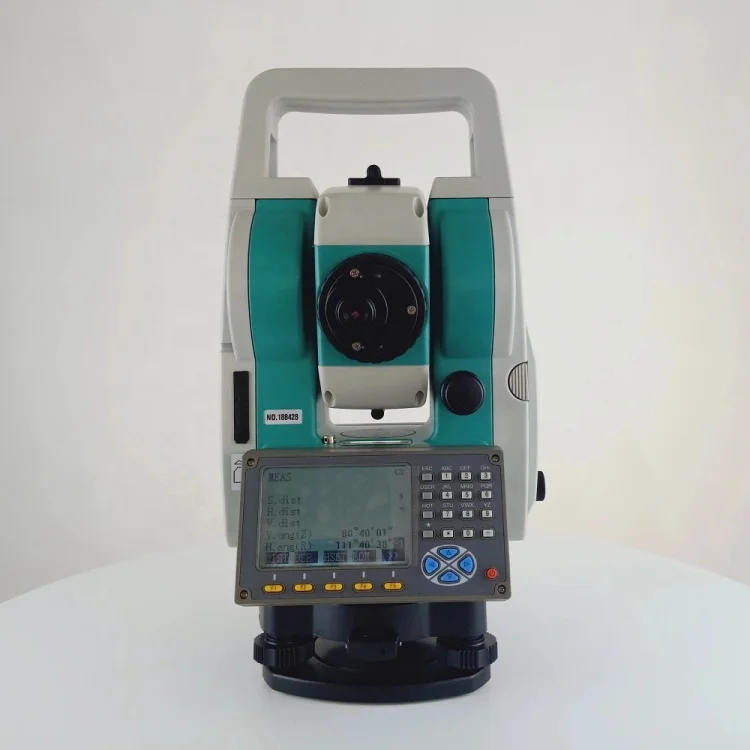

Low price total station without prism for wholesales

Supplier: Changzhou Futian Photoelectric Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr. Richard Peng
Price: $643.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Jiangsu China (Mainland);	Port:	Shanghai/Qingdao;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Model Number:	MTS-1202R;
Brand Name:	JFT;

Product Description

Product Application

Electronic Total Station (Electronic Total Station) is a high-tech measuring instrument integrating light, machine and electricity. It is a surveying and mapping instrument system integrating horizontal Angle, vertical Angle, distance (oblique distance, horizontal distance) and height difference measurement. Compared with the optical theodolite, the electronic theodolite replaces the optical dial with the photoelectric scanning dial, and replaces the artificial optical micrometer reading with the automatic recording and display reading, so as to simplify the Angle measurement operation and avoid the error of reading. Because one time installs the instrument to be able to complete this station to measure the work completely, therefore is called the total station instrument. It is widely used in the field of precision engineering measurement or deformation monitoring such as overground large buildings and underground tunnel construction.

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
Magnification		30X
Lmage		Erect
Shortest sighting distance		1.0m
Field of view		1°30''(26m/1000m)
Distance measurement
Single prism		1000m/1800m
Three prism		1600m/2600m
Accuracy		±(3mm+2ppmD)
Angle measurement Accuracy		2''
Minimum reading		1'', 5'', 10''
Measuring time
Accuracy measurement mode		2 seconds
Track mode		0.8 seconds
Compensator Type: Single/Dual axis liquid tilt sensor range		±3''
Accuracy		±1''
Electronic reference
Battery type		Rechargeable
Battery volume		3000mAh,7.2v (Li-Batter)
Battery life		8 hours(distance measurement, 20 hours( Angle measurement) Memory≥16000 dots
Plummet		Optical/Laser
Data output		Asynchronous serial in RS-232/USB
Weight		6.8kg
Working temperature		-20°~ +45°

Main Features

1) Laser beam focused in non-prism mode for 500m distance.

2) Strong software to help to achieve the measurement.

3)RS232 or USB ports for option.

4)Good laser to protect the eyes of the surveyor.

5)Large LED display.
