Hydraulic Impact Torque Wrench

Supplier: Jiangsu Canete Machinery Manufacturing Co., Ltd.
Region: Jiangsu, China
Contact: Mr China KIET
Price: $1500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	L/C,T/T,Credit Card;	Material:	Steel;
Spare parts available:	Yes;	Product name:	Hydraulic Impact Torque Wrench;

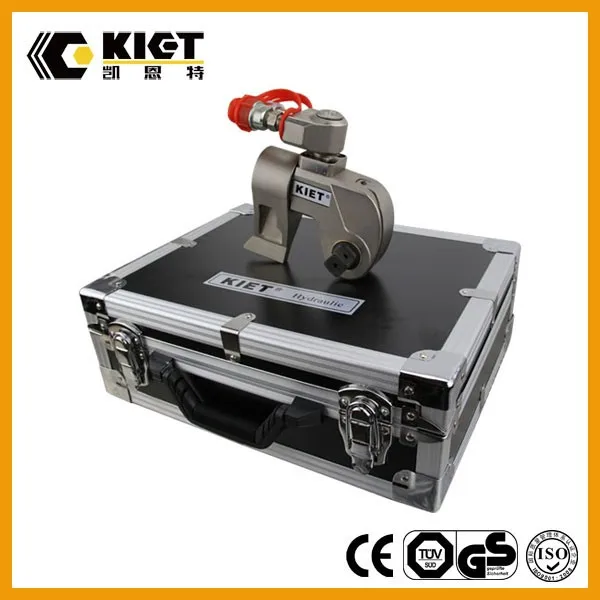

Packaging Detail:	Aluminum Alloy Lightweight Box for Hydraulic Impact Torque Wrench;	Weight range:	2.7-31 kg;
Certification:	CE, ISO9001:2008;	Supply Ability:	3000 Set/Sets per Month;
Place of Origin:	Jiangsu China (Mainland);	Square drive range:	3/4-2 1/2 inch;
Socket size:	15-255mm;	Port:	Shanghai;
Accessories available:	hydraulic hose, hydraulic pump;	OEM:	Yes;
Torque range:	1898-34079Nm;

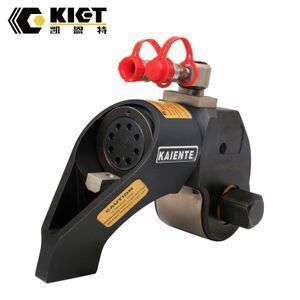

Hydraulic Impact Torque Wrench

Product Description

Features:

*Rigid steel design guarantees durability, reliability and safety.

*360 degree swivel manifod with screw lock couplers.

*Fast operation due to the large nut rotation per wrench cycle (35 degree) and rapid returen stroke.

*Constant torque output provides high accuracy( ±3%)across the full stroke.

Parameter

Model	Socket Range		Square Drive (In)	Max Nm under 700bar	Socket size
Model	mm	inch	Square Drive (In)	Max Nm under 700bar	mm	inch
KET-S1500	15-50	5/8-1 7/8	3/4"	1898	14-24	2001/2/1
KET-S3000	20-100	7/8-3 7/8	1	4339	17-32	5/8-1 1/4
KET-S6000	41-155	1 5/8-6 1/4	1 1/2"	8144	17-32	5/8-1 1/4
KET-S11000	41-155	1 5/8-6 1/4	1 1/2"	14914	30-46	1 1/4-1 3/4
KET-S25000	60-255	2 3/8-10	2 1/2"	34079	36-85	1 1/2 -2 1/4

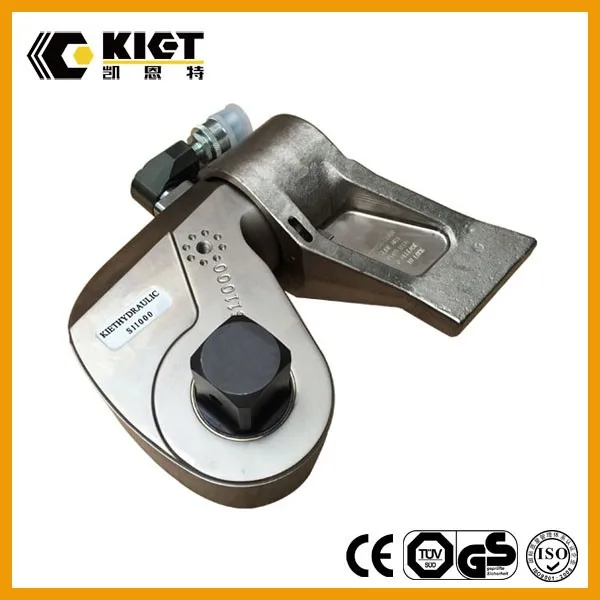

Product Show

Socket(Nose radius) for your choice(15-255mm):

Company Information

Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in designing and manufacturing hydraulic cylinders (capacity covers from 10-1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.

Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

We are a manufacturer in hydraulic tools, such as:

• Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;

• Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);

• Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton);

• Hydraulic pumps, manual and electric type (max up to 3000bar);

• Integrated hydraulic lifting system solutions (4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting);

• Hydraulic nut and couplings. (M50-Tr1000)

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

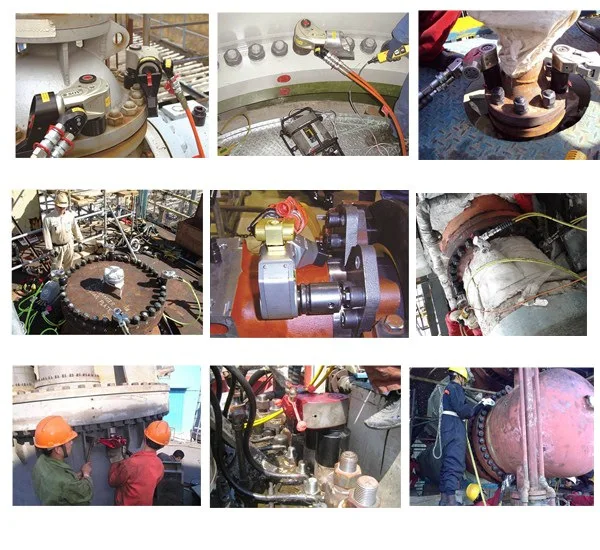

Factory Show
