Double Sockets Hydraulic Rail Bolt Impact Wrench Railway

Product details
Product Description

Hydraulic Impact Wrench

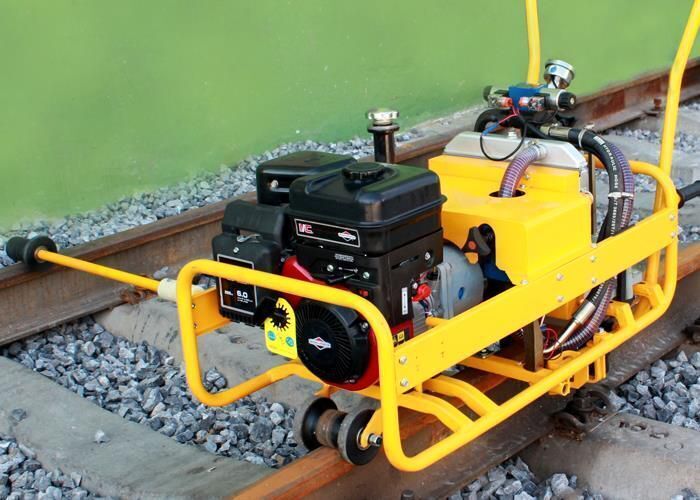

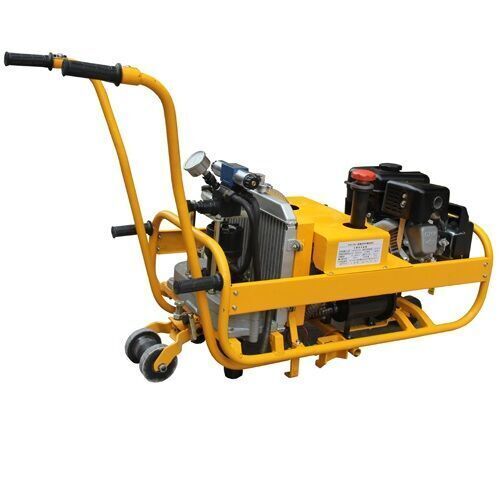

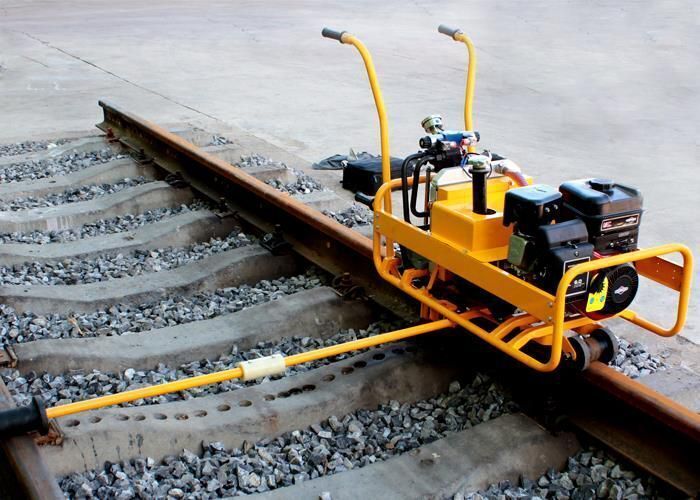

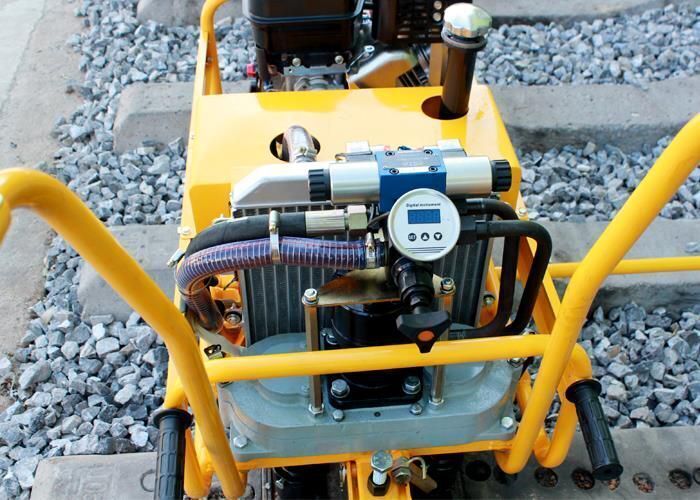

YLB-700 type of hydraulic bolt wrench is suitable for railway sleeper unscrew the bolt and nut and tighten.The machine adopts imported Honda gasoline engine as power, USES the hydraulic system to drive and precise control, is a new and old railway line, especially the high-speed railway is very suitable for construction machinery maintenance assignments.


Specification

Model Number

YLB-700

Material

Stainless Steel

Supporting power

YD5200

The spindle speed

≥720 r/min

The center distance of the sleeve

234±0.5 mm

Max. torsional torque

760N.m

Number of sleeve

2

Gasoline engine speed

7000r/min

Rated power of the gasoline engine

2.2KW

Dimension

900*500 *1025 (mm)

Weight

90kg


Packing & Delivery

Wooden box , export standard

Company Profile

Xiangyang Lianjie Mechanical&Electrical Co.,Ltd.



Xiangyang Lianjie Mechanical&Electrical Co.,Ltd. Established in 2013,specialized in designing and manufacturing of the geometry measurement systems for the railway,including digital track gauges,mechanical gauge,rail wear gauge,turnout measurement gauges ect. Our products are China Railway Construction Corporation Limited (CRCC) approved.The products are used by CRCC for all their rail operation. Besides, our products are also being used by major rail operators in America, Australia, Europe and the ASEAN countries.The bitterness of poor quality remains long after the sweetness of low price is forgotten. Our mission is to manufacture high quality rail measurement instruments at a competitive price with reliable services to our clients in order to help them to maintain & operate a safe railway system.
