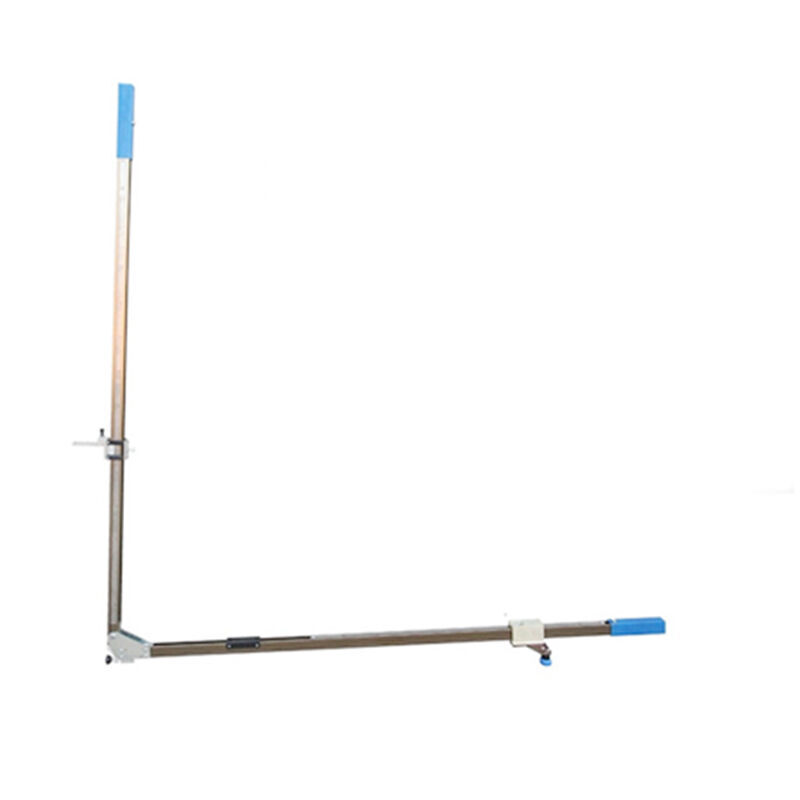

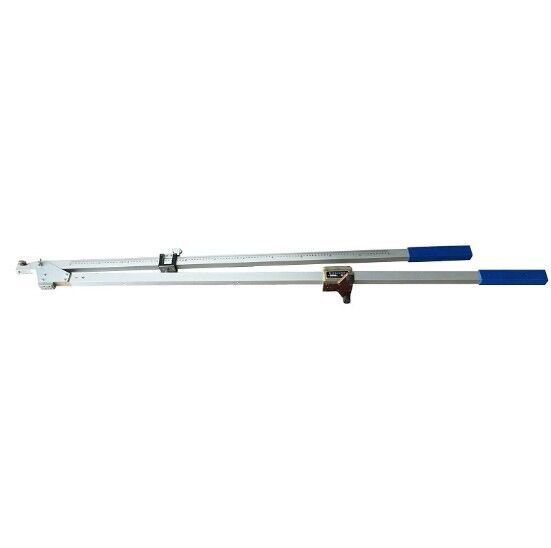

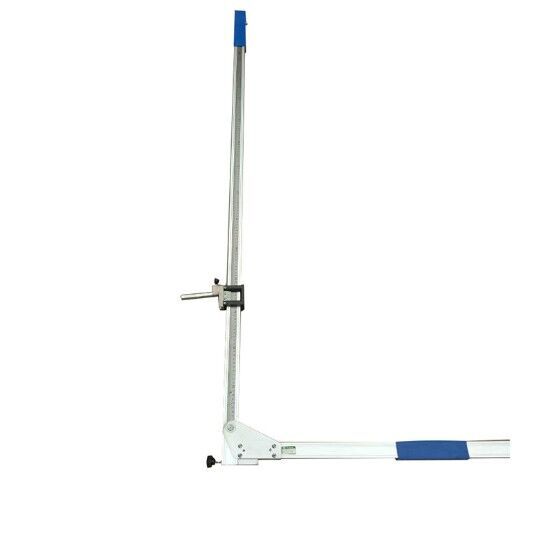

Collapsible Platform Clearance Gauge to Measure Track and Platform Distance

Product details
Product Description

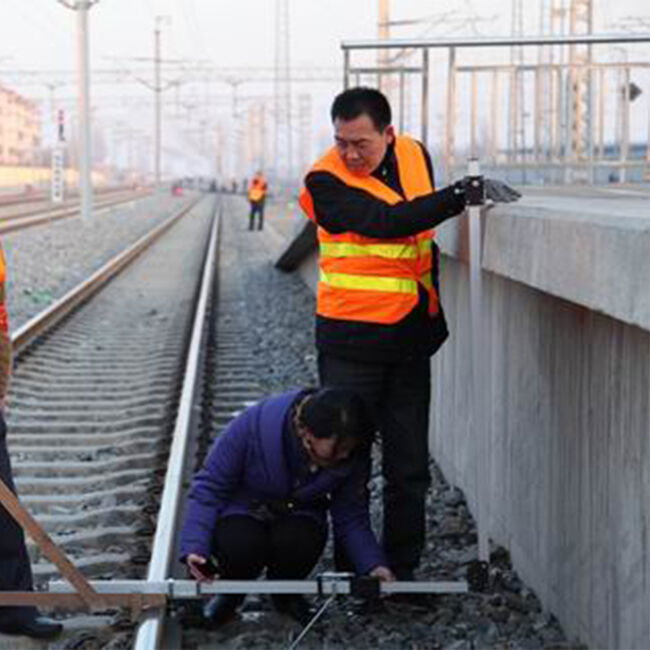

Platform measuring ruler is to measure the distance between the railway track center and the platform flank and the height between the rail surface and platform plane

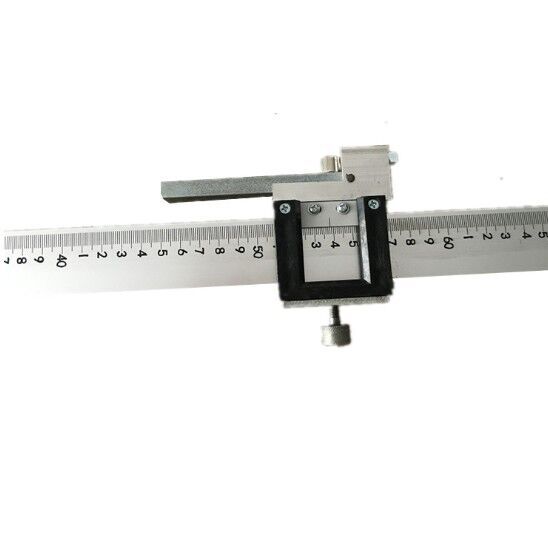

Method of Application : 1. First , put the vertical ruler in a vertical position , tighten the screw ,and place the insulating plate on the track surface, make the two measuring heads fit closely to inner side of the track .Then open the vertical ruler studdle to absorb the magnet and adjusting screw,Loosen the frame to tighten the screw , pull the horizontal ruler to make the left side of platform supporting seat fit to the edge of the platform , Make the platform studdle fit platform plane ; slide the vertical ruler till the horizontal bubble is in the center.Tighten the frame and the screw . 2. The marking value of the magnifying glass on the red line is the distance from the track center to the edge of the platform, the value of the vertical ruler “0”is the distance from track surface to platform plane . 3. After the measurement completed ,put platform studdle into the supporting seat , loosen the screw to absorb the vertical ruler with the magnet .
Product Paramenters
Model
LJ-TC-I
Horizontal measurement range
1500-2200mm (Distance between track center and platform plane )
Height measurement range
200-1300mm
Accuracy
±1mm


Company Profile

Xiangyang Lianjie Mechanical&Electrical Co.,Ltd.
Xiangyang Lianjie Mechanical&Electrical Co.,Ltd. Established in 2013,specialized in designing and manufacturing of the geometry measurement systems for the railway,including digital track gauges,mechanical gauge,rail wear gauge,turnout measurement gauges ect. Our products are China Railway Construction Corporation Limited (CRCC) approved.The products are used by CRCC for all their rail operation. Besides, our products are also being used by major rail operators in America, Australia, Europe and the ASEAN countries.The bitterness of poor quality remains long after the sweetness of low price is forgotten. Our mission is to manufacture high quality rail measurement instruments at a competitive price with reliable services to our clients in order to help them to maintain & operate a safe railway system.
