Digital Rail Opening and Offset Gauge for Turnout Measurement

Supplier: Xiangyang Lianjie Mechanical&Electrical Co., Ltd
Region: Hubei, China
Contact: Mr Jodie Yuan
Price: $800.00 / 1 - 5 pieces
$550.00 / 6 - 10 pieces
$400.00 / >=11 pieces
Min. Order: 1 piece

Click here to contact

Product details

Product Description

Rail Opening Gauge

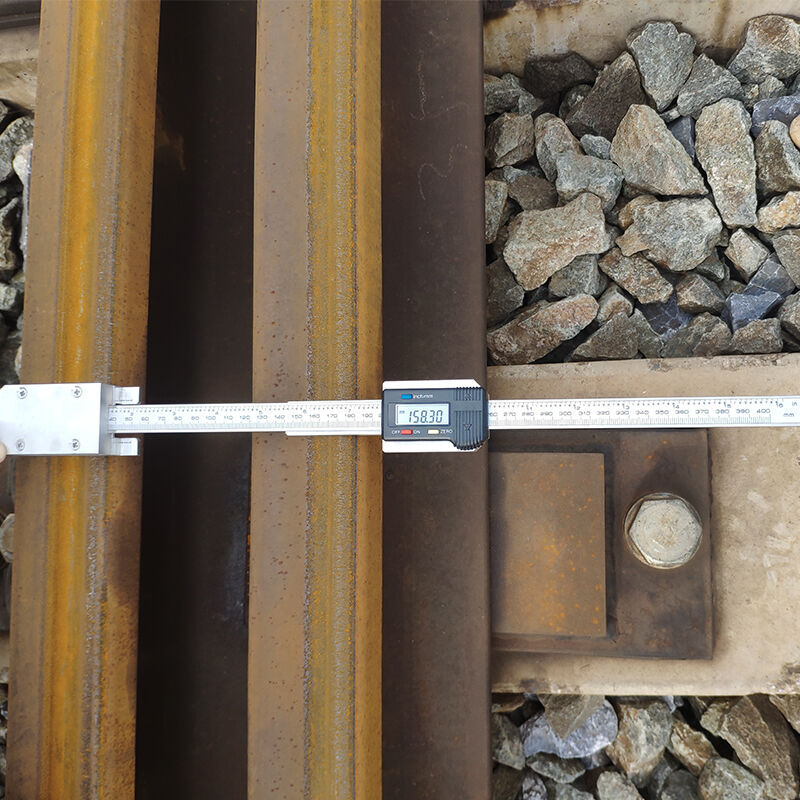

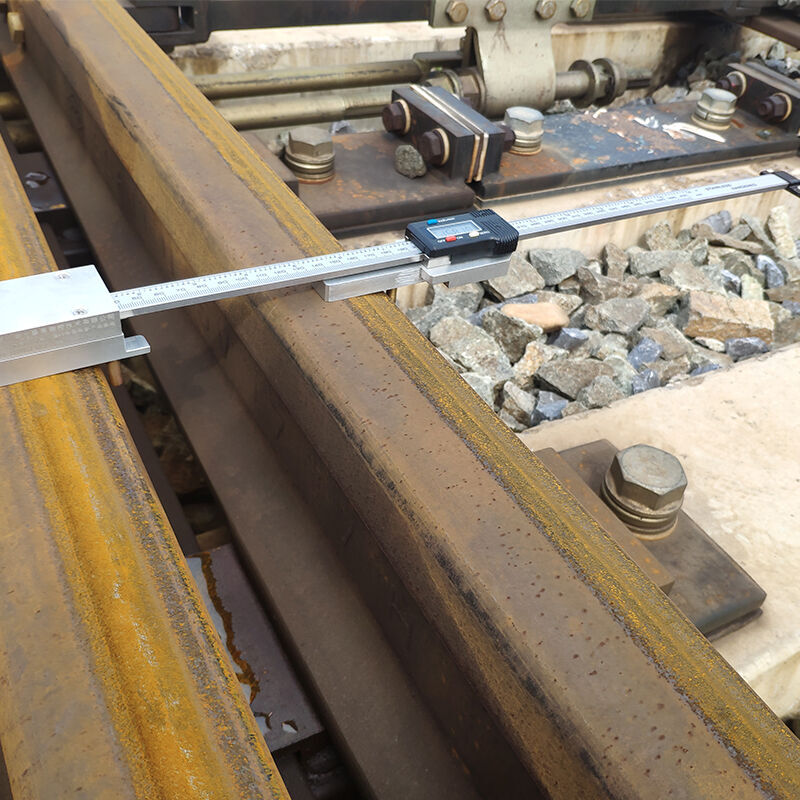

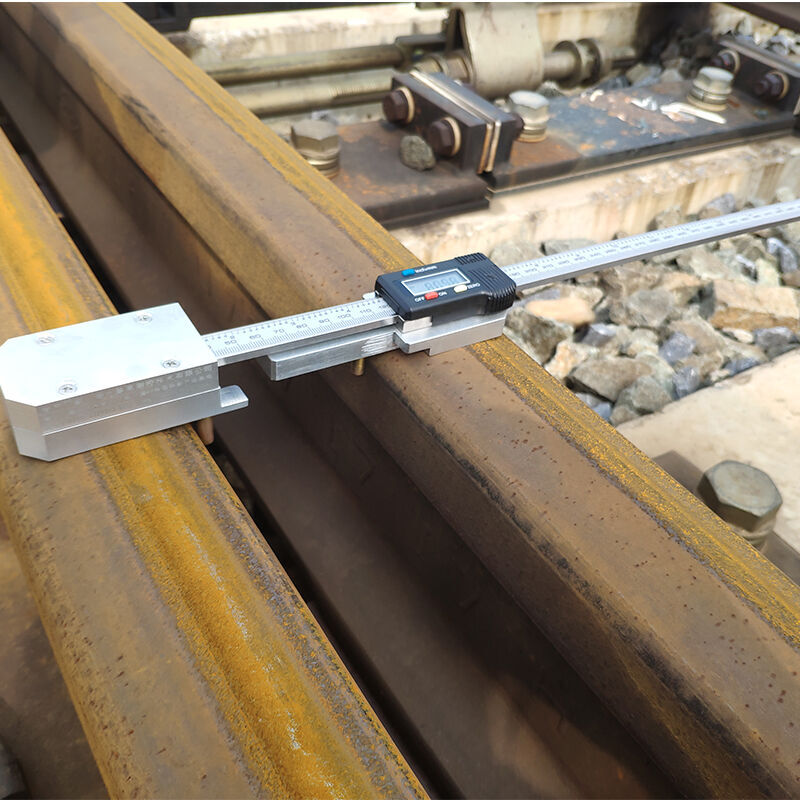

JG-KC01 Rail opening gauge is mainly used for measuring turnout opening and offset gauge. It can be used for electrical maintenance, overhaul, engineering survey and other related department line operation.The instrument has fast measuring speed and easy to use. It can be used in day or night.

Advantages

● 1. Stable performance and anti-electromagnetic interference: applicable to electrified,non-electrified, automatic block or other block areas.

●2. Fast measurement speed: when in use, the measurement data can be displayed without additional manual adjustment after the measurement point is stuck.

●3. High measurement precision: ±0.25mm.

●4. Wide temperature range :-30℃ ~ +55℃ service temperature range, which can meet the requirements of the product in most parts of world.

●5. Quick calibration: When in use, you only need to calibrate the opening gauge according to the following calibration operation instructions. After the calibration is completed, it can be put into use.

Specification

Model	JG-KC01
Material	Stainless Steel
Opening measure range	0-350mm
Offset measure range	0-350mm
Accuracy	±0.25mm
Working temperature	-30℃~+55℃
Length Size	56cm

Packing & Delivery

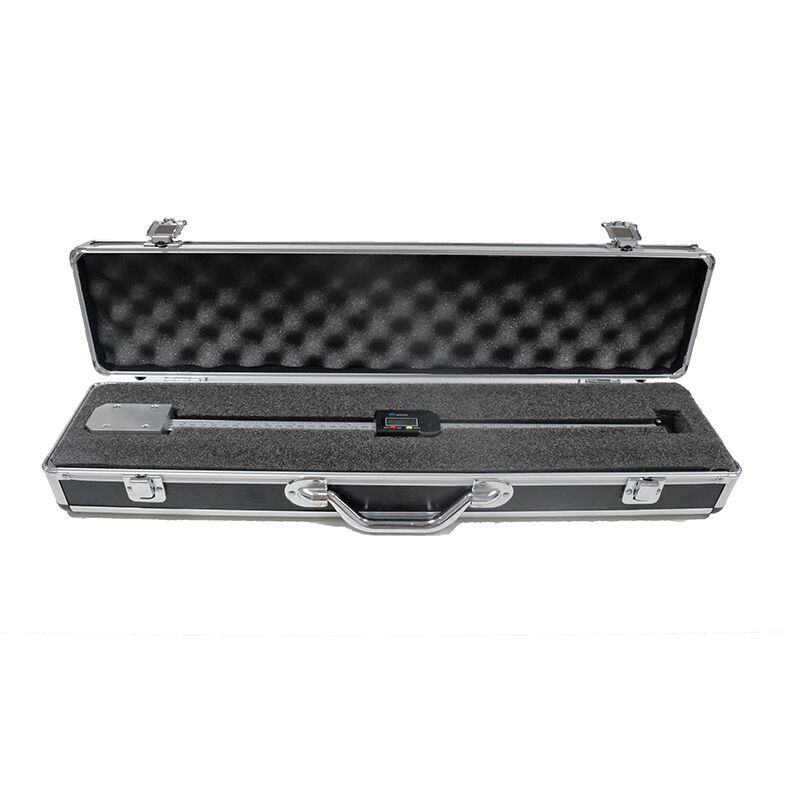

PE bag+pe foam+paper carton box/wooden case/alluminium case or as customer required
