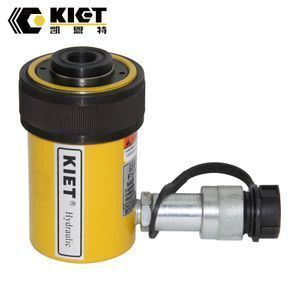

30ton hollow hydraulic jack
-
Supplier: Jiangsu Canete Machinery Manufacturing Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr China KIET -
Price: $545.00 /piece -
Min. Order: 1 piece
| Capacity: | 5-95 ton; | Min Height: | 55-330mm; |
| OEM: | Yes; | Brand Name: | KIET; |
| Single gross weight: | 32 KG; | Type: | Hydraulic Jack; |
| Application: | Construction; | Package Type: | 30ton hollow hydraulic jack packaging: Standard Wooden Box for Export; |
| Certificate: | ISO9001:2008; | Color: | customized; |
| Package Preview: | https://sc02.alicdn.com/kf/H3c6eaf5c135c4fdfae2e36a9421917dbw.jpg_640x640.jpg; | Product Name: | 30ton hollow hydraulic jack; |
| Selling Units: | Single item; | Material: | #45 steel; |
| Coll. Height: | 33-140mm; | Place of Origin: | Jiangsu China; |
| Weight range: | 1-72.6 kg; | Max Height: | 63-485mm; |
| Single package size: | 30X30X45 cm; | Accessories: | hydraulic hose, hydraulic pump; |
| Model Number: | KET-RCH-306; | Certification: | ISO9001:2008, CE; |
| Capacity (Load): | >50T; |
Single acting hydraulic cylinder is widely used in power station, ship manufactury and maintenance, building, railway, mining, steel plants, petrochemical and other induries.
Features
1. Single acting, spring return.
2. Backed enamel finish for increased corrosion resistance.
3. Hollow plunger design allows for both pull and push forces.
4. Collar threads for easy fixturing.
5. Built-in scraper seal reduces contamination, extending cylinder life.
8. 3/8''-18NPT coupler and dust cap included on all modles.
Parameters
| Model Number | Cylinder Capacity Ton | Stroke (mm) | Coll. Height A | Ext. Height B | Out. Dia.D | Cyl. Bore Dia.E | Plgr. Dia.F | Cyl.Effect. Area | Oil Cap. | Weight (kg) |
| KET-RCH-120 | 13(125) | 8 | 55 | 63 | 69 | 54,1 | 35,1 | 17,9 | 14 | 1,5 |
| KET-RCH-121 | 13(125) | 42 | 120 | 162 | 69 | 54,1 | 35,1 | 17,9 | 75 | 2,8 |
| KET-RCH-1211 | 13(125) | 42 | 120 | 162 | 69 | 54,1 | 35,1 | 17,9 | 75 | 2,8 |
| KET-RCH-123 | 13(125) | 76 | 184 | 260 | 69 | 54,1 | 35,1 | 17,9 | 136 | 4,4 |
| KET-RCH-202 | 20(215) | 49 | 162 | 211 | 98 | 73,1 | 54,1 | 30,7 | 150 | 7,7 |
| KET-RCH-206 | 20(215) | 155 | 306 | 461 | 98 | 73,1 | 54,1 | 30,7 | 476 | 14,1 |
| KET-RCH-302 | 30(326) | 64 | 178 | 242 | 114 | 88,9 | 63,5 | 46,6 | 298 | 10,9 |
| KET-RCH-306 | 30(326) | 155 | 330 | 485 | 114 | 88,9 | 63,5 | 46,6 | 722 | 21,8 |
| KET-RCH-603 | 60(576) | 76 | 247 | 323 | 159 | 123,9 | 91,9 | 82,3 | 626 | 28,1 |
| KET-RCH-606 | 60(576) | 153 | 323 | 476 | 159 | 123,9 | 91,9 | 82,3 | 1259 | 35,4 |
| KET-RCH-1003 | 95(931) | 76 | 254 | 330 | 212 | 165,1 | 127,0 | 133,0 | 1011 | 63,0 |
Application
We provide wooden packing for each hydraulic cylinder. Shipping can be by express parcel, by air or by sea shipping.
Jiangsu Canete Machinery Manufacturing Co., Ltd. is a manufacturer engaged in designing and manufacturing hydraulic cylinders (capacity covers from 10-1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers include many big Chinese industrial companies: China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation.
Our synchronous PLC hydraulic system has played a great role in the China high-speed railway constructions. In recent years, our sales revenue reached 30 million USD, making us one of the leaders in Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in hydraulic tools, such as:
• Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger;
• Hydraulic/ electric /pneumatic torque wrench (100-160000Nm);
• Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton);
• Hydraulic pumps, manual and electric type (max up to 3000bar);
• Integrated hydraulic lifting system solutions (4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting);
• Hydraulic nut and couplings. (M50-Tr1000)
Corresponding pump is available.
Q1: How to contact sales?
A1: Please call or email us.
Q2: How can I buy Kiet products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.
Q3: How long does it take to get the product if I place an order?
A3: It depends on products' production time, not more than 25 days.
Q4: How to make payment?
A4: Both of proforma invoice and sales contract at Alibaba are acceptable.
